This is the 12V variant of the DC12V 2507 Oil Containing Cooling Fan with XH2.54-2P 30CM Cable（9000RPM） Size:25*25*7MM in Cooling Fans. Available at ₹110.92 (₹94.00 + GST) with free shipping across India.
Looking for Dc12v Cable? DC12V 2507 Oil Containing Cooling Fan with XH2.54-2P 30CM Cable（9000RPM） Size:25*25*7MM is available at Zbotic with fast shipping across India.

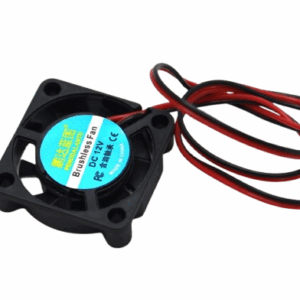

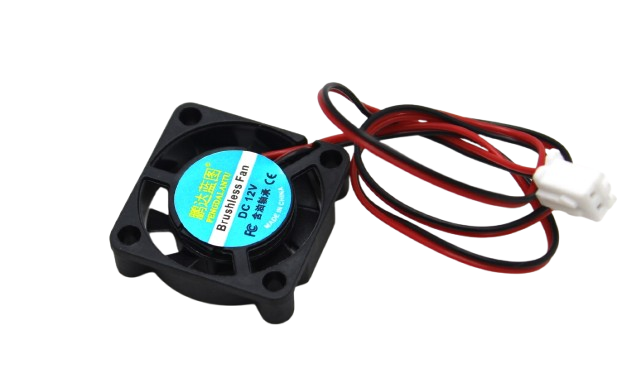

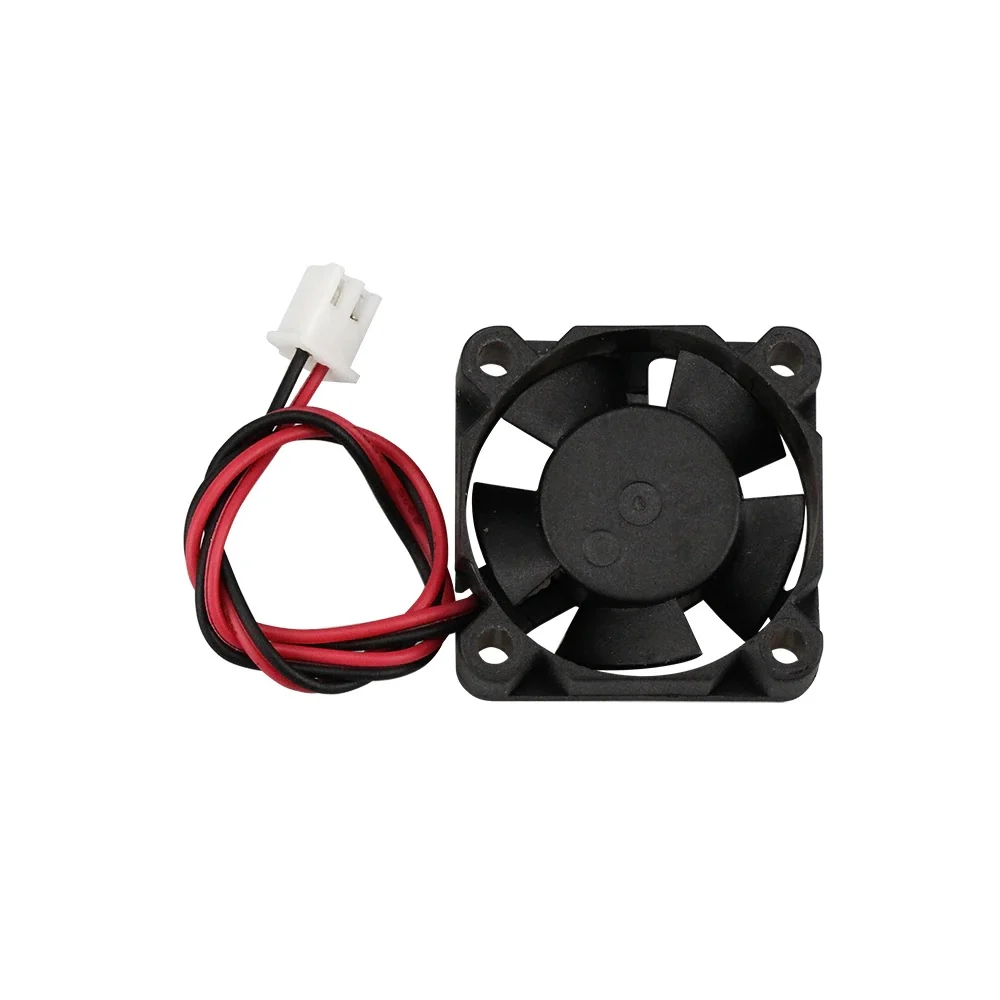

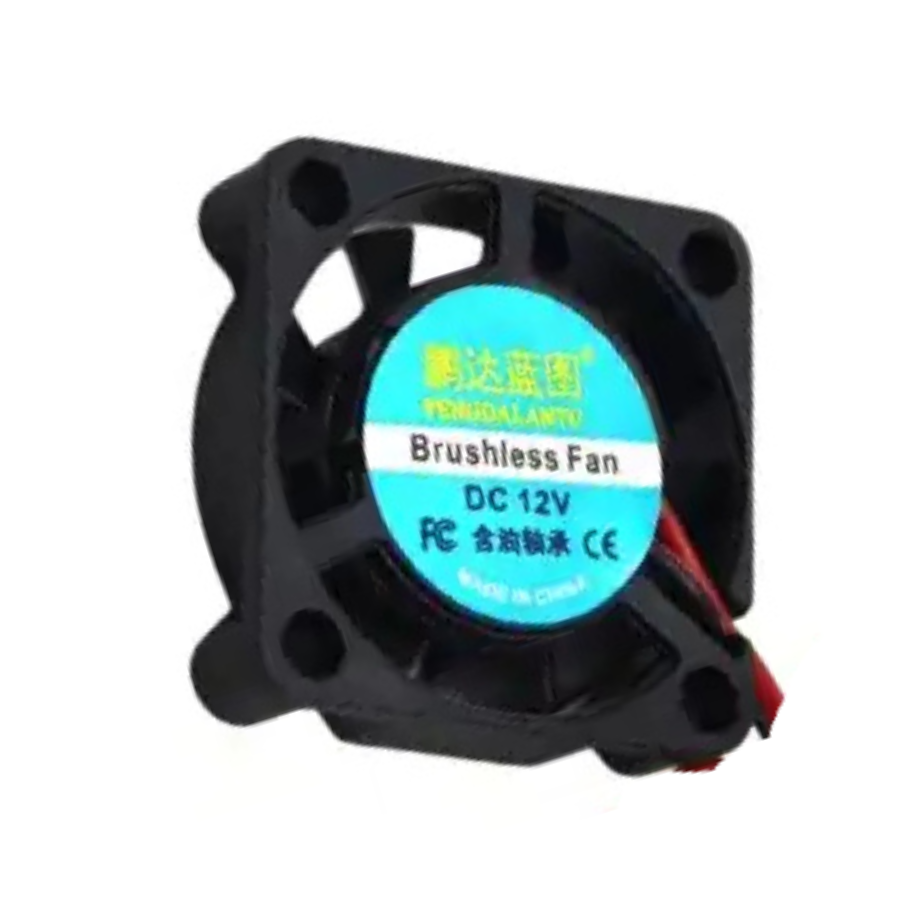

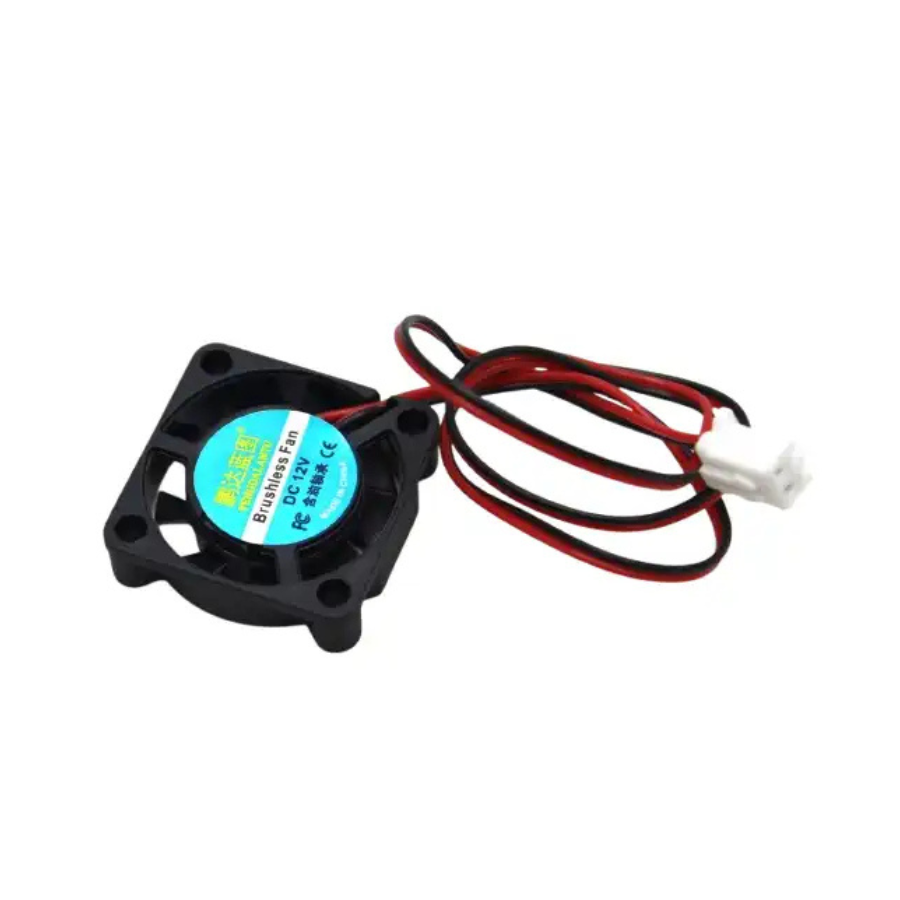

DC12V 2507 Oil Containing Cooling Fan with XH2.54-2P 30CM Cable（9000RPM） Size:25*25*7MM
This is best quality 2507 12V Cooling Fan. Use this compact 12V fan to keep your projects cool. It is very easy to install and uninstall with easy mounting and a Connector to connect onboard. This fan can be directly connected to Raspberry Pi pins 4 and 6. This Fan is also always in demand for High Ampere Motor driver as well as PC CPU Box
Note: We always buy the best product from the best supplier, Therefore Product Image may differ from the actual product in terms of Brand name.
Specifications and Features:
- 25 x 25 x 7 mm casing Frame size
- 20 mm mounting hole spacing
- Cable Length 30 CM
- Ready to plug Connector for Pi board
- Colour: Black
- Fan Speed:9000RPM
- Operating Voltage (VDC): 12V
- Max. Operating Current (mA): 100
- Connector: XH2.54-2P
- Material: High-Quality Plastic
| Material | High-Quality Plastic |
|---|---|
| Frame Size (mm) | 25 x 25 x 7 mm |
| Mounting Hole Diameter (mm) | 20 mm |
| Cable Length(mm) | 300 |
| Color: | Black |
| Fan speed | 9000 RPM |
| Operating Voltage (VDC) | 12 |
| Max. Operating Current (mA) | 100 |
| Connector | XH2.54-2P |
| Shipping Weight | 0.008 kg |
| Shipping Dimensions | 11 × 9 × 2 cm |
Package Includes:
1 x 2507 12V Cooling Fan
DC12V 2507 Oil Containing Cooling Fan with XH2.54-2P 30CM Overview
The DC12V 2507 Oil Containing Cooling Fan is a compact 25×25×7 mm axial fan running at up to 9,000 RPM. Equipped with an oil-lubricated bearing and a 30 cm XH2.54-2P cable, it delivers reliable airflow for small enclosures, driver boards and compact electronics.
Key Features of DC12V 2507 Oil Containing Cooling Fan with XH2.54-2P 30CM
- 25 × 25 × 7 mm form factor ideal for tight spaces
- Oil-containing bearing for low noise and extended lifespan
- High-speed 9,000 RPM performance at 12 V DC
- 30 cm XH2.54-2P cable for easy connection to driver boards
- Simple mounting using M2/M3 screws or double-sided tape
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Cooling single-board computers (Raspberry Pi, Arduino shields)
- Thermal management for high-current motor driver modules
- Airflow in compact PC enclosures and network switches
- Temperature control in 3D printer controller boards
- Ventilation for CCTV camera housings and small sensors
- Robotics mounting for servos and electronics bays
How to Use DC12V 2507 Oil Containing Cooling Fan with XH2.54-2P 30CM
Mount the fan in your project using M2 or M3 screws (through the four corner holes) or secure with double-sided tape. Plug the XH2.54-2P connector into your 12 V power source or compatible driver header. Ensure the airflow direction aligns with your cooling requirements and verify secure cable routing to prevent snagging.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What type of bearing does this fan use?
This model uses an oil-containing (sleeve) bearing, where internal lubrication reduces friction and noise, extending the fan’s operational life.
Can I power the fan directly from a Raspberry Pi?
You can connect the XH2.54-2P plug to the Pi’s 5 V header (pins 4 & 6) for low-speed airflow, but full 9,000 RPM performance requires a 12 V supply.
What mounting hardware is required?
Use standard M2 or M3 screws through the fan’s corner holes, or apply double-sided foam tape for a tool-free installation in tight spaces.
Technical Specifications
| Model | DC12V |
|---|---|
| Operating Voltage | 12V |
| Size | 7mm |
| Interface / Protocol | BLE |
| Speed | 9000 RPM |
| SKU | AI3187 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The DC12V 2507 Oil Containing Cooling Fan with XH2.54-2P 30CM Cable（9000RPM） Size:25*25*7MM is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
