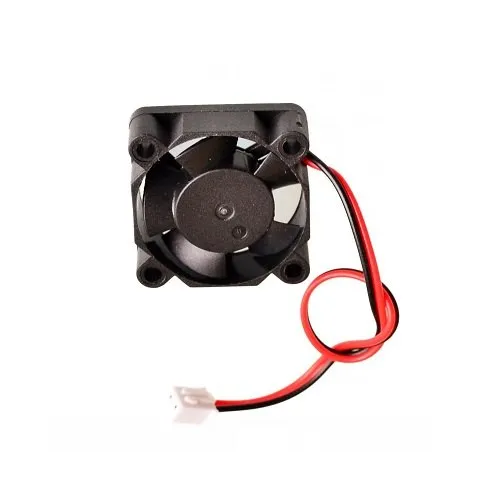

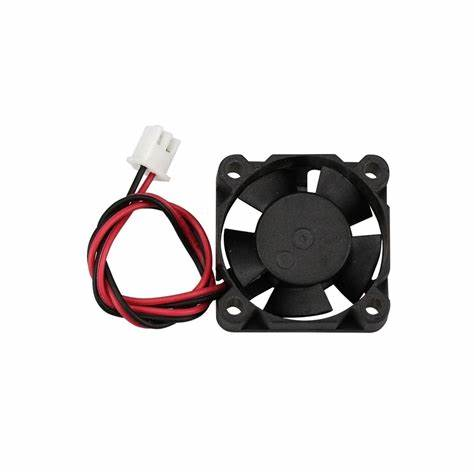

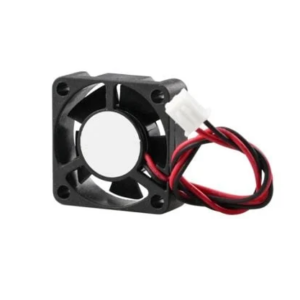

DC 5V 6010 Double Ball Cooling Fan with XH2.54-2P (60*60*10MM)

This is the 5V variant of the DC 5V 6010 Double Ball Cooling Fan with XH2.54-2P (60*60*10MM) in Cooling Fans. Available at ₹202.96 (₹172.00 + GST) with free shipping across India.

DC 5V 6010 Double Ball Cooling Fan with XH2.54-2P

This is the best quality 6010 5V Cooling Fan. Use this compact 5V fan to keep your projects cool. It is very easy to install and uninstall with easy mounting and a Connector to connect onboard. This Fan is also always in demand for High Ampere Motor  driver as well as PC CPU Box.

The “DC 5V 6010 Double Ball Cooling Fan with XH2.54-2P” is a compact cooling solution designed to dissipate heat from electronic components such as processors, graphics cards, or other integrated circuits. Operating at a voltage of 5 volts, it efficiently moves air to regulate temperature levels within electronic devices. The “6010” designation specifies its dimensions, with a width of 60mm and a thickness of 10mm, ensuring compatibility with various installation spaces. Featuring double ball bearings, this fan offers enhanced durability and a longer lifespan compared to other bearing types, making it suitable for continuous use. The inclusion of an XH2.54-2P connector facilitates easy integration into electronic setups, providing power and potentially enabling speed control. Overall, the “DC 5V 6010 Double Ball Cooling Fan with XH2.54-2P” serves as a reliable cooling solution for maintaining optimal operating temperatures in electronic systems.

Specification:

1. Voltage: DC 5V
2. Dimensions: 60mm x 60mm x 10mm
3. Bearing Type: Double Ball Bearing
4. Connector Type: XH2.54-2P
5. Operating Temperature: -10°C to 70°C
6. Speed: 3000 RPM to 6000 RPM
7. Airflow: 10 CFM to 20 CFM
8. Noise Level: 20 dB(A) to 30 dB(A)
9. Expected Lifespan: 50,000 to 100,000 hours
10. Mounting Holes: Standard 60mm fan mounting
11. Materials: Durable thermoplastics
12. Weight: Approximately 20 to 30 grams

package include-

1 X DC 5V 6010 Double Ball Cooling Fan with XH2.54-2P (60*60*10MM)

DC 5V 6010 Double Ball Cooling Fan with XH2.54-2P Overview

The DC 5V 6010 Double Ball Cooling Fan with XH2.54-2P is a compact 60 × 60 × 10 mm fan featuring double ball bearings for extended lifespan. Equipped with a 30 cm cable and XH2.54-2P connector, it offers plug-and-play cooling for single board computers, motor drivers and small enclosures.

Key Features of DC 5V 6010 Double Ball Cooling Fan with XH2.54-2P

• 5V DC Operation: Ideal for low-voltage electronics like Raspberry Pi and Arduino projects.
• Double Ball Bearings: Ensures stable operation and longer service life compared to sleeve-bearing fans.
• Compact 60×60×10 mm Frame: Fits tight spaces and standard fan mounts with 25 mm hole spacing.
• XH2.54-2P Connector: Ready to plug into Pi headers or compatible 2-pin sockets without soldering.
• 30 cm Cable Length: Provides flexibility in routing inside enclosures.
• Fast Shipping from Zbotic: Ships within 24 hours with tracking for non-backordered items.

Applications and Use Cases

• Cooling Raspberry Pi and other single-board computers under load
• Ventilation for 3D printer control boards and stepper motor drivers
• Supplementary airflow in mini PC or HTPC enclosures
• Heat dissipation in high-amp motor driver modules
• Cooling network switches, routers or media players in compact racks
• General DIY electronics projects requiring low-noise, reliable airflow

How to Use DC 5V 6010 Double Ball Cooling Fan with XH2.54-2P

Mount the fan using four screws at the 25 mm hole spacing into your enclosure or heatsink bracket, align the airflow direction (indicated by the arrow on the frame), then plug the XH2.54-2P connector into a 5 V header on your board or adapter. Ensure secure cable routing to avoid interference with moving parts.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Is the XH2.54-2P connector compatible with Raspberry Pi 5V headers?

Yes. The fan’s 2-pin XH2.54-2P connector matches the 5 V and GND pins on Raspberry Pi headers and other 2-pin 5 V output sockets.

Can I install this fan on a stepper motor driver module?

Absolutely. The 60 × 60 × 10 mm form factor and 25 mm hole spacing align with many motor driver heatsink brackets for targeted cooling.

Does this fan support PWM speed control?

No. Being a 2-pin fan, it runs at a fixed speed when supplied with 5 V. To vary airflow, adjust the supply voltage or use an inline DC regulator.
