This is the 5V variant of the DC 5V 4010 Cooling Fan with XH2.54-2P connector 30CM Cable in Cooling Fans. Available at ₹57.82 (₹49.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION
This 4010 5V Double Ball Cooling Fan is a high-quality product that can keep your projects from overheating. It has a convenient connector that fits into your board and can be plugged directly into Raspberry Pi pins 4 and 6. This fan is also suitable for PC CPU boxes and motor drivers that require high amperes.
Note: We always buy the best product from the best supplier, Therefore Image may differ from the actual product in terms of Brand name.
Specification:
| Material | High-Quality Plastic |
|---|---|
| Color: | Black |
| Max. Operating Current (mA) | 100 |
| Connector | XH2.54-2P |
| Dimensions(mm) | 40 x 40 x 10 |
| Cable Length (cm) | 30 |
| Shipping Weight | 0.013 kg |
| Shipping Dimensions | 9 × 6 × 1 cm |
Package Includes:
1 x DC 5V 4010 Cooling Fan

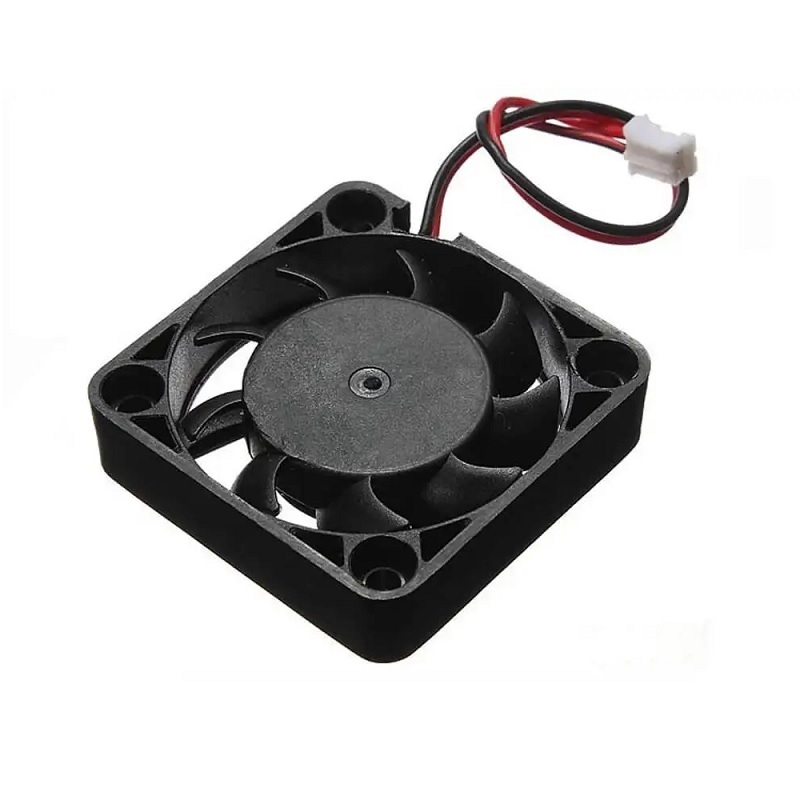

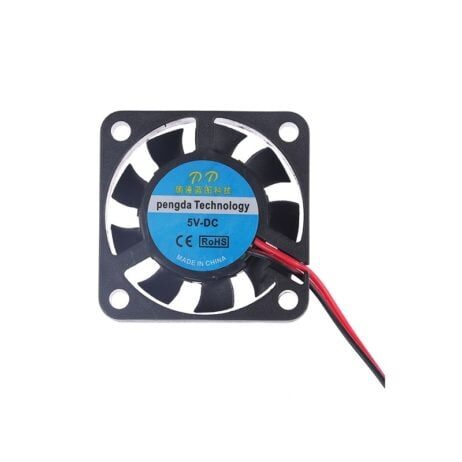

DC 5V 4010 Cooling Fan with XH2.54-2P connector 30CM Cable Overview
The DC 5V 4010 Cooling Fan is a compact 40 × 40 × 10 mm blower designed to prevent overheating in small electronics. Equipped with a 30 cm cable and XH2.54-2P plug, it can be directly connected to Raspberry Pi boards or other 5 V systems.
Key Features of DC 5V 4010 Cooling Fan with XH2.54-2P connector 30CM Cable
- Compact 40 × 40 × 10 mm frame size with 35 mm mounting hole spacing
- Double ball-bearing design for reliable, long-lasting operation
- Low 100 mA current draw at 5 V DC

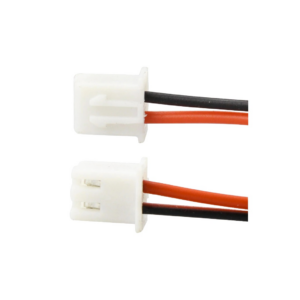

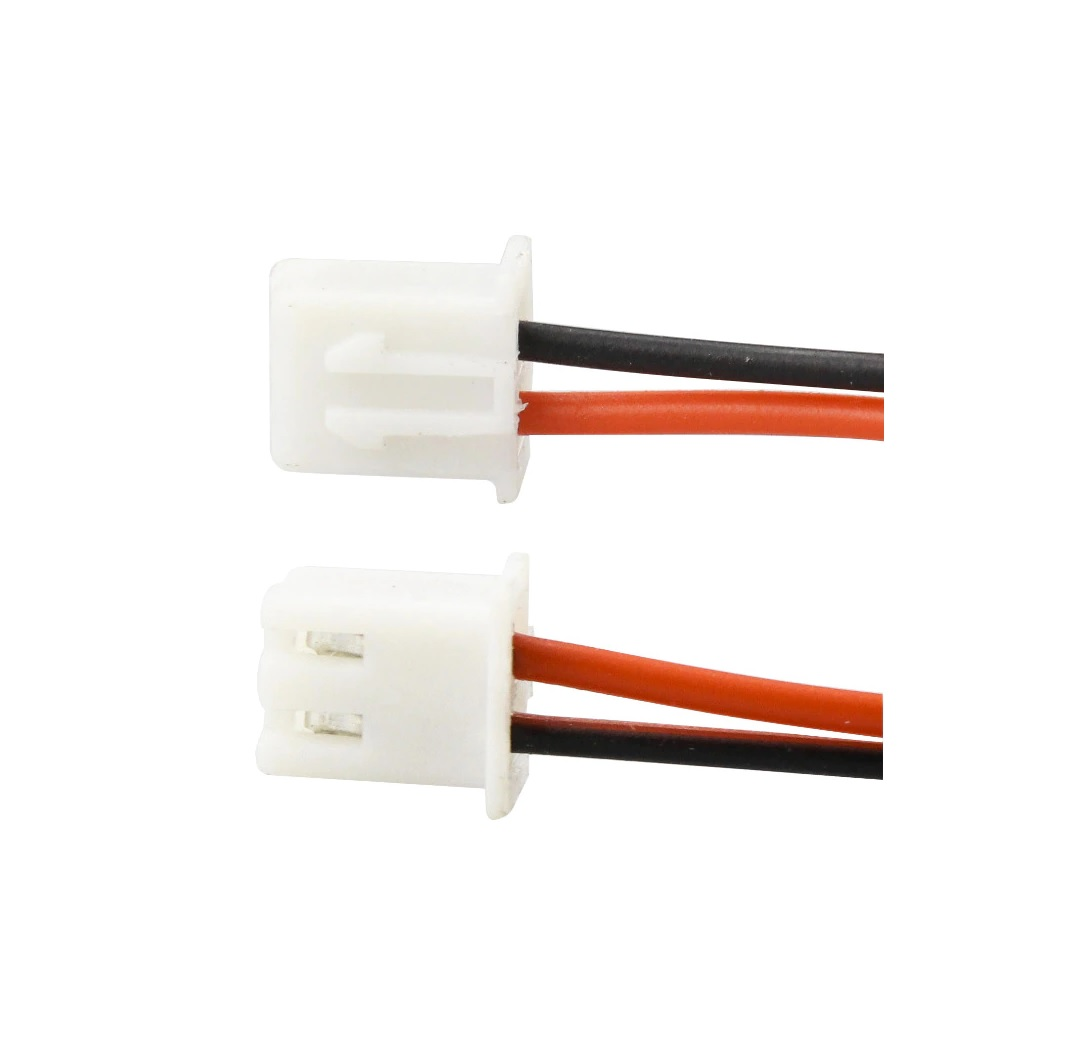

- 30 cm pre-wired XH2.54-2P connector for plug-and-play installation
- Ready to fit Raspberry Pi pins 4 (+5 V) and 6 (GND), also ideal for PC CPU boxes and motor drivers
- Genuine product and fast shipping from Zbotic
Applications and Use Cases
- Active cooling for Raspberry Pi and single-board computers
- Ventilation in compact PC CPU enclosures and mini-ITX builds
- Temperature management on motor driver boards and 3D printer controllers
- Airflow boost in robotics control cabinets and sensor boxes
- Heat dissipation for network switches, routers, and small electronics
How to Use DC 5V 4010 Cooling Fan with XH2.54-2P connector 30CM Cable
Mount the fan using four screws into your device’s 35 mm hole pattern, route the 30 cm cable to your 5 V power source, and plug the XH2.54-2P connector into the corresponding headers (e.g., Raspberry Pi pins 4 and 6). Ensure airflow direction aligns with your cooling requirements.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I connect this fan directly to a Raspberry Pi?
Yes, the XH2.54-2P connector is designed to mate with Raspberry Pi 5 V (pin 4) and GND (pin 6) headers for plug-and-play cooling.
What is the mounting hole spacing on the 4010 fan?
The mounting holes are spaced at 35 mm, compatible with standard 40 × 40 × 10 mm fan brackets and enclosures.
How long is the power cable and can I extend it?
The fan comes with a 30 cm cable terminated in an XH2.54-2P connector. For longer runs, you can use a compatible XH2.54-2P extension harness without affecting performance.
Technical Specifications
| Operating Voltage | 5V |
|---|---|
| Interface / Protocol | BLE |
| SKU | AI2941 |
| Weight | 0.0208 kg |
| Availability | Out of Stock |
Applications & Use Cases
The DC 5V 4010 Cooling Fan with XH2.54-2P connector 30CM Cable is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
