Core407I – STM32F407IGT6 Development Board

Core407I – STM32F407IGT6 Development Board

Introducing the Core407I, your gateway to STM32F application development. This compact STM32 development board houses the powerful STM32F407IGT6 microcontroller, making it an ideal choice for diving into the STM32F family and unleashing your creativity.

Designed as a plug-and-play solution, the Core407I comes fully equipped with essential features for seamless operation. From USB communication interface to JTAG/SWD programming/debugging capabilities, it’s all conveniently integrated into this ready-to-run system.

With built-in functionalities like clock circuitry, USB power management, and boot mode selection, the Core407I simplifies the development process, allowing you to focus on your projects without worrying about intricate setup procedures.

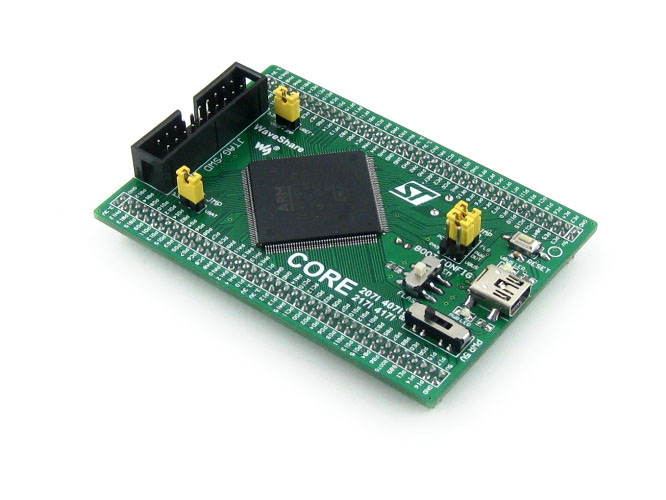

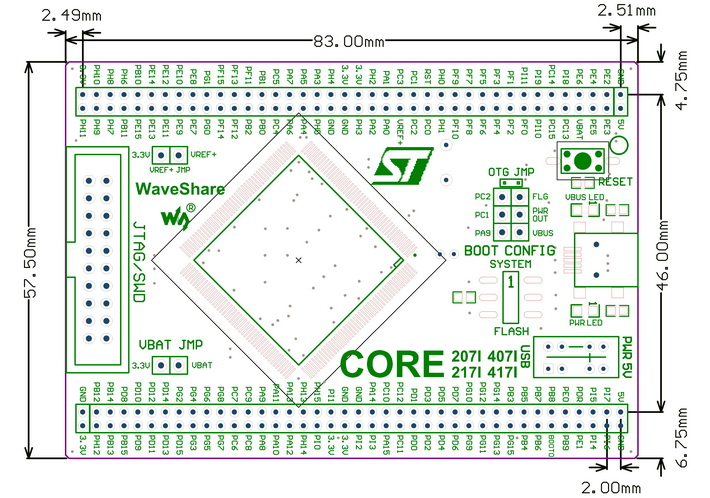

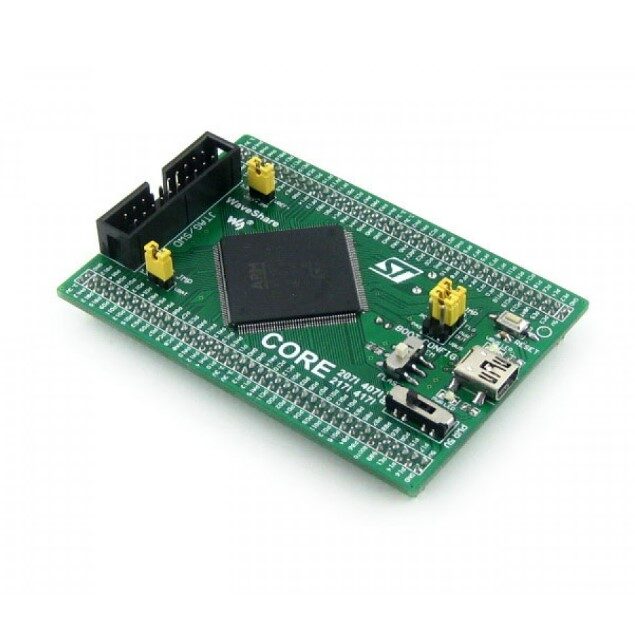

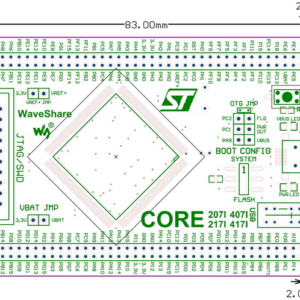

What sets the Core407I apart is its versatility. Its pin headers, located on the backside, make it easy to integrate into your application board, serving as the central MCU core circuit. Plus, with all I/O ports accessible through the headers and a compact pitch size of 2.0mm, you can optimize PCB layout for smaller footprint designs.

Experience the power of STM32F407IGT6 with the Core407I development board – your pathway to innovation and limitless possibilities in embedded systems development.

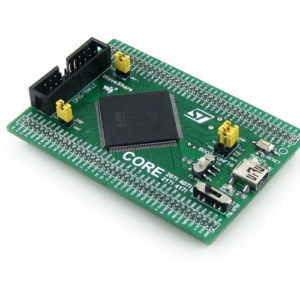

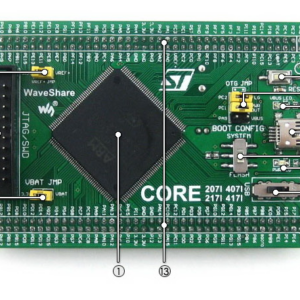

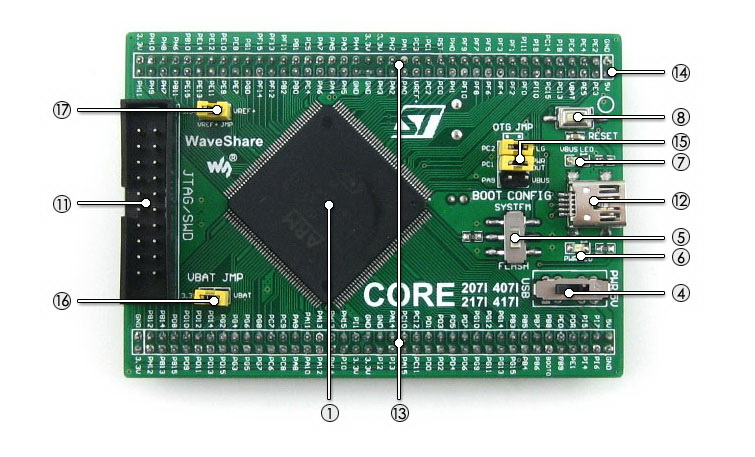

Features:

1. STM32F407IGT6:the high performance STM32 MCU which features:
   • Core: Cortex-M4 32-bit RISC
   • Feature: a full set of single-cycle DSP instructions
   • Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz
   • Operating Voltage: 1.8V-3.6V
   • Package: LQFP176
   • Memories: 1024kB Flash, 192+4kB SRAM
   • MCU communication Interfaces:
     • 3 x SPI, 4 x USART, 2 x UART, 2 x I2S, 3 x I2C
     • 1 x FSMC, 1 x SDIO, 2 x CAN
     • 1 x USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, ULPI and on-chip full-speed PHY
     • 1 x 10/100 Ethernet MAC
     • 1 x 8 to 14-bit parallel camera interface
   • AD & DA converters: 3 x AD (12-bit, 1μs, shares 24 channels); 2 x DA (12-bit)
   • Debugging/Programming: supports JTAG/SWD (serial wire debug) interfaces, supports IAP

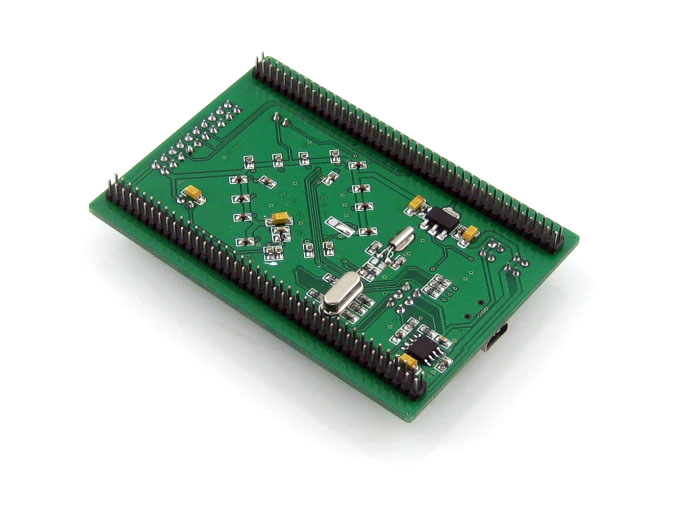

2. AMS1117-3.3 (on bottom side), 3.3V voltage regulator
3. MIC2075 (on bottom side), onboard USB power management device
4. Power supply switch, powered from 5Vin or USB connection
5. Boot mode switch, for configuring BOOT0 pin
6. Power indicator
7. VBUS LED
8. Reset button
9. 8M crystal oscillator (on bottom side)
10. 32.768K crystal (on bottom side), for internal RTC with calibration
11. JTAG/SWD interface: for debugging/programming
12. USB interface
    • as DEVICE, used for establishing USB communication between PC and the STM32 development board
    • as HOST, connecting to USB devices such as USB flash drive through a USB OTG cable
13. MCU pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion
14. 5Vin pinheader, 5V power supply is required when using USB HOST/OTG
15. USB HOST/OTG jumper
    • short the jumper when using USB HOST/OTG
    • open the jumper to disconnect from I/O port
16. VBAT selection jumper
    • short the jumper to use system power supply.
    • open the jumper to connect the VBAT to external power, such as battery.
17. VREF selection jumper
    • short the jumper to connect VREF+ to VCC.
    • open the jumper to connect VREF+ to other custom pin via jumper wire.

Development Resources

• Related software (KEIL etc.)
• Examples in C
• Schematic (PDF)
• Development documentations

Package Includes:

1. Core407I development board x 1
