Looking for Common Cathode Rgb Led? Common Cathode- RGB SMD LED is available at Zbotic with fast shipping across India.

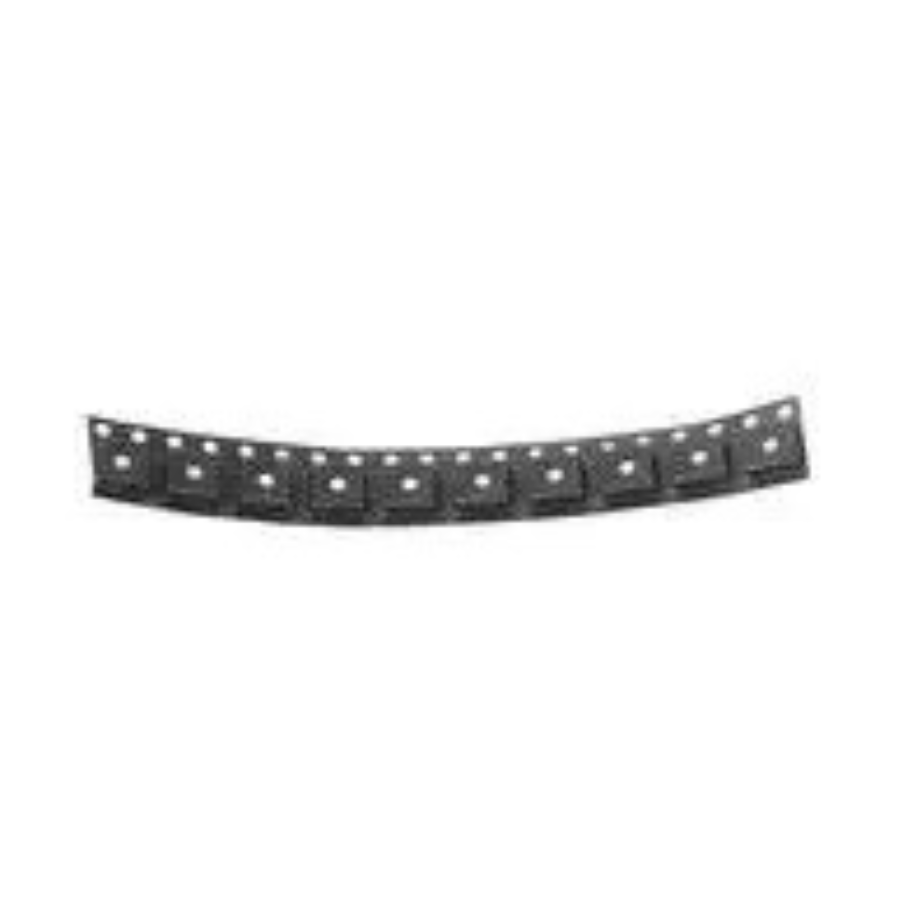

Common Cathode- RGB SMD LED
- A more concise and clear way to write the text is:The SMD0606RGB has six colors: soft red, orange, yellow, green, blue and white. Its wide viewing angle and inter reflector enhance light coupling for light pipe applications. It also needs low current, which suits portable or low-power devices.
-
- Applications:
- Automotive: Backlight in dashboards and switches.
- Telecommunication: Indicator and backlight in telephone and fax.
- Indicator and backlight for audio and video equipment.
- Indicator and backlight in office and family equipment.
- Flat backlight for LCD’s, switches and symbols.
- Light pipe application.
- General use.
Features
- Package in 8mm tape on 7’’diameter reel.
- White package.
- Optical indicator.
- Colorless clear window.
- Ideal for backlight and light pipe application.
- Inter reflector.
- Wide viewing angle.
- Suitable for vapor-phase reflow, infrared reflow and wave solder processes.
- Compatible with automatic placement equipment.
- Available on tape and reel (12mm Tape).
- The product itself will remain within RoHS compliant Version.
Package Includes
- 1 x Common Cathode- RGB SMD LED
Common Cathode- RGB SMD LED Overview
The Common Cathode RGB SMD LED (SMD0606RGB) is a compact surface-mount indicator device combining red, orange, yellow, green, blue and white emitters in a single 0606 package. Designed for backlighting and light pipe applications, its white package and colorless clear window deliver uniform, wide-angle illumination.
Key Features of Common Cathode- RGB SMD LED
- Common cathode configuration with six independent color anodes for full-color mixing
- White 0606 SMD package with colorless clear window for seamless light output
- Wide viewing angle and integrated reflector structure for enhanced light coupling in light pipes
- Low forward current operation, ideal for portable and low-power electronic devices
- Supplied in 8 mm tape on a 7″ diameter reel for high-speed pick-and-place assembly
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Dashboard backlighting and switch illumination in automotive interiors
- Status indicators and backlights in telecommunication devices such as telephones and fax machines
- Indicator lights and buttons on audio/video equipment
- Backlighting for office machinery, home appliances and consumer electronics
- Flat-panel LCD edge-lit backlight and keyboard key illumination
- Light pipe coupling in portable and handheld devices
How to Use Common Cathode- RGB SMD LED
For installation, place the LED on a PCB landing pattern matching the 0606 footprint and solder it using a standard lead-free reflow profile. Connect the common cathode to ground and each color anode to your driver or microcontroller via appropriate current-limiting resistors. Adjust resistor values to control individual color intensities and achieve the desired color mixing.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How does the common cathode design simplify wiring?
In this LED, all cathodes tie to a single pin, allowing each color anode to be driven independently with just one ground connection. This reduces PCB routing complexity and simplifies control circuitry.
What assembly method is recommended for these SMD LEDs?
The Common Cathode RGB SMD LED is supplied in 8 mm tape on a 7″ reel for compatibility with automated pick-and-place machines. Use a standard lead-free reflow solder profile (peak ~260 °C) for reliable attachment.
What current should I use to drive each color channel?
The LED operates efficiently at low forward currents; typically 2–5 mA per color yields bright output with minimal power consumption. Adjust resistor values to balance brightness across colors.
