Product Description
CH376S is a file management control chip that allows MCU systems to read and write files in USB Flash Drive or SD card. It supports both USB-Device Mode and USB-HOST Mode. It has built-in firmware for special communication protocols with Mass-Storage devices, SD card communication interface firmware, and FAT16, FAT32, and FAT12 file system management firmware. CH376S supports three communication interfaces: an 8-bit parallel, SPI interface or asynchronous serial interface.
Features:
- Internal curing CH376S chip FAT file system, file operations simple and fast
- Support including USB thumb drives, USB hard drives, USB flash drives and USB storage devices, USB card reader
- Support standard size SD card, HC-SD card, and compatible high capacity MMC, TF card
- Supports a variety of communication interfaces: 8-bit parallel, SPI interface, and asynchronous serial ports
- Compatibility: device is compatible with CH372, host compatible with CH375
Specification:
| Operating Voltage (VDC) | 5 |
|---|---|
| Interface | SPI |
| Supported Formats | FAT12, FAT16, FAT32 |
| Maximum Data Transfer Speed | 2MBPS |
| Length (mm): | 43 |
| Width (mm) | 22 |
| Height (mm) | 10 |
| Weight (g): | 10 |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 10 × 6 × 3 cm |
Package Includes:

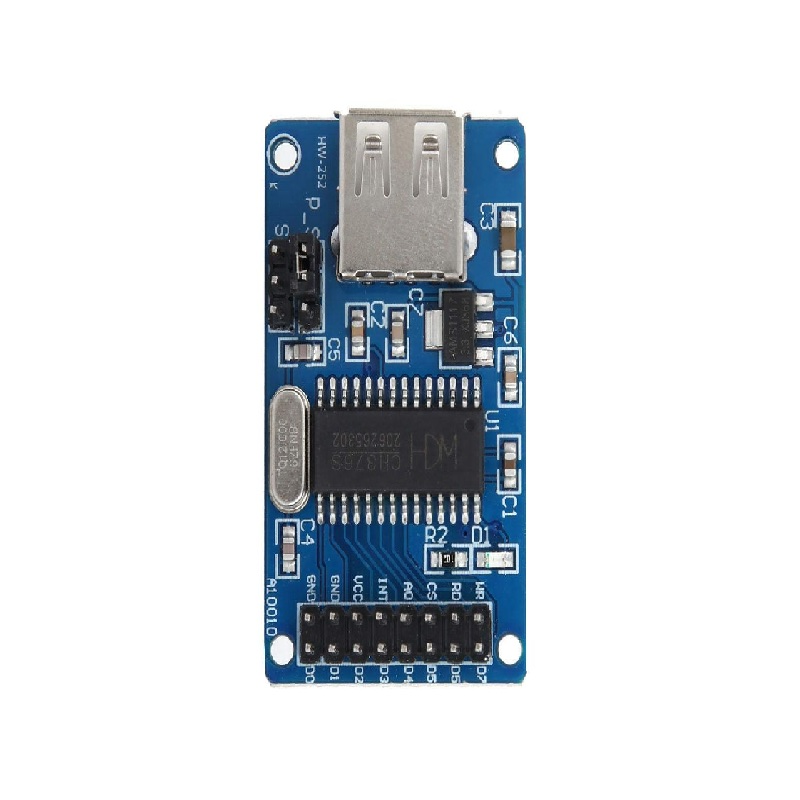

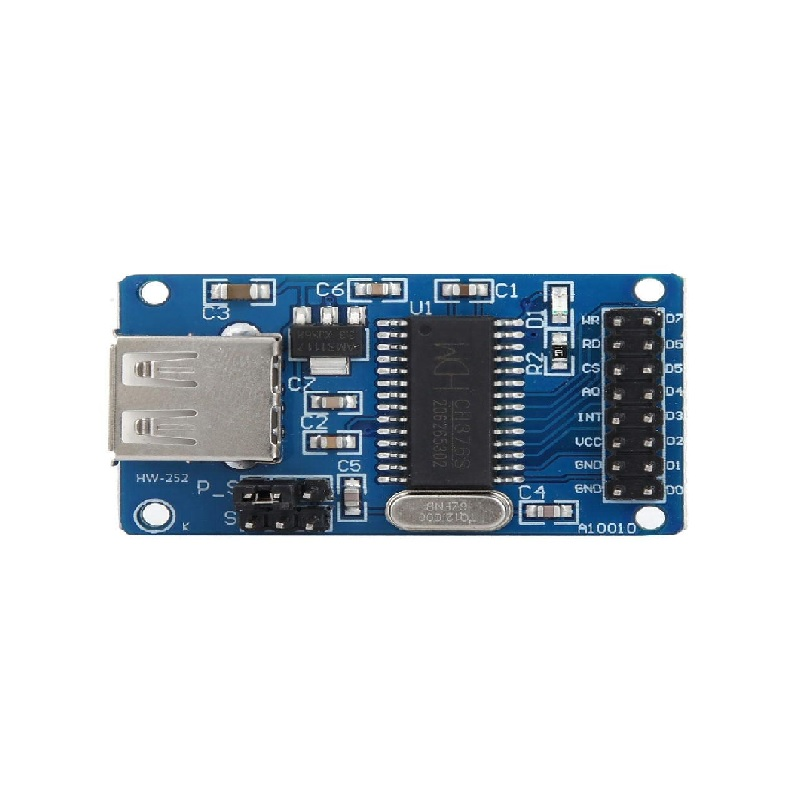

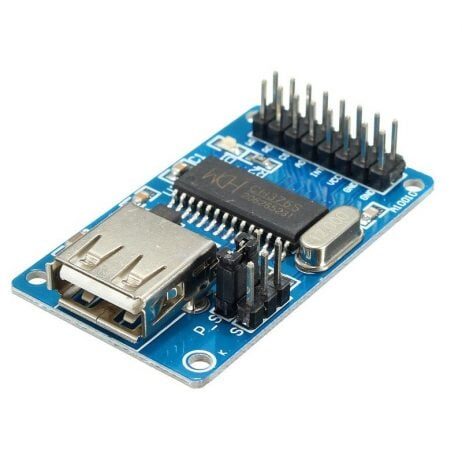

1 x CH376S USB Module U Disk Read Write Module
Arduino Timer and Counter: Precision Timing Without Delay
Table of Contents Why You Should Avoid delay() in Serious Projects The millis() Technique: Non-Blocking Timing Hardware Timers:...
Read More →
ESP32 NTP Clock: Internet-Synced Precision Time Display
Esp32 Ntp Clock Internet Time — this detailed tutorial covers everything from hardware selection to complete working code,...
Read More →
Arduino DAC Output: Generate True Analog Voltage
If you've wondered how to produce a true Arduino DAC analog output — a clean, continuously variable voltage...
Read More →Technical Specifications
| Model | CH376S |
|---|---|
| Interface / Protocol | USB |
| SKU | AI2762 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The CH376S USB Module U Disk Read Write Module is a versatile boards compatible with arduino used across a wide range of applications including electronics learning, robotics, home automation, sensor interfacing, and motor control.
Common use cases:
- Learning programming and electronics
- Building a line-following robot
- Creating a home automation hub
This product is ideal for students, hobbyists, and electronics beginners.
Technical Tip: Arduino Uno is the standard learning board. Mega offers more pins for complex projects. Nano suits breadboard prototyping.
