This is the 24V variant of the Yalu Brushless Controller 24V for Hub Motor 250W in Ebike Motors and Controllers. Available at ₹1,753.48 (₹1,486.00 + GST) with free shipping across India.
Looking for 24v Motor? Yalu Brushless Controller 24V for Hub Motor 250W is available at Zbotic with fast shipping across India.
If you are looking for a brushless wheel hub motor for your electric bike, you can find one at zbotic.in with excellent quality and best price. You can also get a Brushless Controller for 24V 250W Electric Scooter Hub Motor, which is one of the most important parts of your electric bike. This controller is the brain of the e-bikes, as it connects and controls all the other electronic parts such as the battery, motor, and throttle.
This hub motor is suitable for general applications and is very durable and reliable. It is commonly used in 24V scooters or small kiddie carts, and it has also proven to be a good motor for robotics. Whether you want to build your own e-bike or upgrade an existing one, you will find all the assembly parts and kits you need at zbotic.in.
We also provide a good knowledge base and technical support to our customers for the assembly of the e-bikes. Visit our website today and get your brushless wheel hub motor and controller at the best price!
Note: Check that voltage is compatible, the motor is of same or fewer watts and for similarity in size, shape.

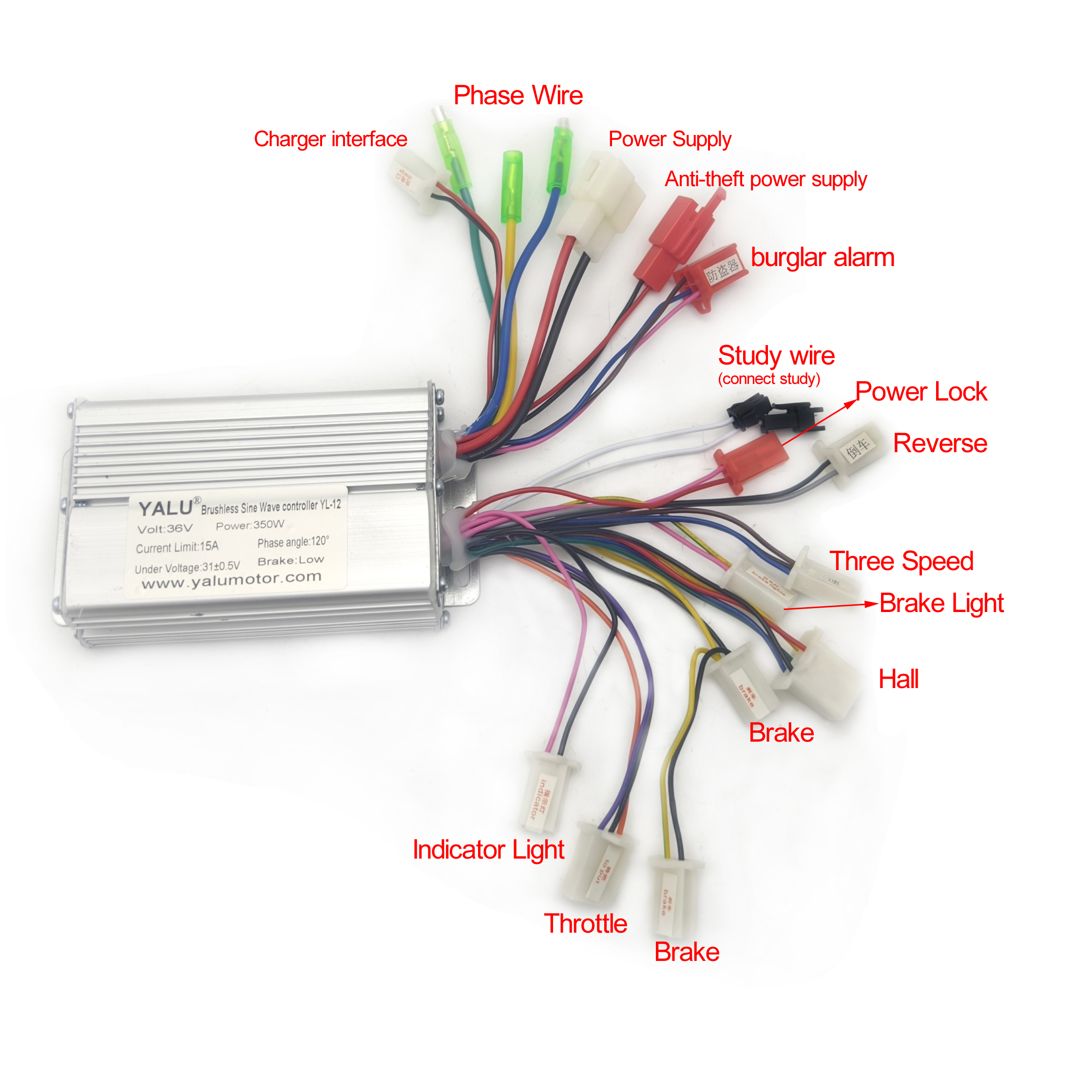

Connection Diagram:
Features:
- Brake Light
- Indicator Light
- Power Lock
- Anti-theft
specification-
| Current(A) | 15A |
|---|---|
| Under Voltage | 21V |
| Length (mm): | 102 |
| Width (mm) | 69.2 |
| Height (mm) | 32 |
| Weight (gm) | 205 |
| Shipping Weight | 0.21 kg |
| Shipping Dimensions | 14 × 8 × 8 cm |
Package Includes:
1 x Yalu Brushless Controller 24V for Hub Motor 250W
Yalu Brushless Controller 24V for Hub Motor 250W Overview
The Yalu Brushless Controller 24V for Hub Motor 250W is a dedicated electronic speed controller designed to drive 24V brushless hub motors up to 250 watts. It serves as the “brain” of electric scooters, bikes and small carts by managing battery input, motor phases, throttle signals and under-voltage protection.
Key Features of Yalu Brushless Controller 24V for Hub Motor 250W
- Rated voltage: 24V nominal supply for consistent performance
- Rated power output: 250W continuous drive suitable for light-duty vehicles
- Maximum current handling: 16±1 A for efficient power delivery
- Under-voltage protection at 21±0.V to safeguard battery health
- Compact, durable housing for reliable operation in varied environments
- Fast shipping from Zbotic across India ensures quick project turnaround
Applications and Use Cases
- 24V 250W electric bicycles and retrofit kits
- Light electric scooters for urban commuting
- Small kiddie ride-on carts and amusement vehicles
- Educational and hobbyist robotics projects with hub motors
- DIY electric go-karts and cargo trikes
How to Use Yalu Brushless Controller 24V for Hub Motor 250W
Begin by securely mounting the controller away from heat and moisture. Connect the three phase wires to the hub motor, attach the hall sensor cable if present, and wire the main battery leads to a 24V pack. Plug in the throttle and display connectors, then power on to verify LED indicators. Adjust throttle calibration and test under-voltage cutoff before full operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the input voltage and power rating of this controller?
This controller is designed for a 24V battery system and delivers up to 250W continuous power, handling currents of 16±1 A.
Can I use this controller on my 24V electric scooter?
Yes, it is compatible with most 24V hub motors up to 250W and can be wired to standard scooter throttle, battery pack, and motor connectors.
How does the under-voltage protection work?
The controller continuously monitors battery voltage and automatically cuts power when voltage falls below 21±0.V, preventing deep discharge and extending battery life.
