Looking for Tf40 Sensor? Benewake TF40-S LiDAR Sensor is available at Zbotic with fast shipping across India.

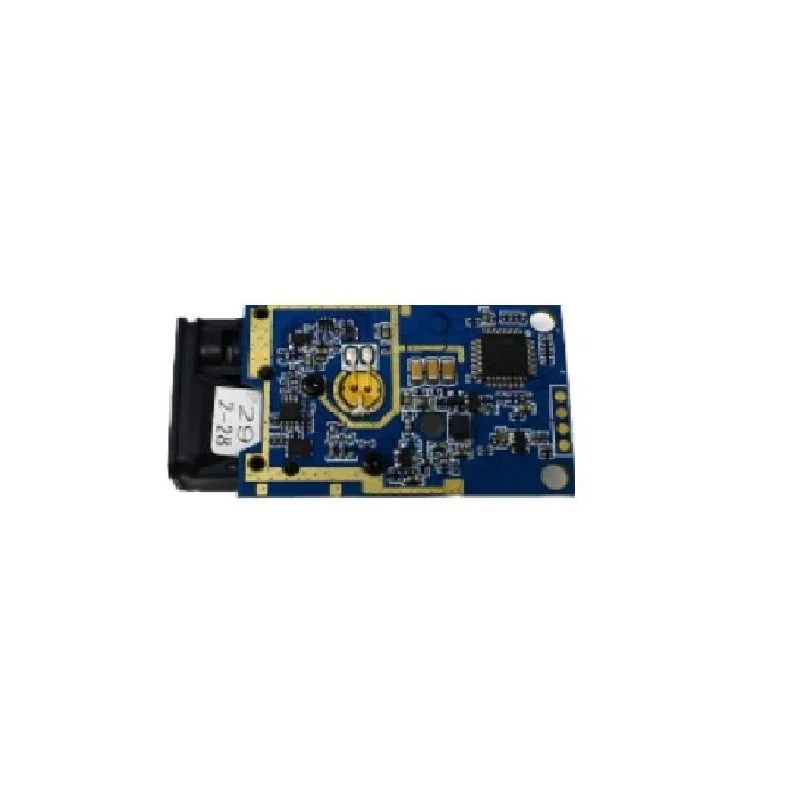

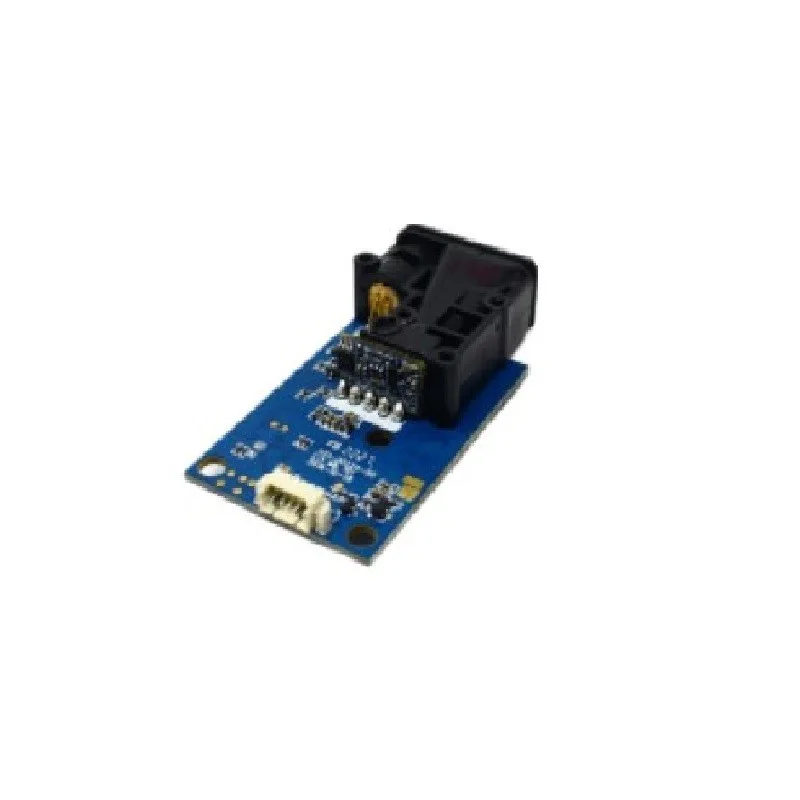

The Benewake TF40-S LiDAR sensor is an advanced, multifunctional LiDAR (Light Detection and Ranging) device designed for accurate distance measurements and object detection. Belonging to Benewake’s TF series, it is renowned across various industries for its reliable performance and comprehensive features.
Features:
- LiDAR Technology: The TF40-S utilizes Time-of-Flight (ToF) LiDAR technology to measure distances accurately
- High Accuracy
- Compact and Lightweight
- Multi-Data Outputs
- IP65 Rating
- Wide Field of View (FoV)
- Customizable Settings
- User-Friendly Interface
Specification-
| Light Source | LD |
|---|---|
| Accuracy | ±2mm |
| Resolution | 1mm |
| Frame rate(Hz) | 5Hz |
| Repeatability | 1σ：<2mm |
| Operating Temperature (°C) | -10~50℃ |
| Central wavelength(nm) | 635nm |
| Lense Viewing Angle (FOV) | <1mrad |
| Power Supply(V) | 3.3V |
| Range | 0.05-40m@90% Reflectivity 1 0.05-20m@10% Reflectivity 2 |
| Average Current Consumption (mA) | ≤180mA |
| Average Power Consumption (W) | ≤0.6W |
| Peak Current(mA | ≤180mA |
| Communication Level | LVTTL(3.3V |
| UART Baudrate | 9600 |
| Data Bit | 8 bit |
| Stop Bit | 1 bit |
| Shipping Weight | 0.045 kg |
| Shipping Dimensions | 14 × 12 × 2 cm |
Package Includes:

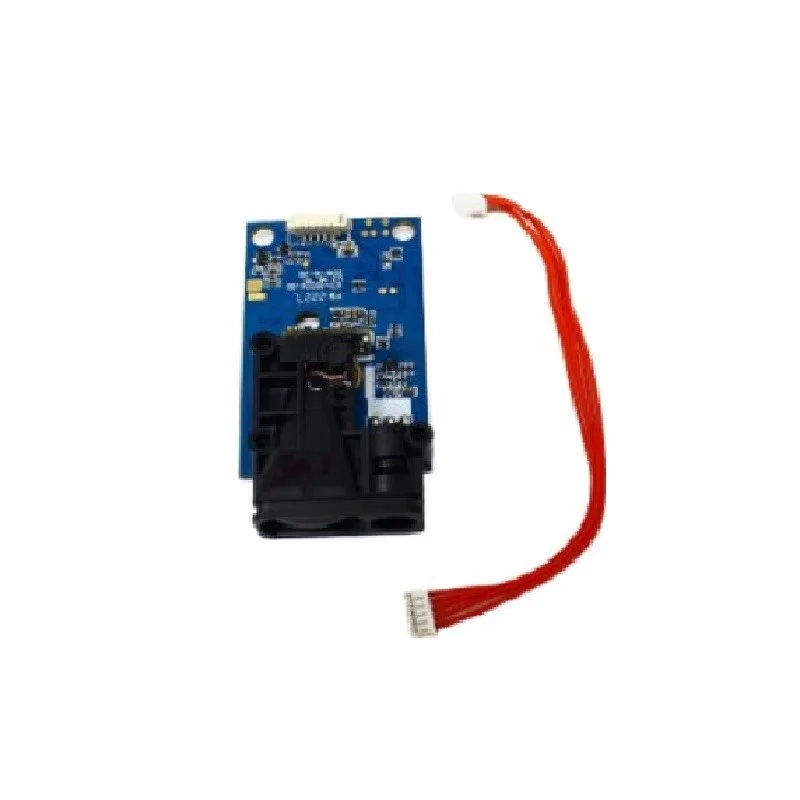

1 x Benewake TF40-S LiDAR Sensor
Benewake TF40-S LiDAR Sensor Overview
The Benewake TF40-S LiDAR Sensor is an advanced Time-of-Flight ranging device designed for precise distance measurement and object detection. With a compact, IP65-rated housing and ±2 mm accuracy, it delivers reliable performance in indoor and outdoor applications.
Key Features of Benewake TF40-S LiDAR Sensor
- Time-of-Flight Technology: Utilizes ToF LiDAR for accurate distance readings.
- High Accuracy: Delivers precise measurements with ±2 mm repeatability.
- Durable Design: IP65-rated enclosure protects against dust and water.
- Compact & Lightweight: Simplifies integration into robots, drones, and automation systems.
- Multi-Data Outputs: Customizable data formats and real-time output via user-friendly interface.
- Fast Shipping from Zbotic: Get genuine stock delivered quickly across India.
Applications and Use Cases
- Obstacle avoidance and navigation for mobile robots and AGVs
- Altitude control and terrain following in UAVs and drones
- Perimeter security and intrusion detection systems
- Level sensing and part position monitoring in industrial automation
- Mapping and SLAM experiments in robotics research
How to Use Benewake TF40-S LiDAR Sensor
Mount the TF40-S securely and connect its interface cable to your controller’s serial or CAN port. Power the unit per the datasheet recommendations, then use the built-in command set over the serial link to configure detection range, scan frequency, and output format. Once parameters are saved, the sensor begins streaming real-time distance data ready for your application.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum detection range of the TF40-S?
The Benewake TF40-S provides reliable ranging up to 40 meters under standard environmental conditions, suitable for both near-field and long-distance detection.
How accurate is the distance measurement?
This LiDAR sensor achieves high precision with a measurement accuracy of ±2 mm, ensuring dependable data for positioning and obstacle avoidance.
How do I configure the sensor’s measurement settings?
Use the TF40-S’s user-friendly interface via its serial connection to adjust parameters such as detection range, scanning frequency, and data output formats. Configurations are stored onboard for seamless operation after power cycles.
UV Index Sensor VEML6075: Safe Sun Exposure Monitor Build
Ultraviolet radiation from the sun causes sunburn, accelerates skin aging, and is the primary cause of skin cancer...
Read More →
Load Cell & HX711 Guide: Weight Measurement Projects
A load cell combined with the HX711 amplifier module gives you an accurate, affordable weight measurement system that...
Read More →
Conductivity Sensor: Measure TDS and Water Quality DIY
Electrical conductivity (EC) measurement is the backbone of water quality monitoring. Whether you are testing drinking water purity,...
Read More →Technical Specifications
| Brand | Benewake |
|---|---|
| Model | TF40-S |
| SKU | AI5693 |
| Weight | 0.0104 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Benewake TF40-S LiDAR Sensor is a versatile lidar sensor used across a wide range of applications including robot navigation, obstacle detection, indoor mapping, autonomous vehicles, and distance measurement.
Common use cases:
- Adding obstacle avoidance to a mobile robot
- Building a 2D/3D indoor map
- Measuring distances for surveying
This product is ideal for robotics developers, autonomous vehicle engineers, and surveying professionals.
Technical Tip: LiDAR sensors use laser pulses to measure distance. Check scan rate (Hz), range (meters), and angular resolution for your application.
