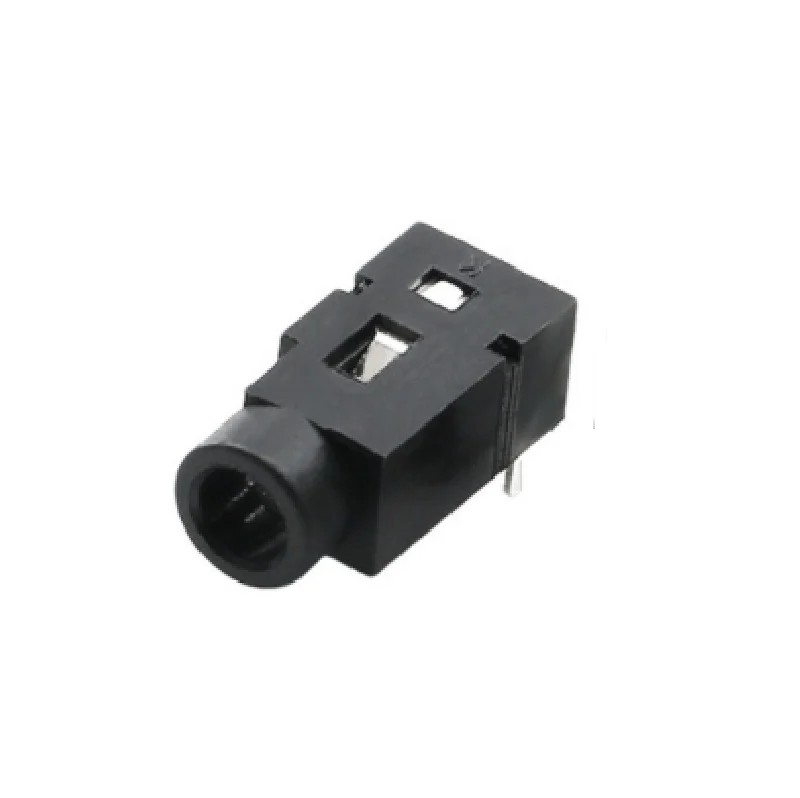

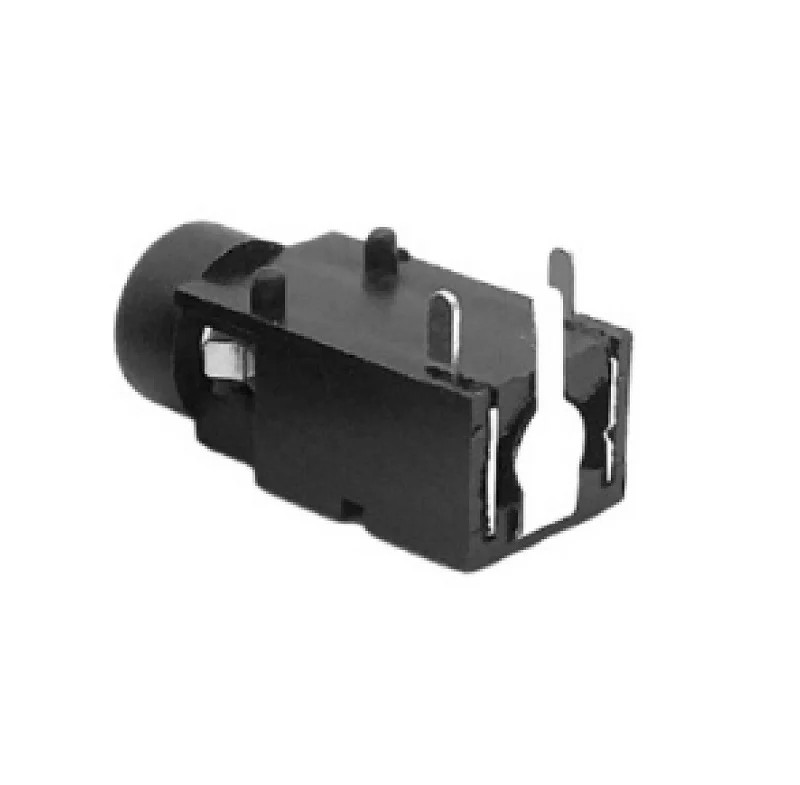

This is the Black variant of the Audio Jack PJ311-3.5mm Female Connector Black in Audio Connectors. Available at ₹10.50 (₹8.90 + GST) with free shipping across India.
The PJ311 3.5mm Female Connector, in a sleek black finish, is a versatile audio jack designed for 3.5mm audio cables. Its durable construction ensures a reliable connection for headphones, speakers, and other audio devices. The elegant black color enhances its aesthetic appeal, making it an ideal choice for electronic applications where both style and performance are important.
Specification
| Rated Current (A) | 0.5 |
|---|---|
| Rated Voltage (V): | 30 |
| Insulation Resistance (MOhm) | 100 |
| Dielectric Strength | AC 500V for min |
| Operating Temperature (°C) | -25 to 85 |
| Contact Resistance | 100mohm max |
Package Includes:
1 x Audio Jack PJ311-3.5mm Female Connector Black
Audio Jack PJ311-3.5mm Female Connector Black Overview
The PJ311 3.5mm Female Connector in sleek black is a standard audio jack designed for accepting 3.5mm audio plugs. It provides a stable interface for headphones, speakers and other line-level audio devices, ensuring reliable signal transfer in consumer electronics projects.
Key Features of Audio Jack PJ311-3.5mm Female Connector Black
- Compact black housing ideal for PCB or panel installations
- Rated for up to 0.5 A current and DC 30 V for safe audio signal handling
- High insulation resistance (≥100 MΩ) and dielectric strength (AC 500 V) for minimal signal leakage
- Wide operating temperature range from –25 °C to 85 °C for varied environments
- Durable contacts with ≤100 mΩ resistance and 5000 insertion cycles
- Genuine Audio Jack PJ311 from Zbotic’s authorized inventory
- Fast shipping from Zbotic: dispatched within 24 hours
Applications and Use Cases
- Embedding into DIY audio amplifier and headphone amp circuits
- Replacement jack in portable speaker and audio dock designs
- Integration in custom enclosures for media players or portable recorders
- Prototyping on hobbyist PCBs for headphone or line-out testing
- Upgrading existing audio equipment to replace worn-out jacks
How to Use Audio Jack PJ311-3.5mm Female Connector Black
Position the PJ311 audio jack in your device’s panel or PCB layout and solder the terminals according to your circuit design. Ensure proper alignment of the 3.5 mm socket before final assembly. Once secured, insert a matching audio plug to establish a snug, noise-free connection for playback or recording.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What devices work with this 3.5mm female connector?
The PJ311 accepts standard 3.5 mm audio plugs used on headphones, earphones, portable speakers, line-out cables and many consumer audio devices.
What are the electrical and mechanical ratings?
It is rated up to 0.5 A at DC 30 V, with insulation resistance greater than 100 MΩ, dielectric strength of AC 500 V, contact resistance under 100 mΩ, and a minimum of 5000 insertion cycles.
Can it operate in extreme temperatures?
Yes, the PJ311 performs reliably between –25 °C and 85 °C, making it suitable for indoor and controlled outdoor electronic applications.
Technical Specifications
| Model | PJ311-3 |
|---|---|
| Size | 3.5mm |
| Color | Black |
| SKU | AI6352 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Audio Jack PJ311-3.5mm Female Connector Black is a versatile audio connectors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
