Arducam 2MP IMX462 Motorized IR-CUT Camera is capable of capturing visible and near-infrared images with very low noise even in extremely low-light conditions or no light (near 0 lux). This high-speed camera captures uncompressed Full HD images at 50fps at full resolution. This is great for minimizing inter-frame distortion and reducing motion blur, resulting in sharper images with more scene detail when capturing moving objects. High sensitivity, low dark current, and no smear can be achieved through the adoption of R, G, and B primary color mosaic filters.
APPLICATIONS:
- Surveillance cameras
- FA cameras
- Industrial cameras
- Autonomous mobile robots, UGV/UAV, ADAS, etc.
Features:
- Input frequency: 74.25 MHz / 37.125 MHz
- Pixels: Approx. 1920 (H) × 1080 (V) 2.07 million pixels
- Maximum frame rate in Full HD 1080p mode: 30 fps
- High Dynamic Range (HDR) function: Multiple exposure HDR, Digital Overlay HDR
- 10-bit/12-bit A/D converter
- CSI-2 serial data output: 2 Lane, RAW10 / RAW12 output
Specifications:
- Sensor SONY STARVIS IMX462
- Optical Size Type 1/2.8” (Diagonal 6.46 mm)
- Pixel Size 2.9μm×2.9μm
- Shutter Type Rolling Shutter
- Max Sensor Resolution 1920 x 1080
- Color Filter Array Bayer RGB
- Resolution and Frame Rate RAW10: 1920×1080@46fps;1280×720@90fps, RAW12:
- 1920×1080@46fps;1280×720@90fps
- Supported Platform Pi 4/3/Zero/CM3/CM4
- Output Format RAW10/RAW12
- Focus Type Manual
- Lens Mount M12 Mount
- F.NO 1.6±10%
- MOD 2.0
- Effective Focal Length 4.3±5%mm
- Back Focal Length 5.43±0.2mm
- FOV(Field of View) 80°H
- IR Sensitivity Motorized IR-CUT

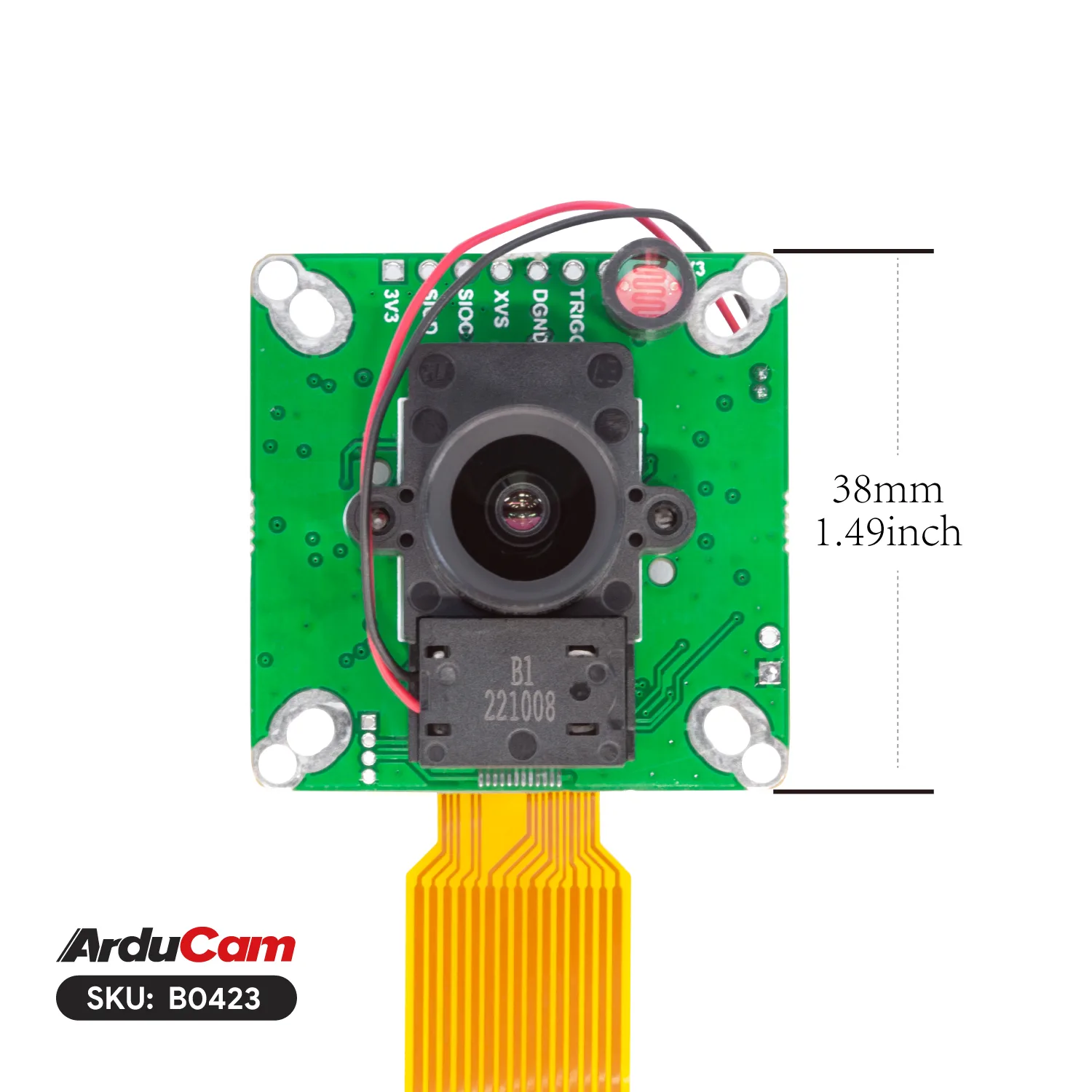

- Camera Board Size 38mmx38mm
Package Includes:
1 x IMX462 Motorized IR-CUT Camera Module
1 x 150mm 15pin to 22pin flex cable
About Imx462 Motor
Arducam 2MP Ultra Low Light STARVIS IMX462 Motorized IR-CUT Camera for Raspberry Pi is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Raspberry Pi, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Raspberry Pi
- SKU: AI1878
- Category: Arducam Cameras and Accessories
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Imx462 Motor and other products.
Applications
Imx462 Motor can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Imx462 Motor today and start building.
About Imx462 Motor
Arducam 2MP Ultra Low Light STARVIS IMX462 Motorized IR-CUT Camera for Raspberry Pi is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Raspberry Pi, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Raspberry Pi
- SKU: AI1878
- Category: HMI LCD Display
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Imx462 Motor and other products.
Applications
Imx462 Motor can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Imx462 Motor today and start building.
About Imx462 Motor
Arducam 2MP Ultra Low Light STARVIS IMX462 Motorized IR-CUT Camera for Raspberry Pi is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Raspberry Pi, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Raspberry Pi
- SKU: AI1878
- Category: PCT and DC Power Connectors
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Imx462 Motor and other products.
Applications
Imx462 Motor can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Imx462 Motor today and start building.
Arducam 2MP Ultra Low Light STARVIS IMX462 Motorized IR-CUT Overview
The Arducam 2MP Ultra Low Light STARVIS IMX462 Motorized IR-CUT Camera for Raspberry Pi is a high-sensitivity, full HD (1920×1080) board camera equipped with Sony’s STARVIS back-illuminated sensor. It features a built-in motorized IR-cut filter for seamless day/night operation and captures sharp, low-noise images at up to 50 fps, even in near-zero light conditions.
Key Features of Arducam 2MP Ultra Low Light STARVIS IMX462 Motorized IR-CUT
- 2 MP Sony STARVIS IMX462 sensor with 2.9 µm×2.9 µm pixels for superior low-light sensitivity
- Motorized IR-CUT filter module for automatic switching between visible and near-infrared imaging
- Full HD 1080p video at 50 fps with uncompressed output to minimize motion blur
- Rolling shutter design and low dark current for clear, smear-free images
- Compact CSI-2 interface for direct connection to Raspberry Pi camera port
- Genuine Arducam product, fast shipping from Zbotic India
Applications and Use Cases
- Indoor and outdoor surveillance systems requiring night vision capabilities
- Factory automation (FA) cameras for low-light production monitoring
- Machine vision in industrial inspection and quality control
- Autonomous mobile robots, UGVs and UAVs operating in variable lighting
- Advanced Driver Assistance Systems (ADAS) for low-light road detection
How to Use Arducam 2MP Ultra Low Light STARVIS IMX462 Motorized IR-CUT
To set up the camera, mount it onto your Raspberry Pi’s CSI-2 port using the supplied ribbon cable and secure it in place. Enable the camera interface in raspi-config, install Arducam’s V4L2 driver or libcamera utilities, then adjust focus by rotating the lens mount. The motorized IR-cut filter will switch automatically based on ambient light, enabling seamless day/night imaging without manual intervention.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What resolution and frame rate does this camera support?
The Arducam IMX462 captures up to 1920×1080 at 50 frames per second, delivering full HD uncompressed video for smooth motion and detailed imagery.
How does the motorized IR-CUT filter operate?
The built-in motorized IR-CUT module automatically transitions between visible-light and near-infrared modes according to ambient illumination, ensuring optimal image quality day and night without user intervention.

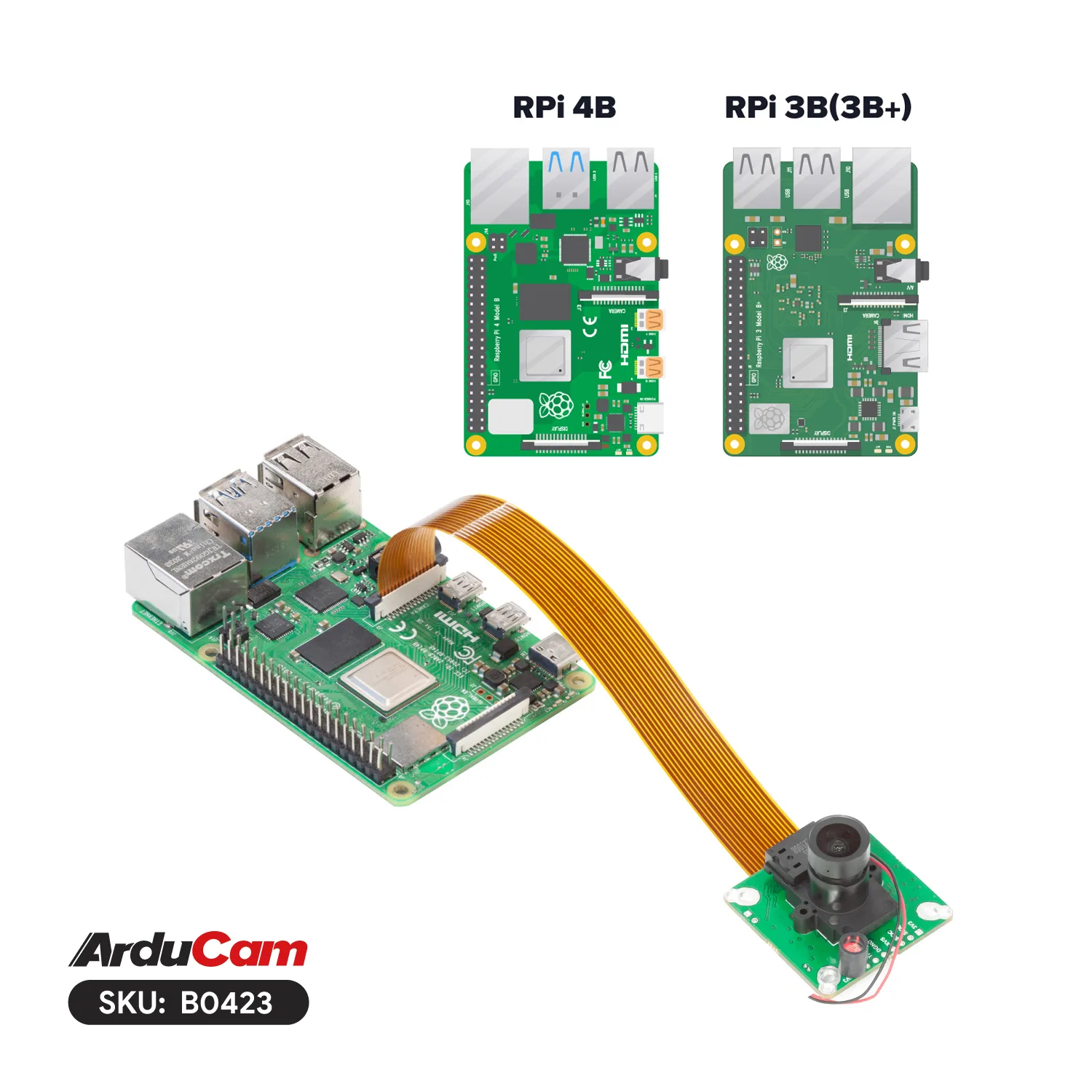

Is this camera compatible with all Raspberry Pi models?
Yes, it connects via the CSI-2 camera port found on Raspberry Pi models including Pi 4, Pi 3, Pi Zero, and Pi Compute Module, requiring only the official ribbon cable and enabled camera interface.
Technical Specifications
| Brand | Raspberry Pi |
|---|---|
| Package Quantity | 462 pcs |
| SKU | AI1878 |
| Weight | 0.005 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Arducam 2MP Ultra Low Light STARVIS IMX462 Motorized IR-CUT Camera for Raspberry Pi is a versatile arducam cameras and accessories used across a wide range of applications including computer vision, surveillance, machine learning inference, time-lapse photography, and barcode scanning.
Common use cases:
- Adding vision to a Raspberry Pi robot
- Building a wildlife camera trap
- Implementing QR code scanning in a project
This product is ideal for computer vision developers and Raspberry Pi enthusiasts.
Technical Tip: Arducam cameras support various interfaces (MIPI CSI, USB, SPI). Higher megapixel count improves detail but increases processing requirements.
