Looking for Imx477 Motor Raspberry Pi? Arducam 12MP IMX477 Motorized Focus High Quality Camera for Raspberry Pi is available at Zbotic with fast shipping across India.
This Arducam IMX477 High-Quality motorized focus camera module integrates a motor that could be controlled by software for a smarter focus, and you will no longer focus the camera by screwing the lens with your bare hands. Instead, keyboard keys or OpenCV can be used to remotely control the focusing process of your HQ camera. To learn more about autofocus with Raspberry Pi camera modules, we recommend you read Raspberry Pi Camera Autofocus: The Complete Guide.
Download link:
- To use this camera, it is necessary to do hardware and software setup. To do both, please follow the instructions given in the link .
Features and Specification:
Image Sensor:
- Sensor Model: IMX477
- Shutter Type: Rolling shutter
- Sensor resolution: 4056 x 3040 pixels, 12.3MP
- Image Sensor Format: Type 1/2.3″
- Pixel Size: 1.55 µm x 1.55 µm
Lens Assembly:
- Model No: M23390H08
- Optical Format: 1/2.3”
- Focal Length: 3.9mm
- Aperture: F2.8
- Field of View (FOV): 75° (H) on Raspberry Pi High-Quality Camera, 50°(H) on Raspberry Pi V1/V2 Camera
- Mount: M12 mount
- Back Focal Length: 4.49mm
- MOD: 0.3m
- Dimension: Φ14×18.67mm
- Weight: 5g
- Focus Distance: 80mm to infinity
Camera Board:
- Board Size: 38mm×38mm
- Hole Pitch: Compatible with 29mm, 30mm, 34mm
Package Includes:

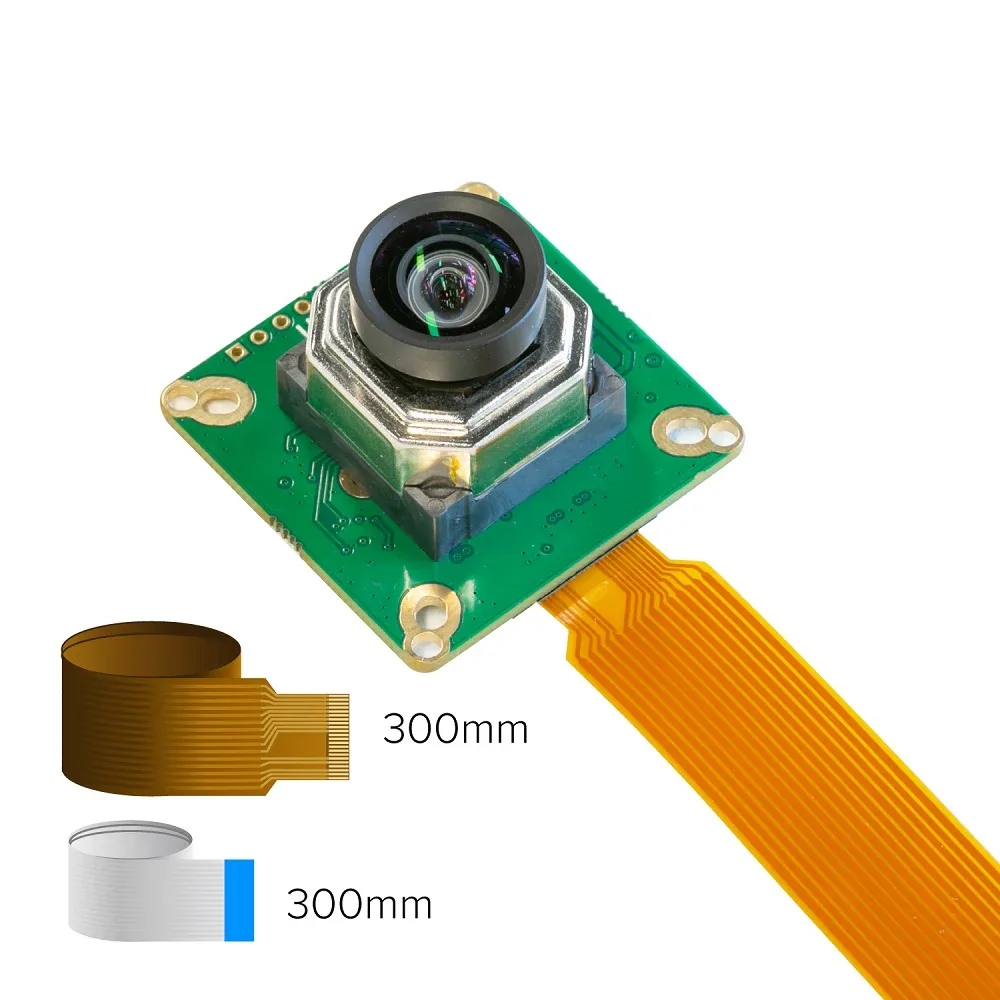

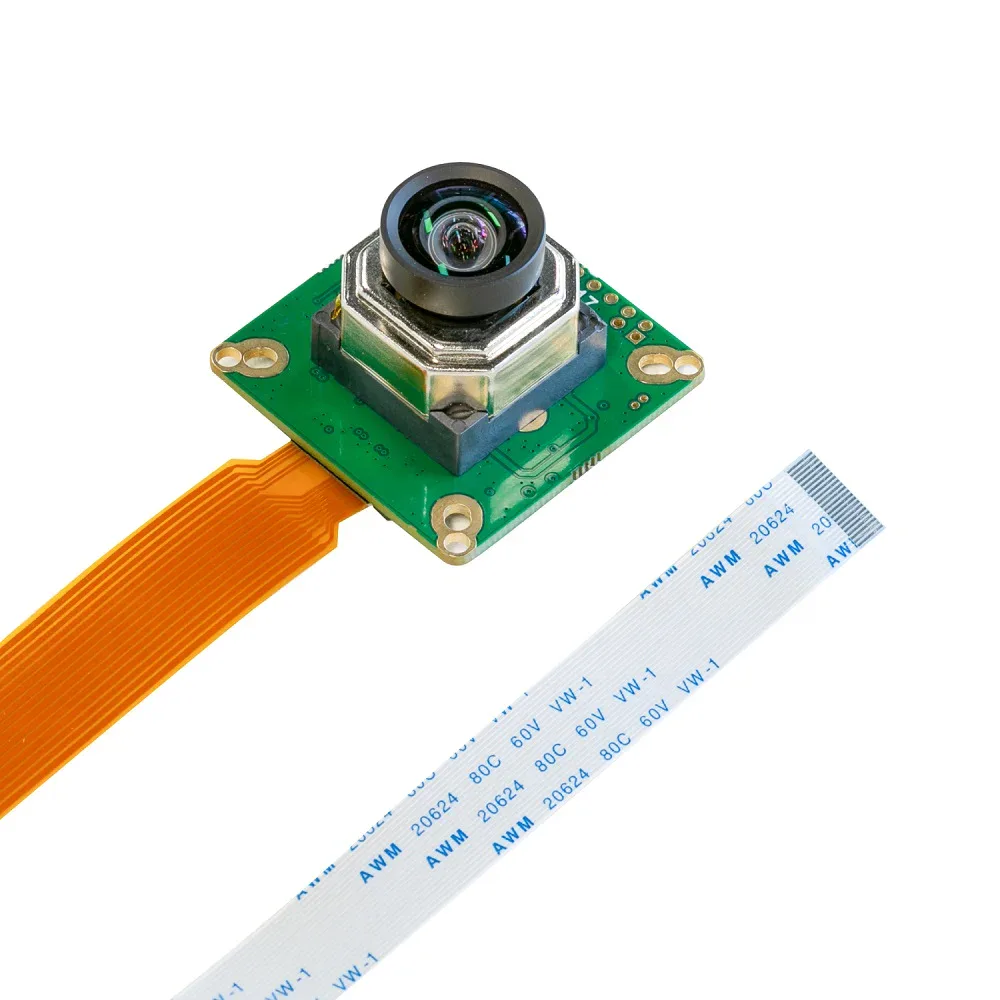

1 × Arducam 12MP IMX477 Motorized Focus High-Quality Camera for Raspberry Pi with lens
1 × 300mm 15pin-22pin flex ribbon cable for Raspberry Pi normal variants (Model As and Bs)
1 × 300mm 22pin-22pin flex ribbon cable for Raspberry Pi Zero and Compute Module
About Imx477 Motor Raspberry Pi
Arducam 12MP IMX477 Motorized Focus High Quality Camera for Raspberry Pi is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Raspberry Pi, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Raspberry Pi
- SKU: AI1871
- Category: Arducam Cameras and Accessories
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Imx477 Motor Raspberry Pi and other products.
Applications
Imx477 Motor Raspberry Pi can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Imx477 Motor Raspberry Pi today and start building.
About Imx477 Motor Raspberry Pi
Arducam 12MP IMX477 Motorized Focus High Quality Camera for Raspberry Pi is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Raspberry Pi, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Raspberry Pi
- SKU: AI1871
- Category: HMI LCD Display
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Imx477 Motor Raspberry Pi and other products.
Applications
Imx477 Motor Raspberry Pi can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Imx477 Motor Raspberry Pi today and start building.
Arducam 12MP IMX477 Motorized Focus High Quality Camera for Overview
The Arducam 12MP IMX477 Motorized Focus High Quality Camera for Raspberry Pi is a high-resolution imaging module designed for advanced photography and machine vision projects. It features a Sony IMX477 sensor and a built-in focus motor, enabling precise software-driven focus without manual lens adjustment.
Key Features of Arducam 12MP IMX477 Motorized Focus High Quality Camera for
- 12.3MP Sony IMX477 sensor with 4056×3040 pixel resolution for sharp images
- 3.9mm focal length and F2.8 aperture for clear low-light performance
- Motorized focus controlled over the Raspberry Pi’s I2C interface—no hardware mods needed
- Autofocus support via OpenCV example scripts for automatic sharpness adjustment
- Fine-tune focus remotely using keyboard arrow keys for precise control
- Genuine Arducam product with fast shipping across India from Zbotic
Applications and Use Cases
- High-resolution time-lapse and landscape photography on Raspberry Pi
- Automated microscopy and lab imaging requiring precise focus control
- Machine vision and inspection systems in robotics and industrial automation
- Wildlife monitoring and surveillance with software-driven focus adjustment
- Education projects teaching computer vision and image processing
How to Use Arducam 12MP IMX477 Motorized Focus High Quality Camera for

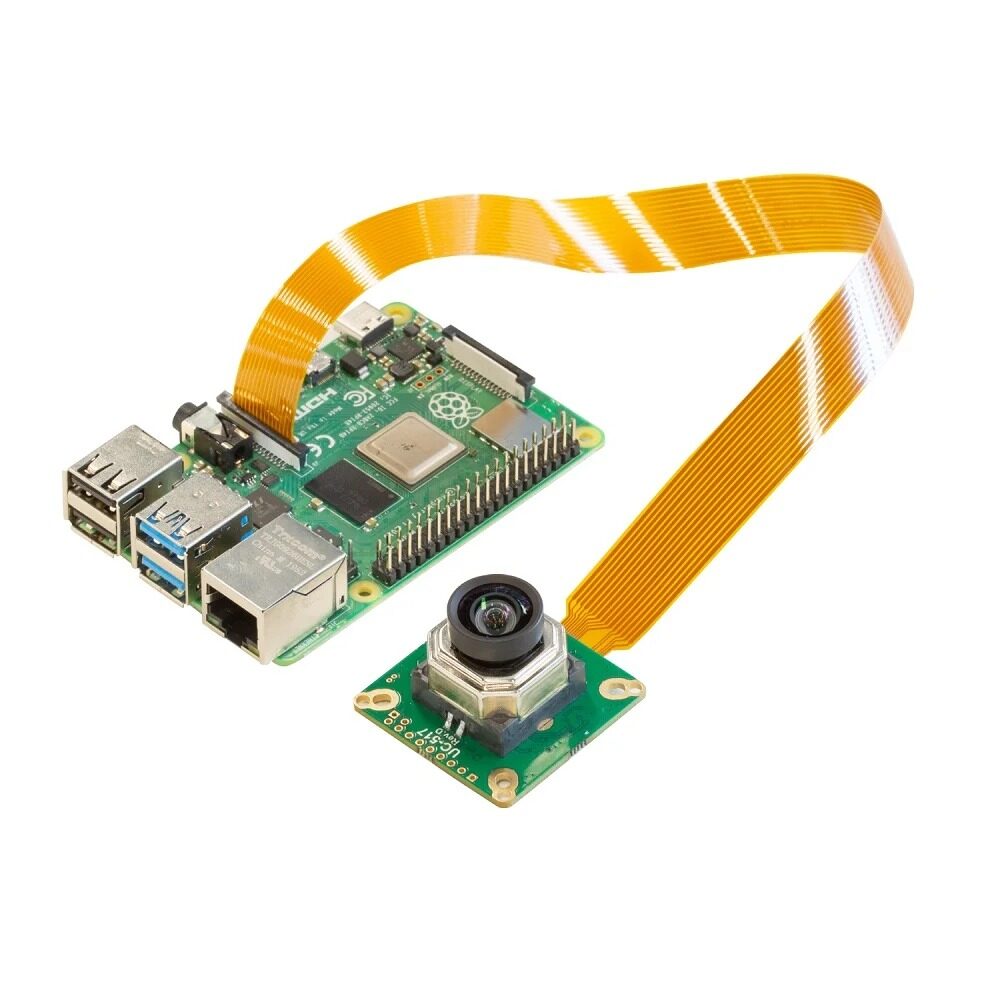

Connect the camera to your Raspberry Pi’s CSI port, install the Arducam driver and I2C utilities, then follow the online hardware and software setup guide. After setup, use the provided OpenCV examples for autofocus or launch the manual focus script to adjust focus with arrow keys via SSH or a local terminal.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use this camera with the Raspberry Pi 4 and earlier models?
Yes, the Arducam IMX477 camera is compatible with Raspberry Pi 4, 3, 2 and Zero series via the standard CSI connector and the I2C focus control interface.
How do I enable the motorized focus feature?
After installing the Arducam driver and I2C tools, run the included focus_control script. You can trigger autofocus via OpenCV examples or manually adjust focus using the keyboard arrow keys over a terminal session.
Is any hardware modification required to use autofocus?
No hardware modifications are needed. The built-in focus motor connects directly to the camera board’s I2C pins, and all focus commands are sent via software.
Technical Specifications
| Brand | Raspberry Pi |
|---|---|
| Model | IMX477 |
| Package Quantity | 477 pcs |
| SKU | AI1871 |
| Weight | 0.005 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Arducam 12MP IMX477 Motorized Focus High Quality Camera for Raspberry Pi is a versatile arducam cameras and accessories used across a wide range of applications including computer vision, surveillance, machine learning inference, time-lapse photography, and barcode scanning.
Common use cases:
- Adding vision to a Raspberry Pi robot
- Building a wildlife camera trap
- Implementing QR code scanning in a project
This product is ideal for computer vision developers and Raspberry Pi enthusiasts.
Technical Tip: Arducam cameras support various interfaces (MIPI CSI, USB, SPI). Higher megapixel count improves detail but increases processing requirements.
