Description:

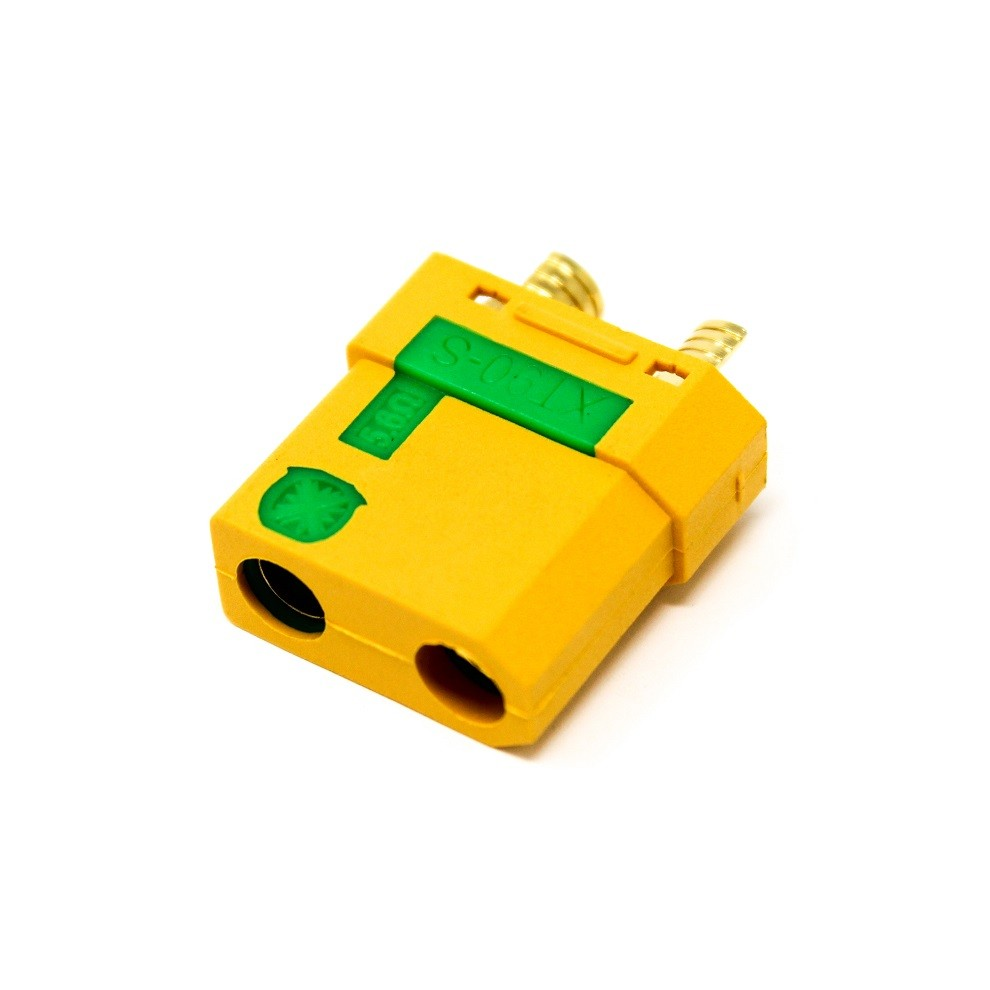

These XT90-S connectors have a high-temp Nylon casing that houses the gold plated spring connectors which get placed into the injection mold during the manufacturing process. Since the housing is molded around the connectors it ensures that the connectors always stay aligned so that you can quickly and easily plug in and unplug. The XT90-S connectors provide a solid, high-amp connection – perfect for applications up to and beyond 90 amps!
With the growing popularity of high voltage setups on R/C model helicopters, EDFs and airplanes, sparking battery connections are increasingly becoming the biggest enemy to your electronics. All the anti-spark systems in the market today require some sort of modification or DIY work before use.
Now, we have just the solution. XT90-S is based on the popular XT90 but now integrates an anti-spark system. With the XT90-S, no need to invest in a secondary anti-spark system (which provides an additional failure point to your system).

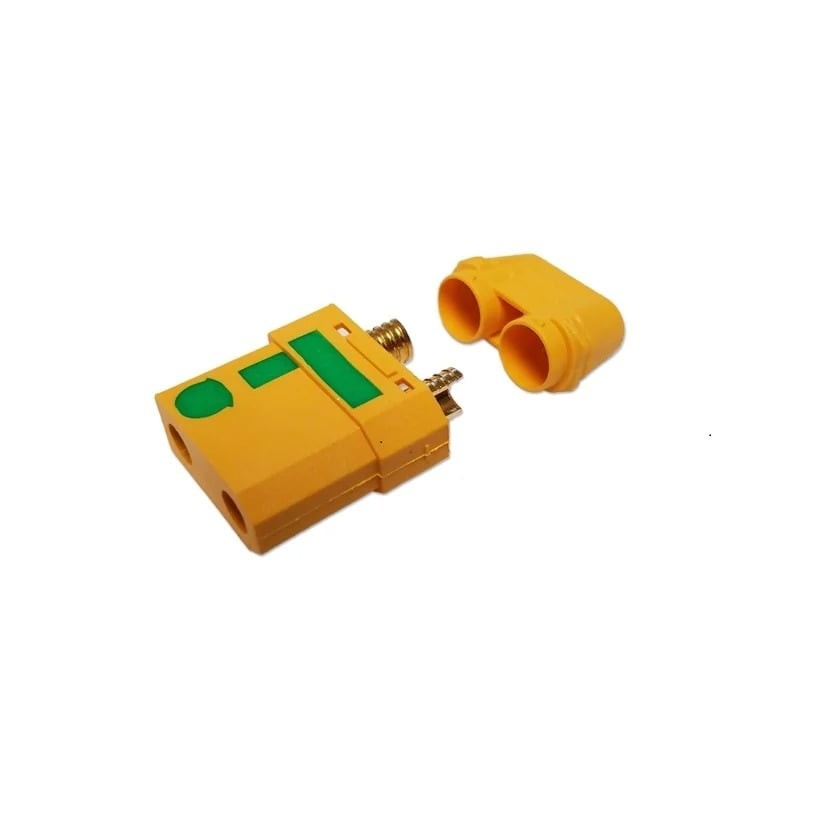

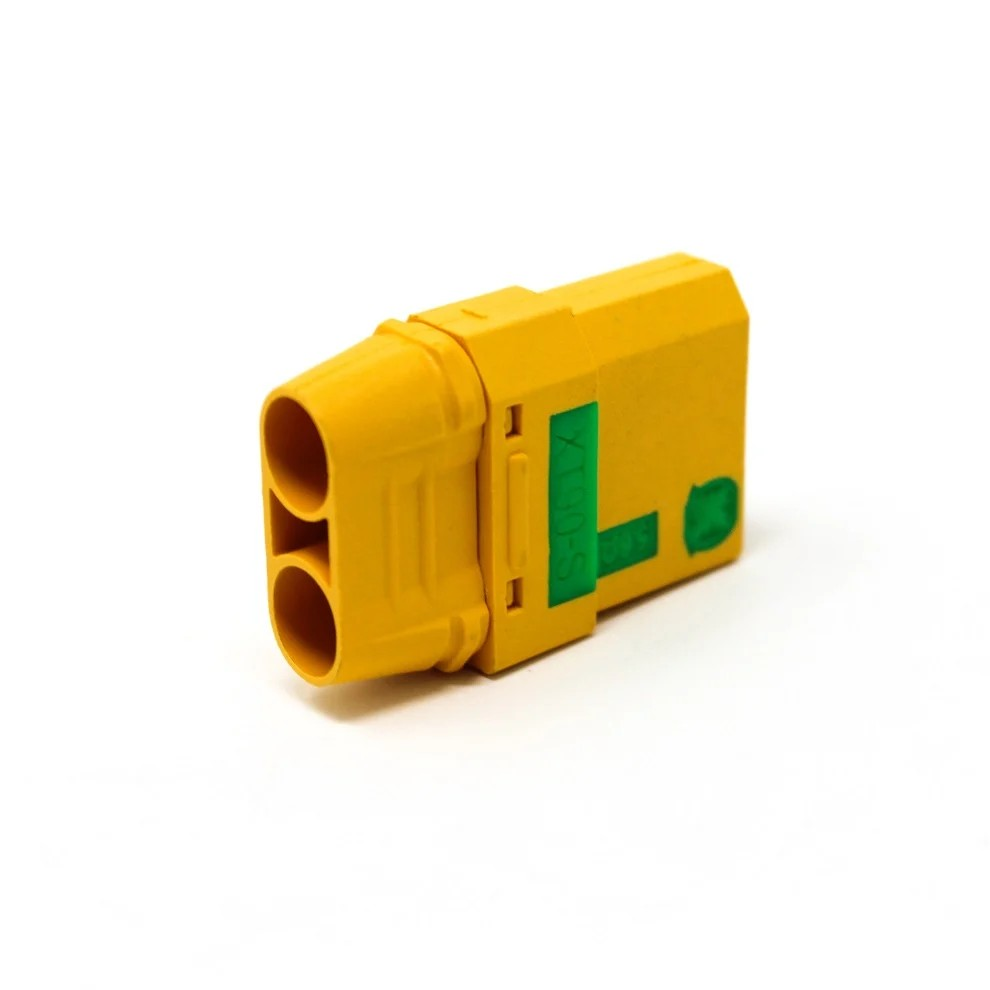

100% compatible with existing XT90. Comes with a soldering cover/Housing to protect the solder points.
IMPORTANT: These are not cheap copied XT90-S plugs. These original Nylon XT90-S plugs, manufactured by AMASS, can handle over 90A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT90-S plugs.
Note: The AMASS brand name is not displayed in the product image, but the listed product is an AMASS branded product.
Specifications and Features:
- Anti-Spark Protection
- Wire Insulation Material: Nylon
- Housing shape provides protection against shorting and reverse polarity
- Can accept up to 8AWG wires
- Semicircular solder terminals make it easy to install wires
- Able to sustain 90A+ continuous current
Package Includes:
- 1 x XT90-S Anti-Spark Connector with Housing-Female
E-Bike Battery BMS: 36V 48V Lithium Pack Wiring Guide
Table of Contents Why Your E-Bike Battery Needs a BMS 36V vs 48V — Choosing Your Pack Voltage...
Read More →
Power Supply Sequencer: Ordered Startup for Multi-Rail
A power supply sequencer controls the order in which multiple voltage rails power up and shut down, preventing...
Read More →
Battery Desulfator: Restore Lead-Acid Battery Capacity
A battery desulfator uses high-frequency voltage pulses to break down lead sulfate crystals on the plates of a...
Read More →Technical Specifications
| Brand | Amass |
|---|---|
| Model | XT90S |
| Connector Type | XT90 |
| SKU | AI5886 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Amass XT90S Anti Spark Connector with Housing-Female is a versatile battery connector used across a wide range of applications including drone battery connections, RC vehicle wiring, power distribution boards, battery pack assembly, and DIY power cables.
Common use cases:
- Replacing worn connectors on a LiPo battery
- Building custom battery harnesses
- Soldering connectors for a new drone build
This product is ideal for drone builders, RC hobbyists, and electronics technicians.
Technical Tip: XT60 handles up to 60A continuous; XT30 up to 30A. Always solder male connectors to the battery side and female to the ESC/charger side.
