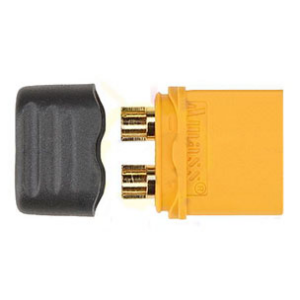

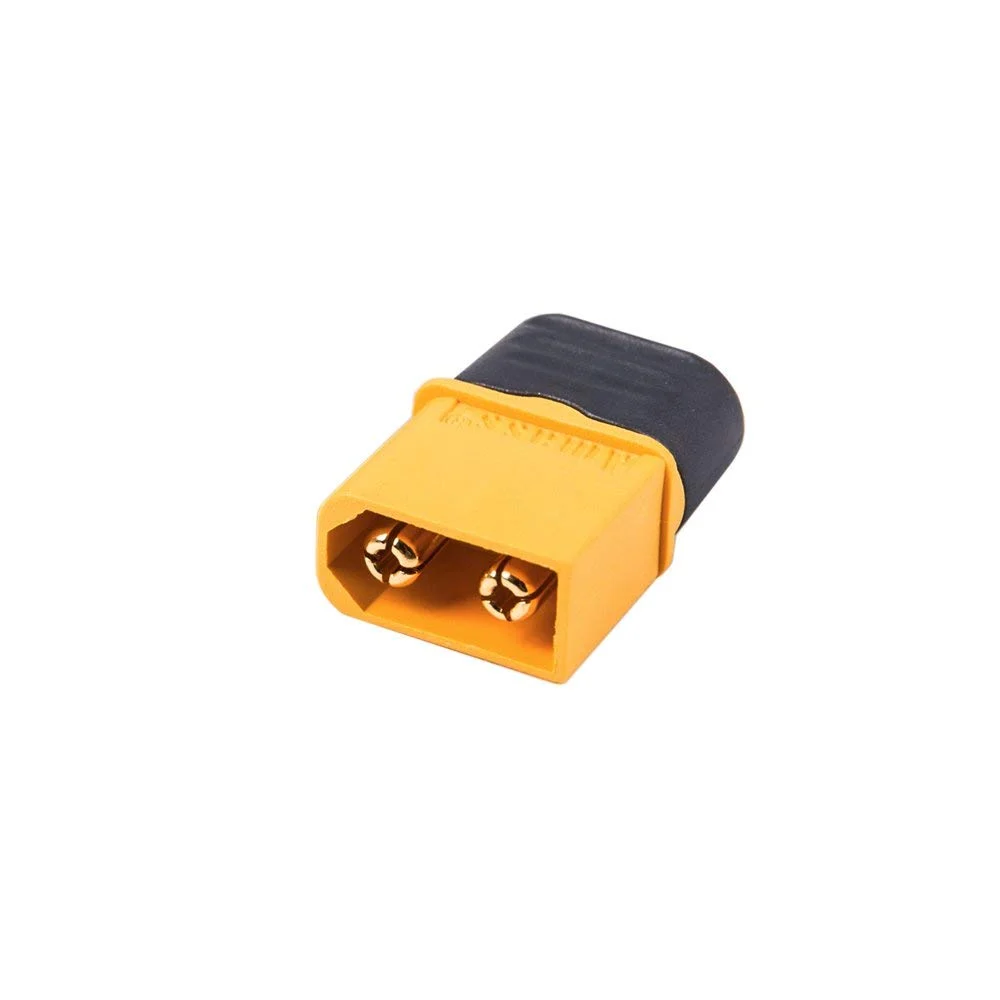

The best battery connectors on the market just got better with the development of the XT60H. This connector is made from high-temp nylon with gold-plated connectors so the XT60H continues to provide an excellent high-amp connection for applications up to 65A.
The change in design has made it shorter and lighter and far more user-friendly for connection and disconnection with an improved integrated grip area as well as tight locking Housing with different color provide protection to the soldered points and make this connector a little fancy and that why H letter is added in XT60.
The XT60H is completely compatible with the original XT60 connectors so you can use them straight away.
Features:
- Genuine Amass XT60 Connector with protection housing, upgrade version, high quality
- Provides Solid and Reliable Connection
- Mechanical mounting for cable
- Electrical mounting soldered.
- Spatial Orientation Straight
- Excellent connector solution for RC Quadcopters, Drones, UAVs,
- Airplanes and Jets, Cars and Trucks, as well as RC Boats.
Specfication :
| Brand | Amass |
|---|---|
| Gender | Mail-Female Pair |
| Rated Operating Voltage (VDC) | 500 |
| Current Handling Capacity (A) | 60 |
| No. of Contact Points | 2 |
| Connector Type | XT60H |
| Contact Material | Brass |
| Contact Plating | Gold flash |
| Metal Connector Size (mm) | 4.5 |
| Color | Yellow Gray |
| Weight (gm) | 6 each |
| Operating Temperature Range (°C) | -20 to 120 |
| Flammability Rating | UL94 V_0 |
| Allowed Wire Size (AWG) | 14 ~ 12 |
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 7 × 5 × 4 cm |
Package Includes:

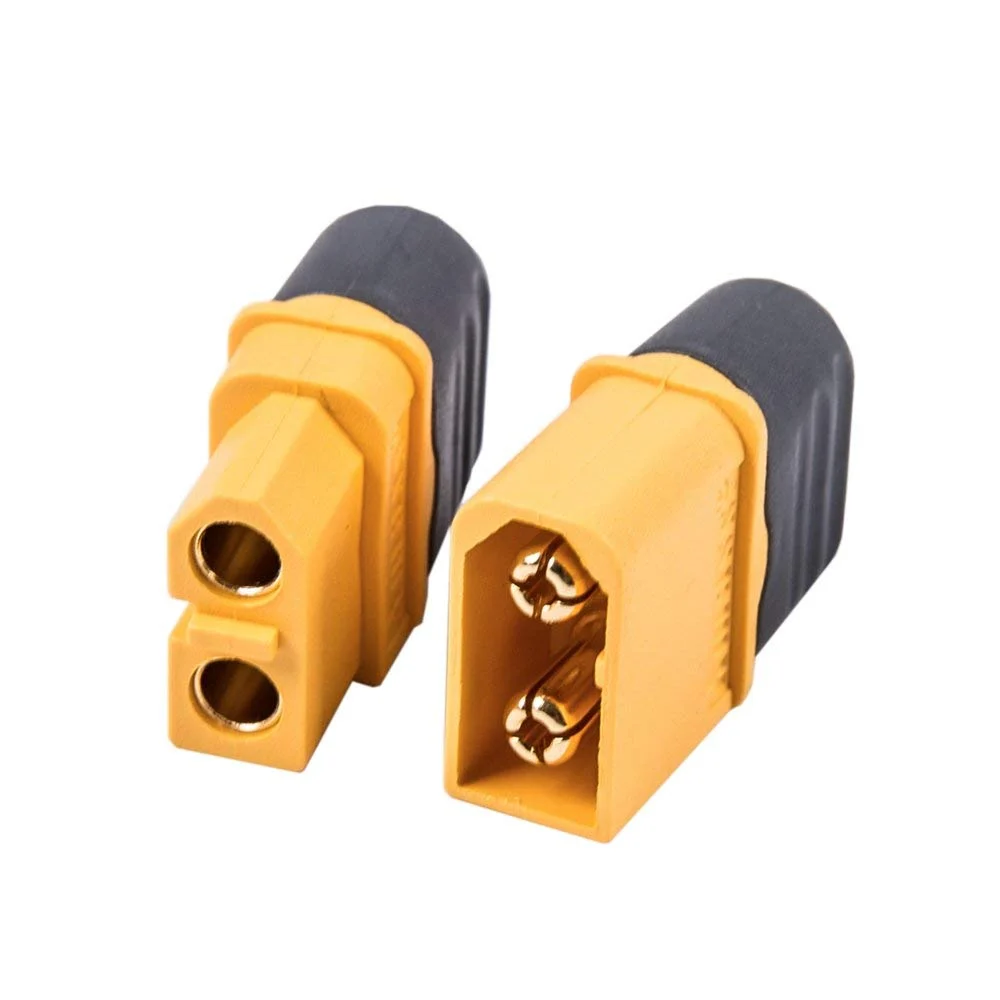

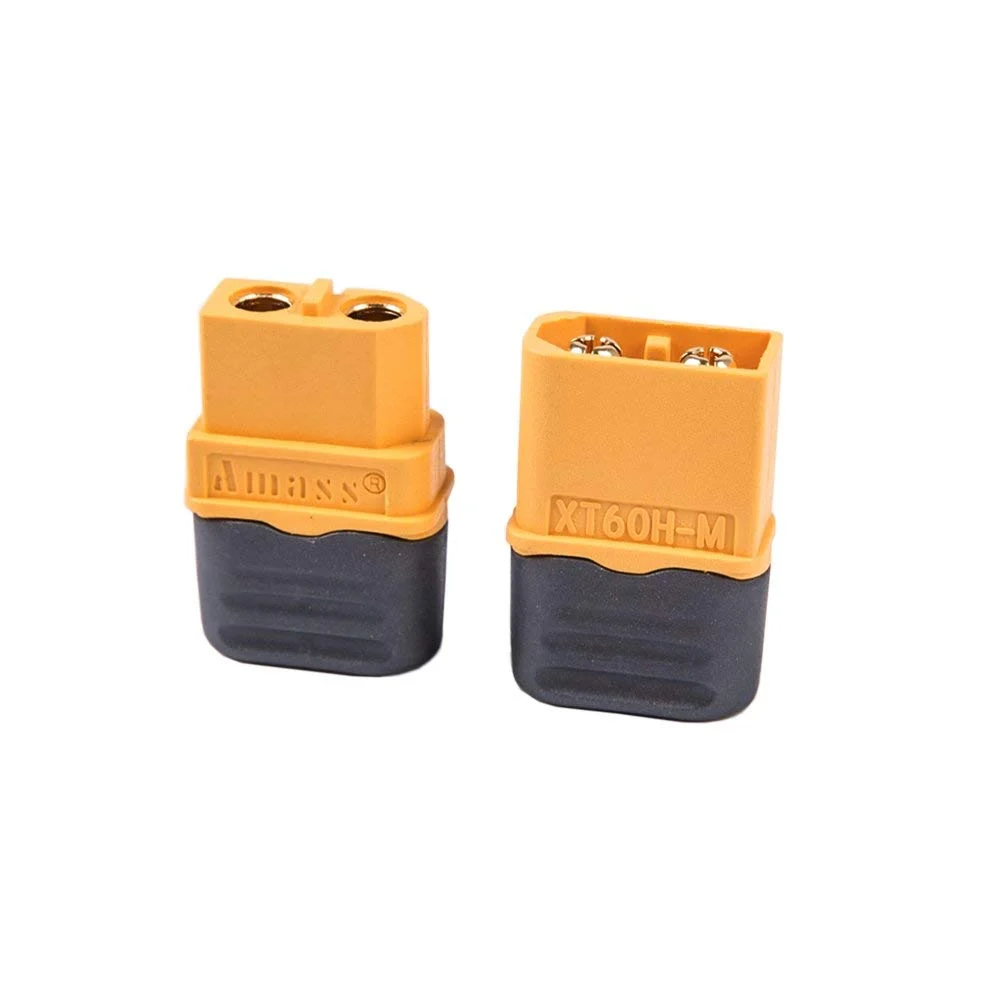

1 x Amass XT-60H Connector With Sheath Housing Male & Female
5V 2A USB Charger Module: Build a Portable Lab Power Supply
5V 2A USB Charger Module: Build a Portable Lab Power Supply Every maker's workbench needs a reliable 5V...
Read More →
Solar Panel and Battery System: Size Calculator for India
India's abundant sunshine makes it one of the best countries in the world for solar power — yet...
Read More →
Power Distribution Board: Clean Wiring for Projects
Table of ContentsWhat Is a Power Distribution Board Designing for Multiple Voltages PCB Layout Best Practices Using Terminal...
Read More →Technical Specifications
| Brand | Amass |
|---|---|
| Model | XT-60H |
| SKU | AI4447 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Amass XT-60H Connector With Sheath Housing Male&Female is a versatile battery connector used across a wide range of applications including drone battery connections, RC vehicle wiring, power distribution boards, battery pack assembly, and DIY power cables.
Common use cases:
- Replacing worn connectors on a LiPo battery
- Building custom battery harnesses
- Soldering connectors for a new drone build
This product is ideal for drone builders, RC hobbyists, and electronics technicians.
Technical Tip: XT60 handles up to 60A continuous; XT30 up to 30A. Always solder male connectors to the battery side and female to the ESC/charger side.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine Amass product sourced from authorized channels
