This is the 5mm variant of the Aluminum GT2 Timing Pulley 40 Tooth 5mm Bore For 6mm Belt in Timing Belt and Pulley. Available at ₹129.80 (₹110.00 + GST) with free shipping across India.
Product Description

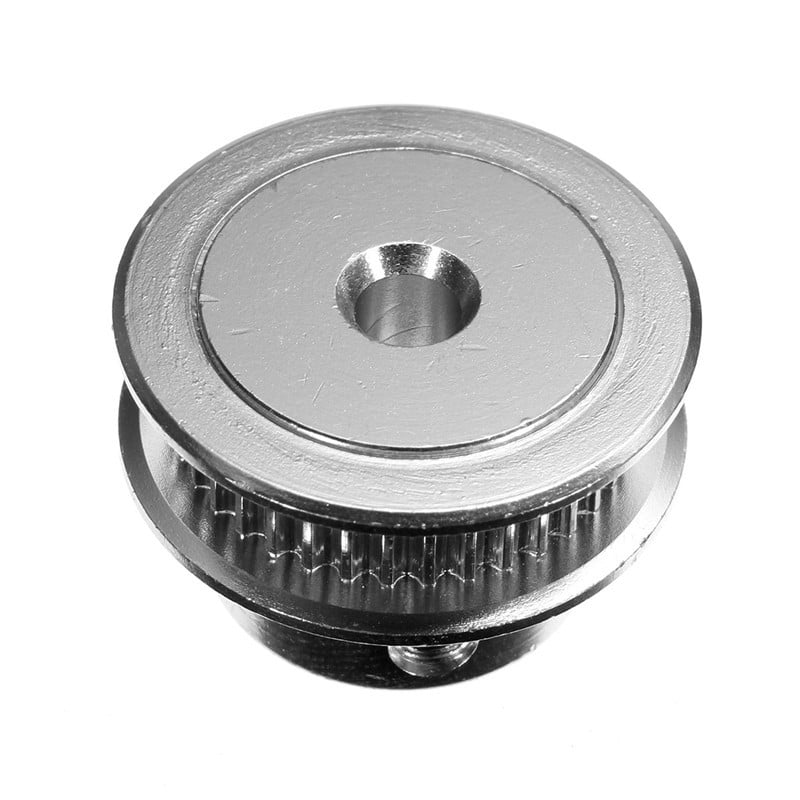

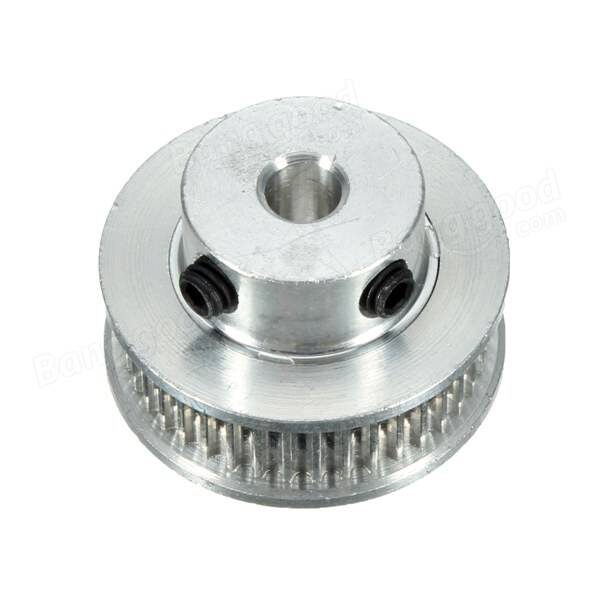

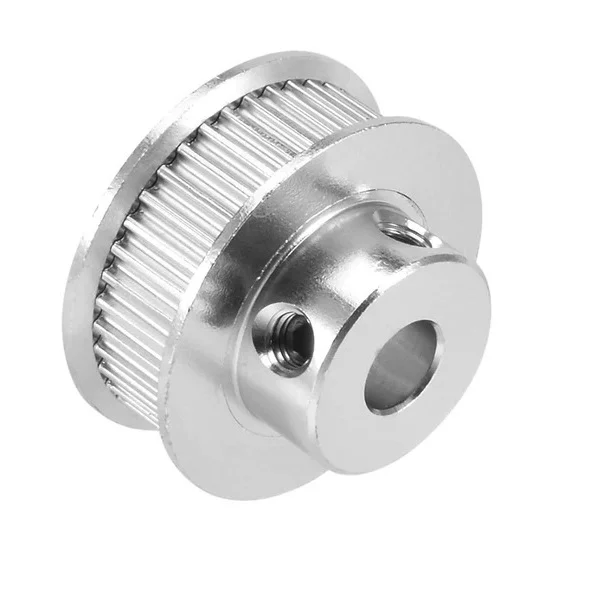

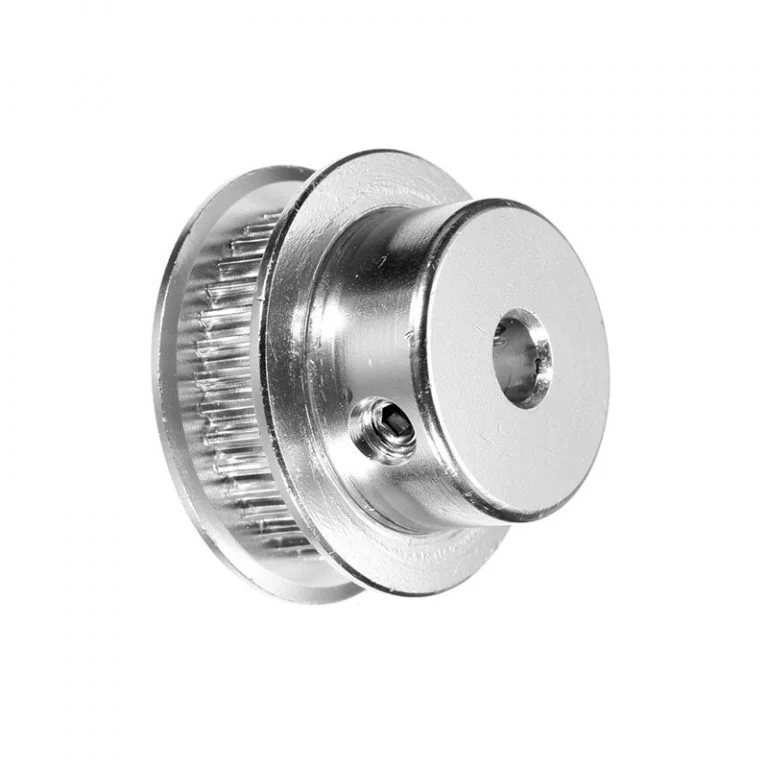

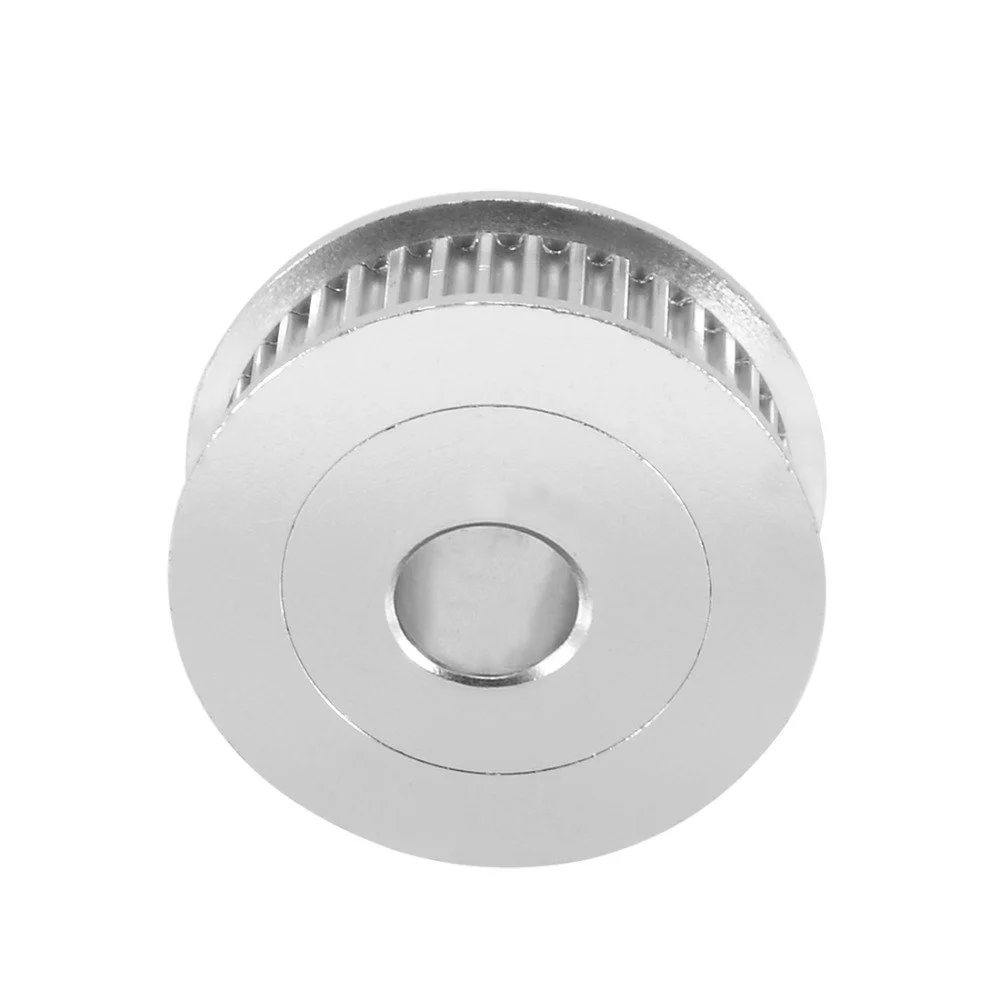

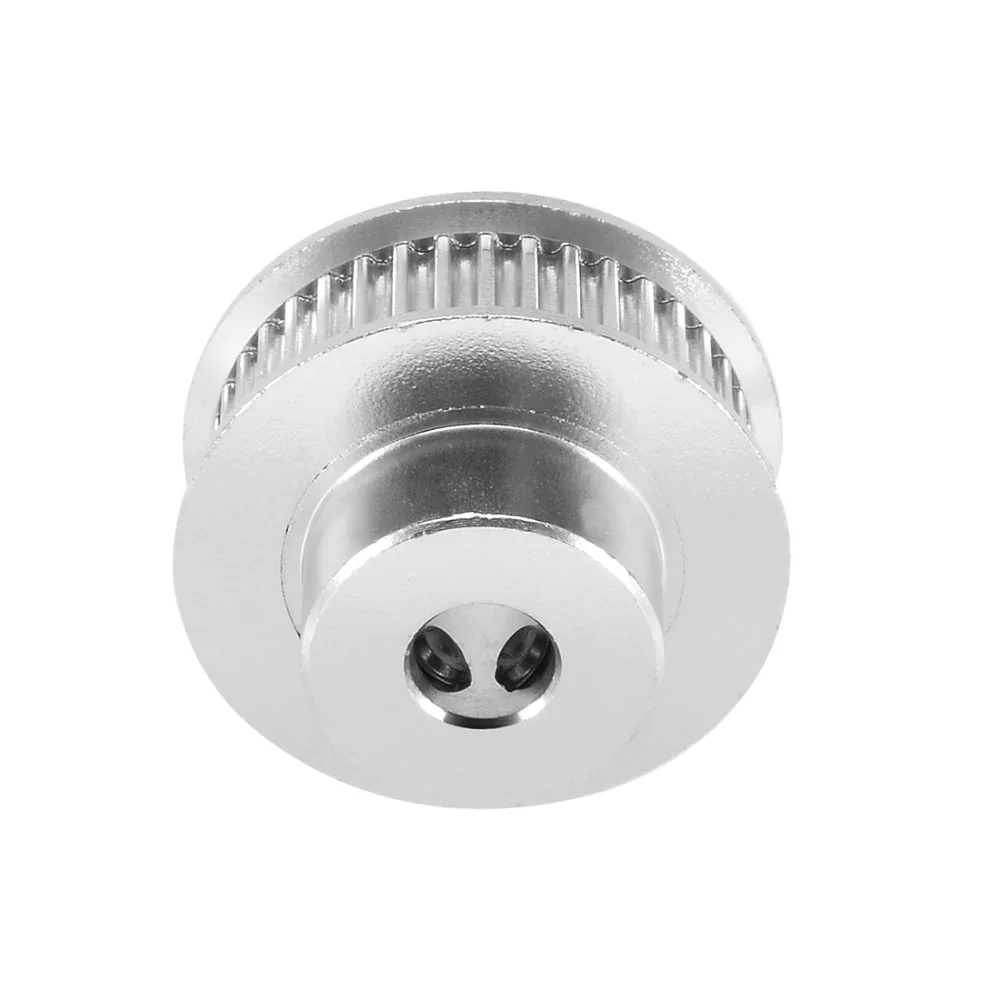

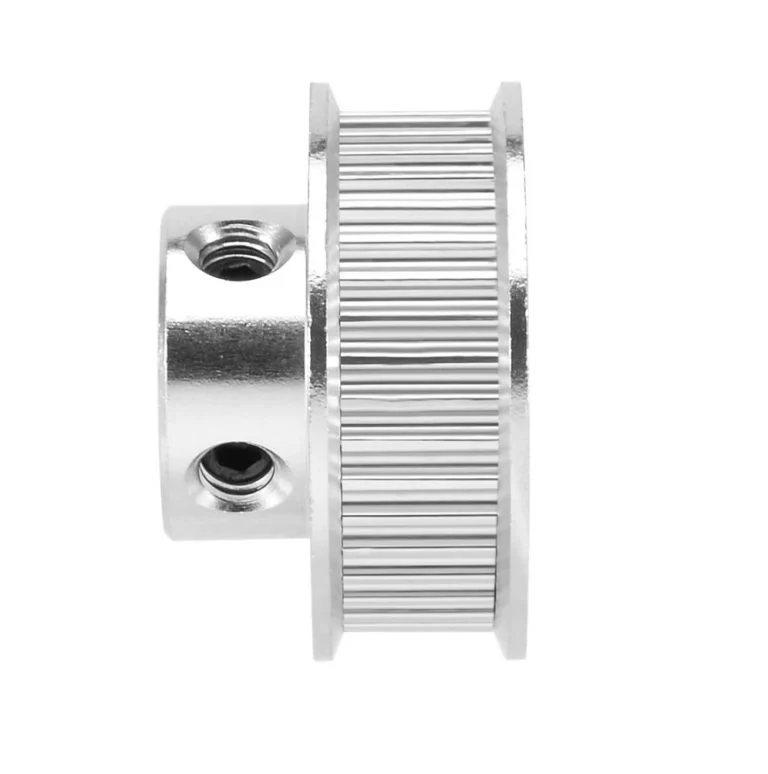

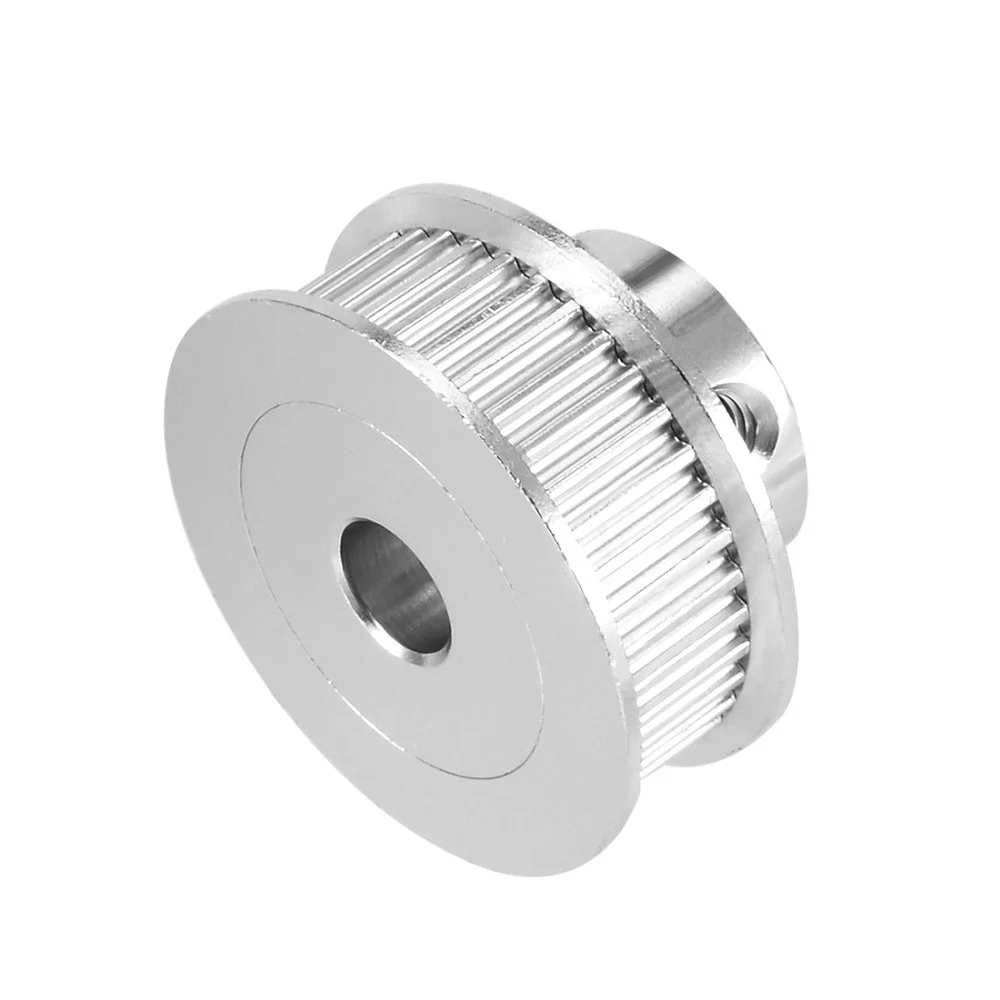

This is a GT2 timing pulley with 40 teeth, made from aluminum. It has a bore of 5mm that can fit a shaft with the same diameter, and it comes with two set screws to fasten it. It is compatible only with GT2 belts that are 6mm wide, not MXL belts, because they have different shapes of teeth. GT2 belts and pulleys are great for accurate and affordable motion control. This pulley is light and strong because it is made entirely of aluminum.
Specification:
| Material: | Aluminium |
|---|---|
| Inner Diameter (ID) (mm) | 4.5 |
| Outer Diameter (OD)(mm) | 27.5 |
| Compatible With | M3x4 |
| No. of teeth | 40 |
| Width (mm) | 17 |
| Weight (g): | 22 |
| Shipping Weight | 0.025 kg |
| Shipping Dimensions | 5 × 5 × 1 cm |
Package Includes:
1 x Aluminum GT2 Timing Pulley 40 Tooth 5mm Bore For 6mm Belt
2 x (M3x4)Grub screws -2pcs.
Technical Specifications
| Model | GT2 |
|---|---|
| Size | 5mm |
| SKU | AI2813 |
| Weight | 0.02 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Aluminum GT2 Timing Pulley 40 Tooth 5mm Bore For 6mm Belt is a versatile timing belt and pulley used across a wide range of applications including 3D printer maintenance, printer upgrades, custom printer builds, and replacement parts.
Common use cases:
- Replacing a worn-out nozzle or extruder gear
- Upgrading to a direct drive extruder
- Building a custom CoreXY printer
This product is ideal for 3D printer owners and custom printer builders.
Technical Tip: Keep spare nozzles, PTFE tubes, and belts on hand. Regular maintenance significantly extends printer life and print quality.
