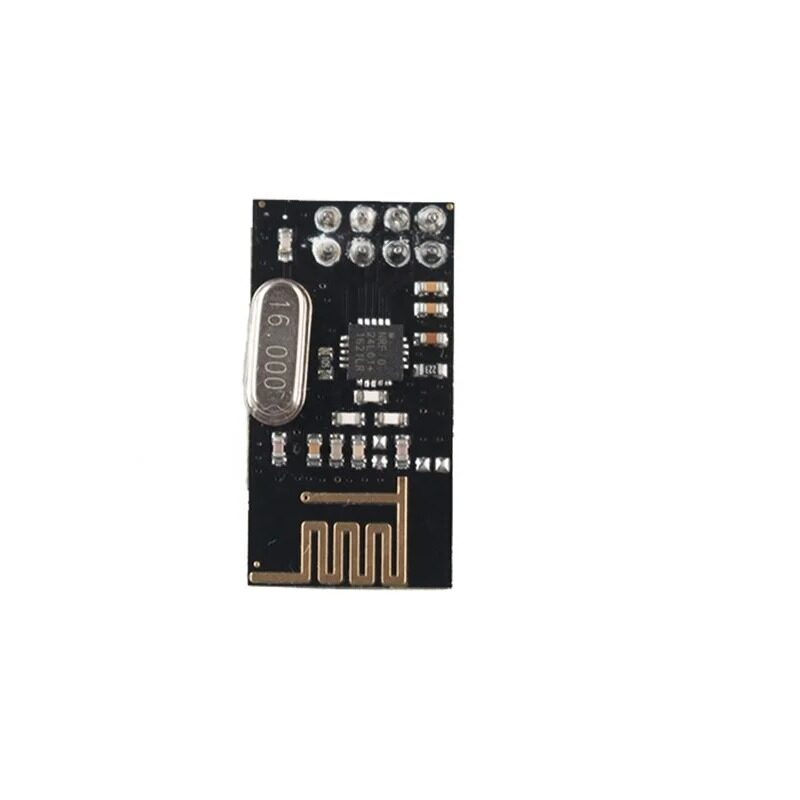

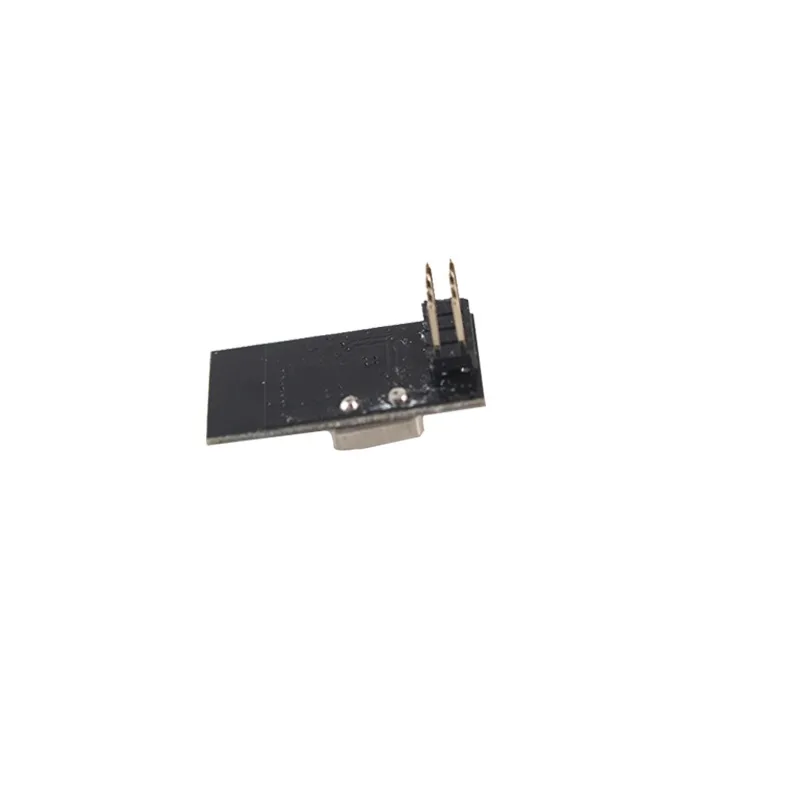

Ai Thinker NF-01-N Wireless Transceiver Module
Nf-01 Module – Description:
Ai Thinker NF-01-N Wireless Transceiver is a 100mW power 2.4G wireless module with high airspeed (up to 2Mbps), SPI interface, a pure hardware module for transceiver and it has high stability, high cost performance, good spectrum test characteristics, small Volume, using all industrial grade components.
NF-01-N can be widely used in various Internet of Things applications, suitable for wireless mouse and keyboard, wireless remote control, somatosensory equipment, active RFID, NFC, low-power self-organizing network wireless sensor network nodes, etc.
Features:
- DIP-8 ultra-small package
- built-in 2.4G antenna, compact size, easy to use
- Supports six channels of data reception
- Supports general modulation methods such as GFSK/FSK
- Supports 2Mbps/1Mbps/250Kbps data rate
- Multi-frequency point: 126 frequency points to meet the needs of multi-point communication and frequency hopping communication
- Internally integrated high PSRR LDO
- Wide supply voltage range: 1.9~3.6V
- Average emission current as low as 110mA
- Receive sensitivity: -96dBm@250kbps
- Maximum transmit power: 7dBm
- 4-wire SPI interface with speeds up to 10MHz
- Internally integrated intelligent ARQ baseband protocol engine
- Transceiver data hardware interrupt output
- Support 1bit RSSI output
Datasheet:
Package includes:
1 x Ai Thinker NF-01-N Wireless Transceiver Module
Ai Thinker NF-01-N Wireless Transceiver Module Overview
The Ai Thinker NF-01-N Wireless Transceiver Module is a compact 2.4 GHz radio module in a DIP-8 package designed for reliable point-to-point or mesh communication. With a built-in antenna and up to 100 mW transmit power, it delivers data rates up to 2 Mbps for industrial-grade IoT devices and wireless peripherals.
Key Features of Ai Thinker NF-01-N Wireless Transceiver Module
- Compact DIP-8 footprint with built-in 2.4 GHz antenna
- High transmit power (100 mW) for improved link reliability
- Supports data rates of 2 Mbps, 1 Mbps and 250 Kbps
- Six independent receive channels for flexible frequency planning
- Pure hardware SPI interface for easy host microcontroller integration
- Industrial-grade components offering high stability and spectrum performance
- Fast shipping from Zbotic across India
Applications and Use Cases
- Wireless keyboard and mouse communications
- Remote controls for home automation and industrial equipment
- Low-power wireless sensor network nodes and data loggers
- Active RFID and NFC tag interrogators
- Wearable motion-sensing and somatosensory devices
- Self-organizing mesh networks for smart agriculture
How to Use Ai Thinker NF-01-N Wireless Transceiver Module
Begin by soldering the NF-01-N onto your PCB or inserting it into a DIP-8 socket, then connect VCC, GND and the SPI pins (MOSI, MISO, SCK, CS). Configure your microcontroller’s SPI to match the module’s clock polarity and phase, select the desired data rate and channel via register writes, and power up. The built-in antenna requires no external matching, so you can start sending and receiving packets once the module’s registers are initialized.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What interface does the NF-01-N use for communication?
The NF-01-N communicates via a hardware SPI interface, requiring MOSI, MISO, SCK and CS lines from your host microcontroller.
Does the module require an external antenna?
No external antenna is needed. The NF-01-N includes a built-in 2.4 GHz antenna optimized for typical indoor and short‐range outdoor use.
Which data rates and modulation methods are supported?
The module supports three data rates (2 Mbps, 1 Mbps, 250 Kbps) and uses GFSK/FSK modulation, allowing you to trade off speed for range or noise immunity.
Technical Specifications
| Model | NF-01-N |
|---|---|
| SKU | AI1708 |
| Weight | 0.005 kg |
| Availability | Out of Stock |
