Ai Thinker LoRa Ra-01SC Module

Looking for Lora Ra-01sc? Ai Thinker LoRa Ra-01SC Module is available at Zbotic with fast shipping across India.

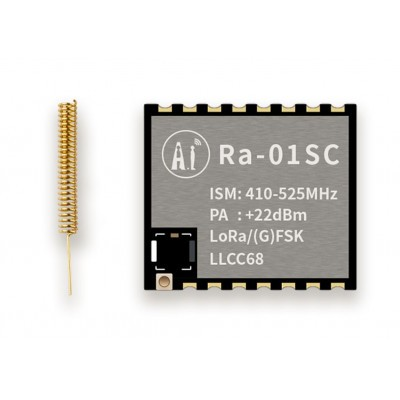

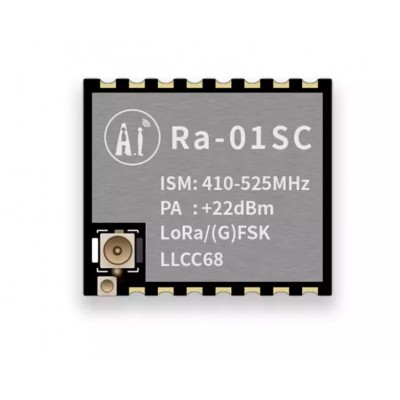

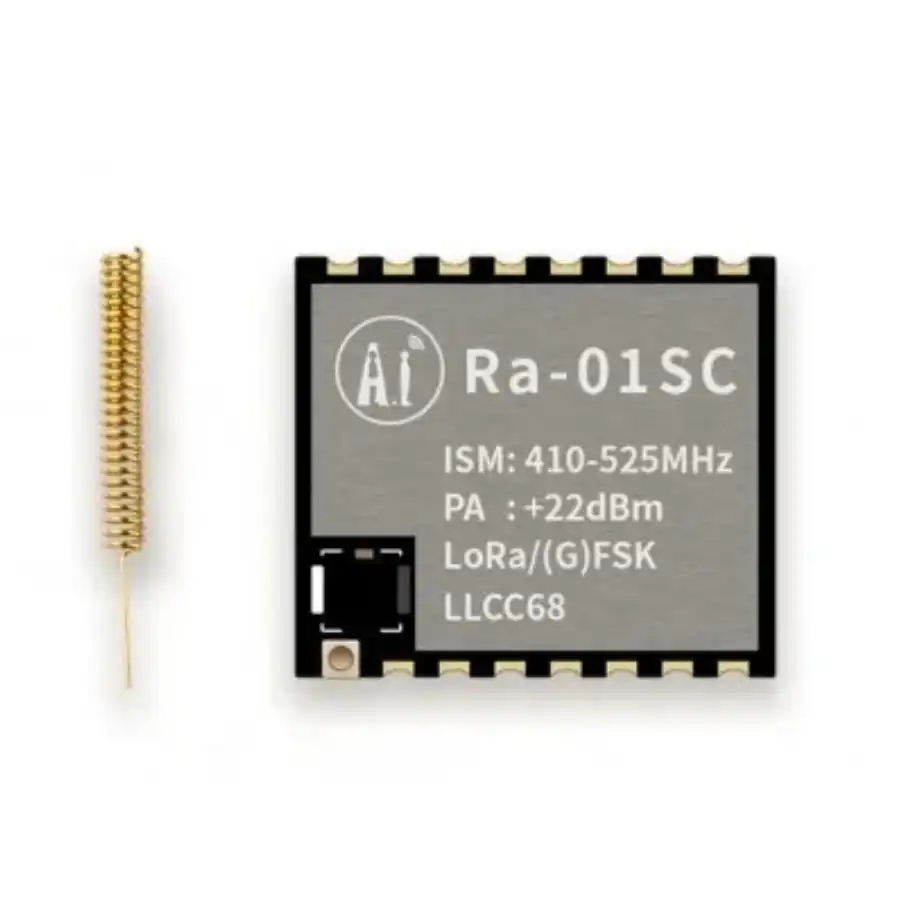

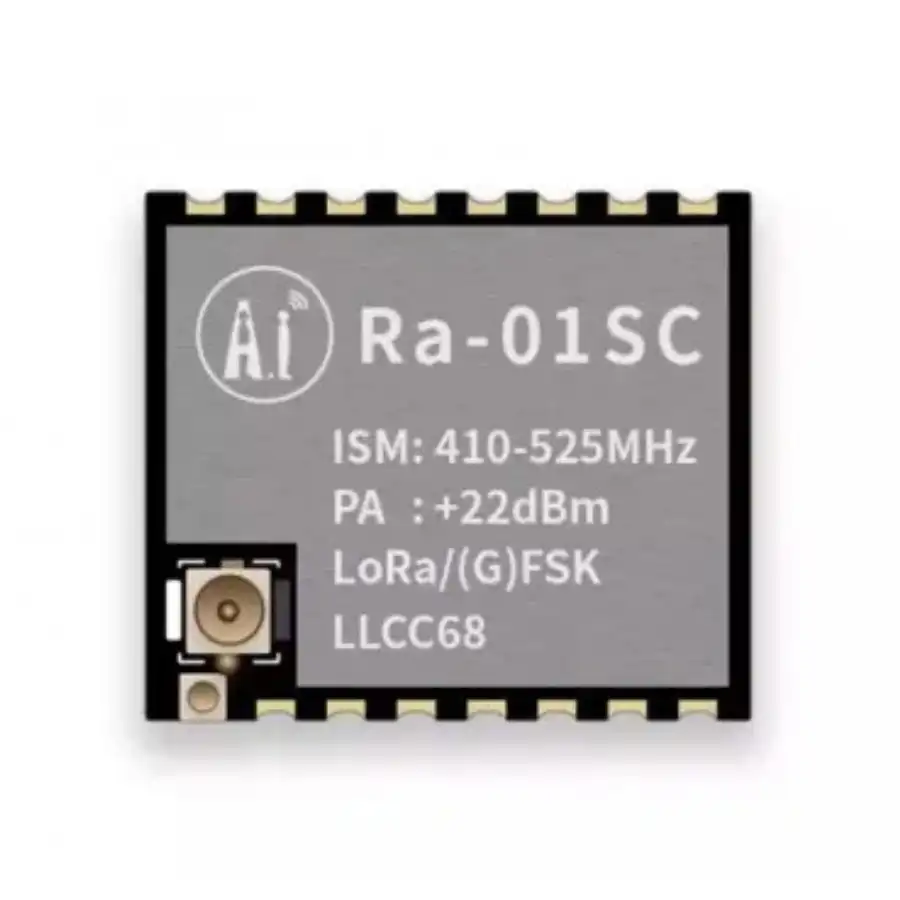

The LoRa series module Ra-01Sc, created by Shenzhen Ai-Thinker Technology Co., Ltd., is utilized for ultra-long-range spread spectrum communication. It features the RF chip LLCC68, which primarily employs the LoRa remote modem for this purpose, offering robust anti-interference capabilities and low power consumption. The LLCC68 chip boasts a high sensitivity of over -129 dBm, a power output of 20 dBm, extensive transmission range, and high reliability due to SEMTECH’s patented LoRa modulation technique. In contrast to traditional modulation technologies, LoRa stands out by providing substantial improvements in blocking and selectivity, effectively addressing the challenges of balancing distance, interference resistance, and power consumption that conventional designs fail to meet.

Application areas:

Automatic meter reading, supply chain and logistics, home building automation, security systems, remote irrigation systems.

Features:-

• LoRa modem
• Support FSK
• Frequency supports 410MHz~525MHz
• Operating voltage is 3.3V, Max current:140m
• Low power consumption in a received state, the min received current is 4.2mA，stand-by current is 0.6mA
• High sensitivity ：As low as -129dBm
• Support spreading factor:SF5/SF6/SF7/SF8/SF9/SF10/SF11
• Small volume double row stamp hole patch for SMD package
• Adopts SPI interface, half-duplex communication, with CRC, up to 256-byte packet engine

Specifications:-

• Model : Ra-01SC
• Package : SMD16
• Size : 17 x 16 x 3.2(±0.2)MM
• Antenna : Spring antenna
• Spectrum range : 410MHz~525MHz
• Operating temperature : -40 ℃ ~ 85 ℃
• Storage environment : -40 ℃ ~ 125 ℃ , < 90%RH
• Power supply : 2.7~3.6V，default 3.3V，current ＞ 200mA
• Support Interface :SPI
• Programmable bit rate : Max up to 300Kbps
• Crystal frequency : 32MHz
• Transmission distance : In an open environment, this module match with spring antenna the transmitting range can reach 2.8km or match with suction cup antenna the transmitting range can reach 4.6km.

Package Includes:-

1 x Ai-Thinker LoRa Ra-01SC Module

Datasheet:-

Ai Thinker LoRa Ra-01SC Module Overview

The Ai Thinker LoRa Ra-01SC Module is a compact, ultra-long-range wireless communication device based on the Semtech LLCC68 RF chip and LoRa modulation. It operates in the 410 MHz–525 MHz band, offering high sensitivity and robust anti-interference performance for low-power telemetry, remote sensing, and IoT applications.

Key Features of Ai Thinker LoRa Ra-01SC Module

• RF chip LLCC68 with Semtech patented LoRa modulation for high reliability
• Frequency range: 410 MHz–525 MHz with spring antenna for up to 2 km open-field range
• High sensitivity (≤ –129 dBm) and output power up to 20 dBm
• SPI interface, programmable bit rate up to 300 kbps
• Compact SMD16 package (17 × 16 × 3.2 mm) with wide temperature range (–40 °C to 85 °C)
• Wide supply voltage: 2.7 V–3.6 V (default 3.3 V), typical current > 200 mA
• Fast shipping from Zbotic across India

Applications and Use Cases

• Long-range environmental monitoring (air quality, water levels)
• Agricultural sensor networks (soil moisture, weather stations)
• Industrial telemetry and remote equipment control
• Smart metering for electricity, gas, and water utilities
• Asset tracking in logistics and fleet management
• IoT gateway backhaul in rural or hard-to-reach areas

How to Use Ai Thinker LoRa Ra-01SC Module

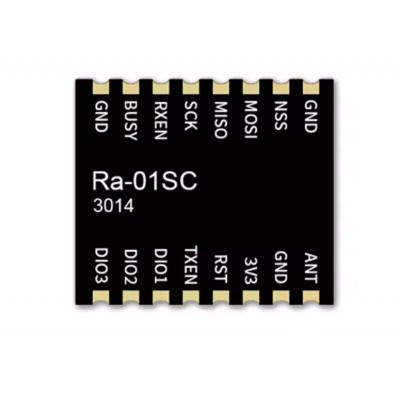

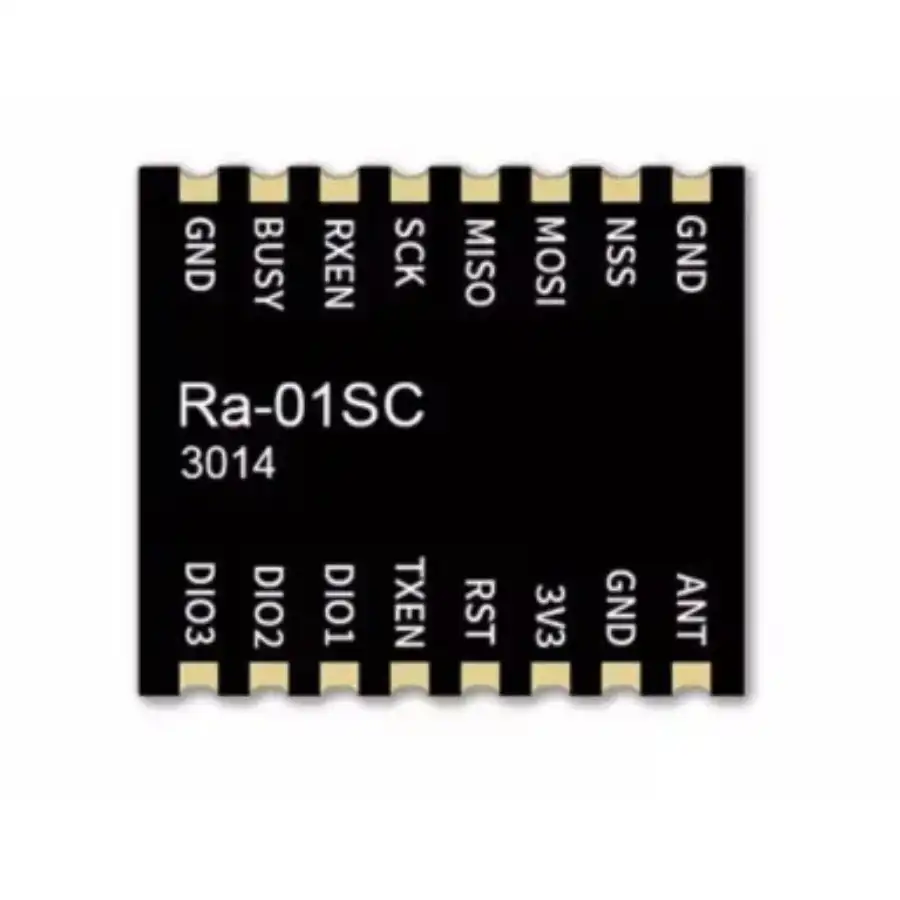

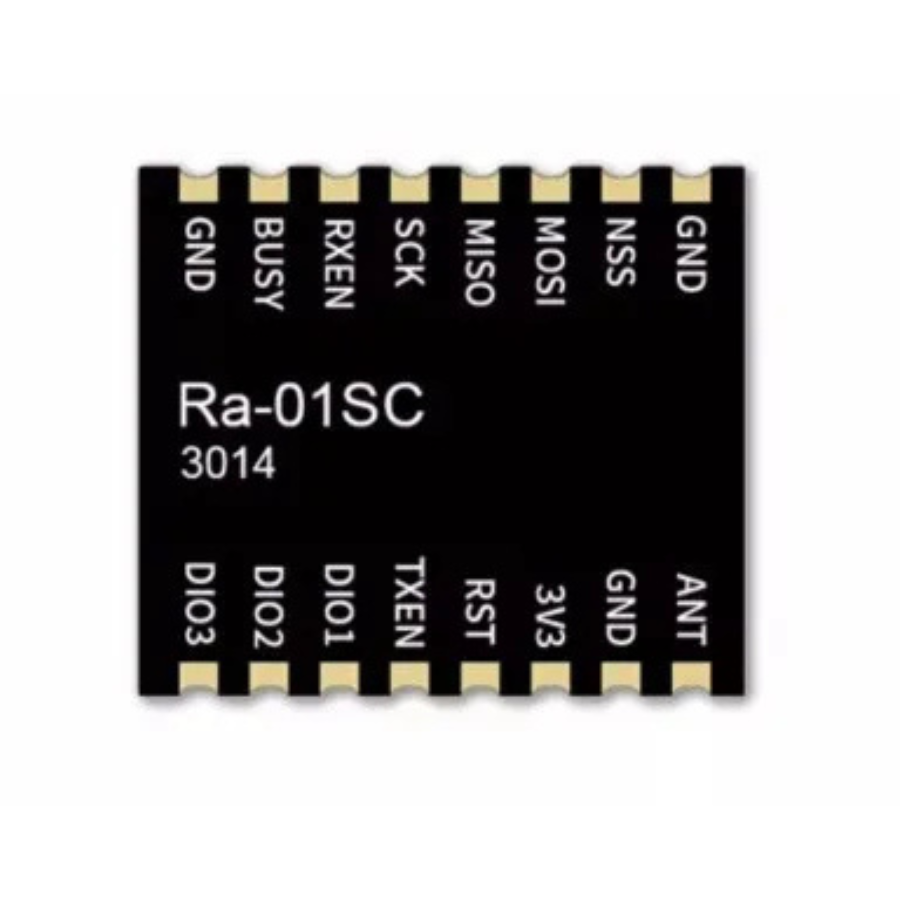

To set up the Ra-01SC, solder the SMD16 footprint onto your PCB, supply 3.3 V to VCC and GND, and connect the SPI lines (MOSI, MISO, SCK, NSS) plus reset and DIO pins to your microcontroller. Attach the spring antenna to the ANT pad, configure frequency and power settings via SPI registers, then initiate transmission or reception routines in your firmware.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What PCB footprint is required for the Ra-01SC module?

The Ra-01SC uses a 16-pin SMD package with a 17 × 16 × 3.2 mm profile. You can download the Ai Thinker footprint diagram and pad layout to integrate it directly onto your PCB.

How far can this module transmit in open space?

With the included spring antenna in an unobstructed environment, the Ra-01SC can achieve up to approximately 2 km of reliable communication, depending on terrain and antenna orientation.

Which microcontroller interfaces are supported?

The module communicates over SPI for both configuration and data transfer. Standard MOSI, MISO, SCK, and NSS pins are available, along with DIO lines for interrupt-driven packet handling.
