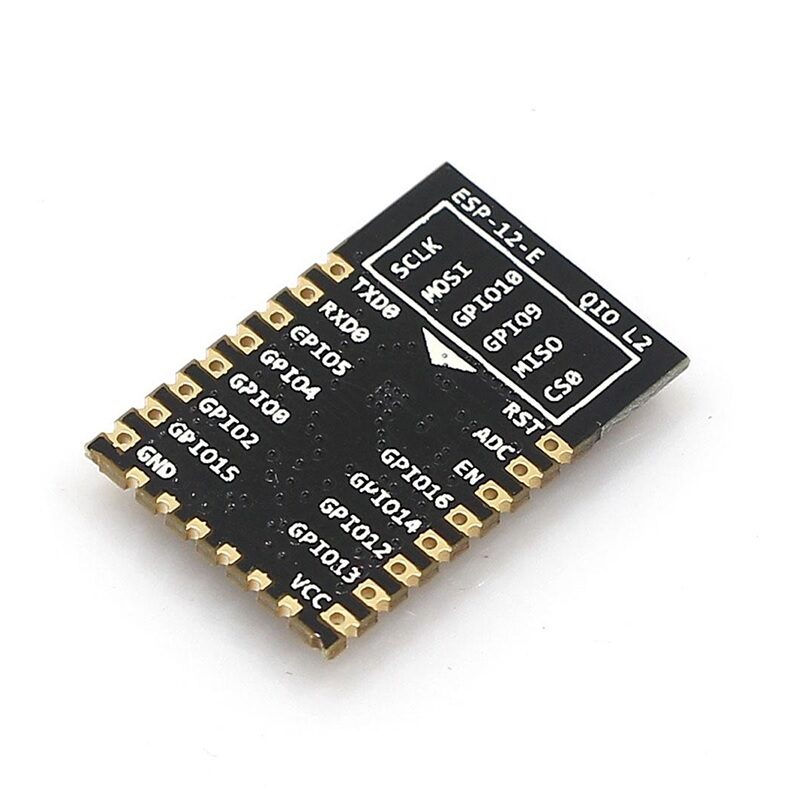

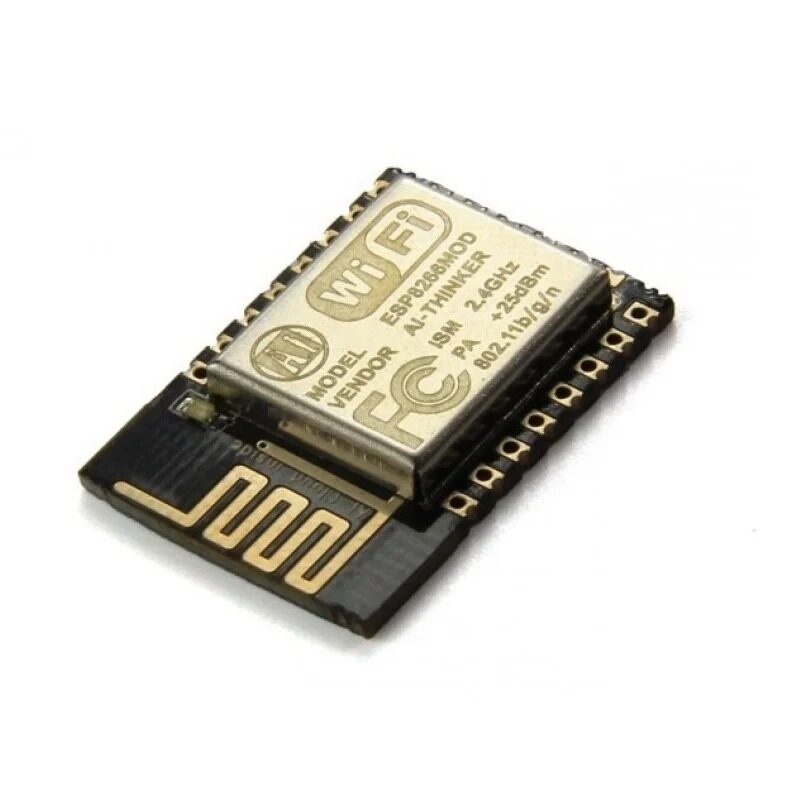

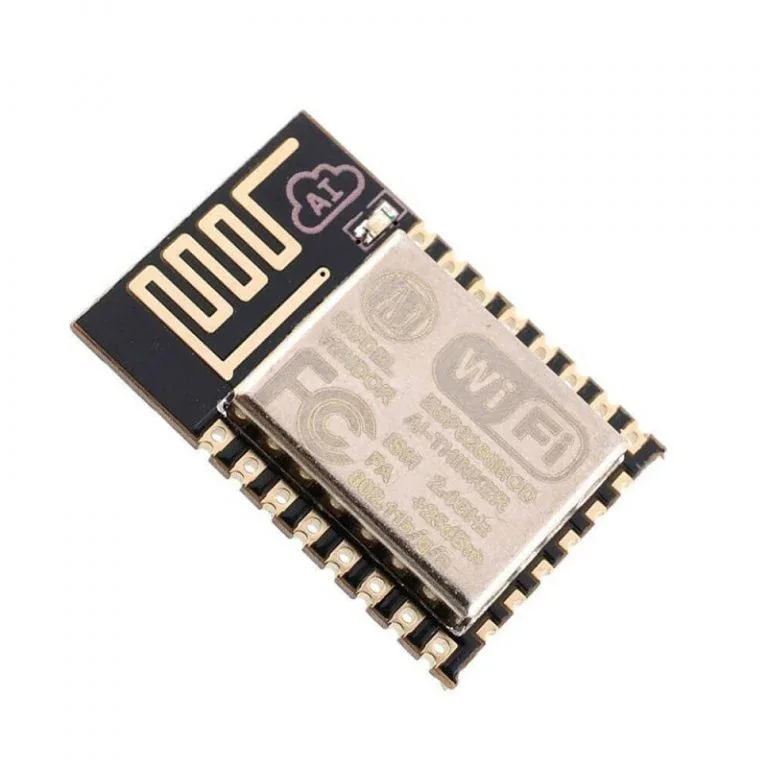

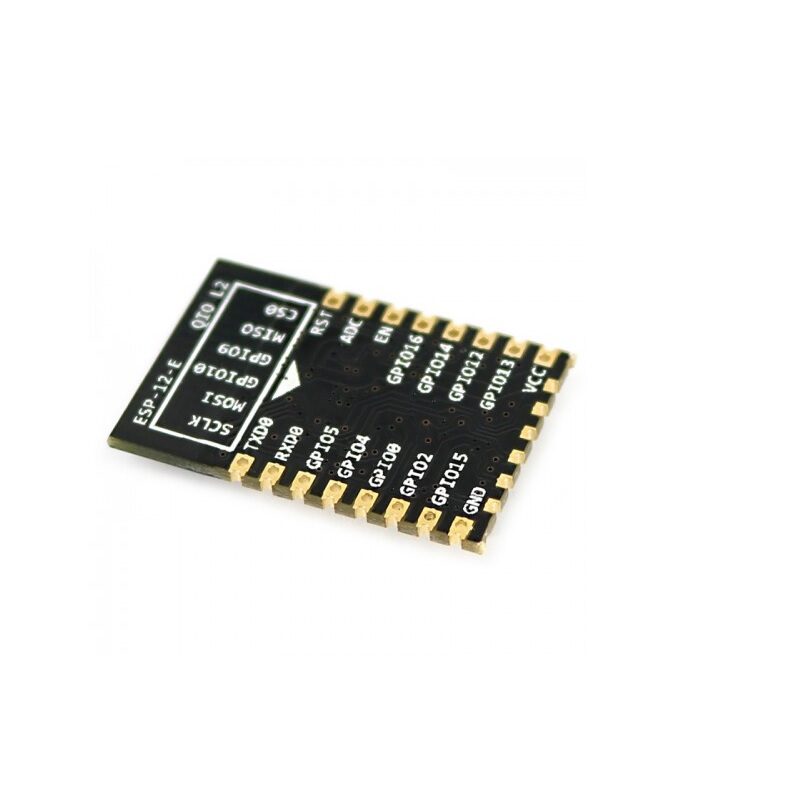

Ai Thinker ESP-12E ESP8266 Serial WiFi Module is an ultra-low power consumption technology, designed especially for mobile devices and IoT applications, user’s physical device can be connected to a Wifi wireless network, internet or intranet communication, and networking capabilities.
The Core processor ESP8266 in smaller sizes of the module encapsulates Tensilica L106 integrates industry-leading ultra low power 32-bit MCU micro, with the 16-bit short mode, Clock speed support 80 MHz, 160 MHz, supports the RTOS, integrated Wi-Fi MAC/BB/RF/PA/LNA, on-board antenna.
The module supports standard IEEE802.11 b/g/n agreement, complete TCP/IP protocol stack. Users can use the add modules to an existing device networking or building a separate network controller.
ESP8266 is a high integration wireless SOCs, designed for space and power-constrained mobile platform designers. It provides an unsurpassed ability to embed Wi-Fi capabilities within other systems or to function as a standalone application, with the lowest cost, and minimal space requirement.
Features:
- 802.11 b/g/n
- Integrated low power 32-bit MCU
- Integrated 10-bit ADC
- Integrated TCP/IP protocol stack
- Integrated TR switch, balun, LNA, power amplifier and matching network
- Integrated PLL, regulators, and power management units
- Supports antenna diversity
- Wi-Fi 2.4 GHz, support WPA/WPA2
- Support STA/AP/STA+AP operation modes
- Support Smart Link Function for both Android and iOS devices
- Support Smart Link Function for both Android and iOS devices
- SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO
- STBC, 1×1 MIMO, 2×1 MIMO
- A-MPDU & A-MSDU aggregation and 0.4s guard interval
- Deep sleep power <10uA, Power-down leakage current < 5uA
- Â Wake up and transmit packets in < 2ms
- Â Standby power consumption of < 1.0mW (DTIM3)
- Â +20dBm output power in 802.11b mode
- Â Operating temperature range -40C ~ 125C
Package includes:
1 x Ai Thinker ESP-12E ESP8266 Serial WiFi Module
