Looking for Ai Thinker Aipi Scp? Ai Thinker AiPi-SCP-2.4 is available at Zbotic with fast shipping across India.
The AiPi-SCP-2.4 utilizes the Ai-Thinker Ai-M61-32S module as its control core, employs a Type-C interface for power supply, connects to a 2.4-inch RGB LCD display via the SPI interface, and links to an external audio circuit for voice broadcasting and physical control through a button group. The equipped Ai-M61-32S module boasts a wide array of peripheral interfaces, including DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, and more.
Features:
- Powered by the Ai-Thinker Ai-M61 module, ensuring a robust and reliable control core for seamless functionality.
- Utilizes the Type-C interface for easy and convenient power supply.
- Features a 2.4-inch RGB LCD screen for vibrant and clear visual displays.
- Utilizes the SPI interface for efficient communication with the RGB LCD screen.
- External audio circuit for high-quality voice broadcast.
- Integrated button group for physical control, enhancing user interaction.
- USB2.0 for high-speed connectivity.
- SDU, Ethernet (EMAC), SD/MMC (SDH) for storage options.
- SPI, UART, I2C, I2S, PWM for versatile communication.

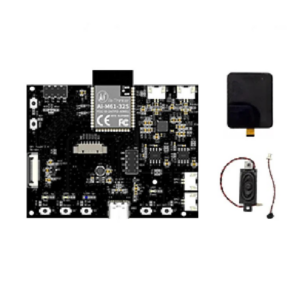

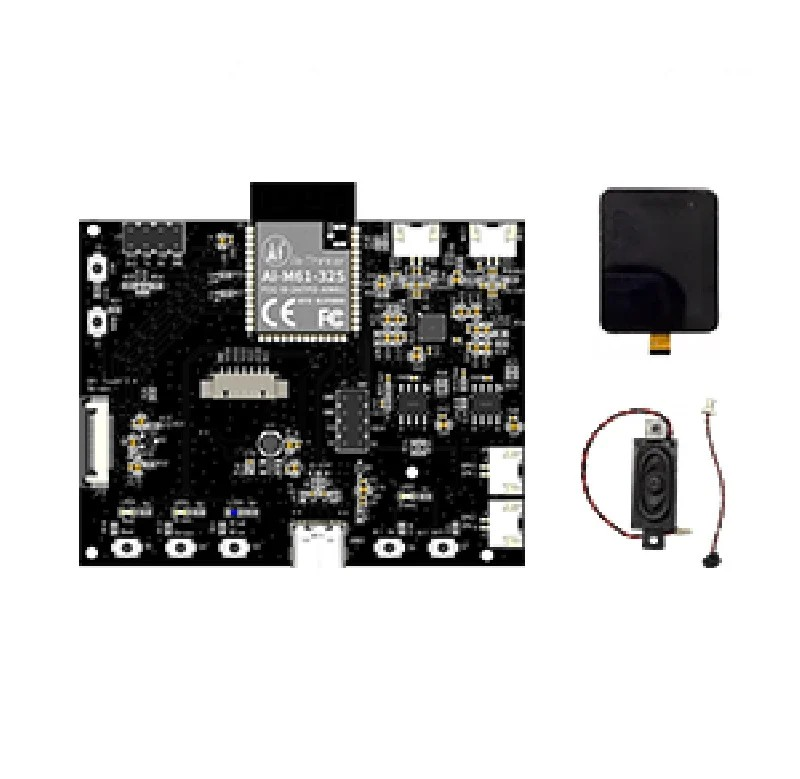

Package Includes:
1 x Ai Thinker AiPi-SCP-2.4
User Manual:
Ai Thinker AiPi-SCP-2.4 Overview

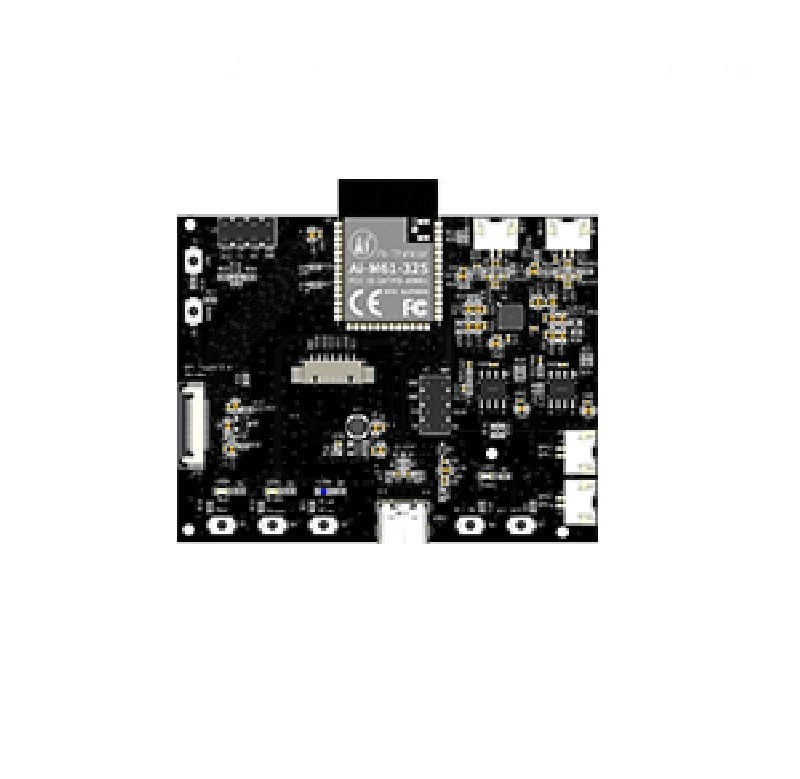

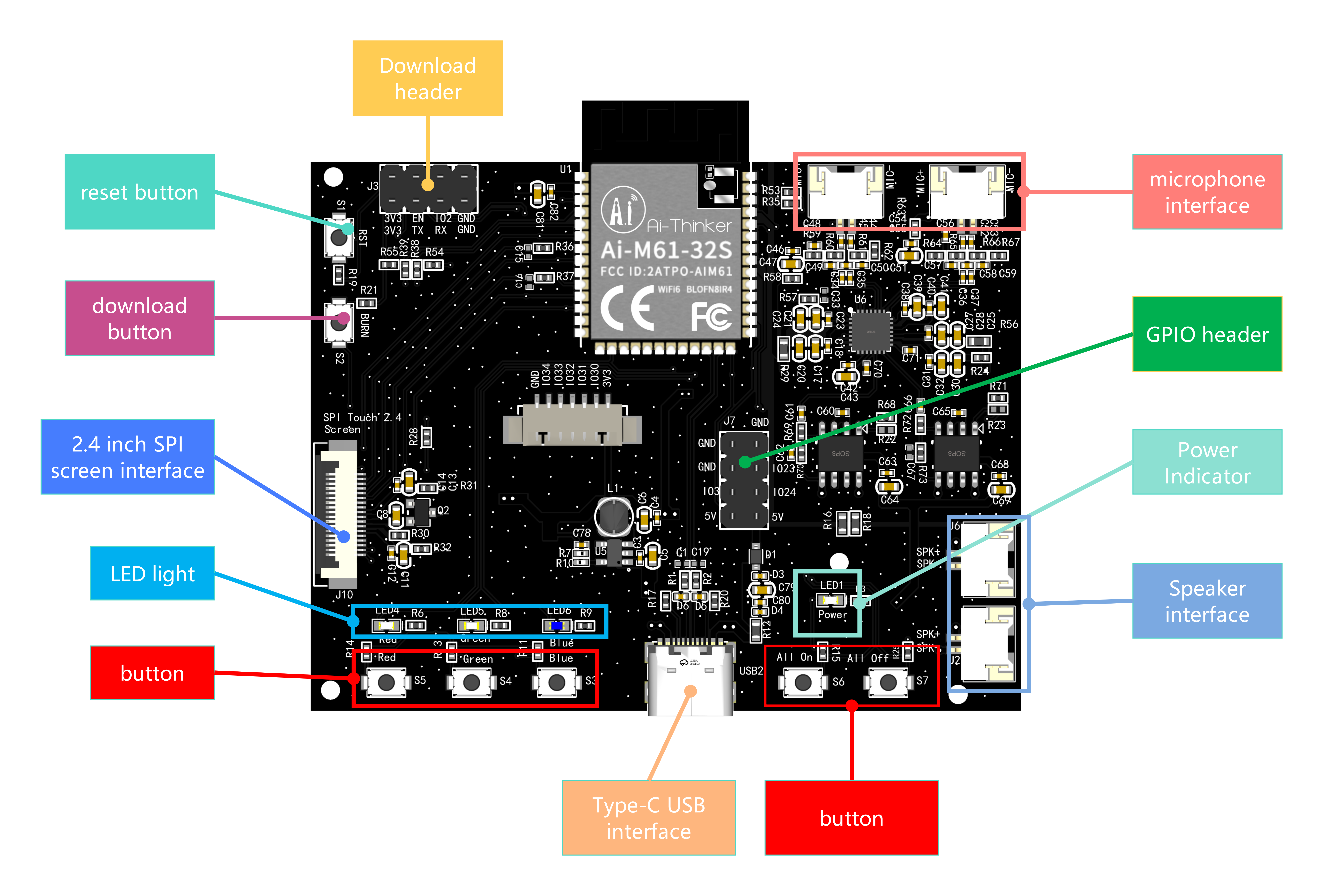

The Ai Thinker AiPi-SCP-2.4 is an embedded control and display board built around the Ai-M61-32S module. It integrates a 2.4-inch SPI-driven RGB LCD, USB Type-C power input, audio output interface and a set of user buttons to accelerate multimedia and IoT prototyping.
Key Features of Ai Thinker AiPi-SCP-2.4
- Ai-M61-32S Control Core: High-performance MCU with USB2.0, Ethernet, SD/MMC, MJPEG and more.
- Type-C Power Supply: Convenient 5 V USB Type-C input for reliable and reversible connection.
- 2.4″ RGB LCD via SPI: Vibrant display support with SPI interface for fast graphics updates.
- External Audio Circuit: Line-out interface for voice broadcasting and audio codec integration.
- Button Group: Physical user inputs for menu navigation, mode switching and control.
- Rich Peripherals: GPIO, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP and more.
- Fast Shipping from Zbotic: Genuine Ai Thinker module delivered quickly across India.
Applications and Use Cases
- Portable multimedia player with touchscreen-like display control.
- Voice-enabled IoT station for alarms, announcements and data logging.
- Interactive kiosk or information panel in retail or industrial settings.
- Embedded development platform for display and audio codec evaluation.
- Smart home controller with physical buttons and visual feedback.
How to Use Ai Thinker AiPi-SCP-2.4
Connect a 5 V power source via the USB Type-C port, attach the 2.4″ RGB LCD ribbon to the SPI header and wire the external audio circuit to the codec pins. Program the Ai-M61-32S module over USB2.0 or UART using your preferred IDE, then leverage the onboard buttons for menu and control functions. Use the available libraries to initialize the LCD, configure audio output and access GPIO, I2C or PWM peripherals.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which interface drives the 2.4″ display?
The onboard 2.4-inch RGB LCD connects via the SPI interface on dedicated SPI header pins for both command and data transmission.
How do I power the AiPi-SCP-2.4?
Simply plug a 5 V USB Type-C cable into the board’s power port. The reversible connector ensures reliable operation without worrying about polarity.
What peripherals does the Ai-M61-32S module support?
The Ai-M61-32S offers USB2.0, Ethernet (EMAC), SD/MMC, DVP camera, MJPEG, Audio Codec, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP and general-purpose GPIO interfaces.
Technical Specifications
| Brand | Ai- Thinker |
|---|---|
| Model | SCP-2 |
| SKU | AI5653 |
| Availability | Out of Stock |
Applications & Use Cases
The Ai Thinker AiPi-SCP-2.4 is a versatile ai thinker esp modules used across a wide range of applications including WiFi-enabled IoT devices, smart home sensors, web servers, mesh networks, and wireless data logging.
Common use cases:
- Connecting an Arduino project to WiFi
- Building a smart plug or switch
- Creating a wireless sensor network
This product is ideal for IoT developers, home automation enthusiasts, and embedded engineers.
Technical Tip: ESP32 supports both WiFi and Bluetooth. ESP8266 is WiFi-only but more affordable. Both are programmable via Arduino IDE or ESP-IDF.
