Ai Thinker AiPi-Eyes-S1
Description:

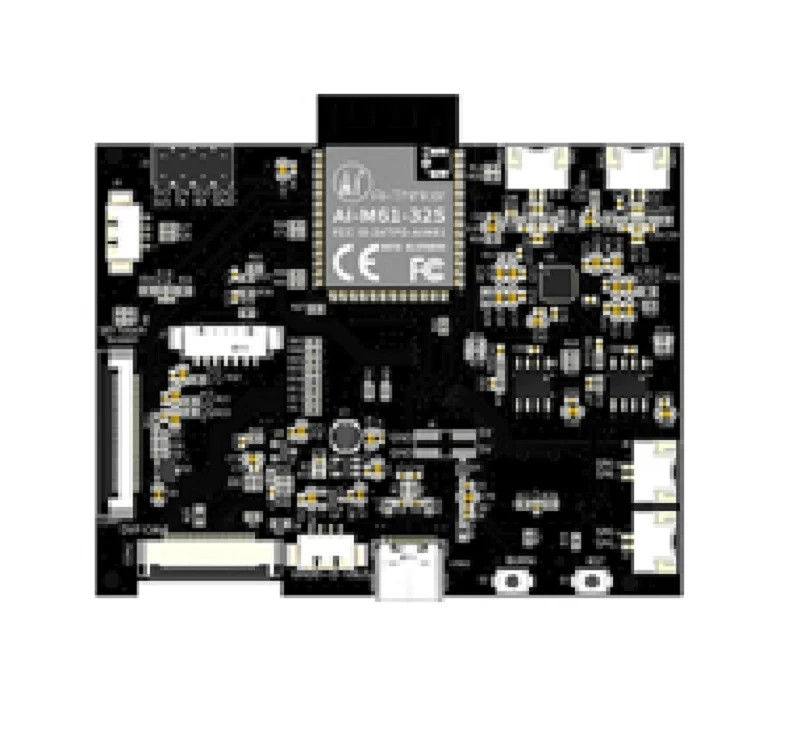

The Ai-Pi-Eyes series is a development board specifically designed for the Ai-M61-32S by the Ai-Thinker open source team, featuring support for WiFi6 and BLE5.3. The Ai-M61-32S module comes equipped with a wide array of peripheral interfaces, such as DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, and more. It also integrates an SPI screen interface, a DVP camera interface, a reserved TF card slot, and a USB interface that can be connected to a USB camera.
Note: For more details please refer attachment.
Ai-M61–32S module Feature:
- WIFI6+BLE5.3+Thread
- Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3
- Support 20/40MHz bandwidth, 1T1R，Maximum rate 229.4 Mbps
- Support STA、SoftAP、STA+SoftAP and sniffer mode
- Dual-core 32-bit RISC-V CPU with FPU and DSP, the highest frequency can reach 320M
- 532KB SRAM，128KB ROM，4Kb eFuse
- Integrated RF Balun、PA/LNA
- Support XIP QSPI On-The-Fly AES Decryption (OTFAD)
- Support TrustZone
- Support AES-CBC/CCM/GCM/XTS mode
- Support MD5、SHA-1/224/256/384/512
- Support TRNG (true random number generator)
- Support for PKA (Public Key Accelerator) for RSA/ECC
- Support Wi-Fi Quick Connect with BLE
- General AT commands can be used conveniently
- Support secondary development, Windows, Linux environment
Features:
- It supports WiFi6 and BLE5.3.
- It is specially designed for Ai-M61-32S.
Attachment:

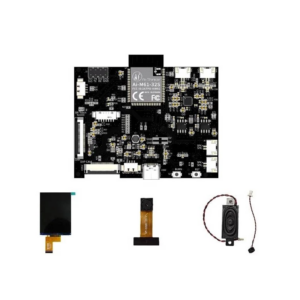

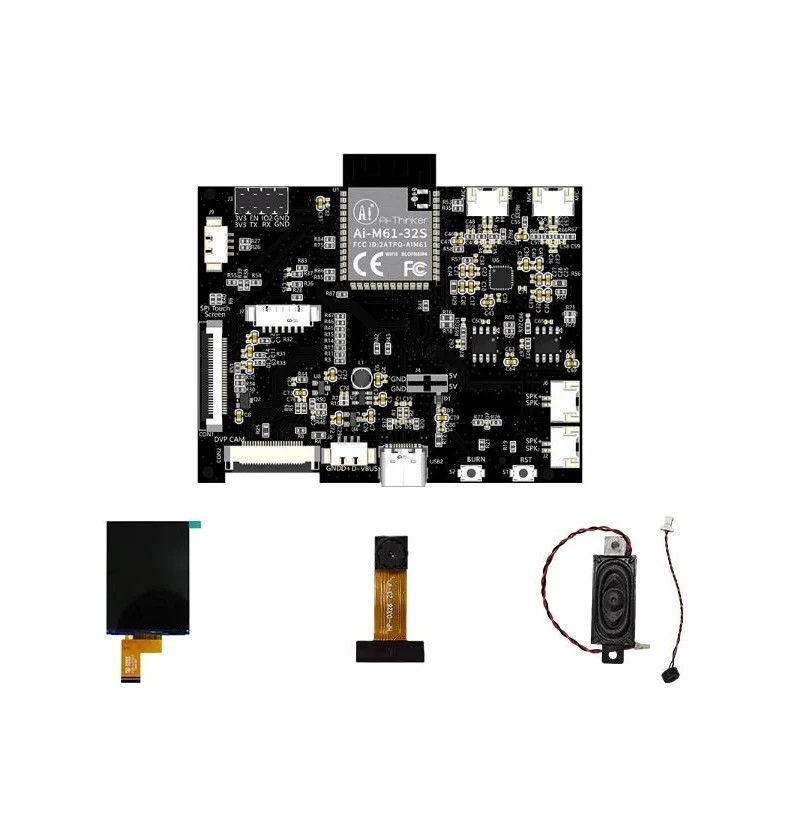

Package Includes:
1 x 3.5inch display
1 x Camera
2 x MIC
2 x Speaker
Ai Thinker AiPi-Eyes-S1 Overview
The Ai Thinker AiPi-Eyes-S1 is a vision-focused development board built around the Ai-M61-32S module, featuring a dual-core 32-bit RISC-V CPU running up to 320 MHz. It integrates Wi-Fi 6 and BLE 5.3 connectivity alongside camera, display and storage interfaces, making it ideal for embedded vision and IoT applications.
Key Features of Ai Thinker AiPi-Eyes-S1
- Built-in Ai-M61-32S module with Wi-Fi 6 & BLE 5.3 support for high-speed wireless communication
- Dual-core 32-bit RISC-V CPU (up to 320 MHz) for real-time image processing and control tasks
- DVP camera interface and USB camera support plus SPI screen interface for versatile vision projects
- Reserved TF card slot and SD/MMC support for onboard storage and data logging
- Multiple peripheral interfaces: SPI, UART, I2C, I2S, Ethernet (EMAC), PWM, ADC/DAC, GPIO
- Built-in hardware security and AT command set for easy development and robust deployment
- Genuine Ai Thinker product with fast shipping across India from Zbotic
Applications and Use Cases
- Real-time object detection and machine vision prototypes
- Smart surveillance and remote monitoring systems
- Interactive display interfaces with live camera feed
- Robotics vision module for navigation and obstacle avoidance
- IoT edge devices requiring image capture and wireless connectivity
- Data logging solutions with onboard TF card storage
How to Use Ai Thinker AiPi-Eyes-S1
To get started, mount your DVP or USB camera on the dedicated interface, insert a TF card for storage, and connect a compatible SPI display. Power the board via its USB port, then configure network credentials over AT commands sent through UART or USB. Use the Ai Thinker RISC-V SDK or built-in command set to upload vision algorithms and manage peripherals.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I connect a USB camera instead of the DVP interface?
Yes. The AiPi-Eyes-S1 board provides a USB2.0 port that supports standard UVC cameras, allowing you to choose between DVP and USB camera modules.
Which displays are compatible with the SPI screen interface?
The board’s SPI port supports common SPI-based OLED and TFT displays (e.g. ST7735, ILI9341). Simply wire the display’s SPI pins to the board’s SPI header and configure via the SDK.
How do I expand storage beyond the onboard memory?
Use the reserved TF card slot to insert an SD or MMC card. The Ai-M61-32S module’s SD/MMC interface manages data read/write operations for logging images or sensor data.
Technical Specifications
| Brand | Ai- Thinker |
|---|---|
| SKU | AI5649 |
| Availability | Out of Stock |
