ADTi 24MP 24S V1 Surveyor Lite Drone Mapping Cameras

Introducing the ADTi 24MP 24S V1 Surveyor Lite Drone Mapping Cameras. The ADTi 24MP 24S V1 UAV Survey Cameras are high-performance solutions tailored for precise aerial mapping. The ADTi 24MP 24S V1 Precision Mapping Drone Cameras are specifically engineered for accurate surveying. The ADTi 24MP 24S V1 Topographic UAV Cameras represent the second generation of ADTi’s 24MP APS-C Drone/UAV Mapping Cameras, featuring improved usability and flexible mounting options, making them perfectly suited for professional geospatial applications..

ADTi 24MP 24S V1 Surveyor Lite Drone Mapping Cameras: Key Features As Well As Specifications

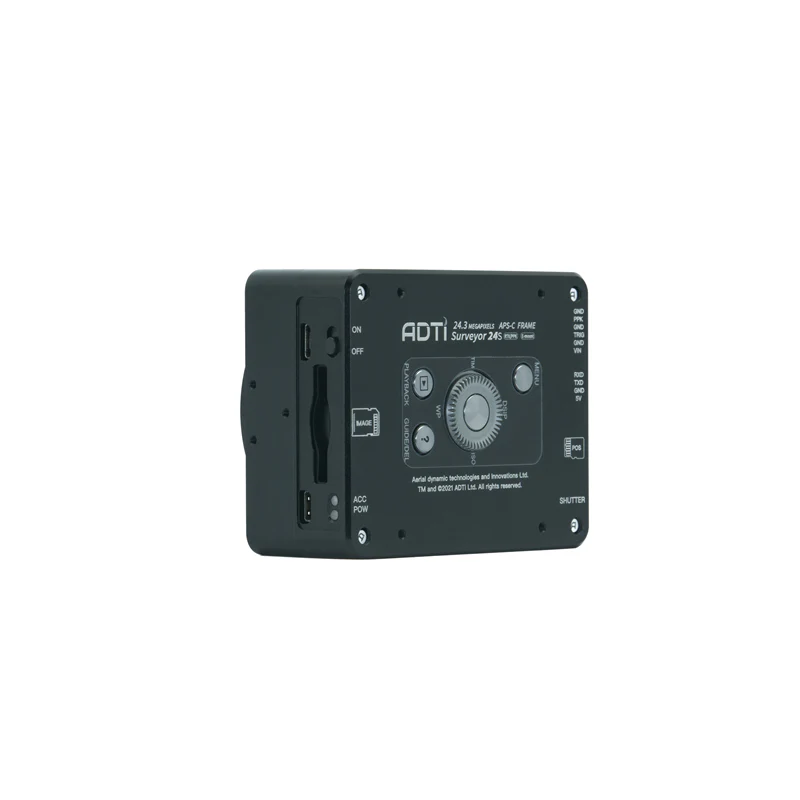

• Durable Construction: The ADTi 24MP 24S V1 Professional Survey Drones cameras boast an aluminum housing with mounting holes on the side and back, tailored for 3-axis gimbal or LiDAR integration.

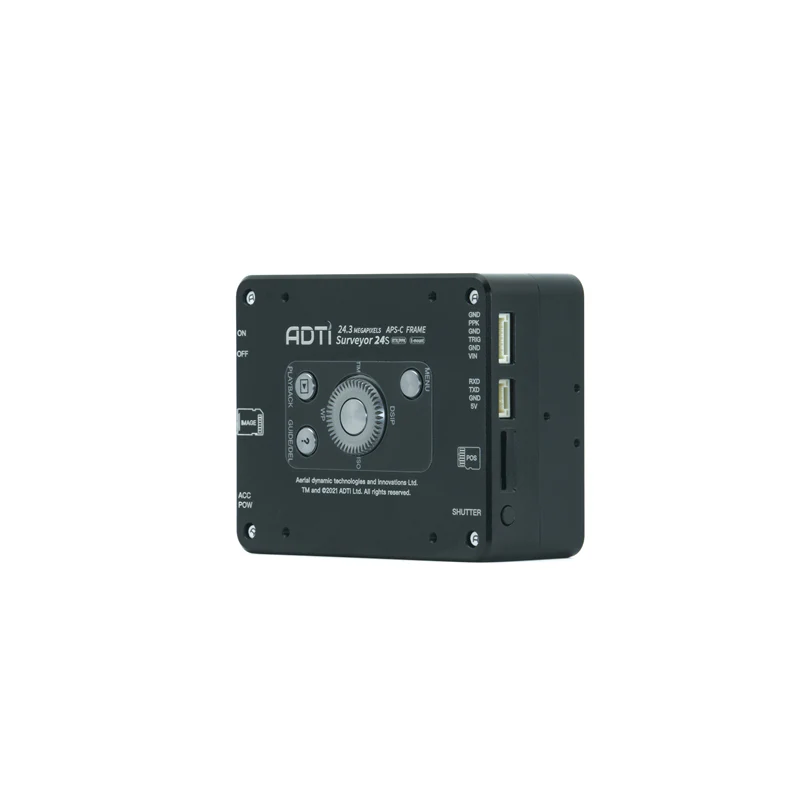

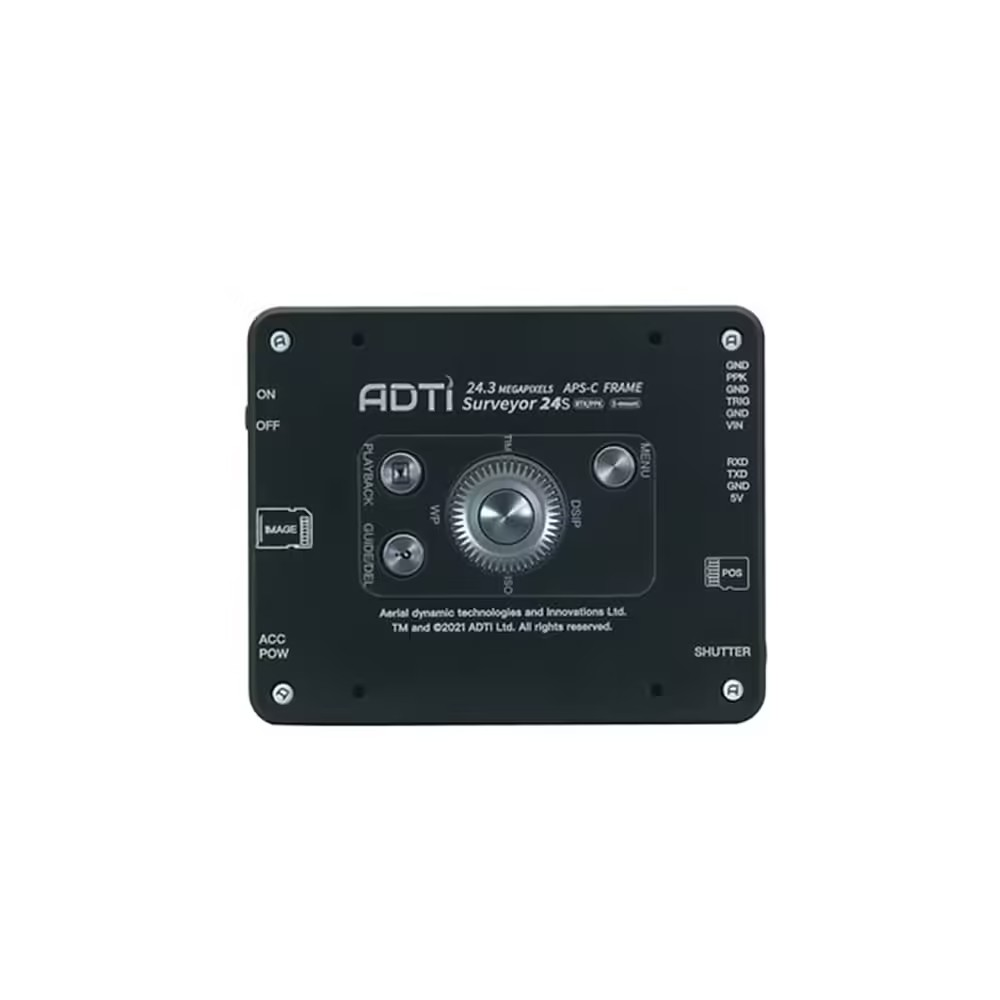

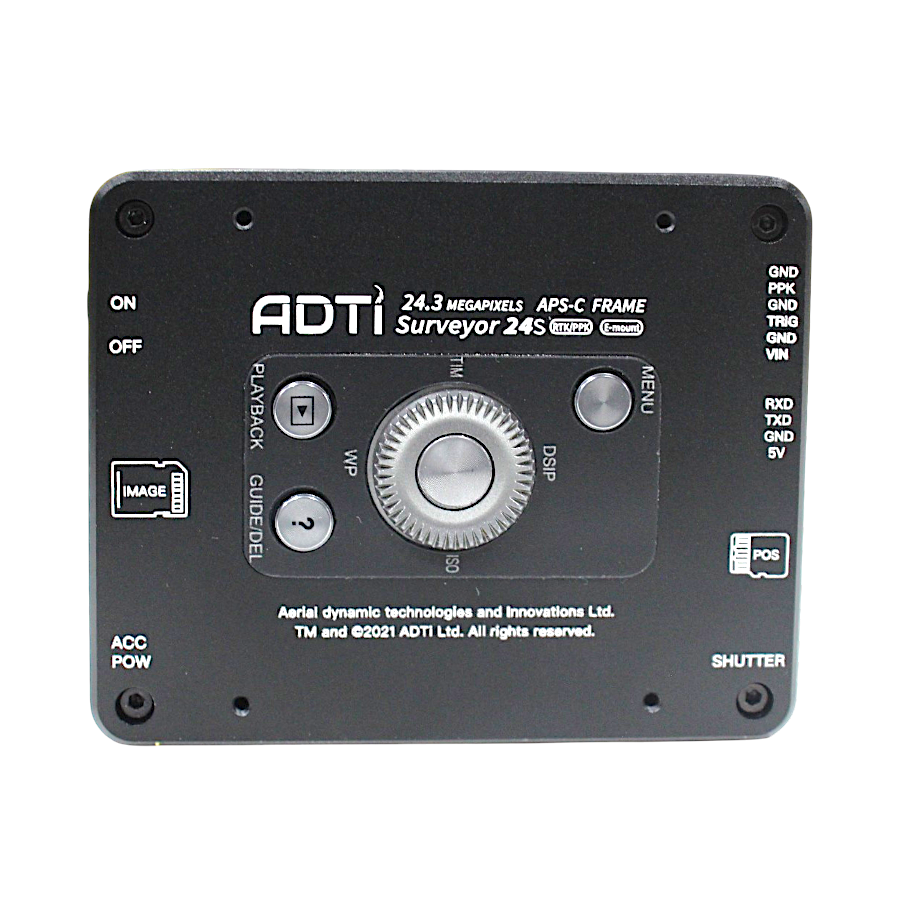

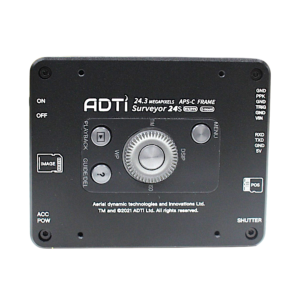

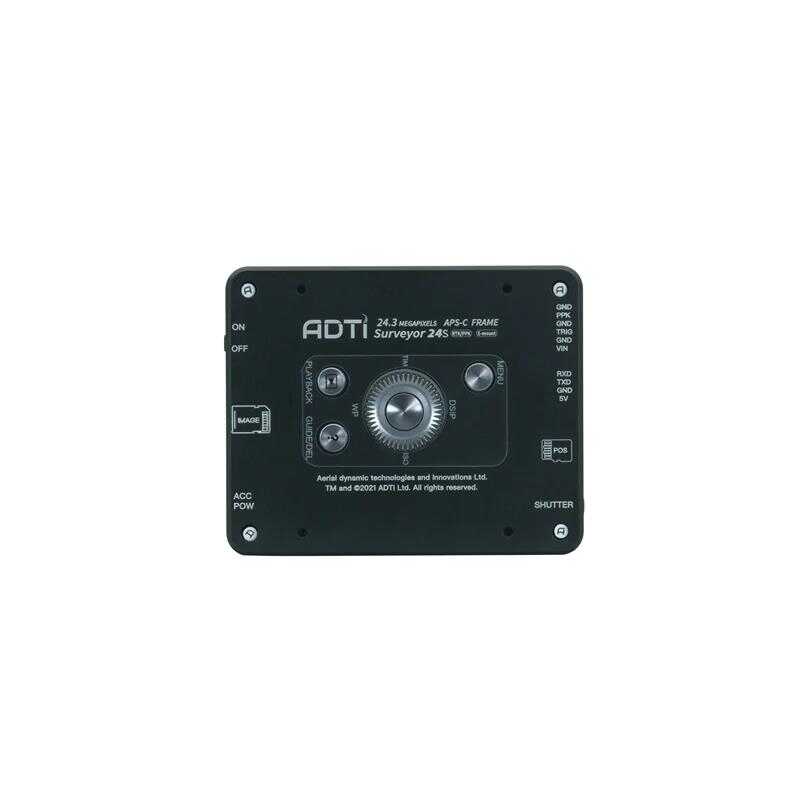

• User-Friendly Design: The camera’s buttons are strategically placed at the back for straightforward setup and adjustment.
• Lightweight and Compact: The camera’s body weighs a mere 152 g and measures 76.5x62x38.4 mm, making it light and compact to minimize the impact on the drone’s payload capacity.
• High-Resolution Imaging: Equipped with a 24MP APS-C sensor, the ADTi 24MP 24S V1 High-Resolution Mapping Cameras provide superior image quality for detailed aerial surveys.
• The ADTi 24MP 24S V1 Surveyor Lite Drone Mapping Cameras feature an intuitive design that enhances user experience. The rear placement of buttons on the ADTi 24MP 24S V1 Cartographic Drone Systems streamlines the setup, allowing for efficient field adjustments. This design ensures quick and easy camera configuration, minimizing downtime and boosting productivity on survey missions.

ADTi 24MP 24S V1 Surveyor Lite Drone Mapping Cameras: Camera Features

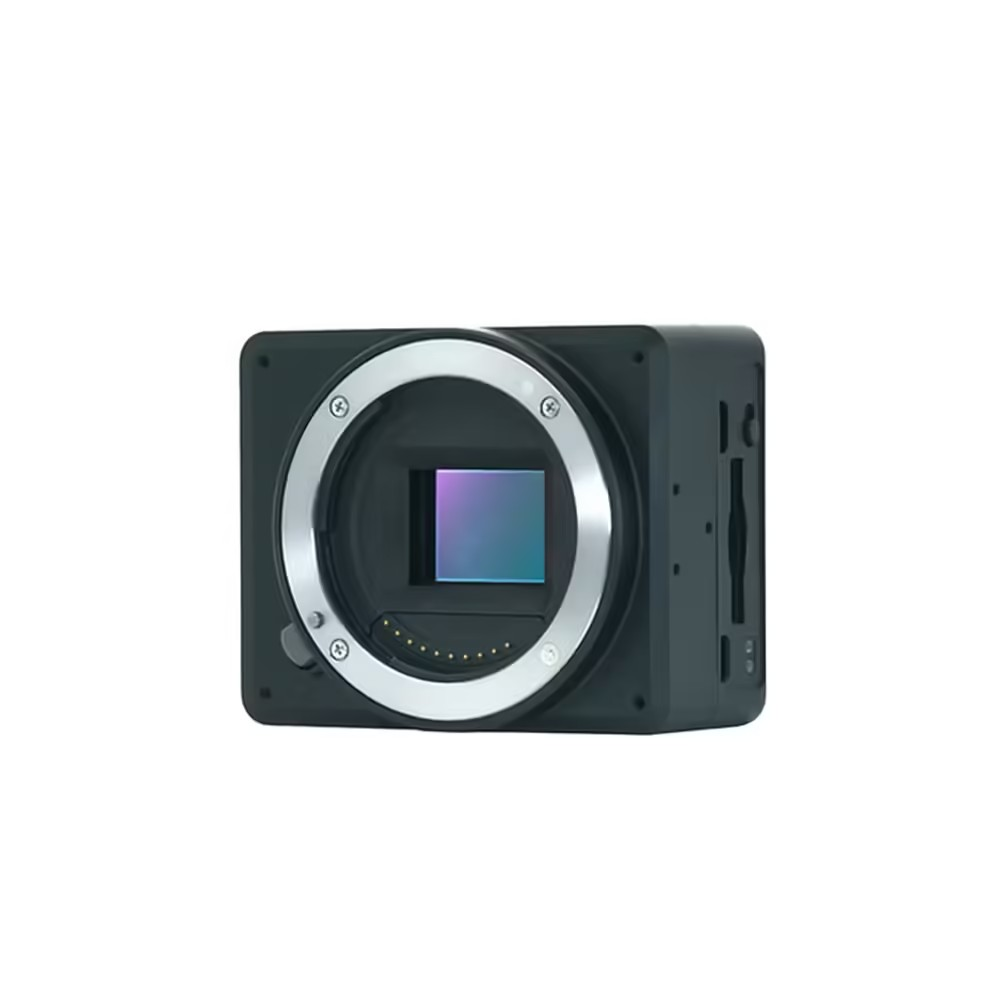

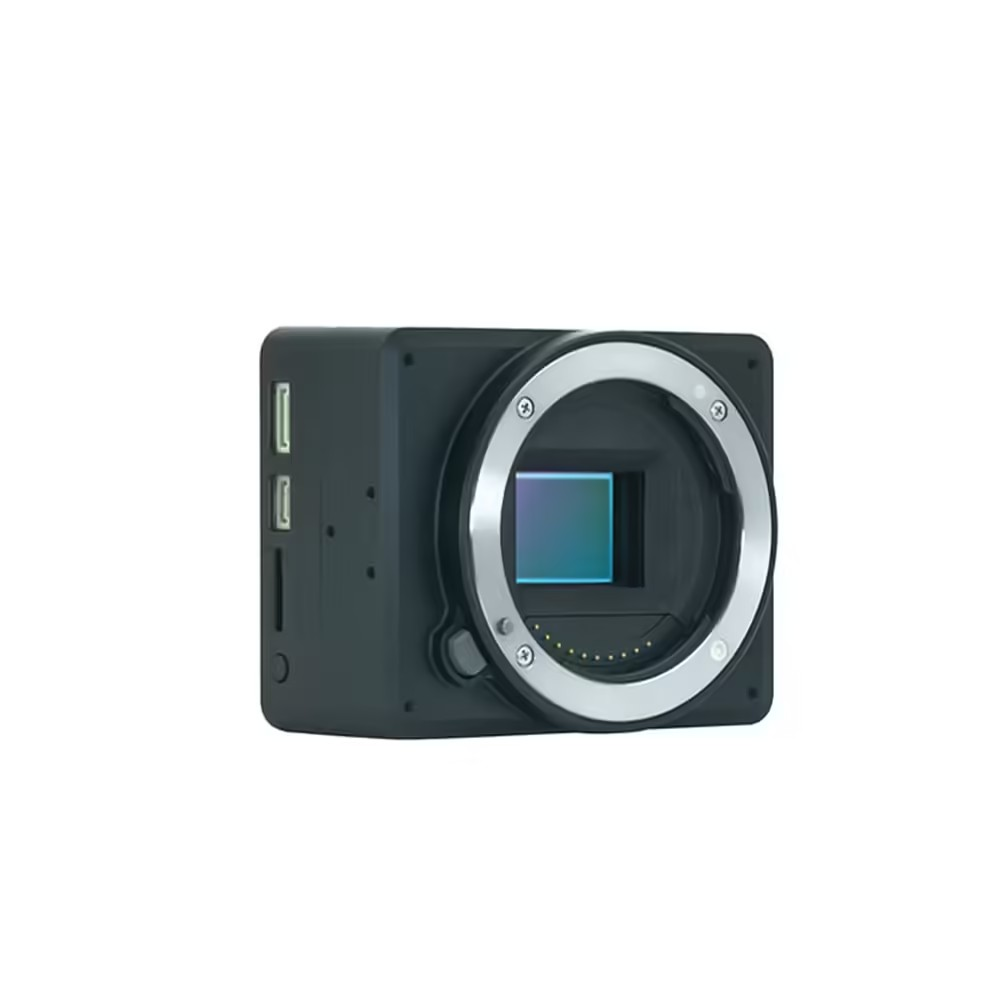

Image Sensor

• Type: CMOS
• Manufacturer: Sony
• Effective Megapixels: 24.3
• Format: APS-C
• Size: 366.6mm² (23.50mm x 15.60mm)
• Pixel Pitch: 3.92 microns
• Aspect Ratio: 3:2
• Color Filter Type: RGBG
• Anti-Aliasing Filter: Fixed
• Color Depth: 23.8 bits
• Maximum Effective ISO: 1,347

Image Capture:

• Resolutions:

• • 6000 x 4000 (24.0 MP, 3:2)
  • 6000 x 3376 (20.3 MP, 16:9)
  • 4240 x 2832 (12.0 MP, 3:2)
  • 4240 x 2400 (10.2 MP, Other)
  • 3008 x 2000 (6.0 MP, 3:2)
  • 3008 x 1688 (5.1 MP, 16:9)
  • 12416 x 1856 (23.0 MP, Other)
  • 8192 x 1856 (15.2 MP, Other)
  • 2160 x 5536 (12.0 MP, Other)
  • 2160 x 3872 (8.4 MP, Other)
• File Formats: JPEG, RAW, RAW+JPEG
• Continuous-mode: Up to 4 frames per second

Video Capture:

• Resolutions:
• • 1920×1080 (60p/60i/30p/24p)
  • 1440×1080 (30p)
  • 640×480 (30p)
• File Formats: XAVC S/AVCHD 2.0 / MP4
• HD Video Out: Yes
• Connection: HDMI

The ADTi 24MP 24S V1 Survey-Grade UAV Cameras are crafted for adaptability. The Surveyor Lite version of the ADTi 24MP 24S V1 is compatible with a variety of lens options and gimbal systems. With the Sony E lens mount, it supports an extensive range of focal lengths to ensure users can choose the optimal lens for their particular needs. Additionally, the ADTi 24MP 24S V1 Fixed-Wing Mapping Cameras are compatible with a wide array of gimbal systems, including 3-axis gimbals and LiDAR mounts, offering versatility for a range of mapping requirements.

ADTi 24MP 24S V1 Surveyor Lite Drone Mapping Cameras: Lens Features

Lens And Optics

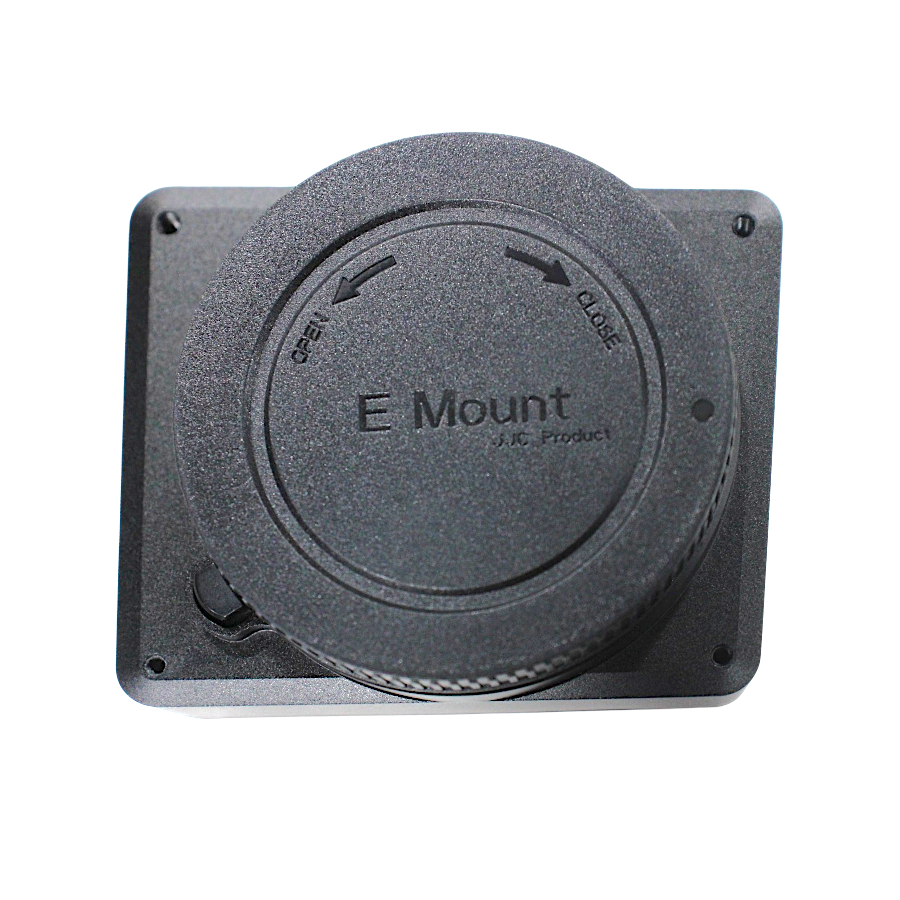

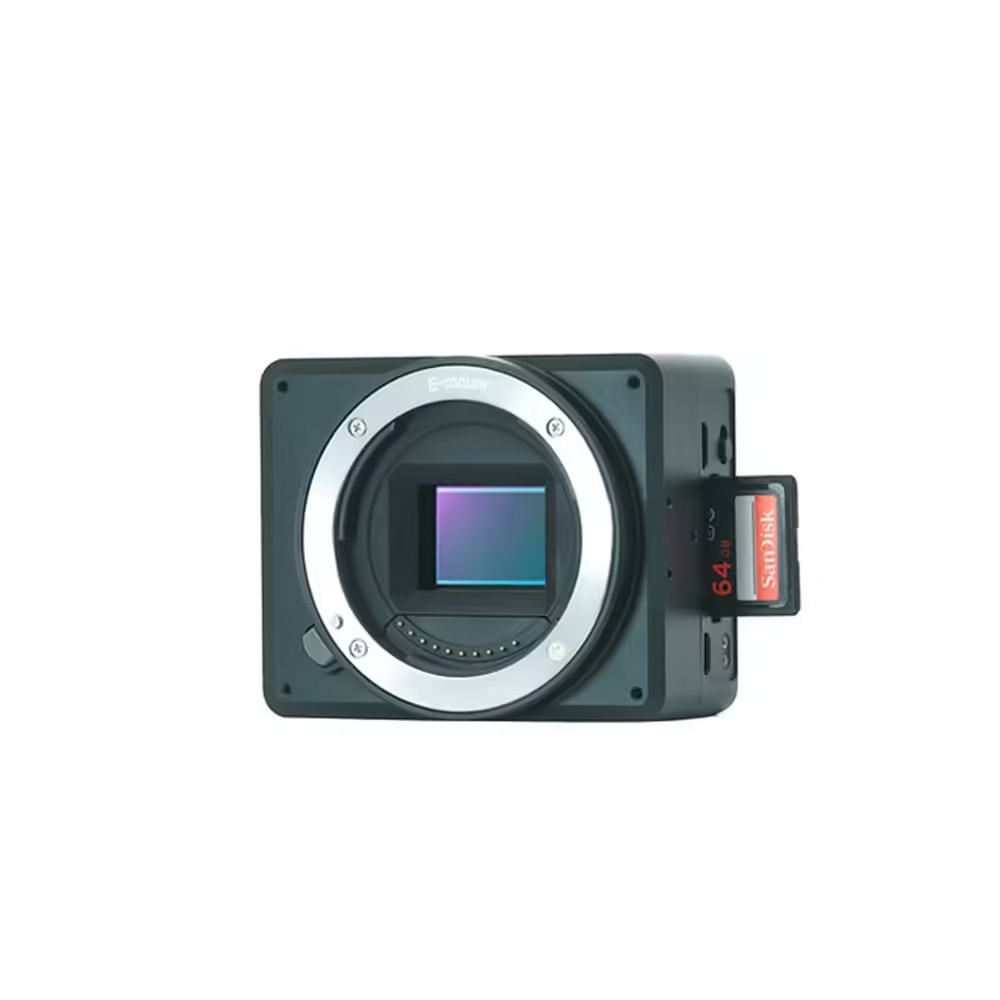

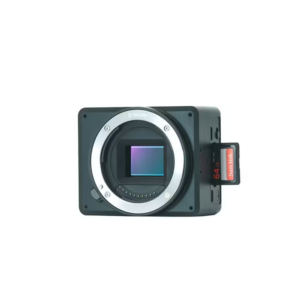

• Mount: Sony E
• Focus Range: 25 cm to Infinity
• Auto Focus: Yes
• Manual Focus: Yes

Display (Detached):

• Power: 5V DC
• Screen Size: 2 inch mini touch screen

Camera Dimensions and Power:

• Size: 7.76.23.8 cm
• Weight: 152 g
• Package Size: 302015 cm
• Package Weight: 500 g
• Power Supply: 10-25V DC Lipo or Liion
• Operating Temperature: -10 to 40 °C

The ADTi 24MP 24S V1 Surveyor Lite Drone Mapping Cameras are designed to fulfill the stringent requirements of professional aerial mapping. With their lightweight construction, high-resolution imaging, and user-friendly attributes, these cameras are indispensable for any surveying or geospatial task. They guarantee precision and dependability in every operation, whether it’s for conducting topographic surveys or generating intricate maps.

ADTi 24MP 24S V1 Surveyor Lite Drone Mapping Cameras

The ADTi 24MP 24S V1 Surveyor Lite Drone Mapping Cameras feature cutting-edge technology and sturdy construction. Designed for excellent performance and resilience under tough environmental conditions, the ADTi 24MP 24S V1 Surveyor Lite boasts an aluminum housing for durability while keeping a light profile, ideal for prolonged aerial tasks. Its extensive features and specifications render the ADTi 24MP 24S V1 Surveyor Lite Drone Mapping Cameras an optimal selection for professionals who prioritize precision, efficiency, and dependability in their mapping projects.

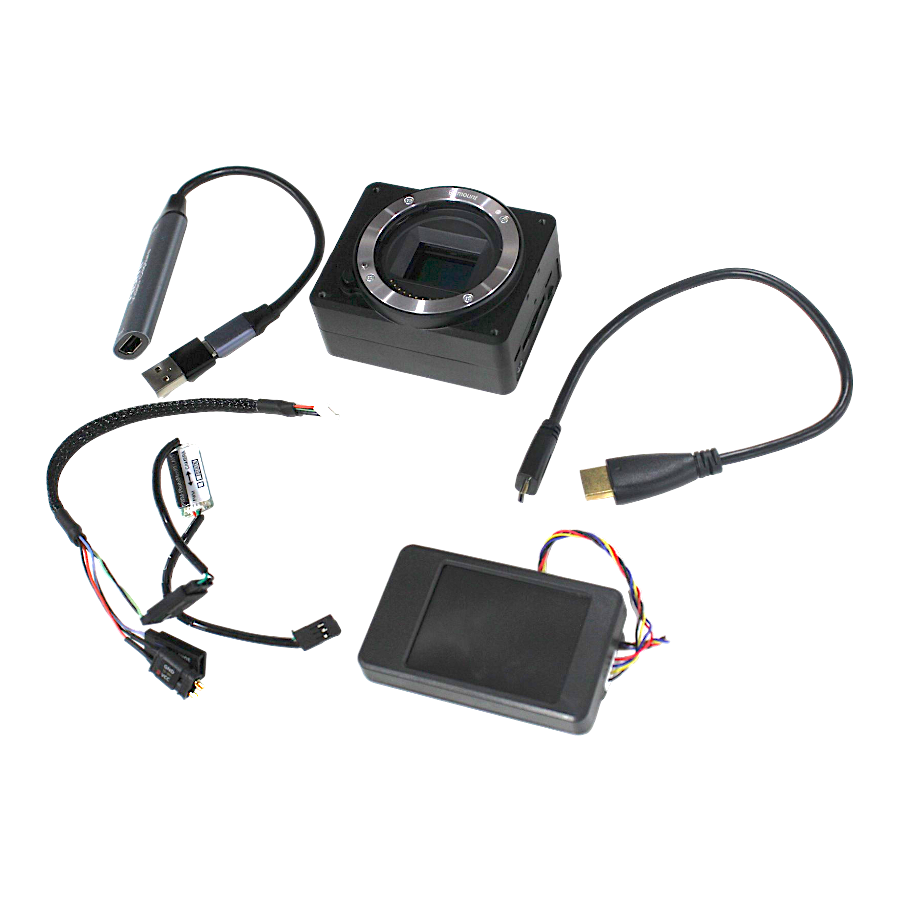

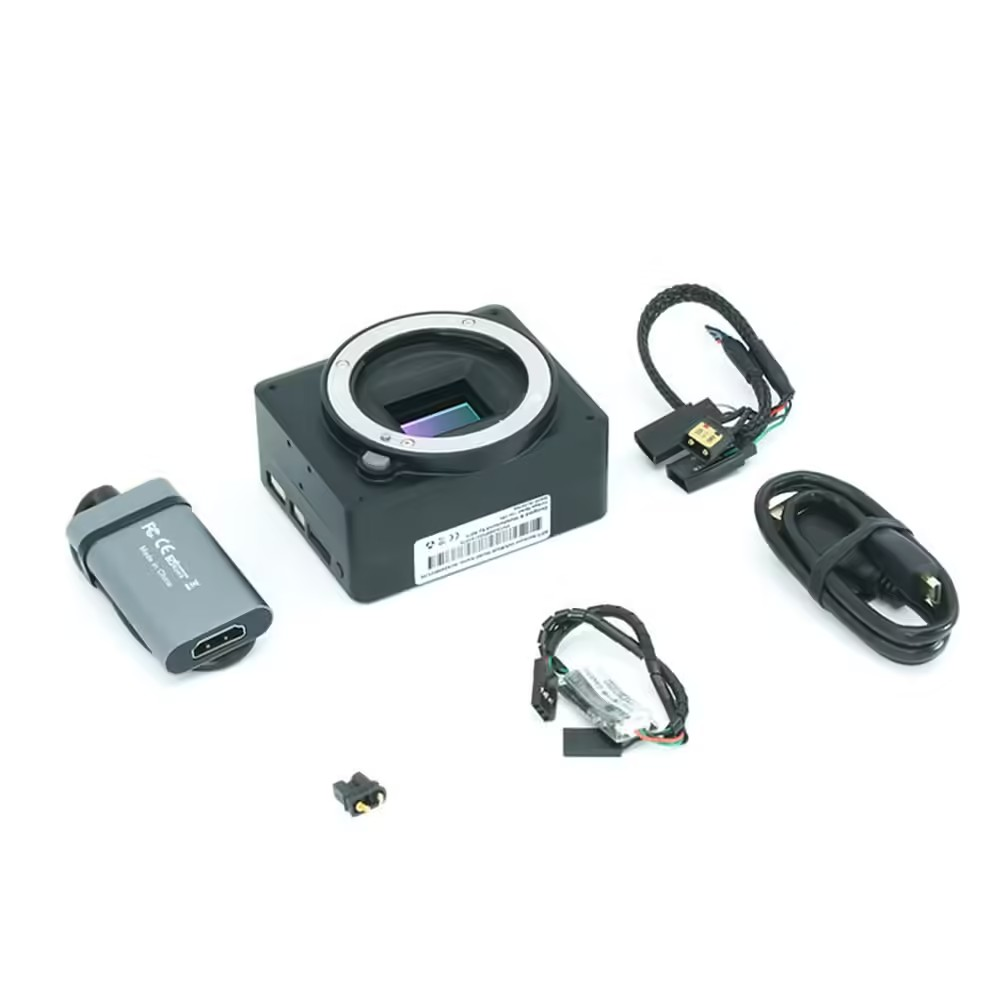

Package Include.

1 X  ADTi 24MP 24S V1 Surveyor Lite Drone Mapping Cameras.

ADTi 24MP 24S V1 Surveyor Lite Drone Mapping Cameras Overview

The ADTi 24MP 24S V1 Surveyor Lite is a professional-grade drone mapping camera equipped with a Sony 24.3 MP APS-C CMOS sensor. Designed for precise aerial surveying and topographic data capture, it delivers high-resolution imagery for accurate geospatial modeling.

Key Features of ADTi 24MP 24S V1 Surveyor Lite Drone Mapping Cameras

• 24.3 Megapixel APS-C CMOS sensor (23.50 × 15.60 mm) for detailed image capture
• 3.92 µm pixel pitch ensures clear resolution and fine ground sampling
• Durable aluminum housing built for field use and vibration resistance
• Flexible mounting options with standard four-point interface for gimbals and custom rigs
• Second-generation design offering improved usability and quick lens changes
• Fast shipping from Zbotic: orders ship within 24 hours for in-stock items

Applications and Use Cases

• Aerial topographic mapping for land development and urban planning
• Precision agriculture surveys to monitor crop health and yield estimation
• Construction site progress tracking and volumetric calculations
• Environmental monitoring, including forestry assessment and shoreline mapping
• GIS data collection for infrastructure management and utility inspection

How to Use ADTi 24MP 24S V1 Surveyor Lite Drone Mapping Cameras

Mount the camera onto a compatible two- or three-axis drone gimbal using the included brackets, connect it to your flight controller’s shutter port, then configure exposure and interval settings in your UAV software. Plan your flight mission, execute aerial passes, and download captured images for processing in photogrammetry tools to generate orthomosaics and 3D models.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Which UAV platforms are compatible with the ADTi 24MP 24S V1?

The camera’s standard APS-C form factor and four-point mounting interface allow installation on most commercial drone gimbals that accept up to 30 MP cameras, including popular two-axis and three-axis payload systems.

How do I process imagery captured by this camera?

Captured RAW or JPEG images from the 24.3 MP CMOS sensor can be imported directly into photogrammetry software such as Pix4D, Agisoft Metashape, or DroneDeploy to generate orthomosaics, digital elevation models, and 3D point clouds.

What mounting options are available for the Surveyor Lite?

The ADTi 24S V1 features adjustable mounting brackets and a universal four-point interface, enabling secure attachment to both standard gimbals and custom payload rails. Ensure proper alignment and torque when tightening the screws to prevent vibration blur.
