This is the 5V variant of the 6 x 1.5V AA Battery Holder with DC 2.1 Power Jack in Battery Holders, Battery Pack Accessories & Holders. Available at Original price was: ₹70.80.₹61.36Current price is: ₹61.36. (₹52.00 + GST) with free shipping across India.
Looking for 1.5v Battery 449821? 6 x 1.5V AA Battery Holder with DC 2.1 Power Jack is available at Zbotic with fast shipping across India.

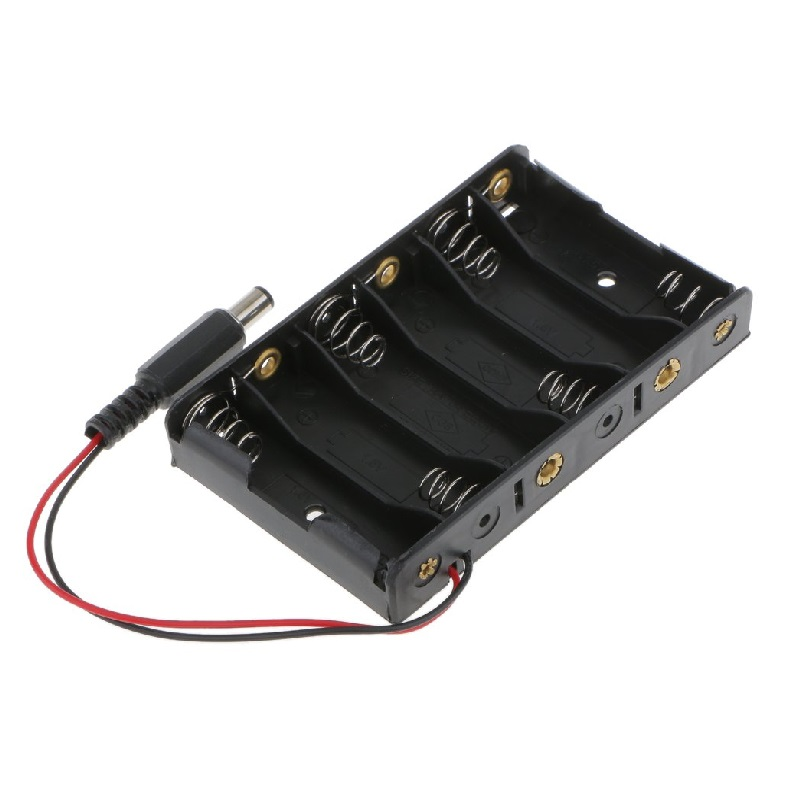

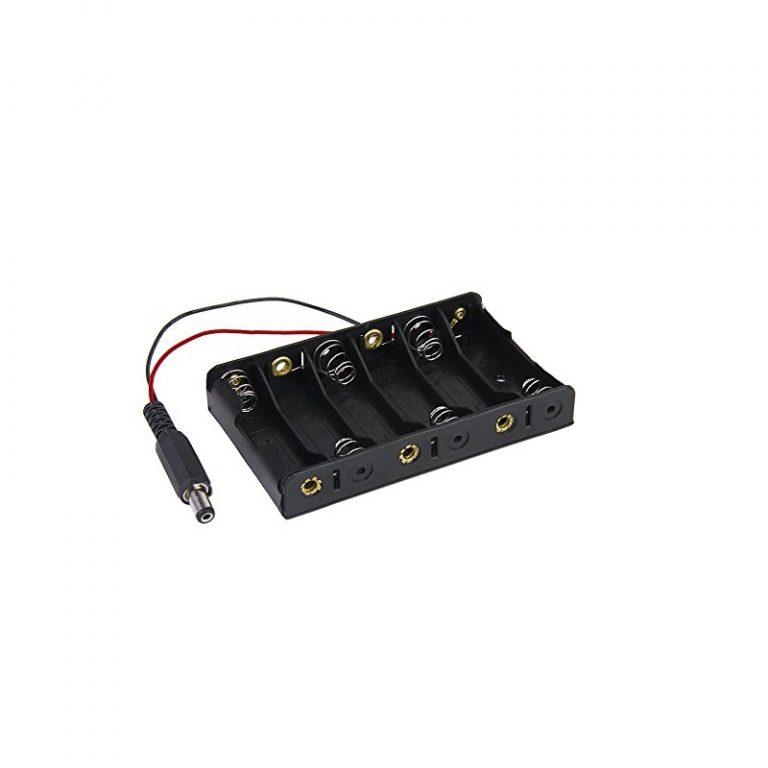

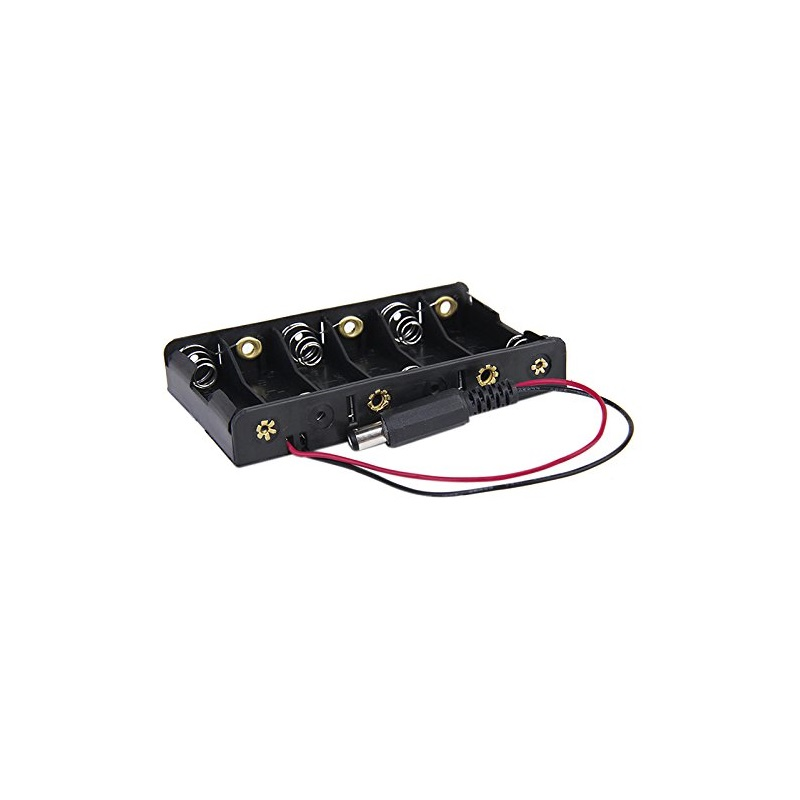

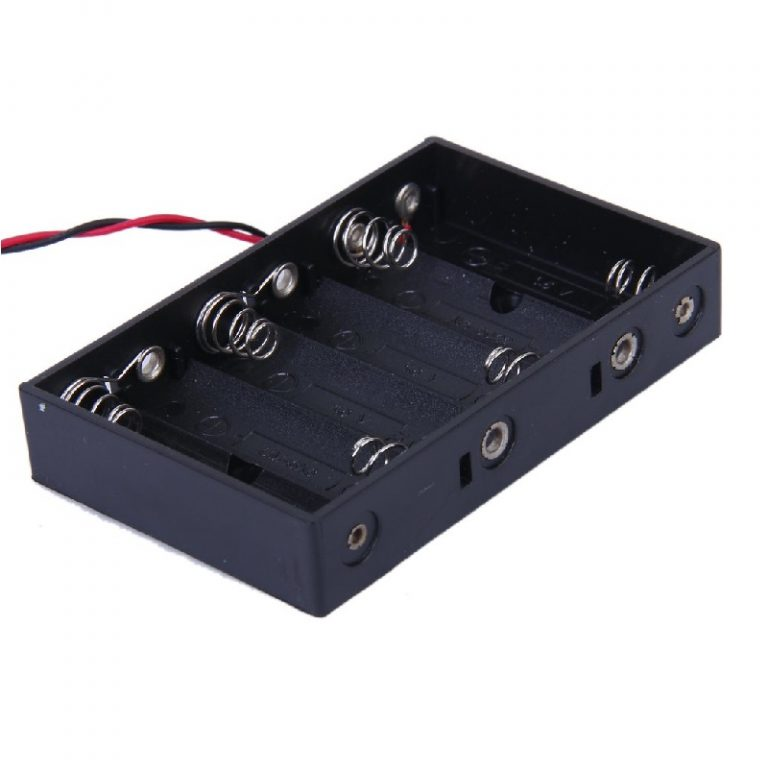

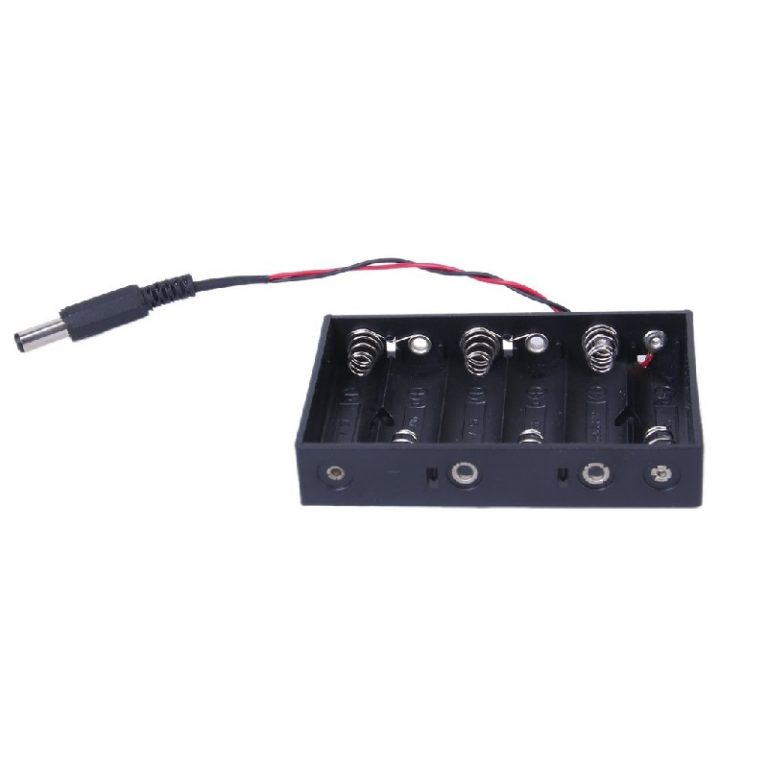

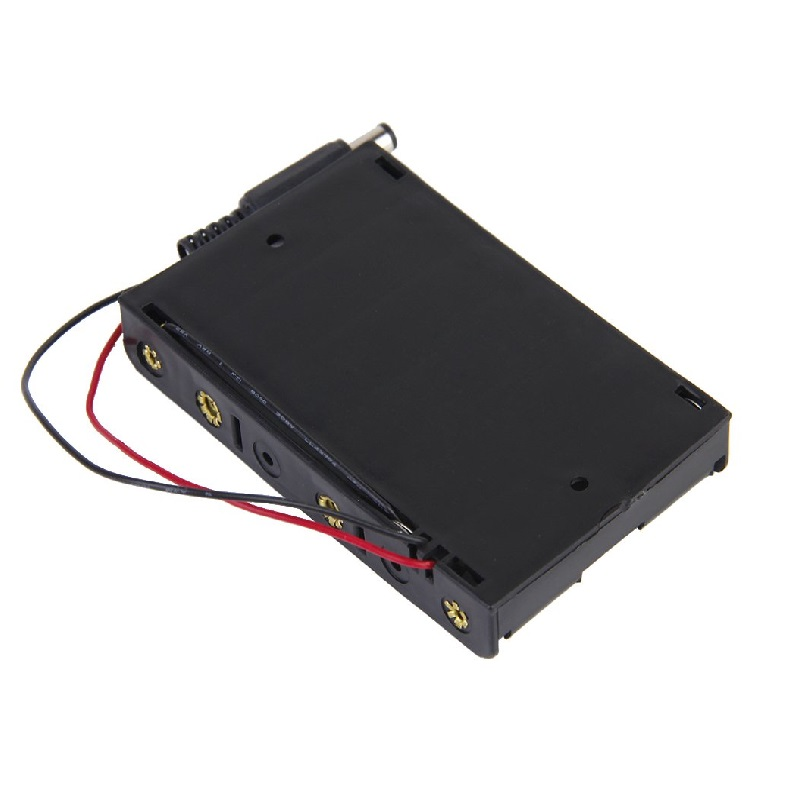

6 x 1.5V AA Battery Holder with DC 2.1 Power Jack
- Cell Quantity: 6.
- Battery type: AA.
- Wire Length: 110 mm.
- Distance between mounting holes: 76mm.
- Color: Black.

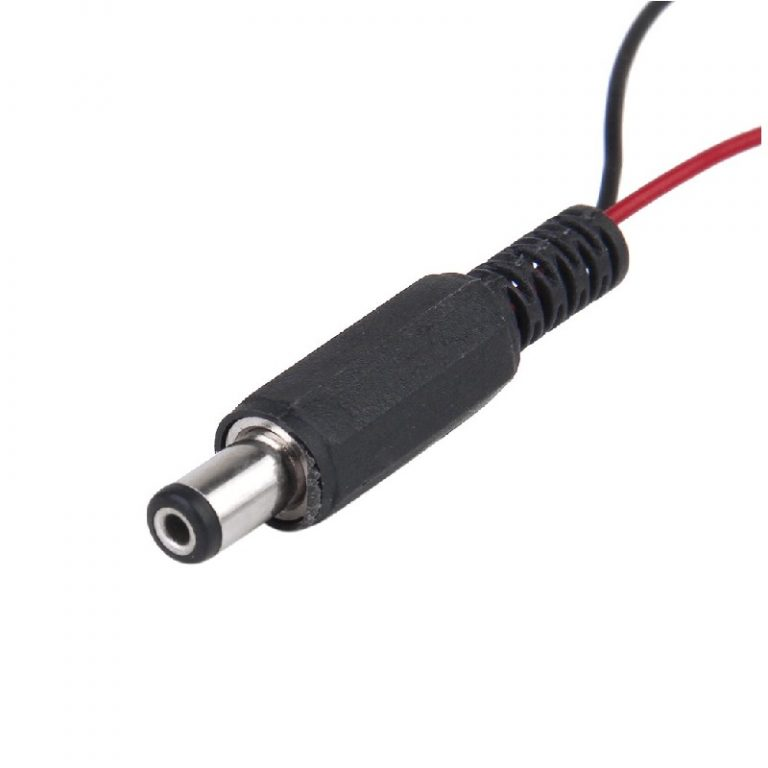

- DC 2.1 Power Jack.
Specifications:
| Battery type | AA |
|---|---|
| Cell Quantity | 6 |
| Max Operating temperature (ºC) | 80 |
| Storage temperature (ºC) | 25 |
| Wire Length (mm) | 110 |
| Mounting holes diameter (mm) | 3 |
| Color | Black |
| Length (mm): | 92.5 |
| Width (mm): | 56 |
| Height (mm): | 15 |
| Weight (g): | 20 |
| Shipping Weight | 0.022 kg |
| Shipping Dimensions | 8 × 5 × 3 cm |
Package Includes:
1 x (6 x 1.5V AA Battery Holder with DC2.1 Power Jack).
6 x 1.5V AA Battery Holder with DC 2.1 Power Jack Overview
This 6 x 1.5V AA Battery Holder with DC 2.1 Power Jack is a compact packaging solution that combines six AA cells in series to deliver approximately 9V output. Ideal for powering DIY electronics, educational kits or portable gadgets, it features a built-in DC 2.1mm jack for easy plug-and-play connections.
Key Features of 6 x 1.5V AA Battery Holder with DC 2.1 Power Jack
- Holds six AA batteries (1.5V each) in series to produce roughly 9V output.
- Standard DC 2.1 mm power jack for quick connection to devices and projects.

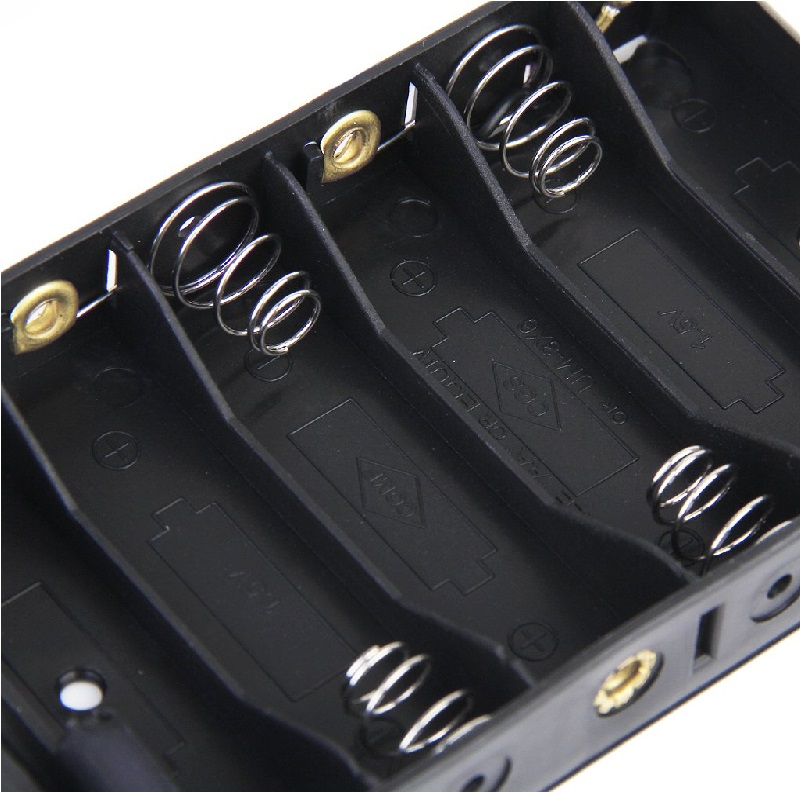

- Durable plastic housing with spring-loaded contacts for secure battery retention.
- Supports alkaline or NiMH/NiCd rechargeable AA cells for flexible power options.
- Operating temperature up to 80 °C and recommended storage at 25 °C.
- Genuine product with fast shipping from Zbotic across India.
Applications and Use Cases
- Arduino and microcontroller projects requiring a 9V supply.
- Portable LED strips, lamps or small lighting systems.
- Robotics modules and motor drivers that run on 9V.
- Field-testing electronics prototypes off the bench.
- Educational STEM kits for students learning circuit design.
- Battery backup for low-power communication devices.
How to Use 6 x 1.5V AA Battery Holder with DC 2.1 Power Jack
Insert six AA batteries into the holder matching the polarity markings, then plug the DC 2.1 mm male connector from your device into the power jack. Ensure batteries are seated properly for reliable contact and install the pack in a location within the specified temperature range for optimal performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use rechargeable AA batteries in this holder?
Yes, the holder supports NiMH and NiCd rechargeable AA cells. When loaded in series, six 1.2 V rechargeable cells yield approximately 7.2 V, suitable for many 9V projects that tolerate slight voltage differences.
What cable do I need to connect to the DC 2.1 mm jack?
You need a matching DC 2.1 mm male plug cable (centre positive) to mate with the holder’s female jack. Ensure the cable’s current rating meets your project’s power requirements.
How do I replace the batteries when they run out?
Unplug any connected device, remove the depleted AA cells, and insert fresh batteries observing the polarity marks. Reconnect your device after confirming solid battery contact.
