This is the 12V variant of the 550 Diaphragm Pump 12V Water Pump for Water Spray Fish Tank Reflux Pump in Generic Mini Pumps. Available at ₹374.06 (₹317.00 + GST) with free shipping across India.

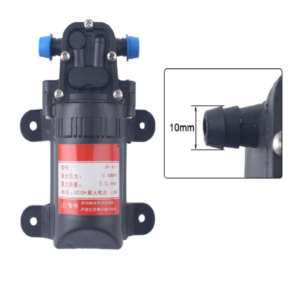

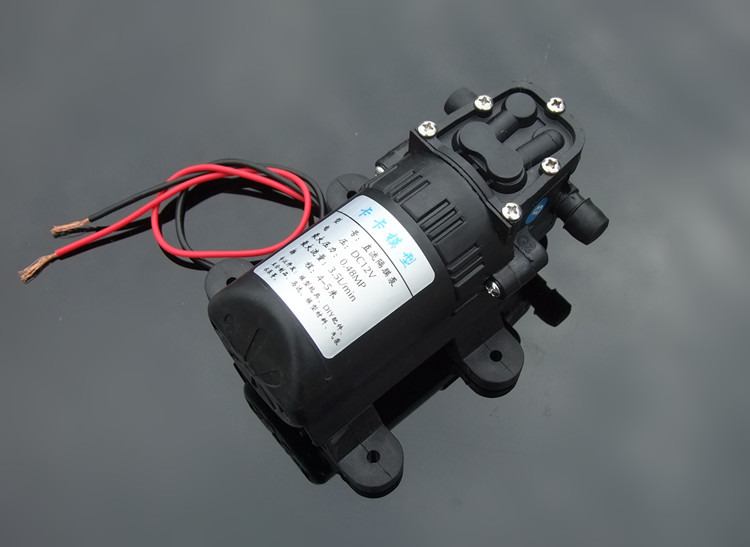

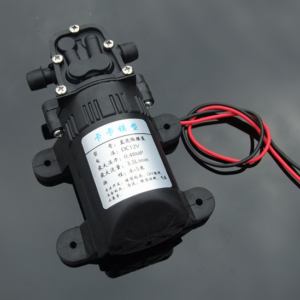

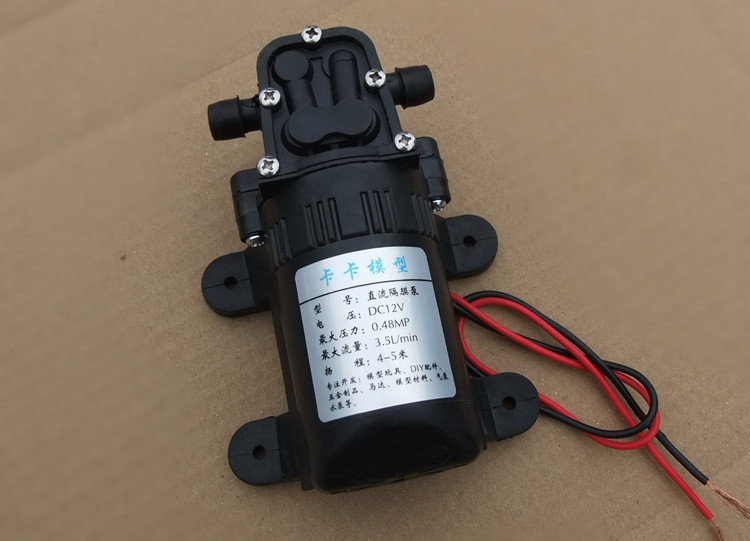

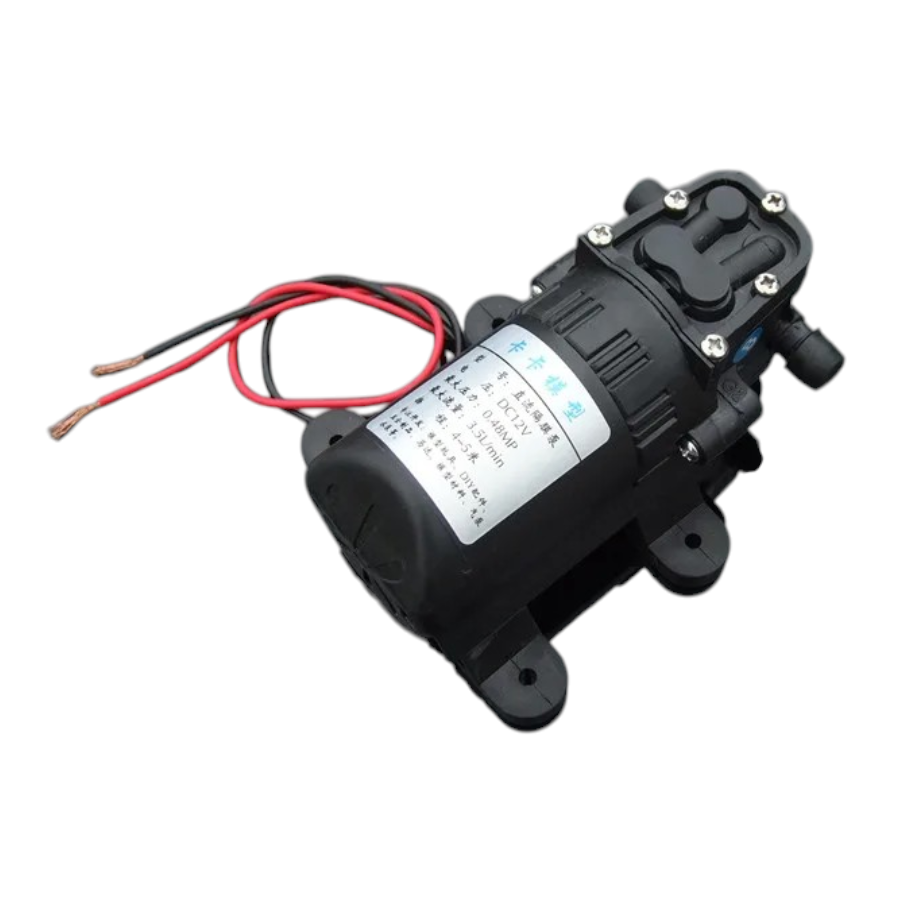

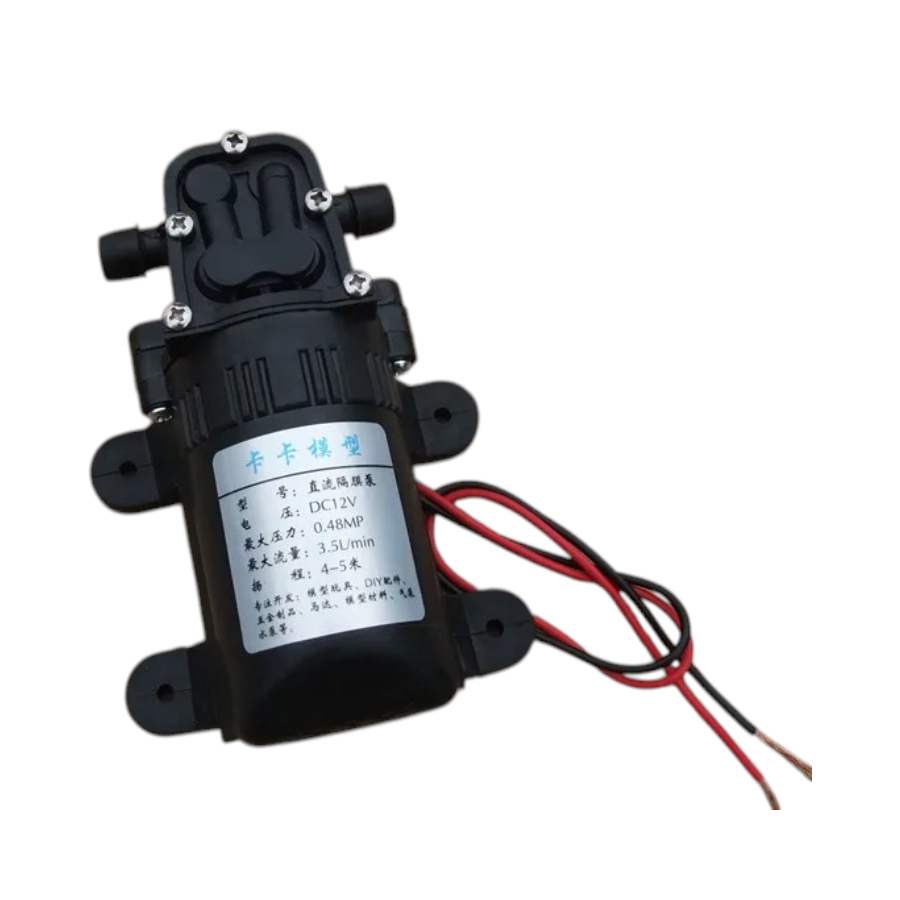

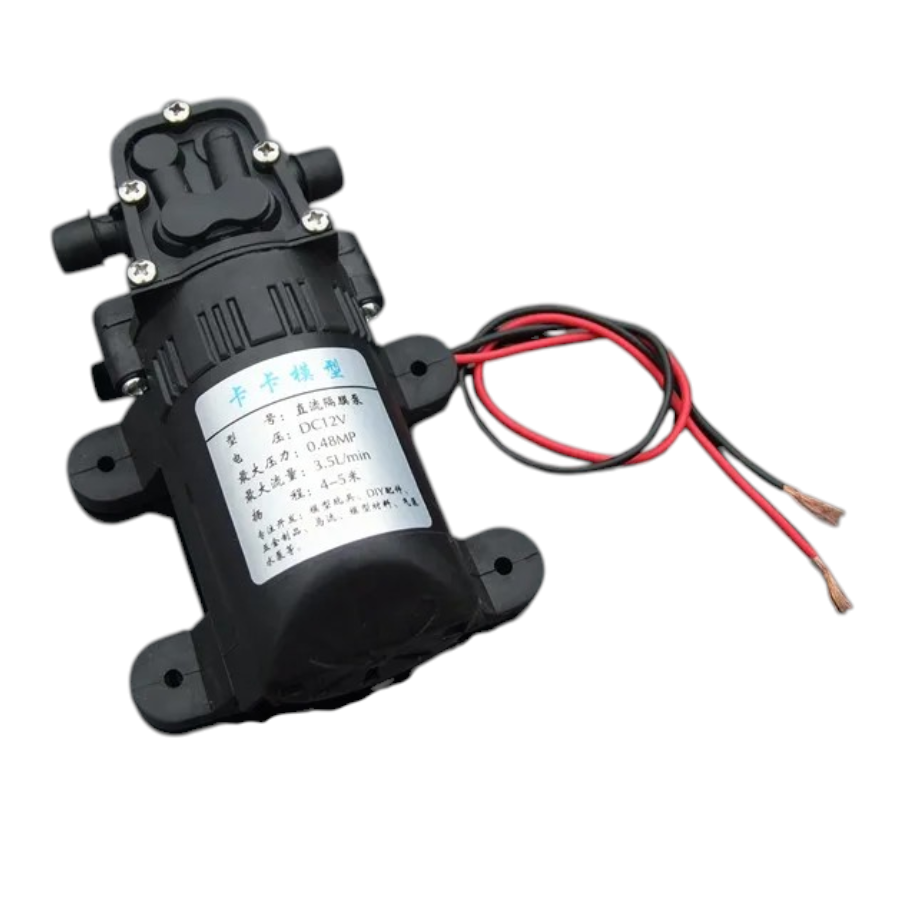

550 Diaphragm Pump 12V Water Pump for Water Spray Fish Tank Reflux Pump
Introducing our 550 Diaphragm Pump 12V Water Pump, specifically designed for water spray applications in fish tanks and reflux systems. This DC 12V micro diaphragm water pump delivers a flow rate of 3.5 liters per minute, making it ideal for various watering, spraying, and aquarium return pump tasks in home gardens and aquatic setups.
Features:
- Versatile Usage: Whether you’re watering your garden, spraying plants, or maintaining your fish tank, this 550 Diaphragm Pump is up to the task. It offers reliable performance for a wide range of applications.
- Easy Configuration: The pump comes with a 12V2A power supply and a bus connector for straightforward setup. Additionally, a 4m 7 x 10 silicone tube is included to facilitate easy connection to your desired water source.
- Compact and Efficient: With its compact design and efficient operation, this pump provides reliable water circulation while consuming minimal power.
Specifications:
- Voltage: 12V
- Current: At least 2A (measured to ensure optimal performance)
- Suction: Approximately 3 meters, preferably 2 meters (vertical height up to 1.5 meters)
- Head: 4-5 meters
- Temperature Resistance: Up to 55°C

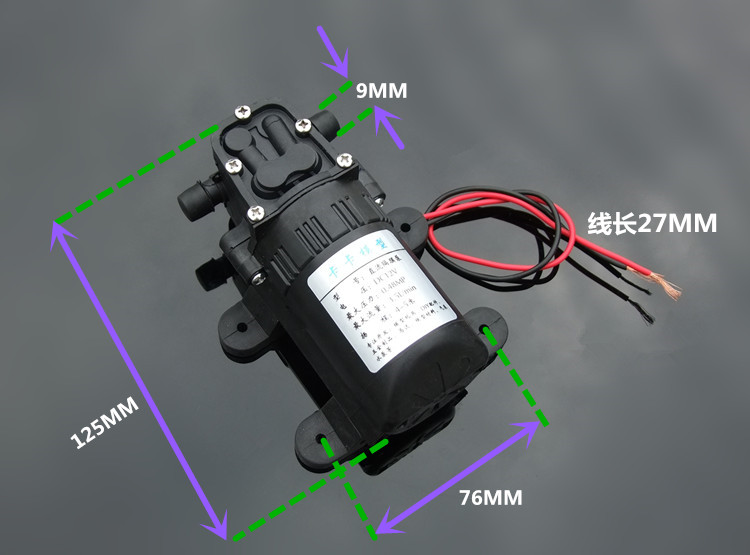

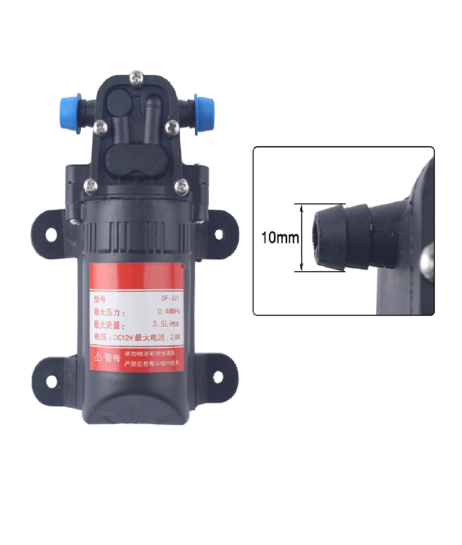

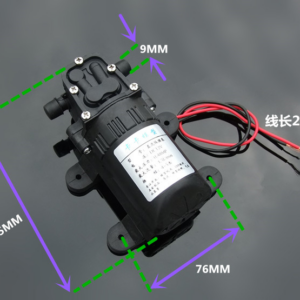

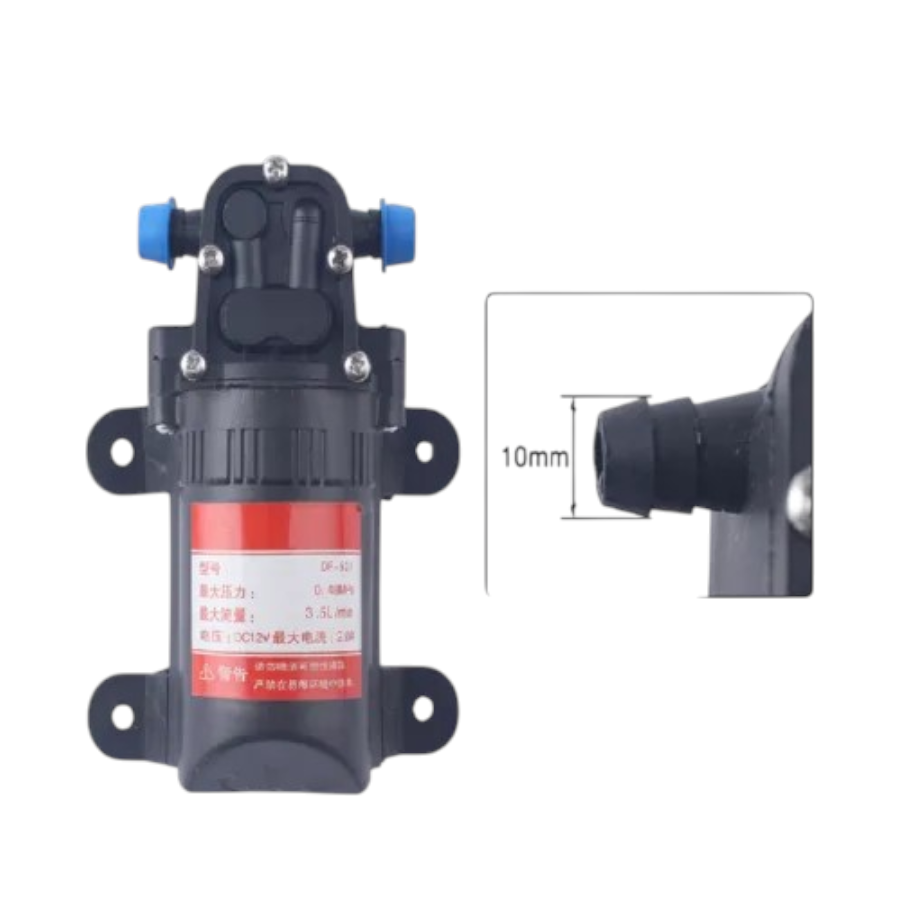

- Connection Diameter: Approximately 8.5mm for both inlet and outlet, compatible with 7mm inner diameter silicone tubing
Enhance your watering and spraying tasks with the reliable performance of our 550 Diaphragm Pump 12V Water Pump. Experience efficient water circulation and effortless setup for all your home garden and aquarium needs.
Package Includes:
1 x 550 Diaphragm Pump 12V Water Pump
550 Diaphragm Pump 12V Water Pump for Water Spray Fish Tank Overview

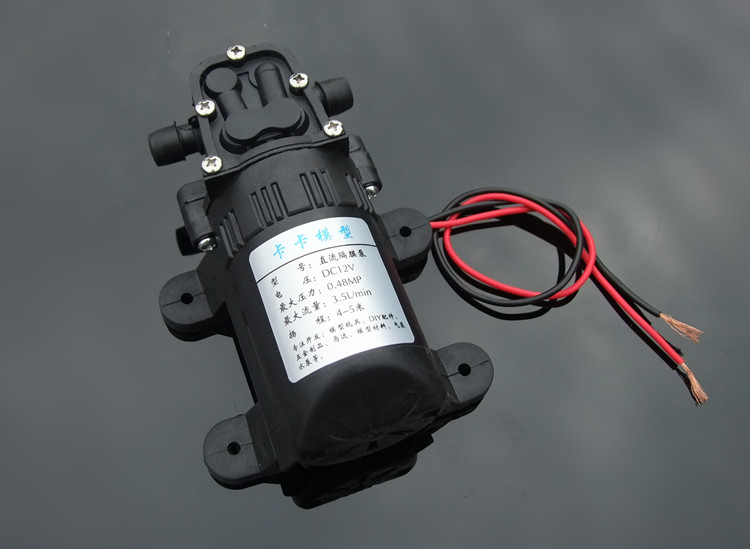

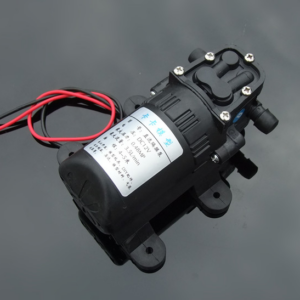

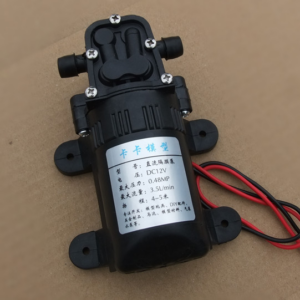

The 550 Diaphragm Pump is a 12V DC micro water pump designed for water spray, aquarium return and reflux applications. With a self-priming diaphragm design, it delivers up to 3.5 L/min flow at pressures up to 0.48 MPa for reliable performance in home gardens and fish tank setups.
Key Features of 550 Diaphragm Pump 12V Water Pump for Water Spray Fish Tank
- 12V DC operation with a minimum 2 A current draw for stable performance
- Flow rate up to 3.5 L/min, ideal for irrigation and circulation tasks
- Self-priming suction to 3 m (optimal up to 2 m vertical lift)
- Max outlet head of 4–5 m and pressure rating of 0.48 MPa
- Handles water temperatures up to 55 °C
- Fast shipping from Zbotic – dispatch within 24 hours
Applications and Use Cases
- Home garden misting and drip irrigation lines
- Plant foliar spraying systems
- Fish tank circulation or CO₂ reactor return pump
- Hydroponic reservoir water transfer
- DIY fountain or water feature recirculation
- Automated reptile terrarium misting
How to Use 550 Diaphragm Pump 12V Water Pump for Water Spray Fish Tank
Mount the pump on a stable surface near your water source, connect inlet and outlet hoses within the 2 m optimal suction range, then attach to a 12V DC, ≥2 A power supply. Ensure all fittings are sealed, prime the pump by filling the inlet hose, and switch on to begin continuous water flow.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What power supply is required for this pump?
You need a stable 12V DC supply capable of at least 2 A. Supplies rated below 2 A may cause underperformance or stalling.
How do I maximize suction performance?
Keep the inlet hose as short as possible (preferably under 2 m vertical lift), avoid air leaks, and ensure the inlet remains submerged when priming.
Can this pump handle continuous operation?
Yes, it is designed for intermittent to continuous use within its temperature and pressure ratings. Ensure water temperature stays below 55 °C and provide occasional rest periods for extended runtimes.
