360K Ohm 2Watt Carbon Film Resistor
The 360K Ohm 2-Watt Through-Hole Resistor is an axial carbon film resistor from the CFR Series.
These resistors are constructed by applying a uniform layer of pure carbon onto high-grade ceramic rods. A helical groove is then etched into the resistive layer, and tinned copper leads are welded to the end-caps for secure connections. To ensure durability, the resistors are coated with multiple layers of tan-colored lacquer.
Designed to operate efficiently in environments with ambient temperatures above 70°C, these resistors offer excellent performance and reliability in demanding conditions.
Features
Carbon Film Resistor
High Quality
Specification:
Resistance: 360K Ohms
Tolerance: ±5%
Power (Watts): 2W
Composition: Carbon Film
Temperature Coefficient: -350/ +500ppm/°C
Operating Temperature: -55°C ~ 155°C
Application
microwave
toaster
Package Includes

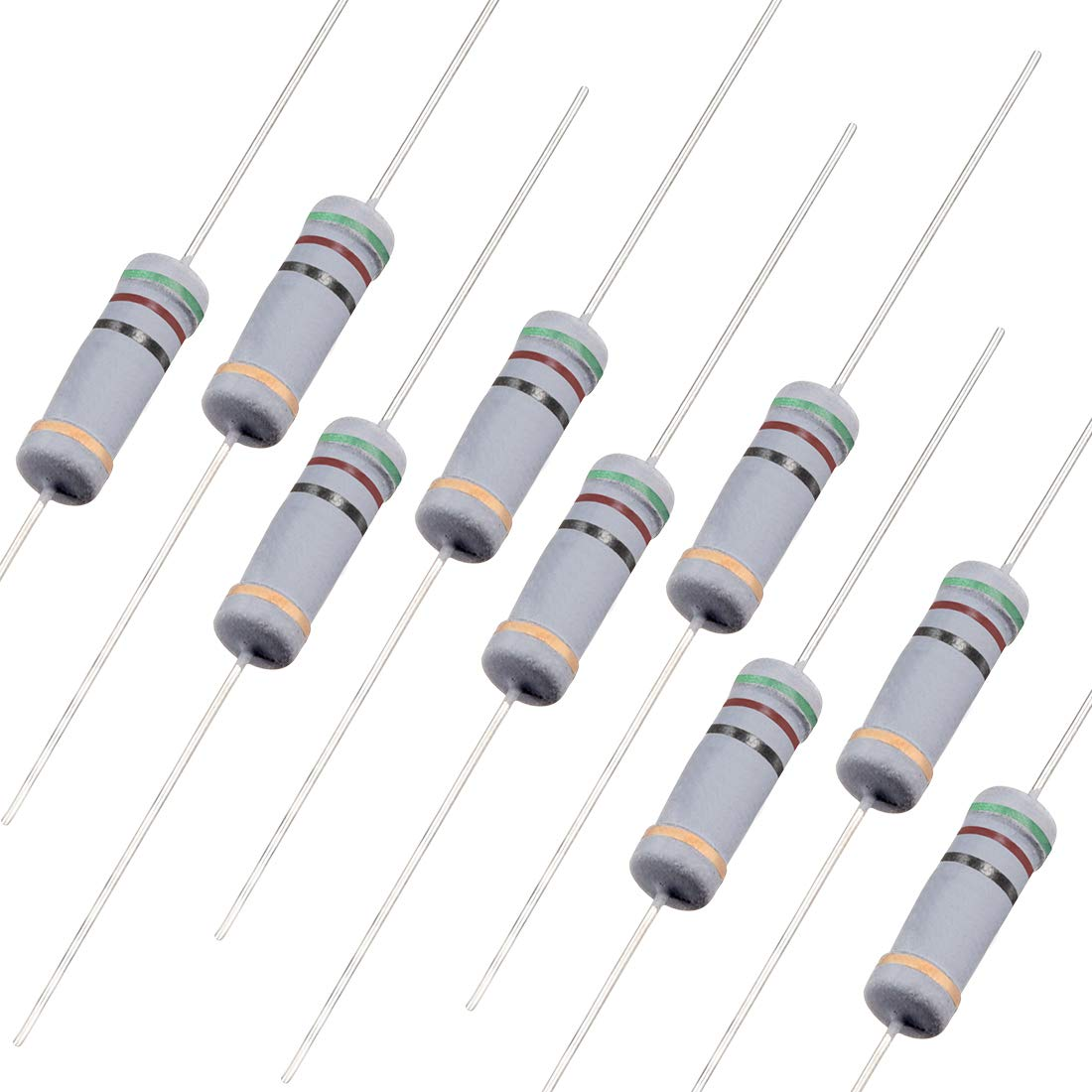

100 x 360K Ohm 2Watt Carbon Film Resistor
360K Ohm 2Watt Carbon Film Resistor Overview
The 360K Ohm 2Watt Carbon Film Resistor is a through-hole axial resistor designed for reliable performance in analog and power circuits. With a 2-watt power rating and ±5% tolerance, it delivers stable resistance in demanding thermal conditions up to 155°C.
Key Features of 360K Ohm 2Watt Carbon Film Resistor
- Resistance: 360K Ω with ±5% tolerance for predictable voltage drops
- Power Rating: 2W carbon film construction handles moderate power dissipation
- Temperature Coefficient: -350/+500 ppm/°C ensures minimal drift over −55°C to 155°C
- Durable lacquer coating protects against moisture and mechanical damage
- Axial leads welded to end-caps for secure solder connections
- Pack of 100 resistors, ready for bulk assembly and prototyping
- Fast shipping from Zbotic to your workshop across India
Applications and Use Cases
- Voltage divider networks in sensor interfaces and measurement circuits
- Load balancing and biasing in audio amplifiers and preamp stages
- Current limiting in LED arrays and indicator lamp circuits
- High-voltage bleed resistors in power supply designs
- General-purpose damping and filtering in hobby electronics projects
How to Use 360K Ohm 2Watt Carbon Film Resistor
Select the appropriate resistor value and power rating for your circuit, then bend the axial leads to fit your PCB or breadboard layout. Insert the resistor into the through-hole pads, solder each lead securely, and trim any excess. Ensure proper spacing for heat dissipation when handling power up to 2W.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What tolerance variation can I expect?
This resistor has a ±5% tolerance, meaning actual resistance will remain within 342KΩ to 378KΩ, suitable for most analog and power applications where moderate precision is acceptable.
Can I use these resistors in high-temperature environments?
Yes. With an operating range from −55°C up to 155°C and a robust carbon film design, these resistors maintain stability in elevated ambient temperatures above 70°C.
How should I handle power dissipation on a PCB?
Mount the resistor with adequate clearance from other heat-sensitive components and allow airflow around the body. Ensure copper pad sizing and thermal vias if needed to dissipate up to 2W safely.
Technical Specifications
| Package Quantity | 100 pcs |
|---|---|
| SKU | AI0383 |
| Weight | 0.000334 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 360K Ohm 2Watt Carbon Film Resistor ( Pack of 100) is a versatile through hole resistor used across a wide range of applications including voltage dividers, current limiting, pull-up/pull-down networks, signal conditioning, and LED current limiting.
Common use cases:
- Limiting current through an LED
- Creating a voltage divider for analog sensing
- Pull-up resistor for I2C communication lines
This product is ideal for electronics students, hobbyists, and engineers.
Technical Tip: Use Ohm's Law (V=IR) to calculate the correct resistor value. Color bands indicate resistance: use an online calculator for quick reference.
