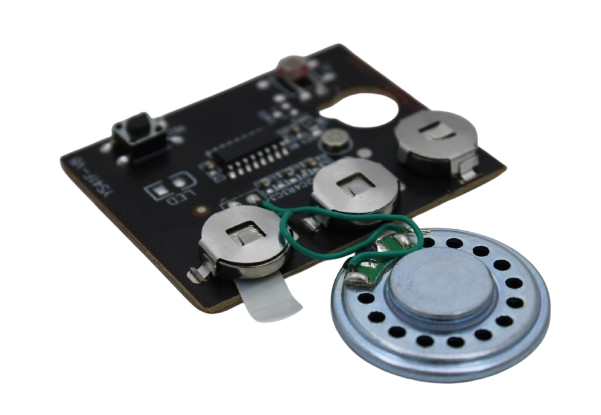

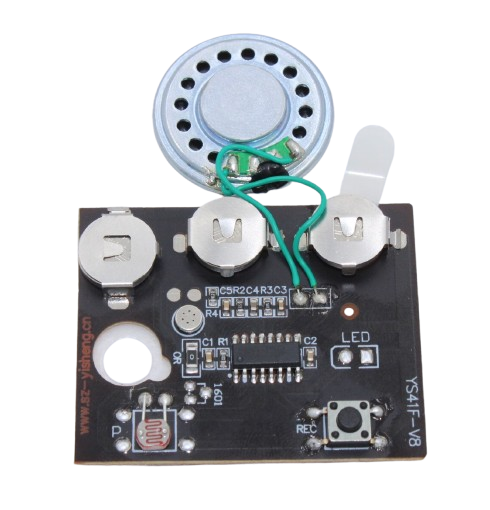

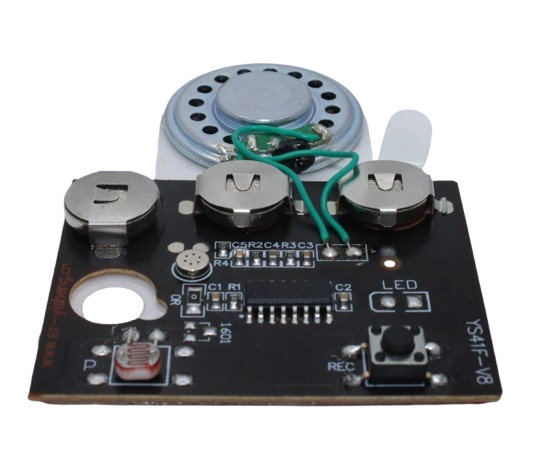

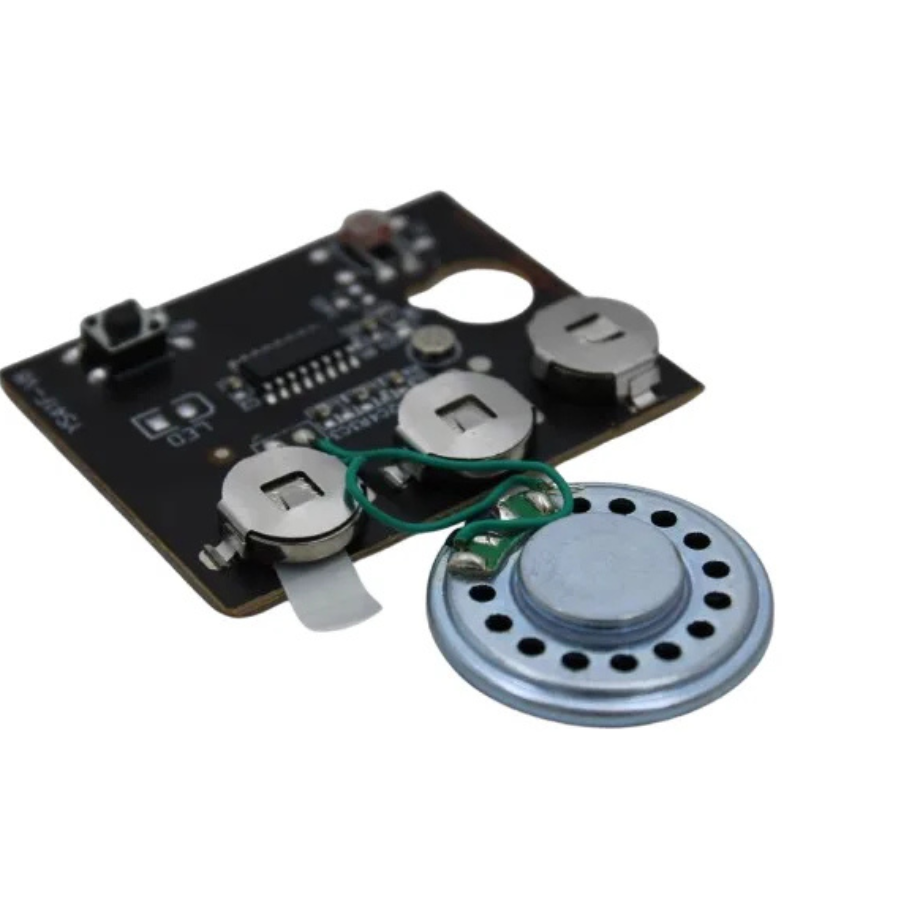

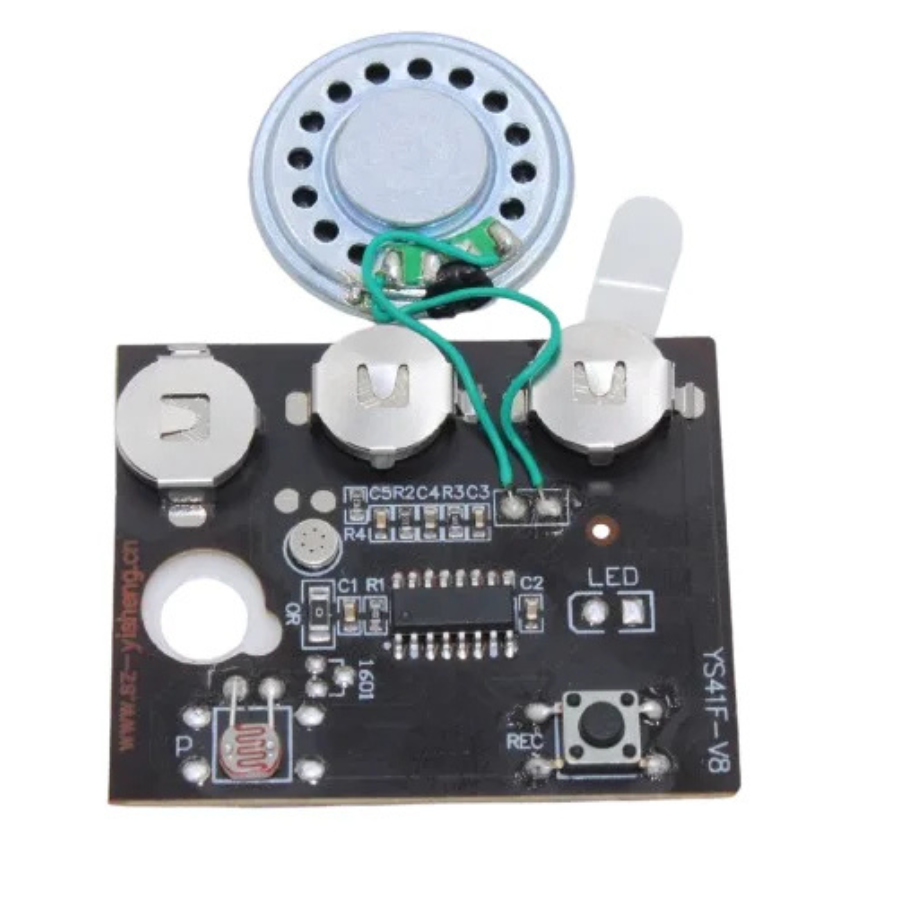

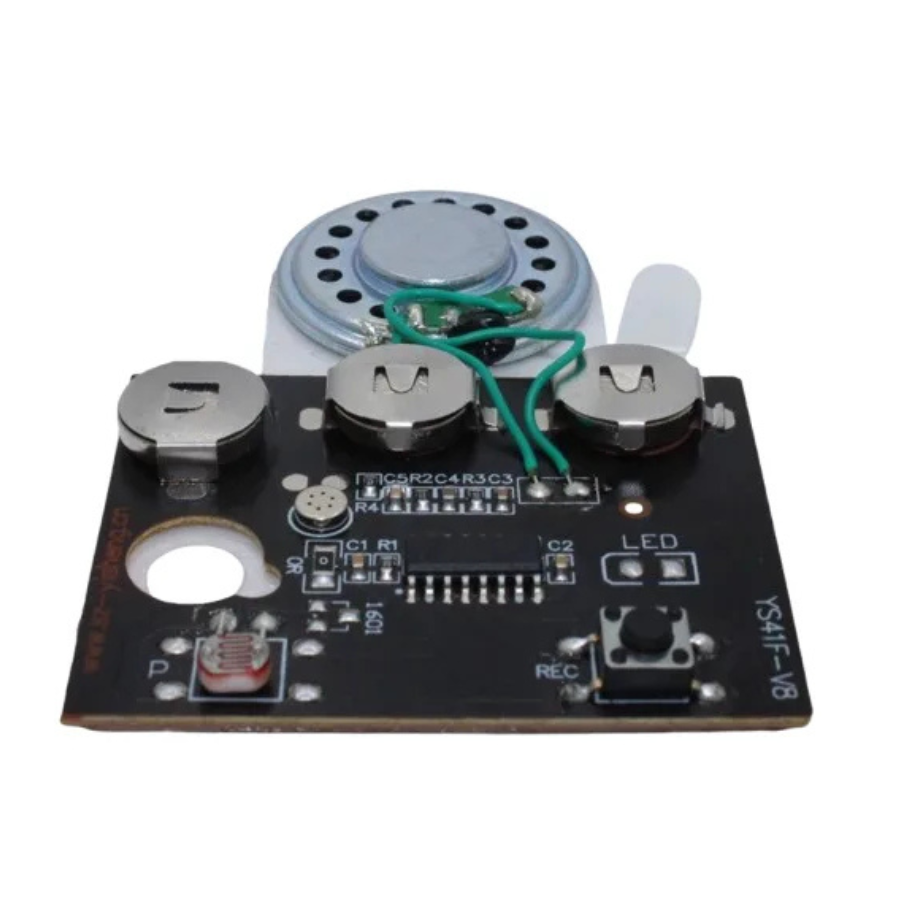

30S Sound Voice Music Recorder Board Photosensitive Wired Double button control Programmable Chip Audio Module

30S Sound Voice Music Recorder Board Photosensitive Wired Double button control Programmable Chip Audio Module

This module plays your recording when exposed to light and stops when it is kept away from light, making it suitable for photosensitive control applications. To record, press and hold the recording button until you hear a “beep” sound, then start recording. After 30 seconds, you will hear a double “beep, beep,” indicating the end of the recording.

To play your recording, press the play button once all recordings are complete. You can stop playback by pressing the play button again, applicable for key control or wired double-button control modules.

Features

1. 30s sound recordable module, with the speaker, microphone, and button.
2. You can re-record your message as many times as you wish.
3. This is an ideal module for you to express your feelings to your friends, lover, and family.
4. Three kinds of styles, that are key control, photosensitive control, wired double button control for your selection.
5. Application to the production of creative gifts, such as DIY card, gift boxes, cake boxes, flower boxes, chocolate boxes.

Specification

1. Power Supply: Button cell
2. Control Method: Key control, photosensitive control, wired double button control (Optional)
3. Audio Output: 0.5W/16Ω
4. Recording Time: 30s
5. Module Size(L * W): 50 * 40mm
6. Speaker Size: 30mm

Package Includes

• 1 x  30S Sound Voice Music Recorder Board Photosensitive Wired Double button control Programmable Chip Audio Module
