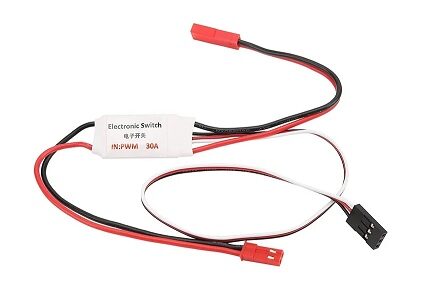

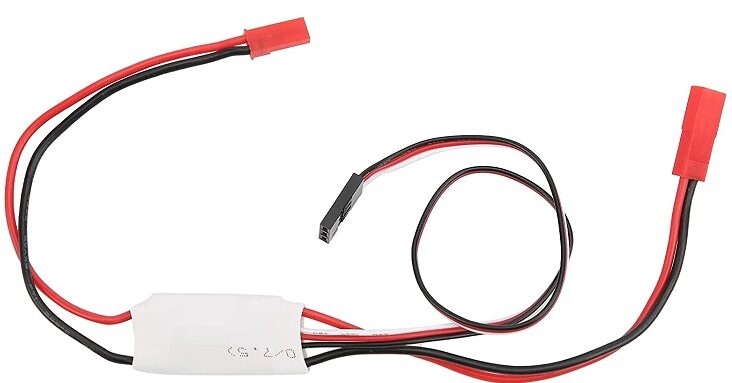

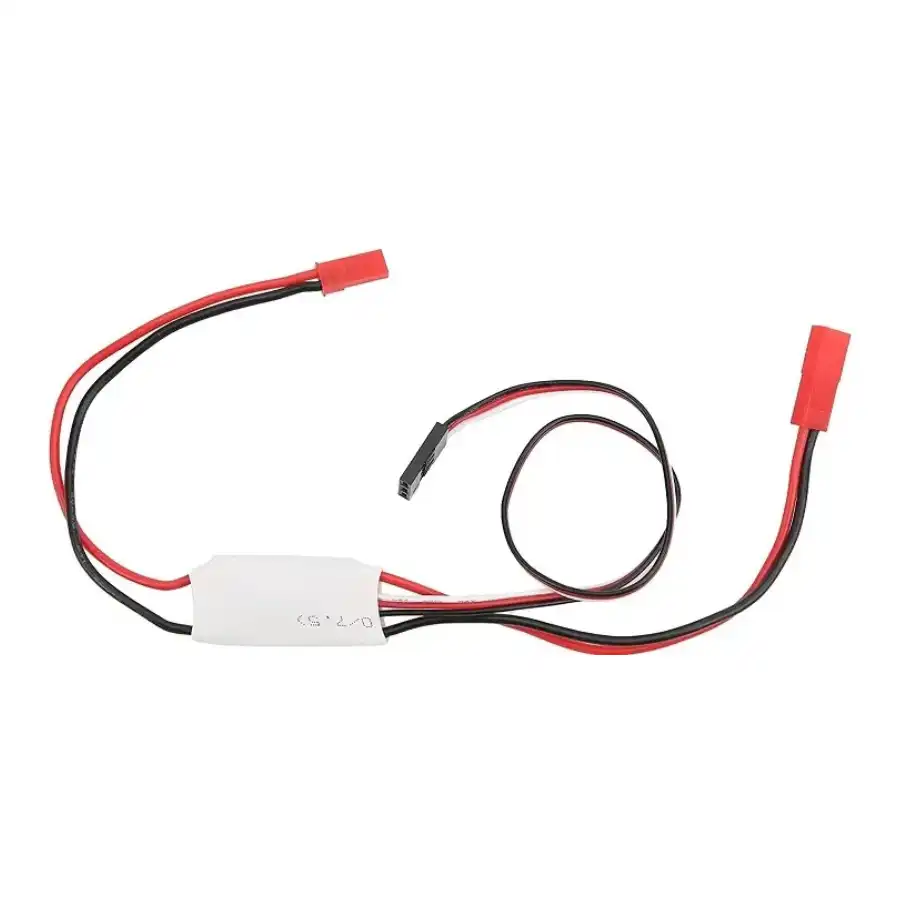

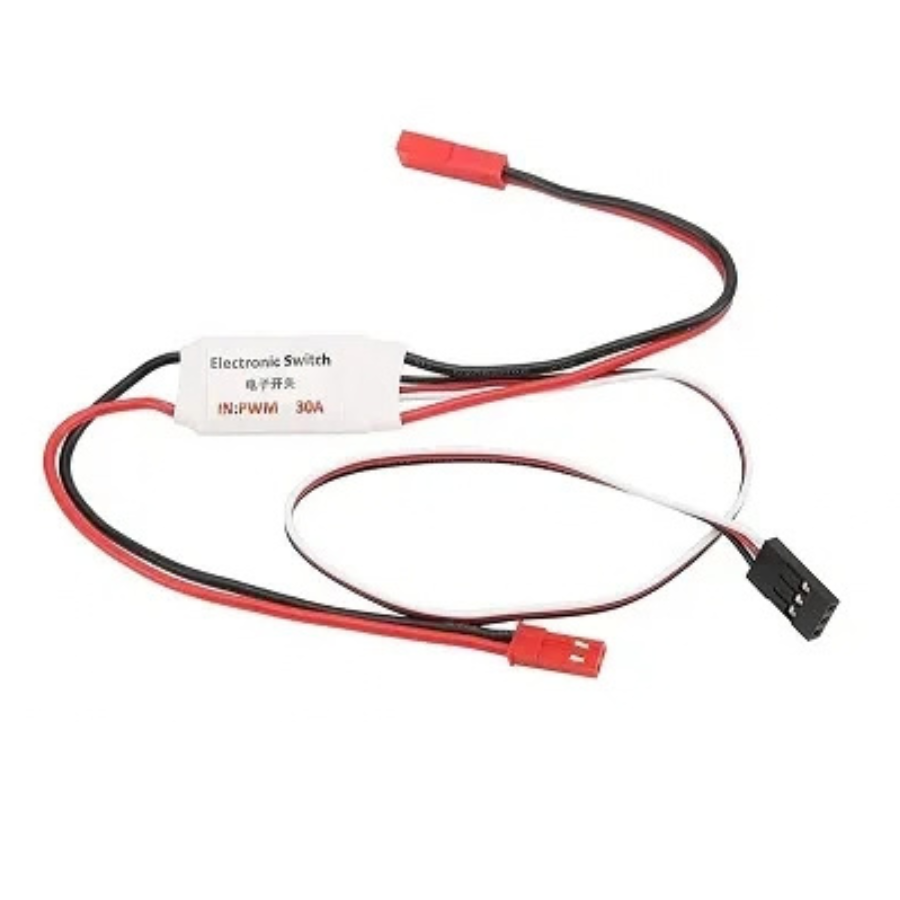

30A 1-6s Electronic Switch PWM 3.7-27V Input

30A 1-6s Electronic Switch PWM 3.7-27V Input

This module functions as a compact relay switch, activated through an auxiliary channel on your receiver. It’s ideal for controlling lights, sound, and other auxiliary electrical devices. The switch engages when the PWM duty cycle exceeds 1500µs and disengages when it falls below 1400µs.

Normal Mode:

The module can detect pulse widths ranging from 400 to 2600µs. If the pulse width exceeds 1800µs, the MOSFET switch will close; if it drops below 1200µs, the switch will open.

Safe-Protection Function:

This module includes a safe-protection feature to minimize the risk of unintended activation. Safe-protection mode activates under the following conditions:

1. If the pulse exceeds 1800µs at power-up, the MOSFET switch will remain open, and the LED will blink. Move the input to the off position to switch to normal mode.
2. If the signal is poor for more than 500ms, the MOSFET switch will open, and the LED will blink. When a good signal is restored, the device will deactivate safe-protection mode.

LED Indicators:
– In normal mode, the LED lights up when the input pulse is greater than 1800µs and turns off when it’s less than 1200µs.
– In safe-protection mode, the LED blinks rapidly.

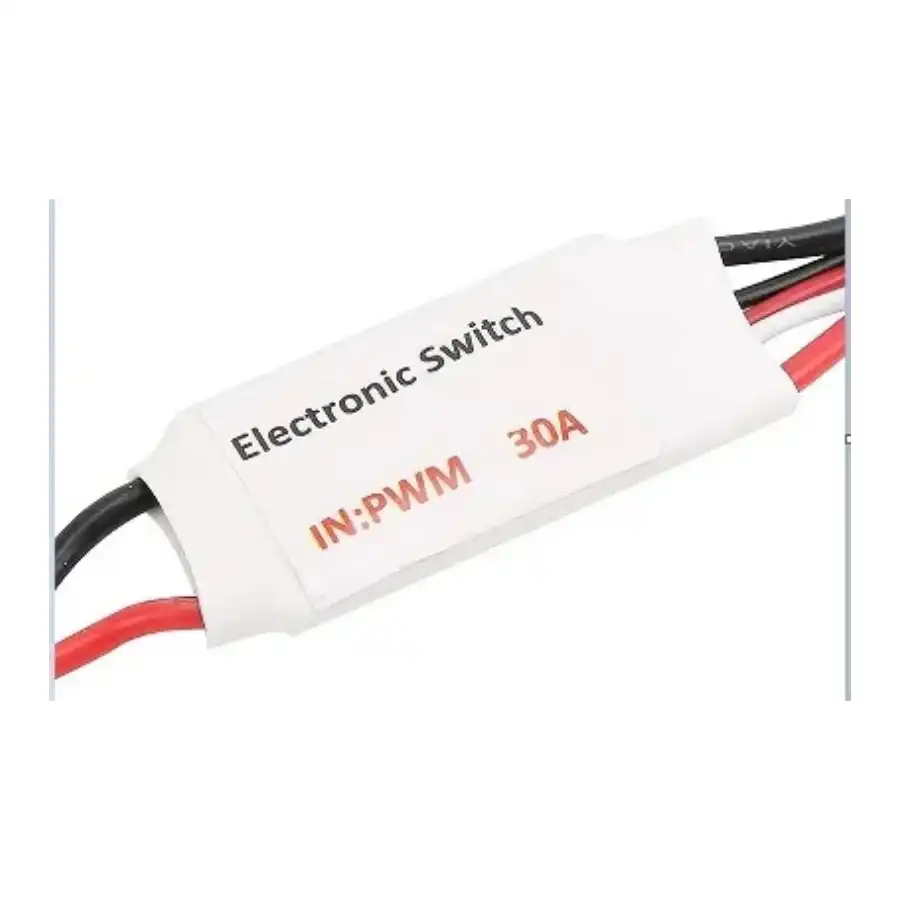

30A RC Controlled Switch:

This switch supports high currents and has high reliability, making it suitable for high-voltage receivers. Its compact and lightweight design includes 18AWG silicone wires for power and super-soft silicone wires for the signal.

When the switch is activated, an LED indicates that the current must not exceed the nominal value, as doing so may cause the wires to heat up or burn.

Features:

1. Applied to remote control model car aeroplane Lightbar Light on and off Application is simple and convenient – Insert switch channel.
2. Power switch for various power supply and controlled equipment (disconnected to the positive pole, common negative).
3. Electronic ignition, the output stage can be connected to the resistance heating wire.
4. The electric start control increases the relay and the water pump switch.

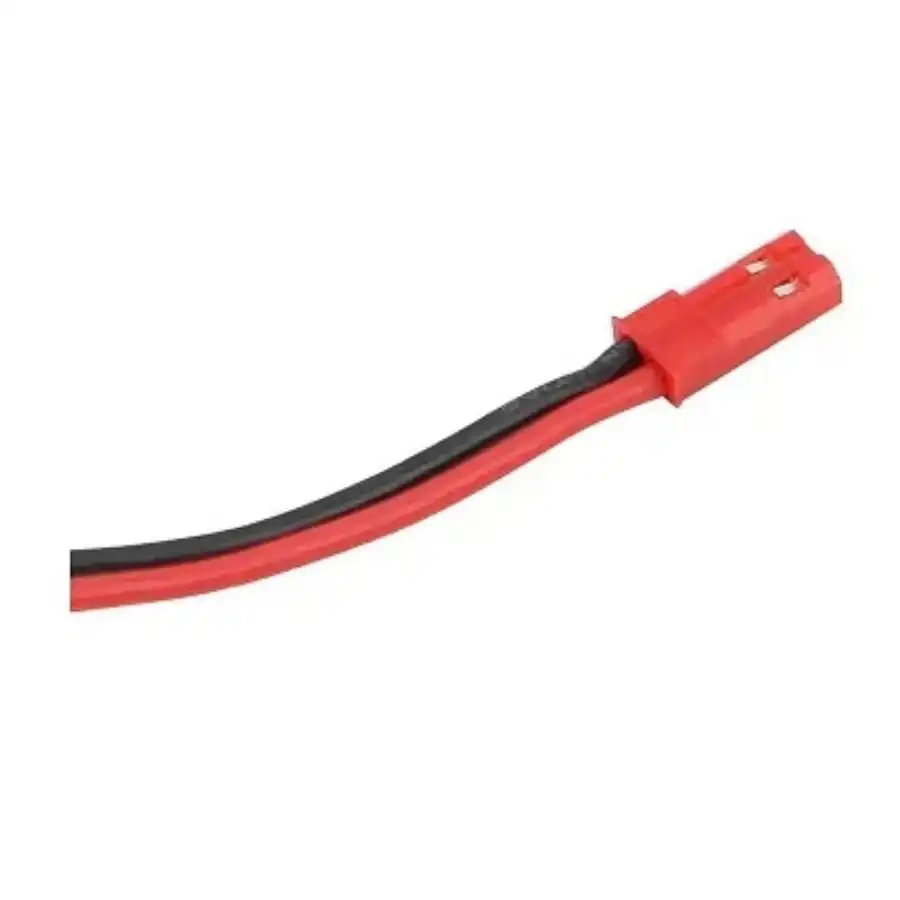

5. The wire adopts high current 18AWG silica gel wire, the plug is JST head (input female, output male), the signal wire is also made of super-soft silicone wire material, the total length of the power cord is about 20CM, the switch weight is about 11G.
6. Support High Voltage (HV) Receivers
7. Suggest 2 section control, ON/OFF stroke takes half of the travel for each.

Specifications:

Package Includes :

1 x 30A 1-6s Electronic Switch PWM 3.7-27V Input
