This is the 5V variant of the 3 x 1.5V AAA Battery Holder Without Cover in Battery Pack Accessories & Holders. Available at Original price was: ₹46.14.₹15.47Current price is: ₹15.47. (₹13.11 + GST) with free shipping across India.

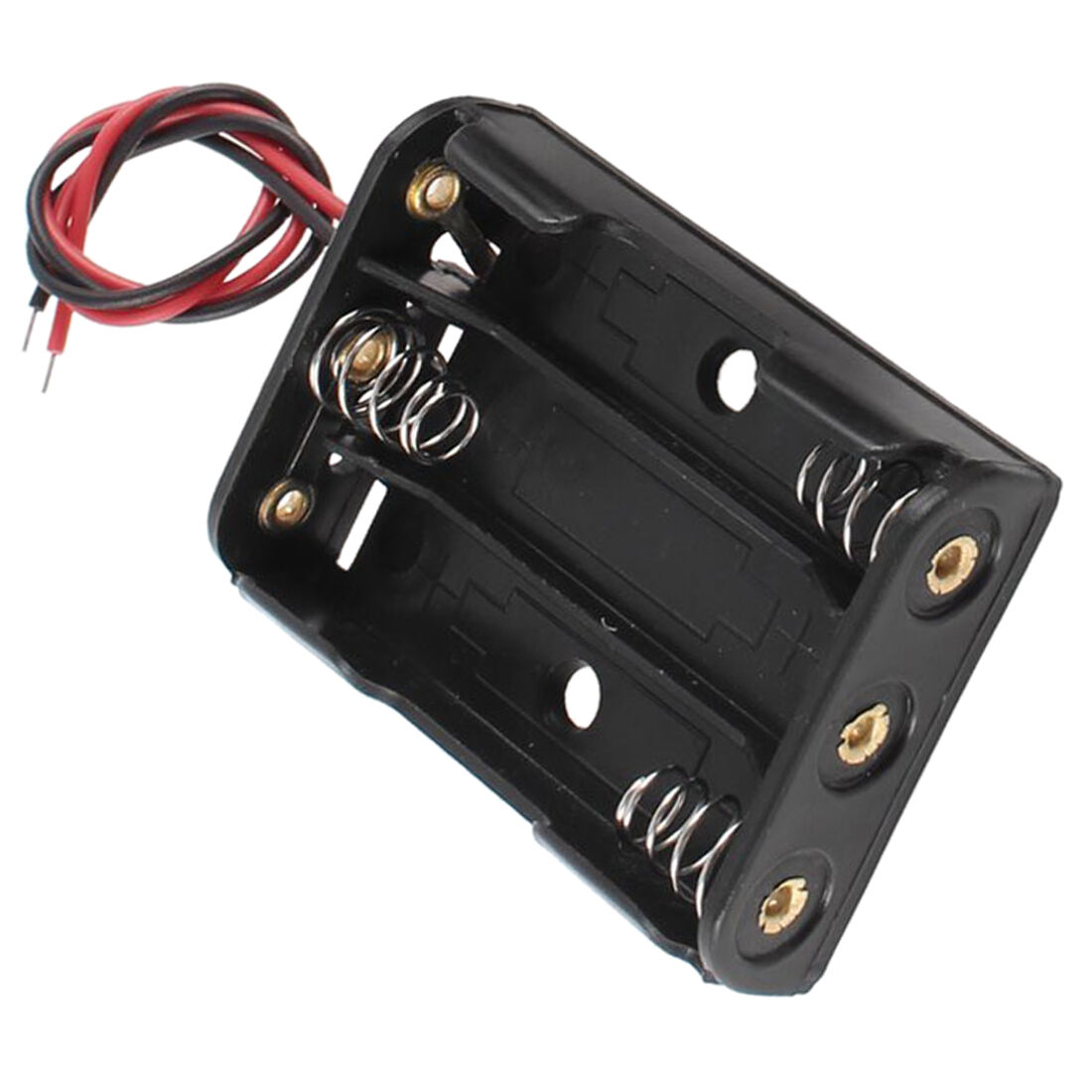

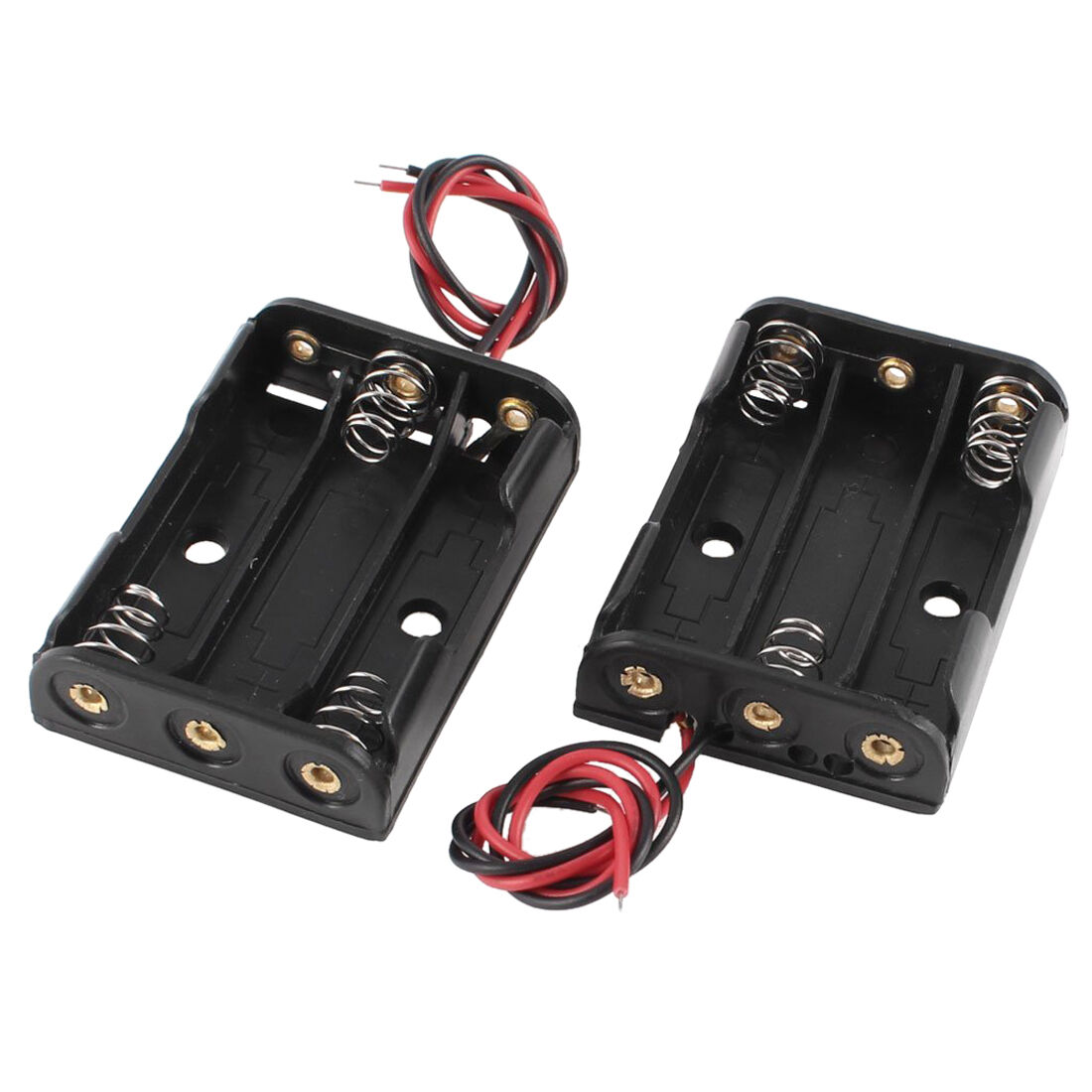

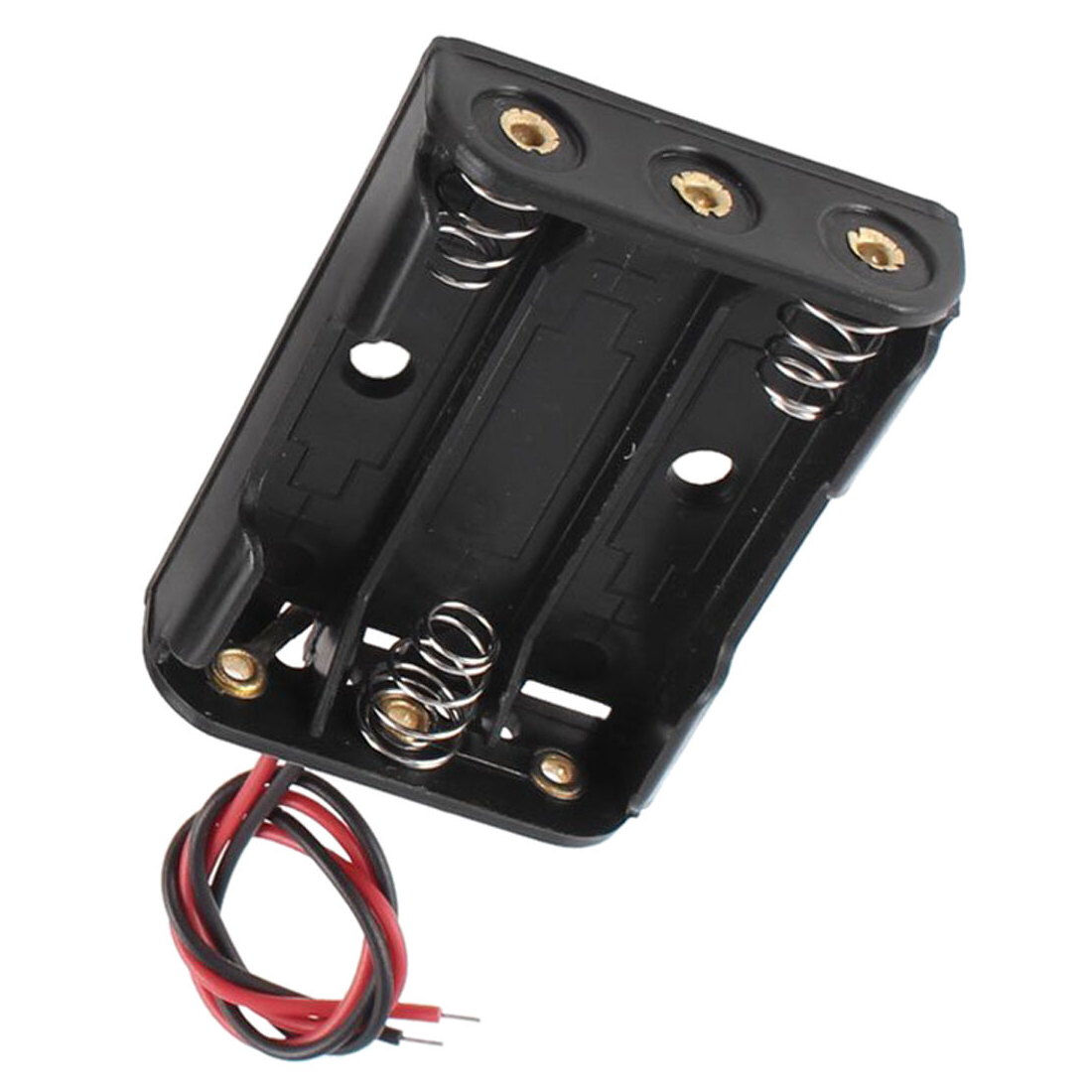

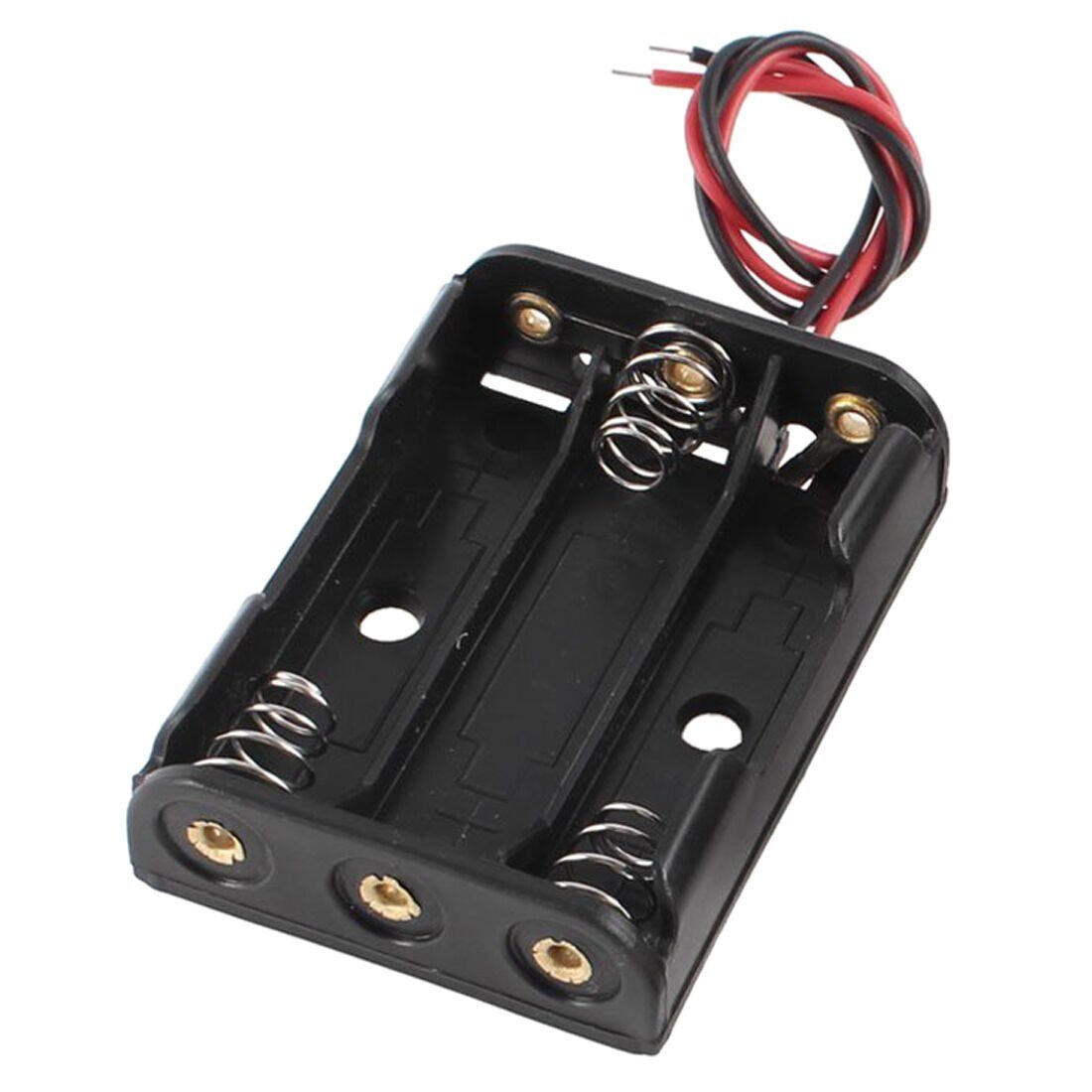

3 x 1.5V AAA Battery Holder Without Cover
This battery holder can accommodate three 1.5V AAA batteries, which can be used to create a 4.5V rechargeable battery pack from NiMH or NiCd cells, or a 4.5V battery pack from alkaline cells. Alternatively, you can use disposable batteries for small DIY projects. The battery holder connects the batteries in series, giving you three times the voltage of an AAA battery (about 4.5V).
The battery holder has open end wires that are already soldered.
Note: This product does not include battery, you need to purchase it separately.
Features:
- Battery type: AAA.
- Wire Length: 120 mm.
- Mounting holes diameter: 2.5mm.
- Metal spring: carbon steel nickel plating by NCAA salt spray test, stainless steel spring.
- Color: Black.
Specification:
| Battery type | AAA |
|---|---|
| Cell Quantity | 3 |
| Max Operating temperature (ºC) | 80 |
| Storage temperature (ºC) | 25 |
| Wire Length (mm) | 120 |
| Color | Black |
| Mounting holes diameter (mm) | 2.5 |
| Length (mm): | 51 |
| Width (mm) | 35.5 |
| Height (mm) | 11.7 |
| Weight (gm) | 6 |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 8 × 5 × 3 cm |
Package Includes:
1 x (3 x 1.5V AAA Battery Holder Without Cover).
Lead Acid Charger: 12V SLA Charging Circuit
Building a proper lead acid charger for 12V SLA (Sealed Lead Acid) batteries requires understanding the three-stage charging...
Read More →
Vibration Energy Harvester: Piezo Power for IoT
A vibration energy harvester converts mechanical vibrations into electrical energy using piezoelectric transducers, enabling battery-free operation for IoT...
Read More →
Hot Swap Controller: Replace Power Supply Without Downtime
A hot swap controller allows you to connect and disconnect a power supply to a live circuit without...
Read More →Technical Specifications
| Operating Voltage | 1.5V |
|---|---|
| Package Quantity | 1 pcs |
| SKU | AI2893 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The 3 x 1.5V AAA Battery Holder Without Cover is a versatile battery pack accessories & holders used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
