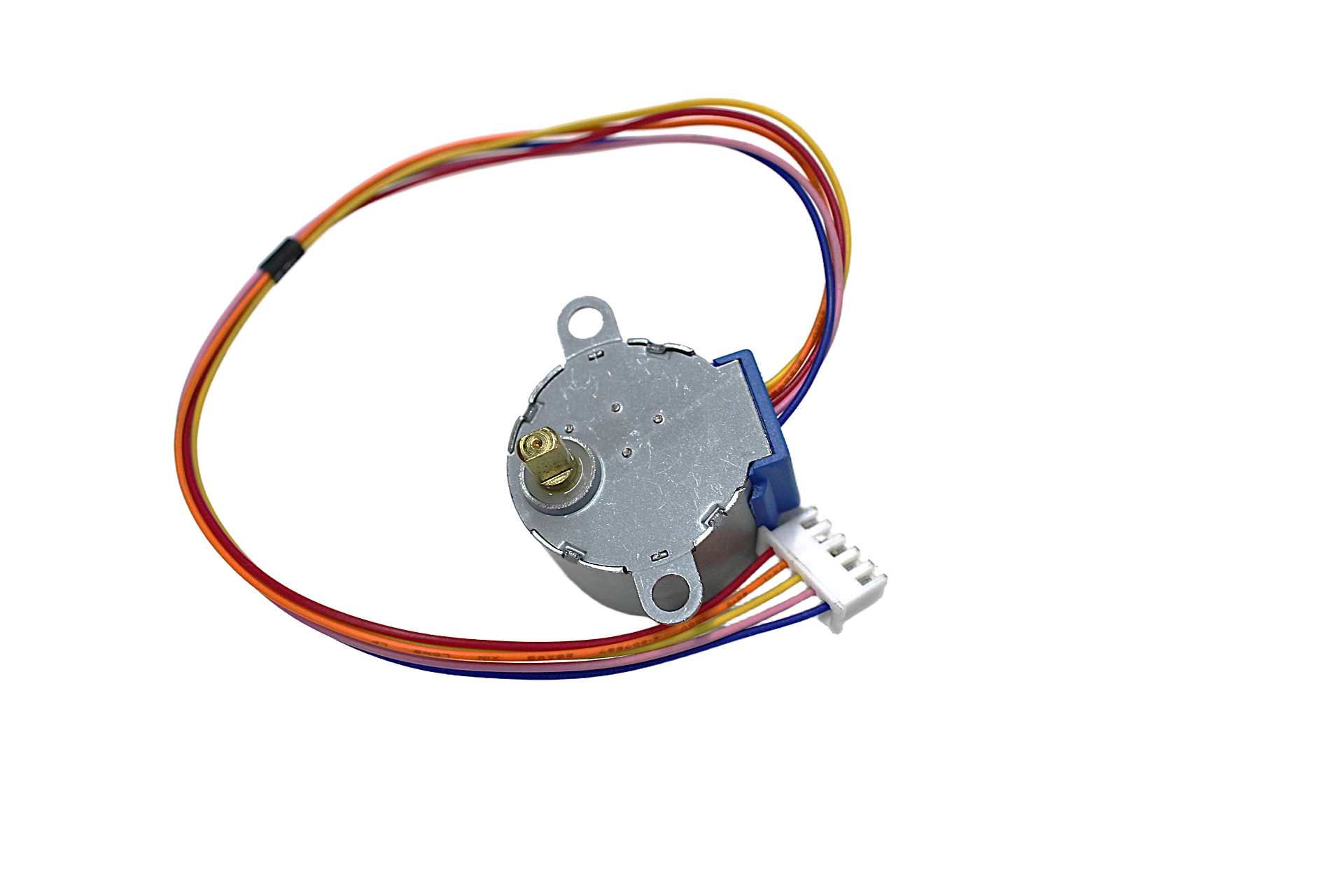

28BYJ-48 5V Stepper Motor
Introducing the 5V DC 28BYJ-48 Stepper Motor, a compact and high-quality geared stepper motor ideal for a wide range of applications. With a reduction ratio of 64:1, it delivers impressive torque for its size at speeds of around 15 RPM. Boasting over 2000 steps per revolution, this motor provides precise control, making it perfect for small robotics projects.
Featuring a standard interface, this stepper motor is plug-and-play ready, ensuring easy integration into your projects. The A, B, C, and D four-phase LED indicators allow you to monitor the motor’s status during operation.
Features:
- High-quality product: Manufactured to high standards, ensuring reliability and durability.
- Standard interface: Plug-and-play compatibility allows for easy integration into various projects.
- LED indicator: A, B, C, D four-phase LED indicator displays the status of the stepper motor during operation.
- Compact size: Perfect for small robotics applications, where space is limited.
- Reduction ratio of 64:1: Provides ample torque for its size, making it suitable for a range of tasks.
- Precise control: More than 2000 steps per revolution ensure precise movement and positioning.
- Versatile: Can be connected with gear shaft and propeller, expanding its potential uses.
Specifications:
Reduction Ratio | 64:1 |
---|---|
Step Angle | 5.625° /64 |
Frequency | 100Hz |
Self-positioning Torque | >34.3mN.m |
Friction torque | 600-1200 gf.cm |
Pull-in torque | 300 gf.cm |
Experience the reliability and versatility of the 5V DC 28BYJ-48 Stepper Motor, ideal for small robotics applications and DIY projects.
Package Includes
- 1 x 28BYJ-48 5V Stepper Motor

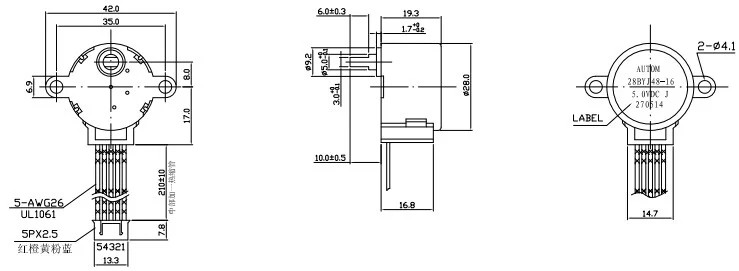

28BYJ-48 Schematic
Datasheet
Example Code
