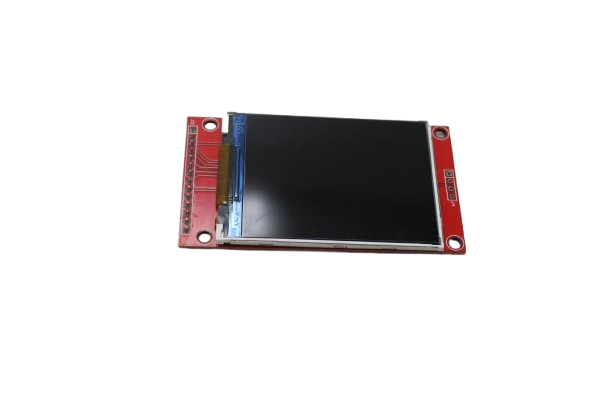

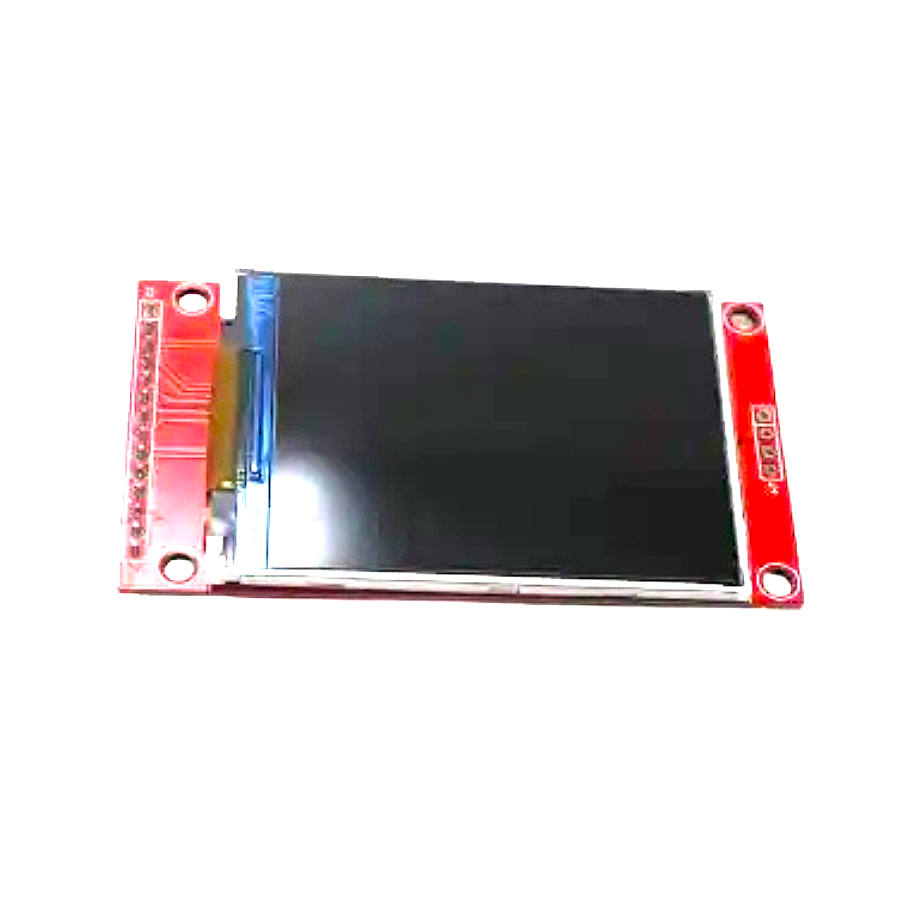

2.4-inch SPI Interface 240×320 TFT Display Module
The 2.4-inch TFT Display Module with SPI Interface, boasting a resolution of 240×320, has consistently remained a sought-after product within the DIY industry. LCD screens are indispensable components for a myriad of projects, providing essential visual output. Similarly, serial port modules enjoy popularity due to their minimal IO requirements and straightforward usage. This particular 2.4-inch TFT LCD combines these desirable features, offering compactness, a SPI interface, and seamless integration.
Pin Description:
- SDO: Serial clock output
- LED: 3.3V IO and Power Supply pin
- SCL: Serial clock input
- SDA / SDI: Serial data input
- DC: Data / Command selection
- RST: Reset, Low level active.
- CS: Chip Selection, Low level active
- GND: Ground
- VDD33: 3.3V Power Supply pin
- UTFT Support
Features:
- It is a 2.4″ SPI TFT LCD Screen Module
- 10pins interface.
- Not just an LCD break but include SD card (2GB),
- The LCD drive ic is ILI9341.
- It’s a 240 * 320 (resolution),
- 2.4-inch TFT LCD screen.
- The LCD has a wide viewing angle, the contrast is also very suitable.
- The display interface is serial, it just needs 5 wires (CS, RS, SCL, SDA, RST) for controlling.

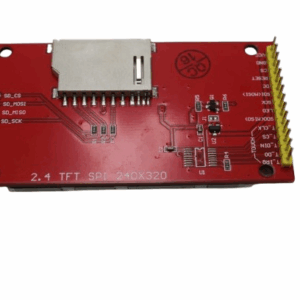

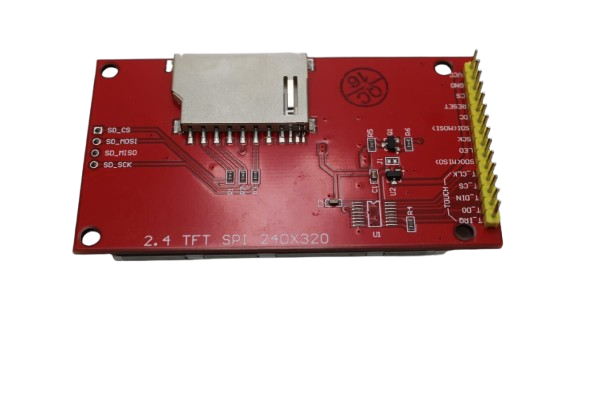

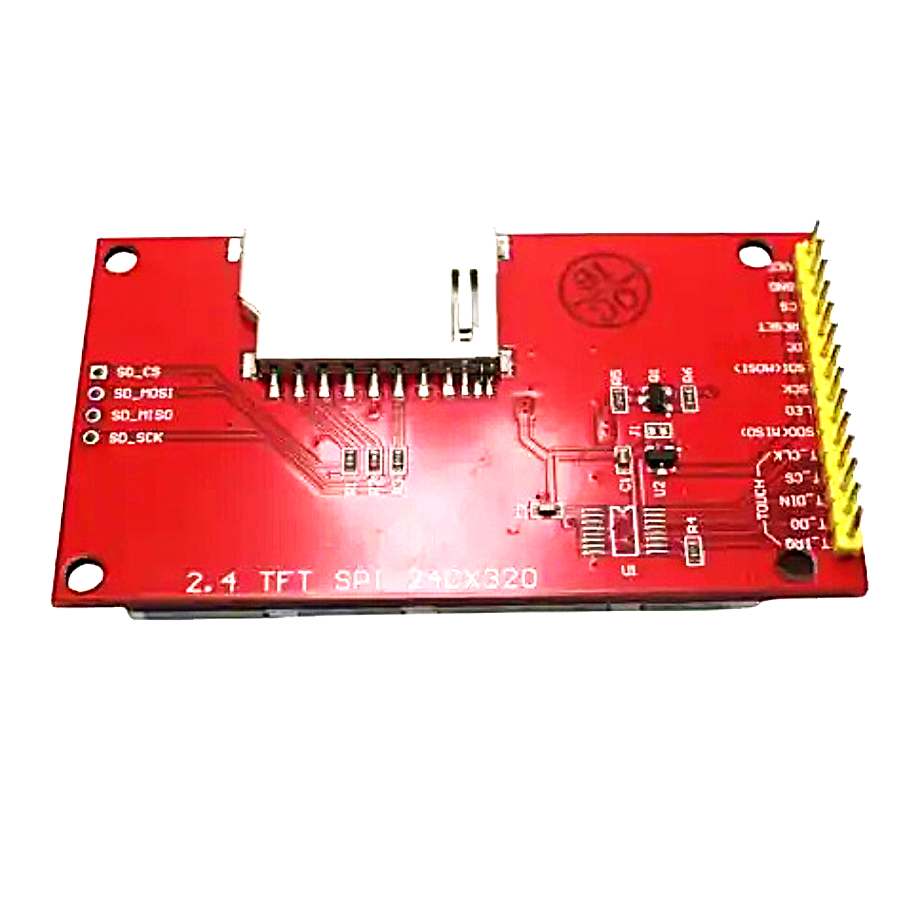

- SD cards use hardware SPI interface (CS / MOSI / MISO / SCK), Not solder pins.
Specification:
| Operating Voltage | 3.3V to 5V |
|---|---|
| Display Size | 2.4″ |
| Driver IC | ILI9341 |
| Backlight | White |
| Color Depth | 262K/65K |
| Resolution (Pixel) | 240 x 320 RGB |
Package Includes:
1 x 2.4-inch SPI Interface 240×320 TFT Display Module
Arduino Interrupts: Hardware and Software Interrupt Tutorial
Table of Contents What Are Interrupts and Why Do They Matter? Hardware Interrupts: External Pin Triggers Software Interrupts:...
Read More →
PlatformIO IDE Setup: The Better Arduino Development Environment
If you've been coding Arduino projects in the default Arduino IDE and wondered whether there's something better, the...
Read More →
ESP32 LoRa: Long-Range Sensor Network for Indian Farms
An ESP32 LoRa sensor network brings affordable, long-range monitoring to Indian farms where WiFi coverage is non-existent and...
Read More →Technical Specifications
| Interface / Protocol | SPI |
|---|---|
| Resolution | 240x320 |
| Package Quantity | 320 pcs |
| SKU | AI2361 |
| Weight | 0.04 kg |
| Availability | In Stock |
Applications & Use Cases
The 2.4-inch SPI Interface 240×320 TFT Display Module is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
