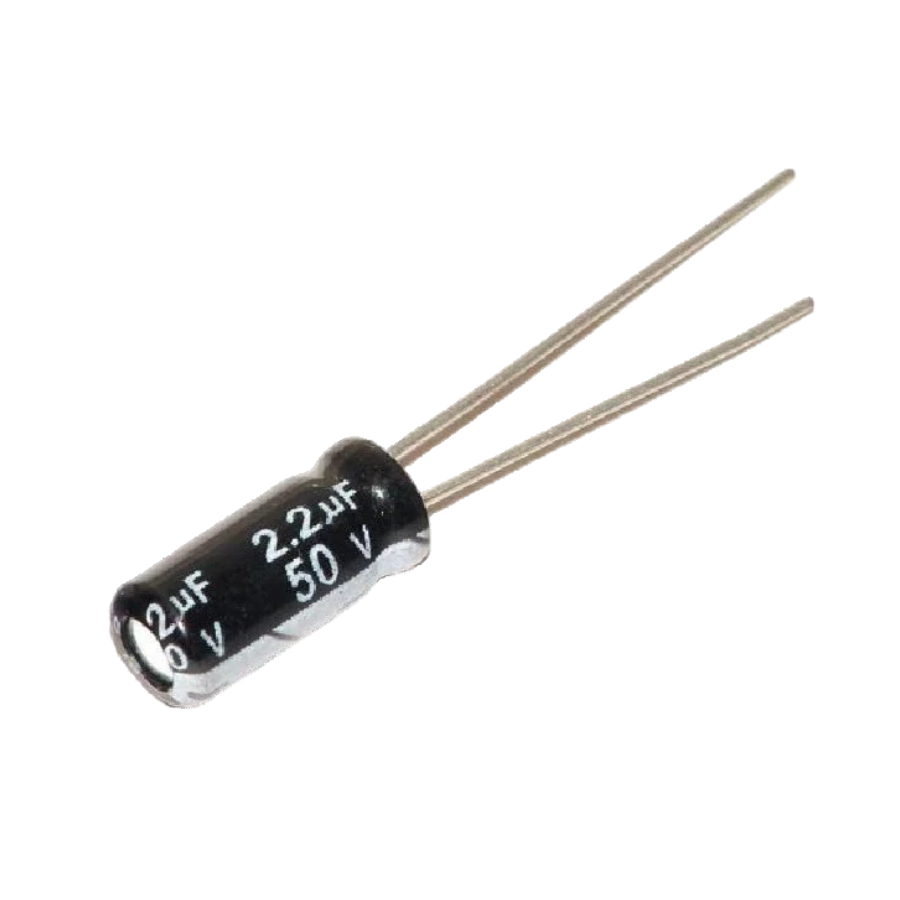

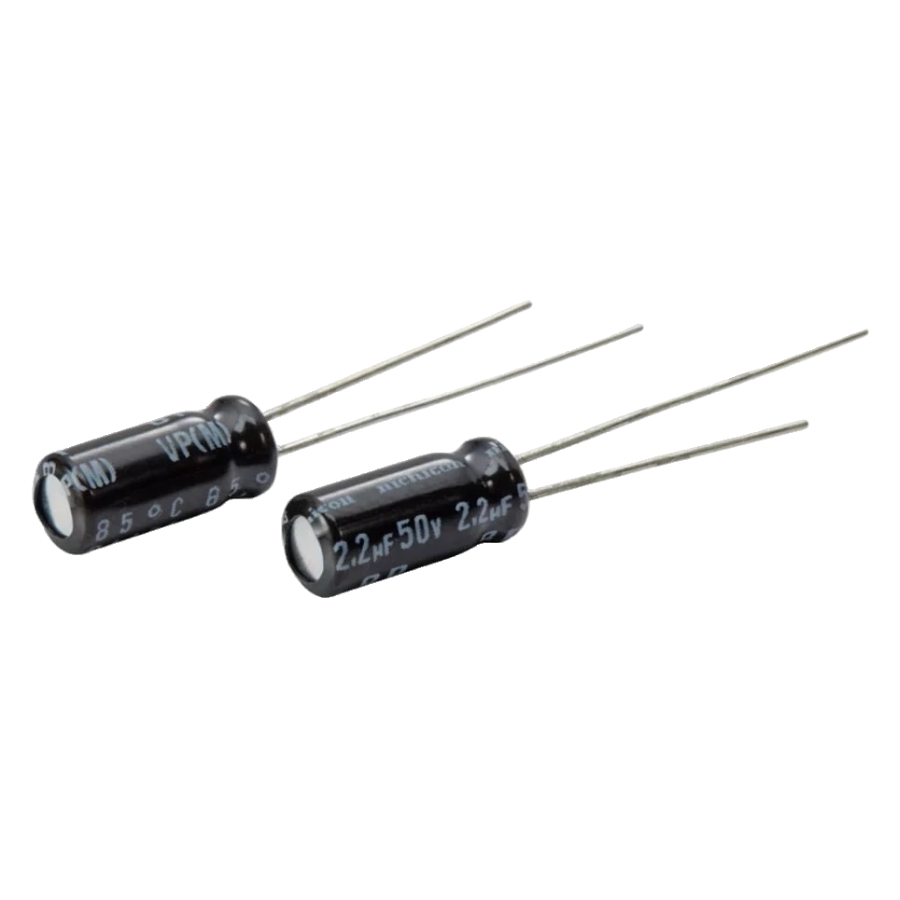

2.2µF 50V Electrolytic Capacitor (Pack of 50)
The 2.2µF 50V Electrolytic Capacitor is a reliable, high-quality component known for its long lifespan and stable performance. Electrolytic capacitors are widely used in electronic circuits due to their high capacitance values and compact design.
These capacitors are polarized, meaning they have distinct positive and negative terminals, and must be connected correctly for optimal functionality.
Features
Capacitance: 2.2µF
Voltage Rating: 50V
Capacitance Tolerance: ± 20%
Capacitor Terminals: Radial Leaded
Lifetime @ Temperature: 2000 hours @ 85°C
Polarity: Polar
Diameter: 5mm
Lead Spacing: 2mm
Height: 11mm
Operating Temperature Min: -40°C
Operating Temperature Max: 85°C
Specification
| Capacitance | 2.2uF |
|---|---|
| Operating Voltage (VDC) | 50V |
| Tolerance (%) | ±20 |
| Operating Temperature Range (℃) | -40 to 85 |
| Mounting Type | Through Hole |
| Length (mm) | 11 |
| Width (mm) | 5.2 |
| Weight (gm) | 4 each |
Applications
Power Conditioning
Suppression and Coupling
Motor Starters
Signal Tuning Circuits
Package Includes
50 x 2.2µF 50V Electrolytic Capacitor
2.2µF 50V Electrolytic Capacitor Overview
The 2.2µF 50V electrolytic capacitor is a through-hole component designed for smoothing, decoupling, and filtering applications in electronic circuits. With a compact radial lead design and 50V rating, it’s ideal for power supply stabilization and signal coupling in consumer electronics, industrial controls, and hobbyist projects.
Key Features of 2.2µF 50V Electrolytic Capacitor
- Capacitance: 2.2µF with ±20% tolerance for precise charge storage
- Voltage rating of 50V to handle moderate DC power supply voltages
- Polarized design with radial leads and clear positive marking
- Compact dimensions: 5mm diameter, 11mm height, 2mm lead spacing
- Operating temperature range from -40°C to 85°C for reliable performance
- Long life expectancy of 2,000 hours at 85°C for durability
- Fast shipping from Zbotic ensures you receive genuine parts quickly
Applications and Use Cases
- Power supply smoothing to reduce voltage ripple in DC converters
- Signal coupling and decoupling in audio amplifier circuits
- Timing and waveform shaping in RC network applications
- Bypass filtering for microcontroller and digital logic modules
- Energy storage in flash circuits or surge protection networks
How to Use 2.2µF 50V Electrolytic Capacitor
Identify the positive (longer lead) and negative terminals before soldering the capacitor into a PCB or perf board with 2mm spaced holes. Ensure the voltage in the circuit does not exceed 50V and observe correct polarity to prevent damage. For filtering applications, place the capacitor close to the power pins of the IC or regulator for optimal decoupling performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
1. How do I determine the polarity of this capacitor?
The negative lead is marked by a stripe on the capacitor body, while the positive lead is longer. Always match these to the PCB’s polarity markings to ensure correct installation.
2. Is this capacitor suitable for high-frequency filtering?
The 2.2µF capacitance provides effective filtering up to a few kilohertz. For higher frequency noise suppression, pair it with a small ceramic capacitor in parallel.
3. What is the expected lifespan at room temperature?
While rated for 2,000 hours at 85°C, most users can expect significantly longer service life at ambient temperatures (25°C to 35°C) under normal operating conditions.
Technical Specifications
| Operating Voltage | 50V |
|---|---|
| Package Quantity | 50 pcs |
| SKU | AI0392 |
| Weight | 0.0005 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 2.2µF 50V Electrolytic Capacitor (Pack of 50) is a versatile through hole capacitor used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
