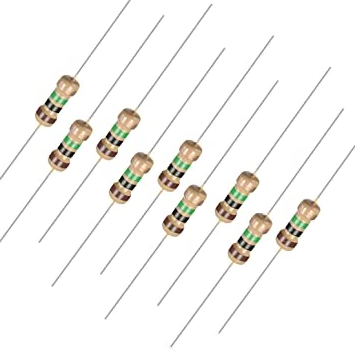

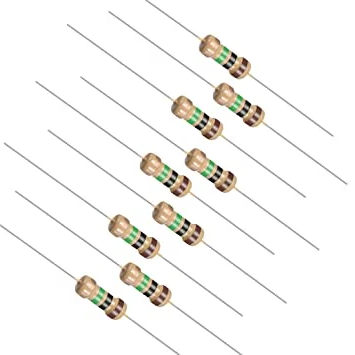

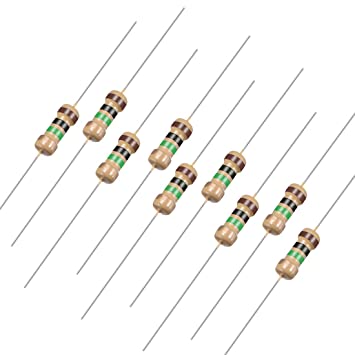

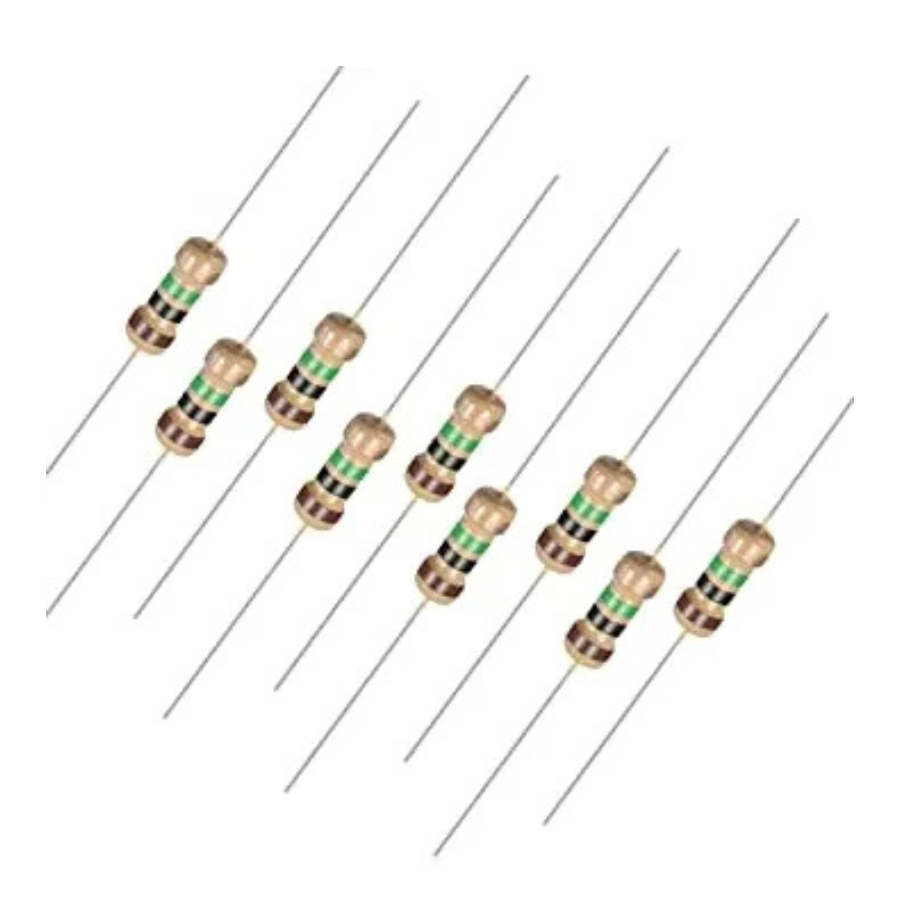

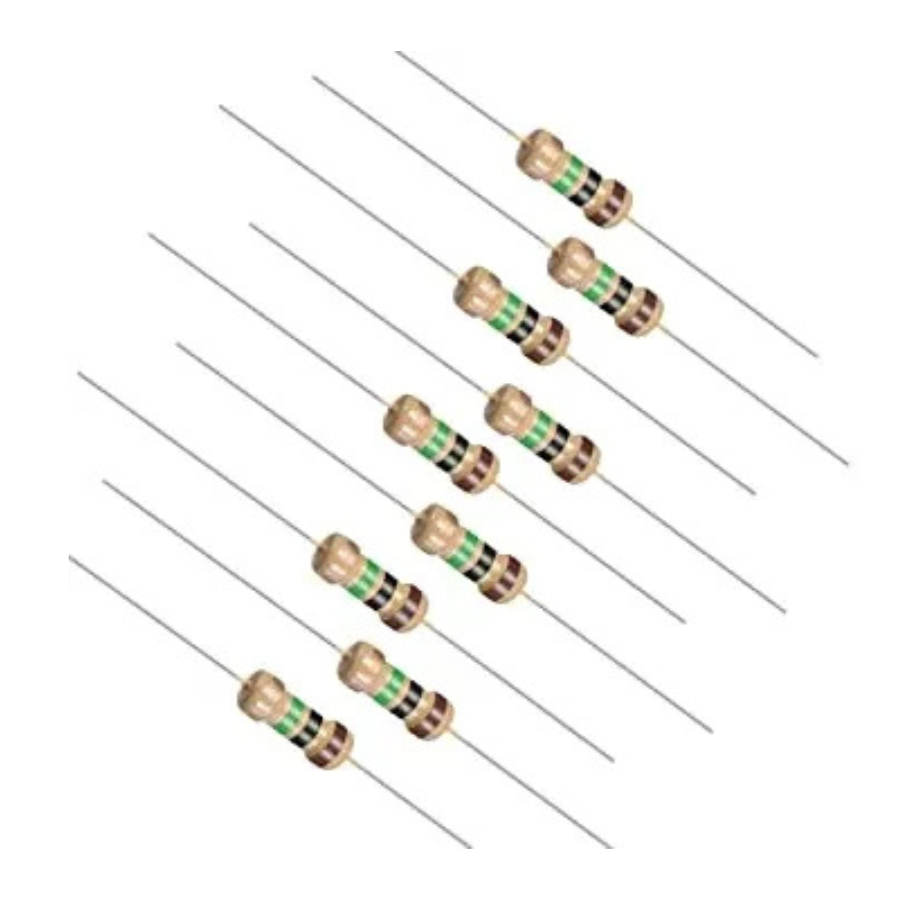

1M Ohm 0.25W Carbon Film Resistor (Pack of 100)

1M Ohm 0.25W Carbon Film Resistor

A carbon film resistor is a type of fixed resistor that employs a carbon film to limit electric current to a specific level. These resistors are widely used in electronic circuits.

The 1M Ohm 0.25W Carbon Film Resistor is an essential component commonly utilized in circuits for tasks such as voltage division, current limiting, and signal conditioning. With a resistance value of 1M Ohm (1,000,000 Ohms), it provides a high level of resistance to electric current, making it suitable for applications that require significant impedance.

Rated for 0.25 Watts, this resistor effectively manages power dissipation while generating minimal heat. Its construction features a carbon film on a ceramic substrate, offering stability, precision, and low noise characteristics for consistent performance across various environmental conditions.

Typically packaged in sets of 100, these resistors provide a convenient and economical solution for projects needing multiple units. They are commonly found in electronic devices and circuits, including sensor networks, instrumentation, audio amplifiers, and precision measurement circuits.

With a compact size and axial lead design, they are easy to integrate into breadboards, printed circuit boards (PCBs), and for through-hole soldering. Overall, the 1M Ohm 0.25W Carbon Film Resistor delivers reliable performance and precise resistance values, making it an indispensable component for a wide range of electronic projects and applications.

Features

Carbon Film Resistor

High Quality

Specification:

Product Code=CFR-W25-1Mohm

1M Ohm 0.25W Carbon Film Resistor (CFR)

Tolerance: ±5%

Color Code: Brown, Black, Yellow, Golden.

Approximate Max Current: 0.5mA.

Package Includes

100 x 1M Ohm 0.25W Carbon Film Resistor

1M Ohm 0.25W Carbon Film Resistor Overview

The 1M Ohm 0.25W Carbon Film Resistor is a through-hole fixed resistor providing 1,000,000 Ω of resistance with ±5% tolerance. Supplied in a pack of 100, it’s used for tasks such as voltage division, current limiting and input impedance setting in a wide range of electronic circuits.

Key Features of 1M Ohm 0.25W Carbon Film Resistor

• Resistance value: 1 MΩ (±5% tolerance) for precise impedance control
• Power rating: 0.25 W, ideal for low-power circuit sections
• Carbon film on ceramic substrate delivers stability and low noise
• Color bands Brown-Black-Yellow-Gold for easy identification
• Approximate maximum current: 0.5 mA to prevent overheating
• Pack of 100 resistors—perfect for prototyping and batch assemblies
• Genuine product with fast shipping from Zbotic

Applications and Use Cases

• High-value voltage divider networks in analog circuits
• Pull-down/pull-up resistors in digital logic designs
• Biasing transistor and FET amplifier stages
• Leakage current control in sensor inputs
• Timing elements in RC oscillator and timer circuits
• Input impedance tailoring for audio preamplifiers

How to Use 1M Ohm 0.25W Carbon Film Resistor

Insert the resistor leads into the through-hole pads on your PCB or breadboard according to your schematic, observing no polarity requirement. Ensure the power dissipation does not exceed 0.25 W—keep current below 0.5 mA—and allow slight clearance from hot components to maintain temperature stability.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

How many resistors come in this pack?

This offering includes 100 pieces of 1M Ω 0.25W carbon film resistors, suited for both prototyping and production runs.

What does the color code Brown-Black-Yellow-Gold indicate?

The first two bands (Brown, Black) form “10,” the third band (Yellow) is the multiplier ×10⁴, yielding 1,000,000 Ω. The Gold band denotes a ±5% tolerance.

Is the 0.25W power rating sufficient for my design?

At 0.25 W, these resistors are designed for low-power applications. To avoid damage, maintain operating current below approximately 0.5 mA or use multiple resistors in parallel for higher dissipation.
