Home Batteries Battery Protection Boards XY-DJ DC 6-40V LED Battery Charger Discharger Board Under Over Voltage Protection Module
CCM5D Digital PWM DC Motor Speed Controller With Display ₹301.0 ( +GST 18% )
Back to products
Combo KIT for IOT Project ₹2,500.0 ( +GST 18% )

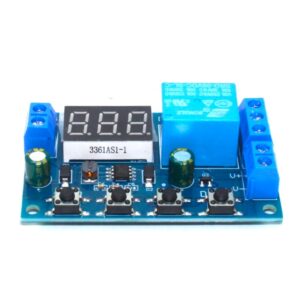

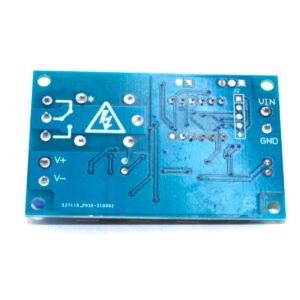

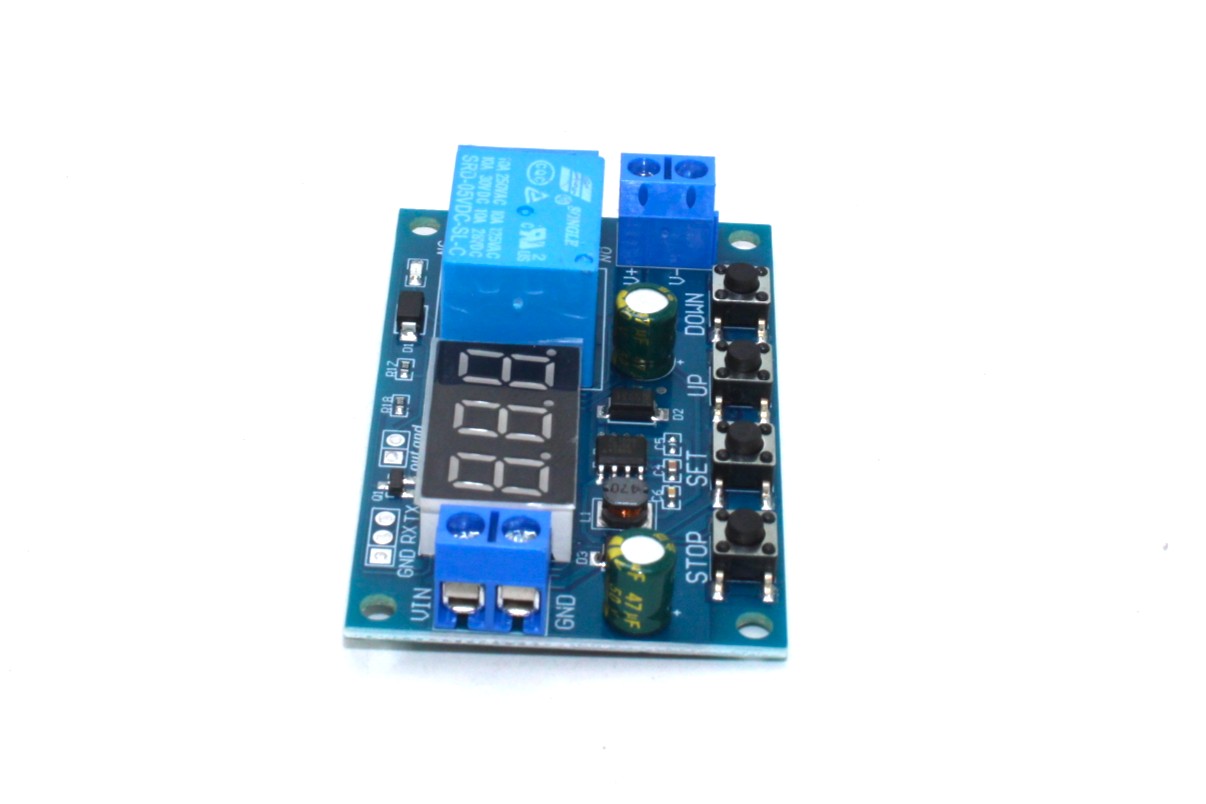

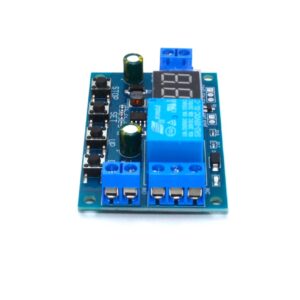

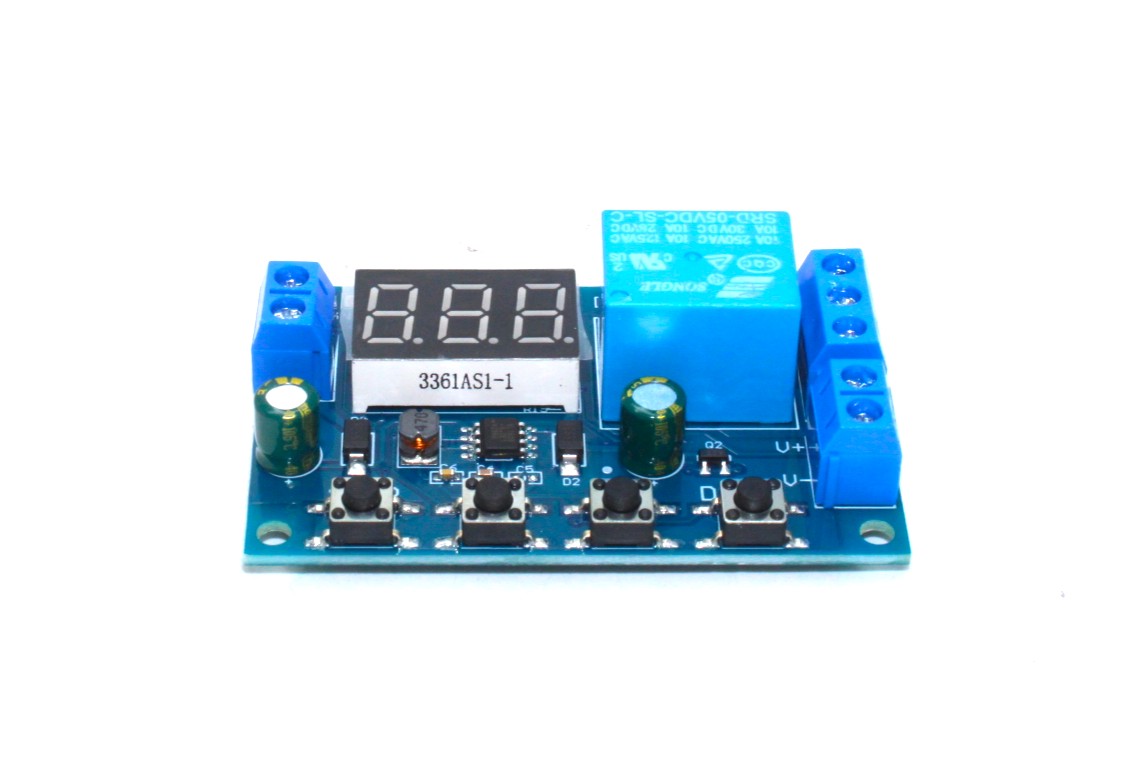

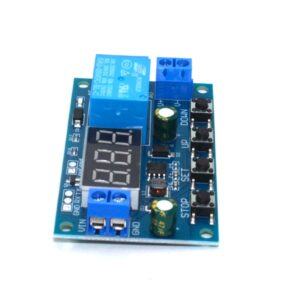

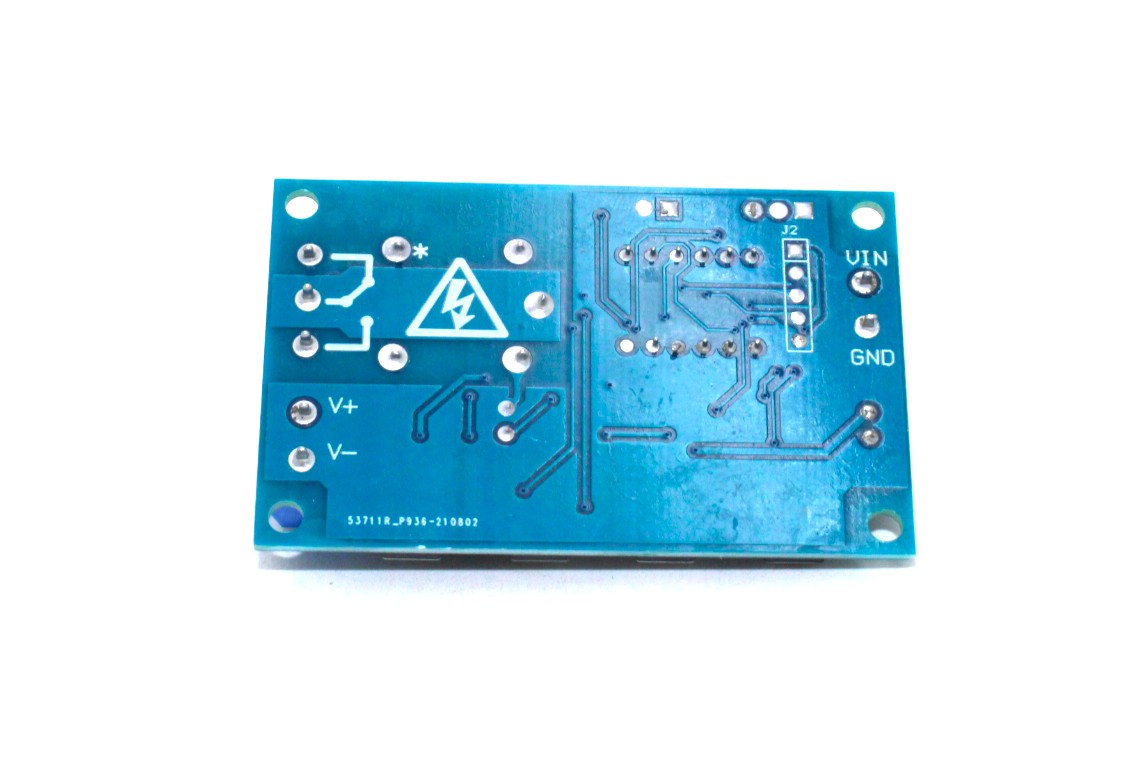

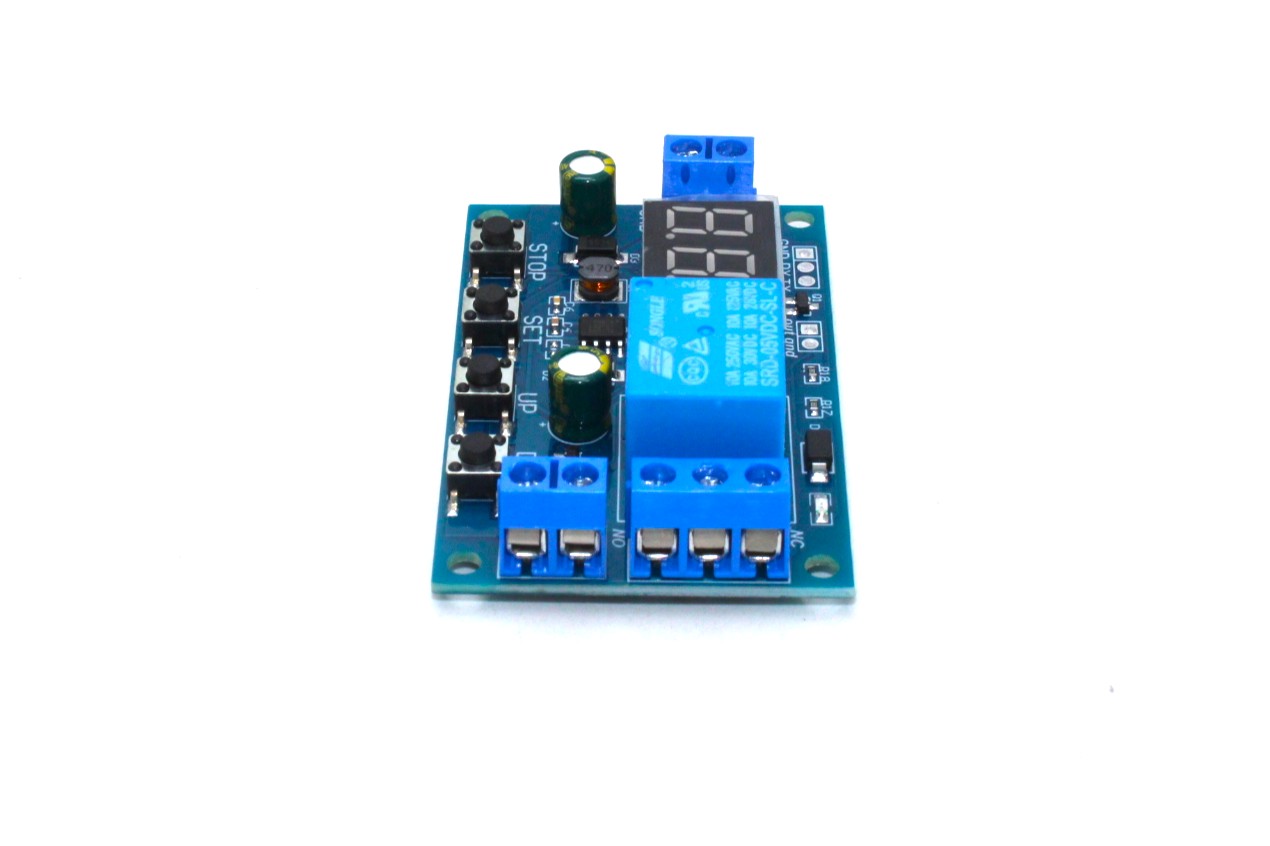

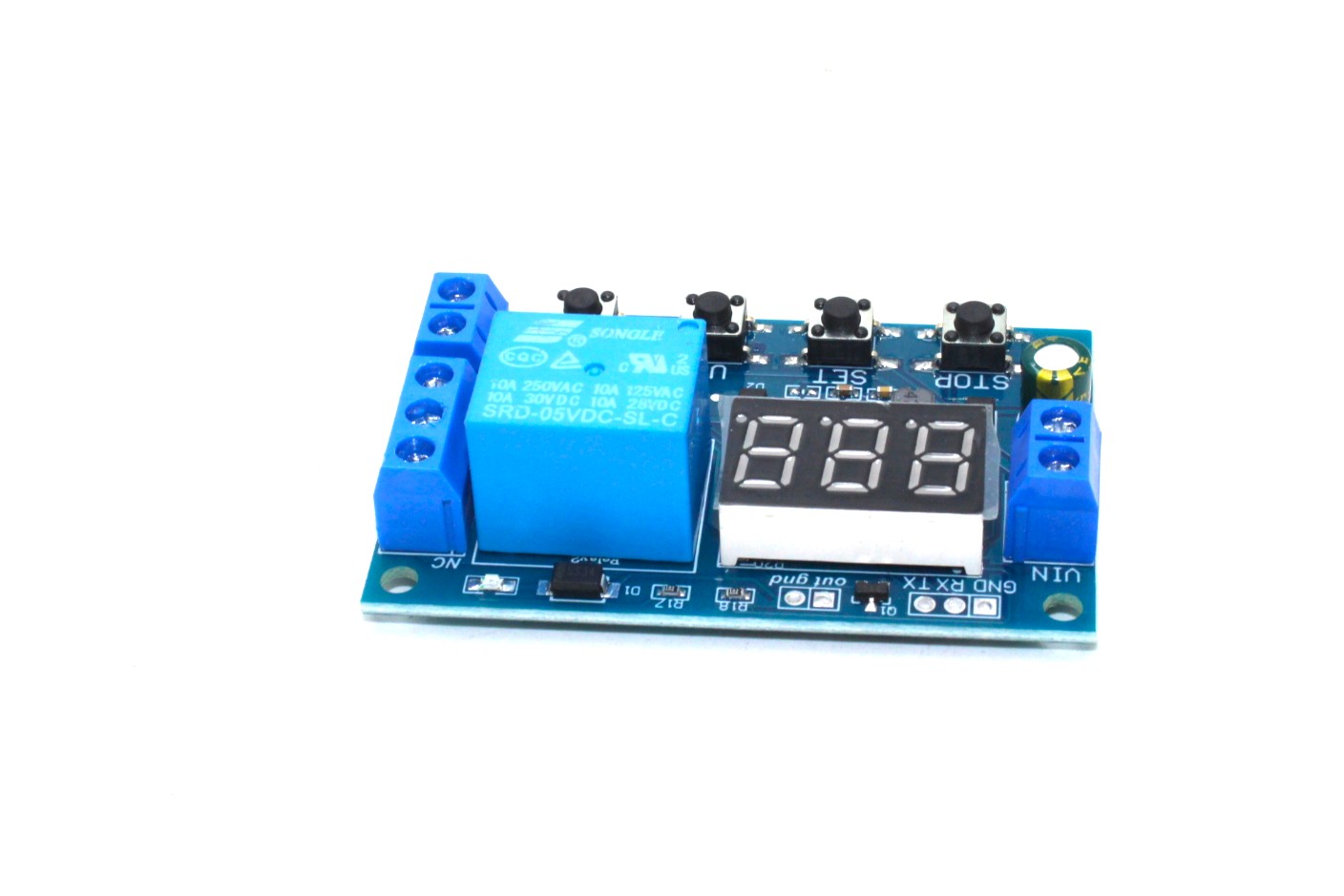

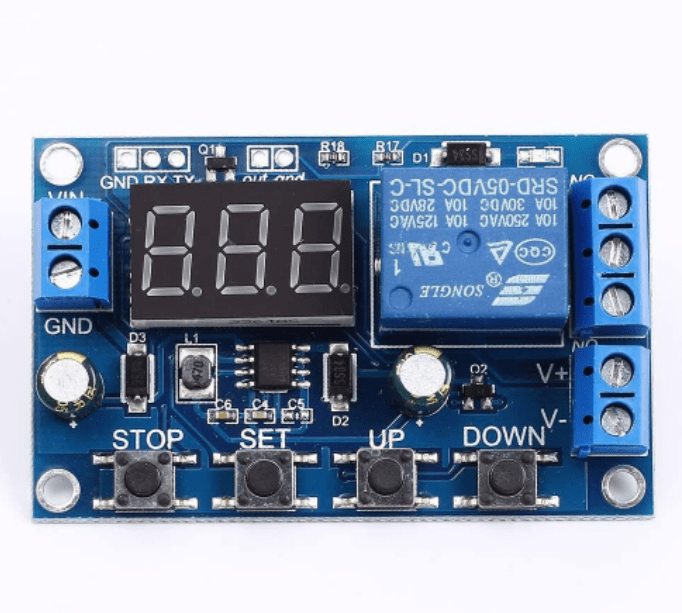

XY-DJ DC 6-40V LED Battery Charger Discharger Board Under Over Voltage Protection Module

₹341.0 ( +GST 18% )

  • ⚡ Dispatched within 24 hours*
  • 💸 COD Orders above 250rs*
  • ✅15 days warranty*
  • 🛠️ Dedicated Technical Support Team
  • 🚚 Free shipping on orders above Rs 499/- for b2c customers

QUICK OVERVIEW

  • Battery charge and discharge intelligent control;
  • You can set the charge and discharge time;
  • With serial communication function, real-time monitoring of the working status of the relay through the serial port;
  • Additional signal output, when the relay to meet the conditions, the output high, you can control other equipment.

For B2B Enquiry Email Us:- [email protected]

33 in stock

Compare
Add to wishlist
SKU: AI0617 Categories: Battery Protection Boards, Electronic Modules Tags: Battery Charger Discharger Board, Battery Protection Board, XY-DJ DC
Share:
  • Description
  • Additional information
  • Reviews (0)
  • COO Info
Description

Product Description

XY-DJ DC 6-40V LED Battery Charger Discharger Board Under Over Voltage Protection Module is an integrated voltmeter, under voltage and overvoltage protection timing charge and discharge with communication function.

Module Highlights:

  • Battery charge and discharge intelligent control;
  • You can set the charge and discharge time;
  • With serial communication function, real-time monitoring of the working status of the relay through the serial port;
  • Additional signal output, when the relay to meet the conditions, the output high, you can control other equipment.
  • A key emergency stop function (STOP button), with reverse protection, reverse does not burn.

 Operating Mode:

Voltage upper limit: UL1, voltage lower limit nL1, the voltage upper limit is greater than the voltage lower limit (UL1> nL1)

  • U-1: Charging measurement : When the measured voltage is lower than the lower limit voltage, the relay pulls above; the upper limit voltage, the relay is disconnected.
  • U-2: charge measurement time control: set the charging time (OP); when the measured voltage is lower than the lower limit voltage, the relay pull, and then start the countdown OP time, the end of the timer, the relay off; when the measured voltage is higher than the upper limit voltage , The relay is disconnected.
  • U-3: Discharge detection: When the measured voltage is lower than the lower limit voltage, the relay is off, above the upper limit voltage, the relay pulls;
  • U-4: discharge detection time control: set the discharge time (OP); when the measured voltage is higher than the upper limit voltage, the relay pull, and then start the countdown OP time, the end of the timer, the relay off; when the measured voltage below the lower limit voltage , The relay is disconnected;
  • U-5: voltage in the range, the relay pull: when the measured voltage between the upper and lower limits, the relay pull, the other circumstances open;
  • U-6: voltage outside the interval, the relay pull: the measured voltage below the lower limit voltage or higher than the upper limit voltage, the relay pull, the other case the relay is off.

Product Parameters:

  1. Power supply voltage: DC6–40V, voltage detection range DC 0–60V, suitable for less than 60V of the various batteries, voltage measurement error ± 0.1V.
  2. charge and discharge time (OP) range: 0 – 999 minutes.

How do I set parameters?

  1. First, according to their needs, to determine the requirements of the work model;
  2. According to the working mode of the relay, in the main interface (when the module is powered on, it will flash the current mode of operation, the default U-1 mode, and then enter the main interface) press the SET button for 2 seconds and then release, enter the selection Mode interface, UP, DOWN button to select the mode to be set (U-1 ~ U-6);
  3. After selecting the mode, assume that we have selected the U-1 mode and press the SET button to set the corresponding parameter. The parameter to be set will flash (UL1 voltage upper limit, nL1 voltage lower limit, OP conduction time), press UP, DOWN Key to increase or decrease, you can always press the key to quickly increase or decrease, press the SET button to set the current mode of the next parameter, the process above;
  4. Set the parameters, and then press the SET button for 2 seconds to release, the current setting mode will flash, and then return to the main interface, set the parameters of success!
  5. In the main interface, press the DOWN key to achieve voltage and time switching.

Mode selection interface: press the SET button for a long time to enter the mode selection interface, set the finished, a long time press the SET button and then release the exit mode selection interface, back to the main interface.

 Additional Features:

  • Data upload: through the serial port to achieve data upload, interval 1s upload a voltage and run time, easy to post-data analysis;
  • Serial port settings parameters: You can set the mode and parameters through the serial port, more convenient;
  • An extra signal output, when the relay to meet the conditions, the output high, the other output low.

Serial port control (TTL level communication)

Communication standard:

  • The baud rate is 115200 bps
  • Data bits: 8
  • Stop bit: 1
  • Check digit: none
  • Flow control: none

Serial command:

  • “U-1”: Operating mode (range U-1 to U-6)
  • “000”: 0 – does not enable timing function, non-0 – enable timing function (range 001 to 999)
  • “Dw02.9”: Set the lower limit voltage
  • “Up10.1”: set the upper limit voltage (range 00.0V ~ 99.9V)
  • “Get”: Get the current settings
  • “On”: Allows the relay to turn on
  • “Off”: Always turn off the relay
  • “Start”: start uploading data
  • “Stop”: stop uploading data

The above command can be any combination of two, need to be separated by commas

Such as: “dw02.9, up10.1” set the lower limit voltage 02.9V upper limit voltage 10.1V

Upload Status: Test Voltage + On Time + Status

“00.0V, 00: 00: 00, OP r n”

00.0V: Measured voltage

00:00:00: Relay on time

Status: OP relay on, CL relay off

STOP key function expansion:

Relay enable mode:

  • ON: OP conduction time, the relay allows conduction;
  • OFF: The relay is disabled and is always off;
  • Press the STOP button on the main interface to switch between ON and OFF, the current status will flash, and then return to the main interface. (This function is an emergency stop function, a key to disconnect the relay)

Sleep mode:

  • C-P sleep mode: within five minutes, without any operation, the digital tube automatically shut down the display, the program normal operation;
  • O-d normal mode: digital tube is always open display;
  • Press and hold the STOP button for 2 seconds to release, to achieve C-P and O-d state of the switch, the current state will flash, and then return to the main interface.

Package Includes:

  • 1 x  XY-DJ DC 6-40V Battery Charging Boost Power Protection Board Module Over Discharge Protection Module
Additional information
Weight 0.036 kg
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

COO Info

Country Of Origin – China

Related products

Add to cart
Compare
Quick view
Add to wishlist

DC 12V Relay with Adjustable Delay Time Signal Triggering Switch Module

₹125.0 ( +GST 18% )
Add to cart
Compare
Quick view
Add to wishlist

TTP224 4-way Capacitive Touch Switch Module

₹54.0 ( +GST 18% )
TXS0108E High Speed Full Duplex 8 Channel Logic Level Converter
TXS0108E High Speed Full Duplex 8 Channel Logic Level Converter
Add to cart
Compare
Quick view
Add to wishlist

TXS0108E High Speed Full Duplex 8 Channel Logic Level Converter

Rated 5.00 out of 5
₹92.0 ( +GST 18% )
Sold out
Read more
Compare
Quick view
Add to wishlist

VNH2SP30 Monster Motor Driver Shield 14A (Peak 30A)

₹799.0 ( +GST 18% )
-10%
Add to cart
Compare
Quick view
Add to wishlist

MT8870 DTMF Audio/Speech Decoding Telephone Module

₹83.0 ₹75.0 ( +GST 18% )
XL4015 5A Step Down Adjustable Power Supply with LED Voltmeter
Add to cart
Compare
Quick view
Add to wishlist

XL4015 5A Step Down Adjustable Power Supply with LED Voltmeter

Rated 4.67 out of 5
₹393.0 ( +GST 18% )
Sold out
Read more
Compare
Quick view
Add to wishlist

5V 7A DC Mini Power Relay

₹29.0 ( +GST 18% )
Add to cart
Compare
Quick view
Add to wishlist

DC – DC 6-24V to 5V USB Output Step Down Power Charger with Adjustable Buck Converter

Rated 5.00 out of 5
₹76.0 ( +GST 18% )
kisspng-computer-icons-scalable-vector-graphics-adobe-illu-thumb-svg-png-icon-free-download-148447-onlin-5c0598a80bc5f2.4617737315438706320482

High Quality

Buy high reliable products for your critical project.

kisspng-telephone-call-computer-icons-portable-network-gra-phone-call-svg-png-icon-free-download-518851-5b80a222402649.4360944515351567702628

Awesome Support

Our Support lines are open from 10 am to 6 pm, to support all your queries.

kisspng-delivery-computer-icons-encapsulated-postscript-5b1ed86cdf6f28.3572173215287481409152

Fast Delivery

99% of orders are shipped within 24Hours.

kisspng-computer-icons-padlock-icon-design-5b163a323d99c6.2970240315281833462523

Secure Payments

We follow highest security standards to make your transaction safe.

ZBOTIC
Goyal Industrial Complex
Above Jayaka Tea, J-514
Gawali Matha Chowk, Telco Road
Bhosari, Pune-411026, India


Phone: +91-7410737370
Email: [email protected]
Recent Posts
  • A preview image of Home automation using iot
    Home Automation Using IoT | IoT Project
    January 28, 2023 No Comments
  • Card Access Electronic Gate Lock RFID Access solenoid lock
    Door Security System Arduino RFID Project
    January 27, 2023 No Comments
My Account
  • My Account
  • Cart
  • Checkout
  • Wishlist
  • Payment Option
Information
  • About Us
  • Team
  • Career
  • Contact Us
  • FAQ
Policies
  • Privacy Policy
  • Terms and Conditions
  • GST Inputs Tax Credit
  • Shipping & Return Policy
  • Our Sitemap
© 2020 CREATED BY Zbotic. PREMIUM ELECTRONIC COMPONENTS SOLUTIONS.
payments
  • Menu
  • Categories
  • Development BoardsDevelopment Boards
  • Electronic ComponentsElectronic Components
  • Electronic ModulesElectronic Modules
  • SensorsSensors
  • IoT and WirelessIoT and Wireless
  • Display ModulesDisplay Modules
  • 3D Printer Parts3D Printer Parts
  • Motors and DriversMotors and Drivers
  • Wires and CablesWires and Cables
  • BatteriesBatteries
  • Drone PartsDrone Parts
  • Shop
  • Track order
  • Republic Day Sale
  • B2B
  • About Us
  • Blogs
  • Contact Us
  • Services
  • Wishlist
  • Compare
  • Login / Register
Shopping cart
close

Sign in

close

Lost your password?
Or login with
Google
OR
Don't have an account? Signup

No account yet?

Create an Account

XY-DJ DC 6-40V LED Battery Charger Discharger Board Under Over Voltage Protection Module

Rated 0 out of 5
₹341.0 ( +GST 18% )

33 in stock

Compare
Add to wishlist
Shop
0 Wishlist
0 items Cart
My account
×

Back
