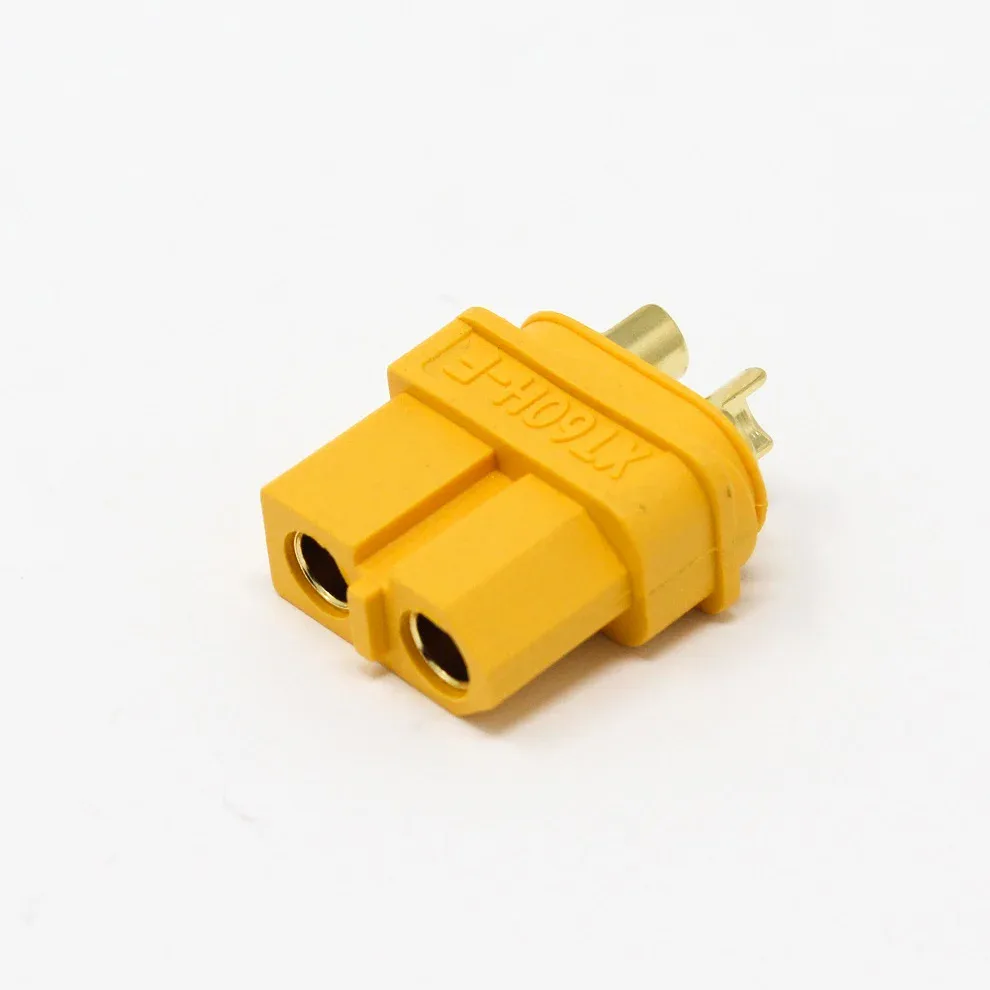

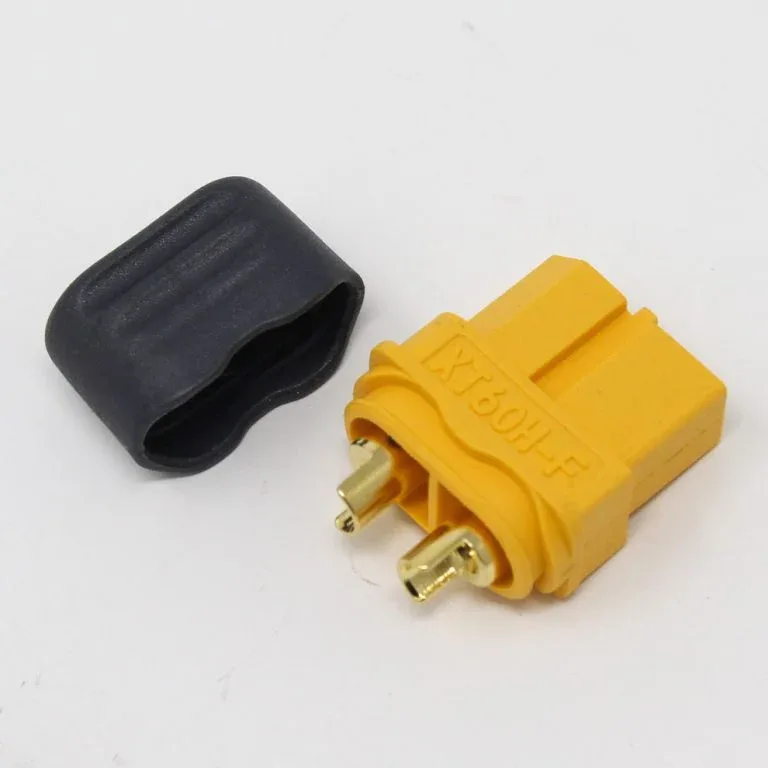

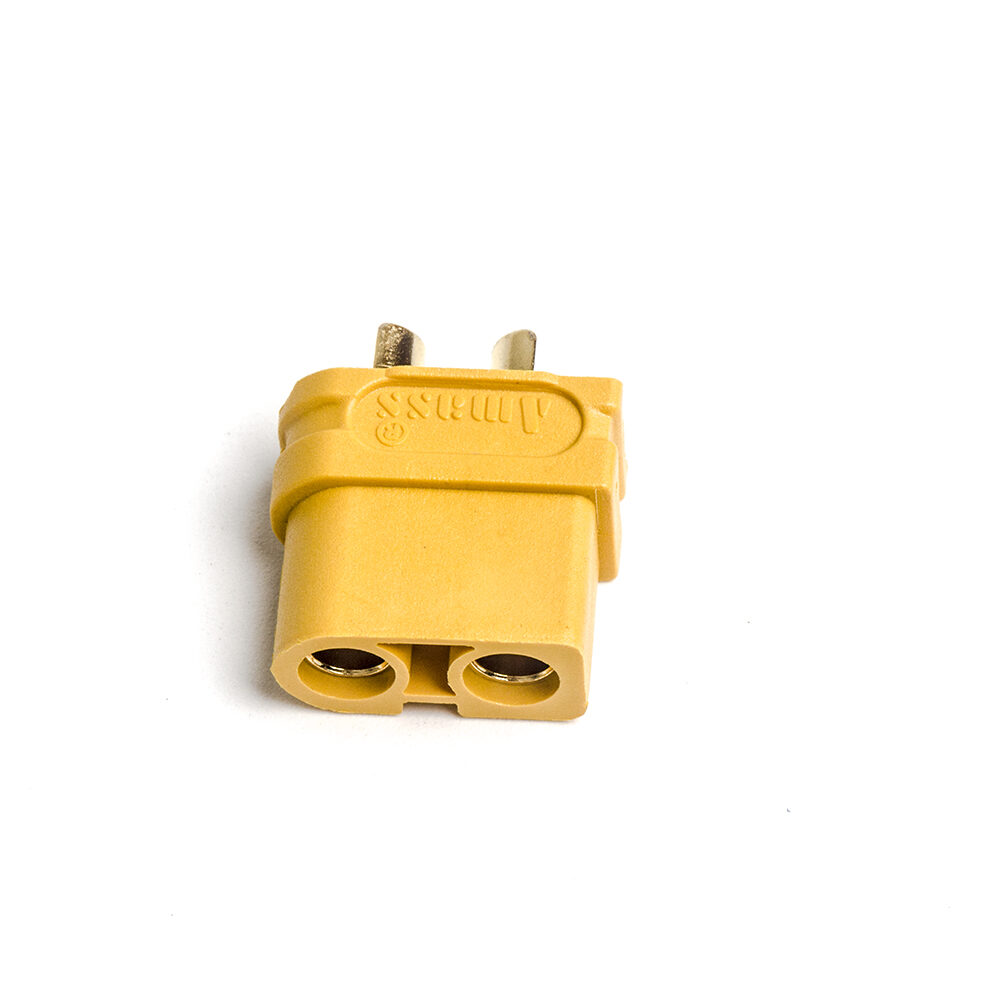

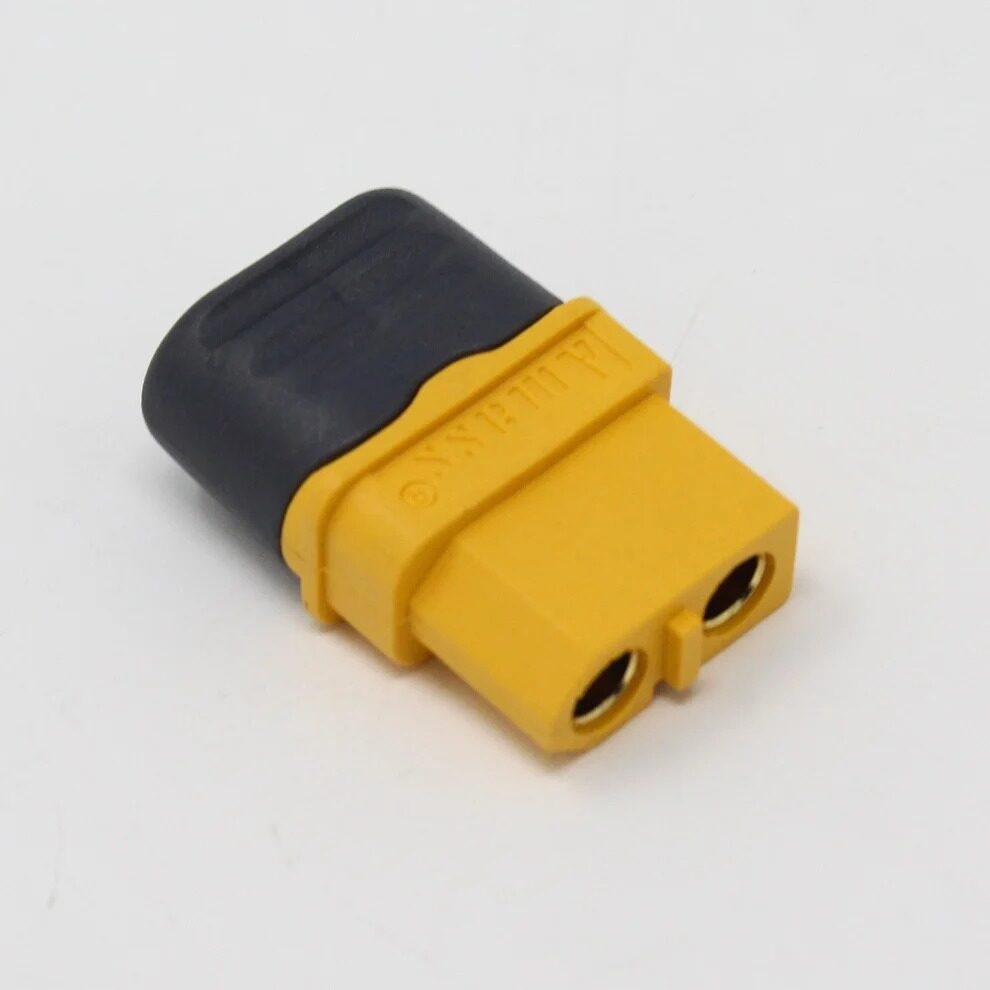

The best battery connectors on the market just got better with the development of the XT60H.
Like the original XT60H, this connector is made from high-temp nylon with gold plated connectors so the XT60H continues to provide an excellent high-amp connection for applications up to 65A. The change in design has made it shorter and lighter and far more user-friendly for connection and disconnection with an improved integrated grip area as well as tight locking Housing with different color provide the protection to the soldered points and make this connector little fancy and that’s why H letter is added in XT60.
The XT60H is completely compatible with original XT60 connectors so you can use them straight away.
IMPORTANT: “These are not cheap copied XT60H plugs. These original Nylon XT60H plugs, manufactured by AMASS, can handle over 60A current for extended periods without exceeding 80DegC thanks to their better contact surface area. The plug is also less likely to deform or melt in comparison to copied non-Nylon XT60H plugs.
Specifications and Features
- Mechanical mounting for cable
- Electrical mounting soldered
- Contact plating Gold flash
- Spatial Orientation Straight
- Contact Material: Brass
- Compatible for Wire size up to 12AWG
Package Includes:
1 x XT60H Connector with Housing- Female
Power Supply Design: Ripple Noise Reduction Techniques
Every electronics project eventually hits the same wall: sensitive circuits misbehaving because the power supply is noisy. Microcontrollers...
Read More →
Battery Tab Welding vs Soldering: Which Method to Use
Table of ContentsThe Case Against Soldering Batteries How Spot Welding Protects Cells When Soldering Is Acceptable Solder Tab...
Read More →
Wireless Charging Module Qi: Build a Charging Pad Project
Wireless Charging Module Qi: Build a Charging Pad Project Imagine placing your phone or any custom device on...
Read More →Technical Specifications
| Model | XT60H |
|---|---|
| Connector Type | XT60 |
| SKU | AI1732 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The XT60H Connector with Housing- Female is a versatile battery connector used across a wide range of applications including drone battery connections, RC vehicle wiring, power distribution boards, battery pack assembly, and DIY power cables.
Common use cases:
- Replacing worn connectors on a LiPo battery
- Building custom battery harnesses
- Soldering connectors for a new drone build
This product is ideal for drone builders, RC hobbyists, and electronics technicians.
Technical Tip: XT60 handles up to 60A continuous; XT30 up to 30A. Always solder male connectors to the battery side and female to the ESC/charger side.
