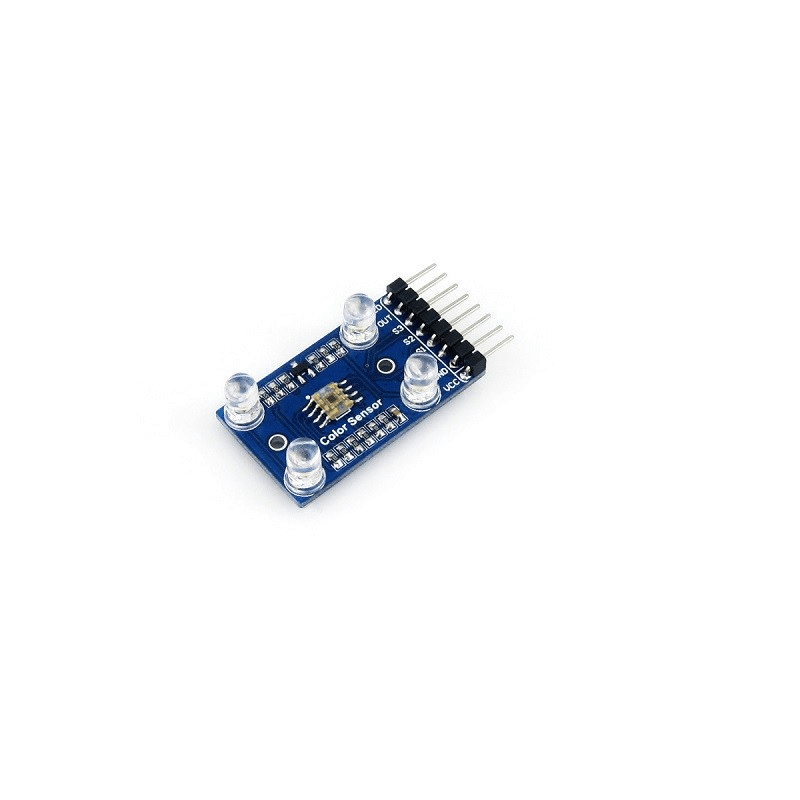

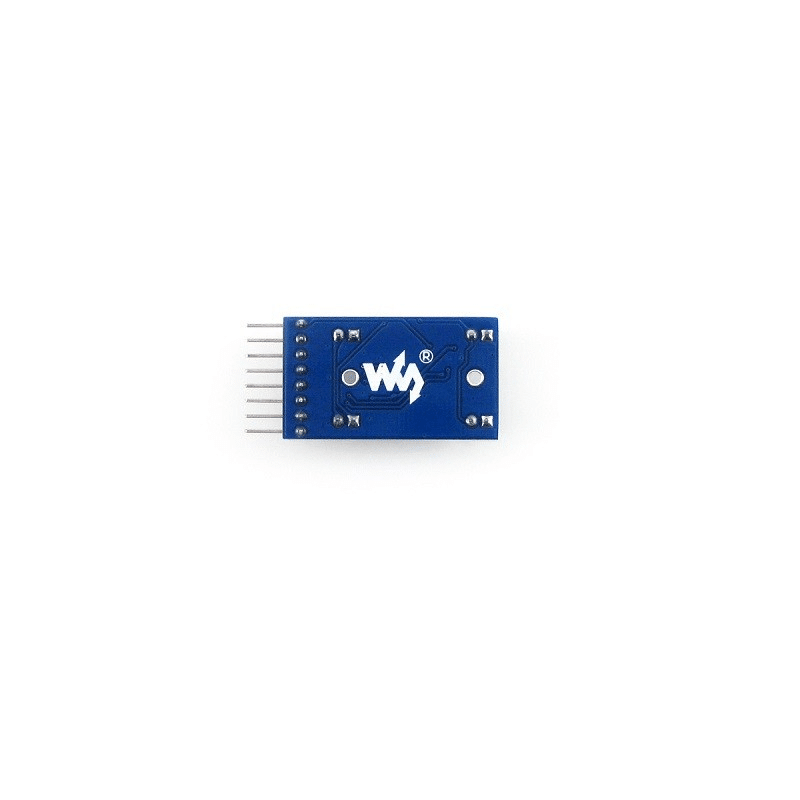

Waveshare TCS3200 Color Sensor
he TCS3200 sensor is a color sensor. This TCS3200 Color Recognition Sensor is a high-quality light sensor allowing you to sense any color through a combination of Red, Green, and Blue. Its output is a square wave with frequency directly proportional to incident light intensity. This module can be directly interfaced with Microcontrollers, Arduino Boards, Raspberry Pi, etc.

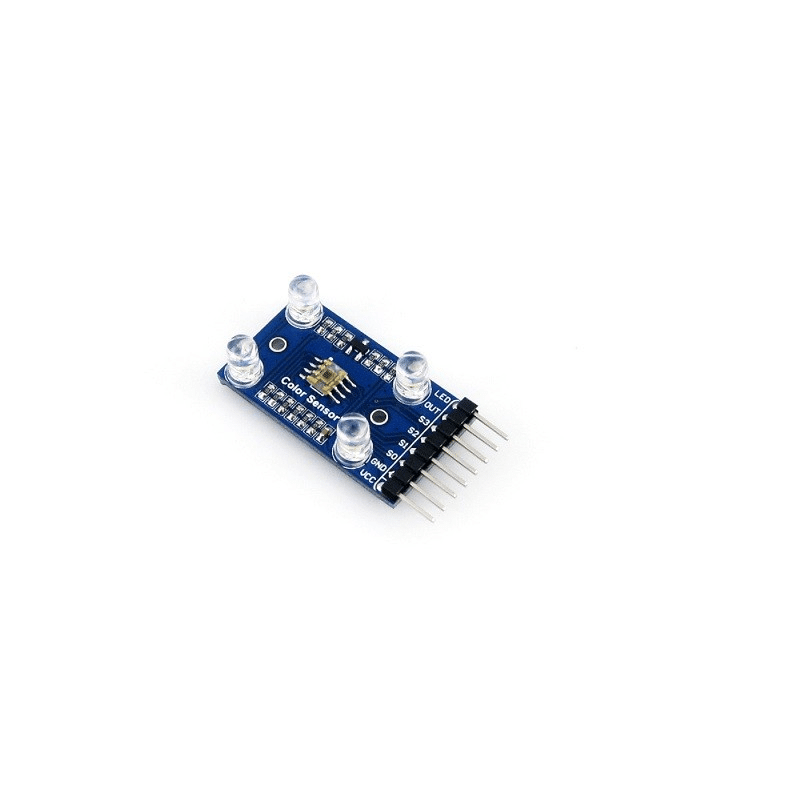

Connections
VCC ↔ 2.7V ~ 5.5V
GND ↔ power supply ground
LED ↔ MCU.IO (controlling the 4 white LEDs)
OUT ↔ MCU.IO (RGB color output frequency)
S0/S1 ↔ MCU.IO (Output frequency scaling selection inputs)
S2/S3 ↔ MCU.IO (Photodiode type selection inputs)
Application:
- Sorting by color
- Ambient light sensing and calibration
- Test strip reading
- Color matching
Features:
- High-Resolution Conversion of Light Intensity to Frequency
- Programmable Color and Full-Scale Output Frequency
- Power Down Feature
- Stable Temperature Coefficient
Specification:
| Model: | Color Sensor Module |
|---|---|
| Operating Voltage (V): | 2.7 to 5.5 |
| Detection Distance (mm): | 10 |
| Length (mm): | 35 |
| Width (mm): | 20 |
| Height (mm): | 10 |
Package Includes:
1 x Waveshare TCS3200 Color Sensor
Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Model | TCS3200 |
| SKU | AI7763 |
| Weight | 0.02 kg |
| Availability | In Stock |
