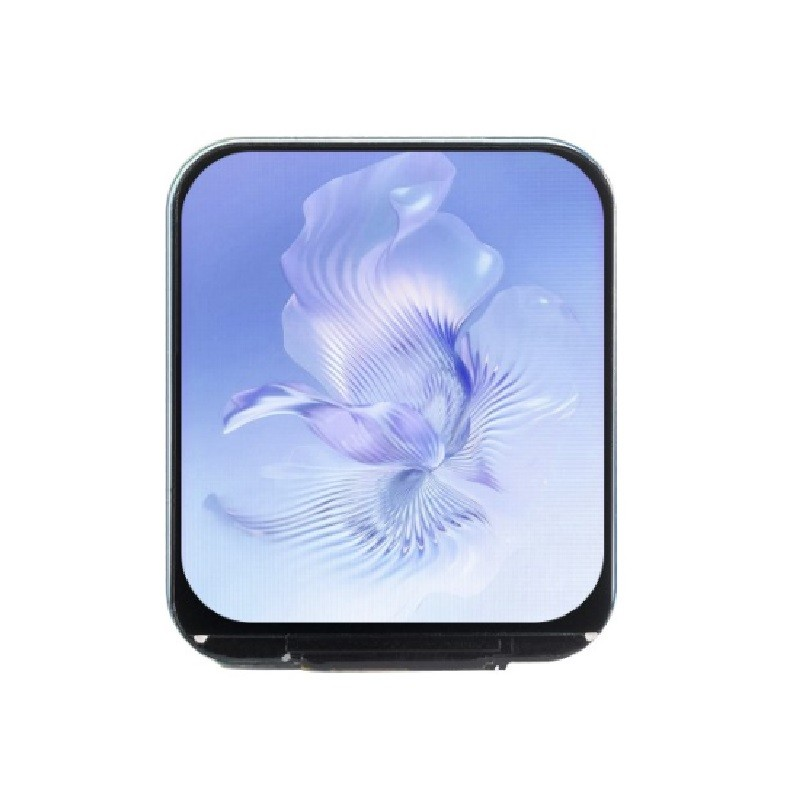

This is the 83inch variant of the Waveshare 1.83inch LCD Display Module, 240×280 Resolution, SPI Interface, IPS LCD, 65K Colors, Rounded Corners, Micro LCD Display in TFT LCD Displays. Available at ₹850.78 (₹721.00 + GST) with free shipping across India.
1.83inch LCD Display Module, 240×280 Resolution, SPI Interface, IPS LCD, 65K Colors, Rounded Corners, Micro LCD Display
Features:
- 240×280 resolution, 65K colors, clear and colorful displaying effect
- SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32/ESP32, etc.)
Specification:
| Model Type: | LCD Display Module |
|---|---|
| Display Size (Inch): | 1.83 |
| Display Resolution: | 240 × 280 |
| Operating Voltage (V): | 3.3 or 5 |
| Communication Mode | 4-wire SPI |
| Display Panel | IPS |
| Driver IC | NV3030B |
| Pixel Size | 0.126 × 0.126mm |
Package Includes:
1 x 1.83inch LCD Display Module
1 x GH1.25 8PIN cable
Arduino Pro Mini Pinout, Programming and Low-Power Tips
The Arduino Pro Mini is one of the most compact and power-efficient Arduino boards available — making it...
Read More →
Arduino ADC Tutorial: analogRead(), Resolution & Accuracy
The ability to read real-world analogue signals — voltages from sensors, potentiometers, thermistors, light-dependent resistors — is one...
Read More →
Best Arduino Simulator Tools: Tinkercad vs Wokwi vs Proteus
Burning through physical Arduino boards and components to test every idea gets expensive fast. An Arduino simulator lets...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Display Size | 1.83" |
| Interface / Protocol | SPI |
| Resolution | 240x280 |
| Package Quantity | 280 pcs |
| SKU | AI6692 |
| Weight | 0.03 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare 1.83inch LCD Display Module, 240×280 Resolution, SPI Interface, IPS LCD, 65K Colors, Rounded Corners, Micro LCD Display is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
