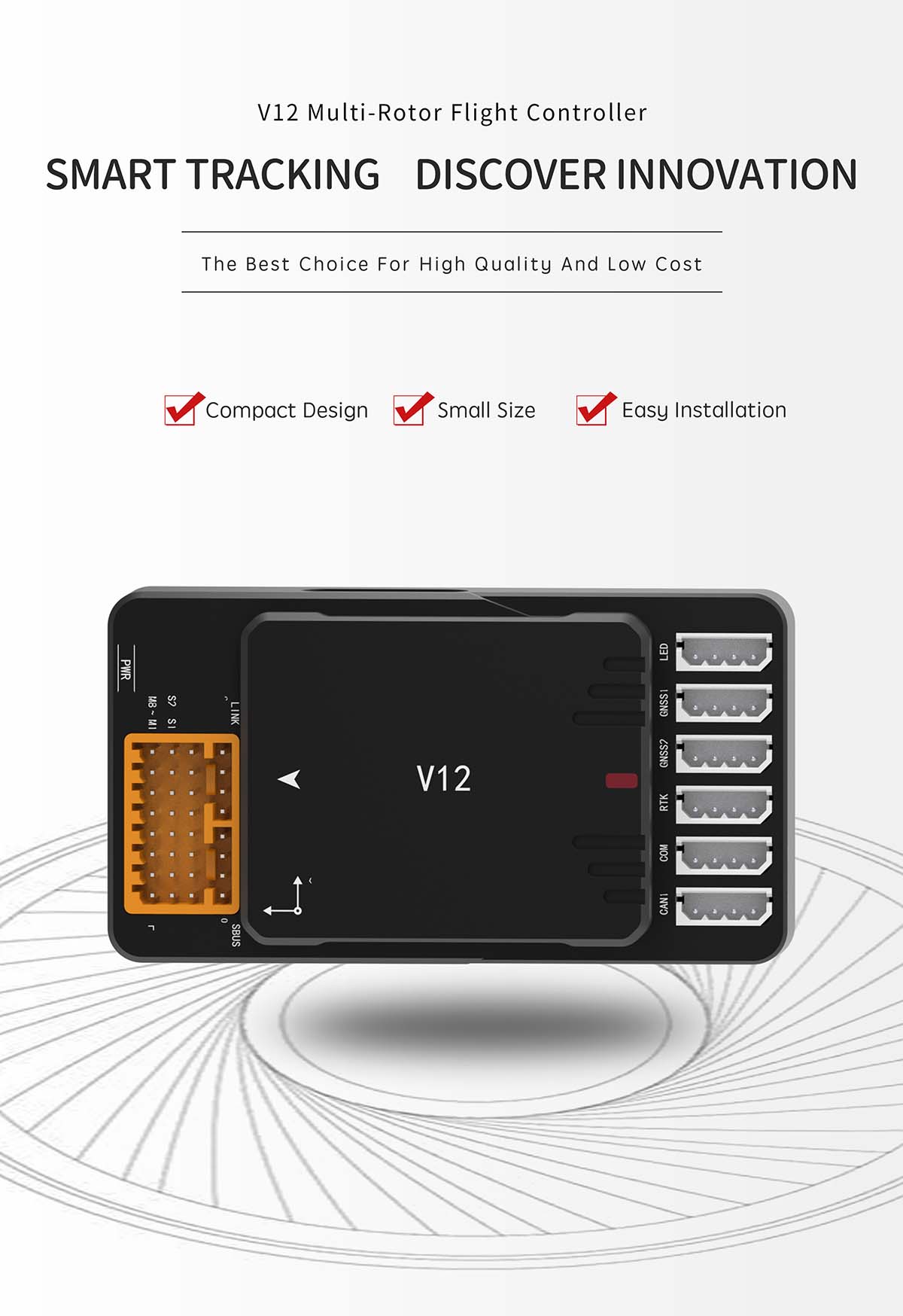

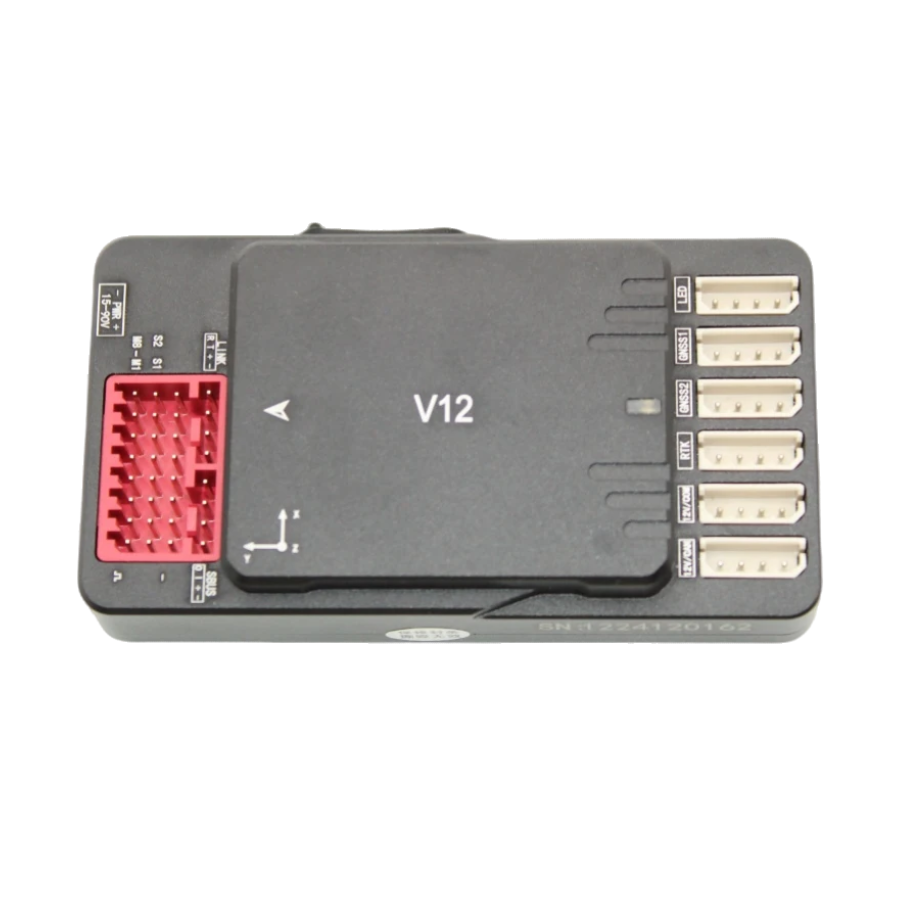

VK V12 UAV Flight Controller
Description:
The VK V12 is an industrial-grade multi-rotor flight controller designed for agricultural, inspection, mapping, security, and logistics UAVs. It supports up to 8-rotor configurations, RTK positioning, dual CAN communication, smart batteries, obstacle-avoidance radar, and autonomous mission planning.
Specification:
| Specification | Details |
|---|---|
| Model | VK V12 |
| UAV Type | 8-Rotor (Octocopter) |
| Application | Industrial & Agricultural UAV |
| Dimensions | 113 × 53 × 26 mm |
| Power Supply | 15–95 V |
| Operating Temperature | -20°C to +60°C |
| Attitude Accuracy | 0.2° |
| Heading Accuracy | 0.5° |
| Horizontal Position Accuracy | RTK: ±0.1 m |
| Vertical Position Accuracy | RTK: ±0.1 m |
| Maximum Horizontal Speed | 20 m/s |
| Maximum Climb Speed | 5 m/s |
| Motor Outputs | 10 PWM Channels |

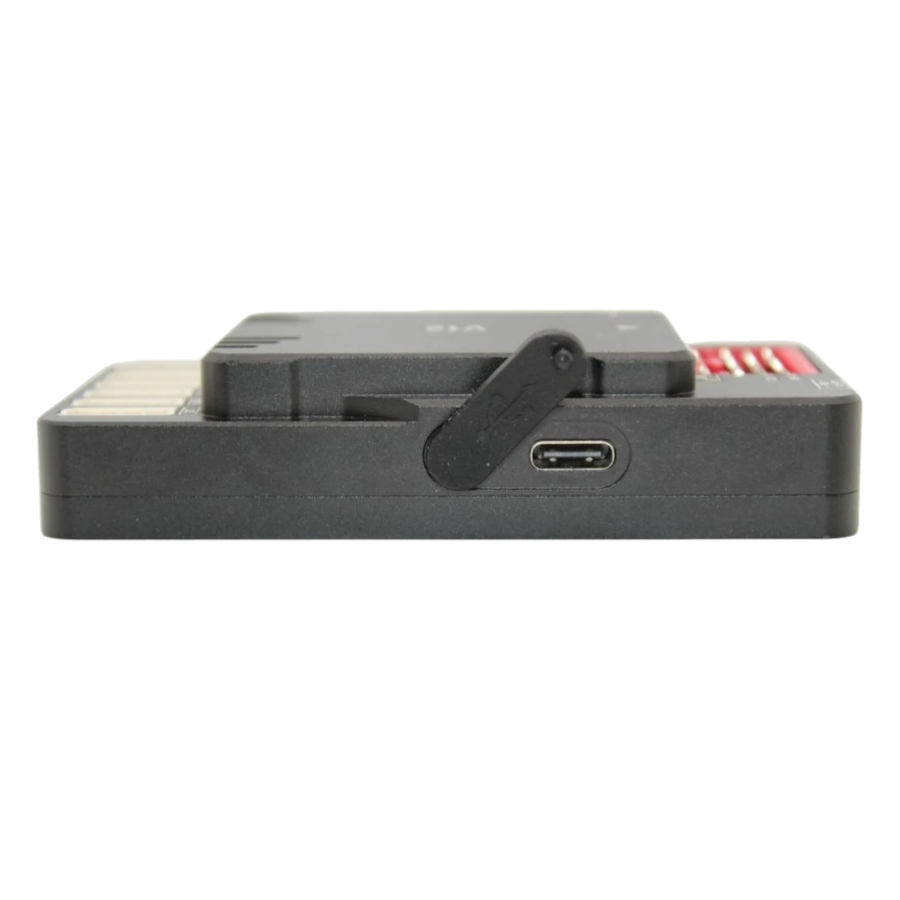

| Communication | Dual CAN Bus, RS485, USB |

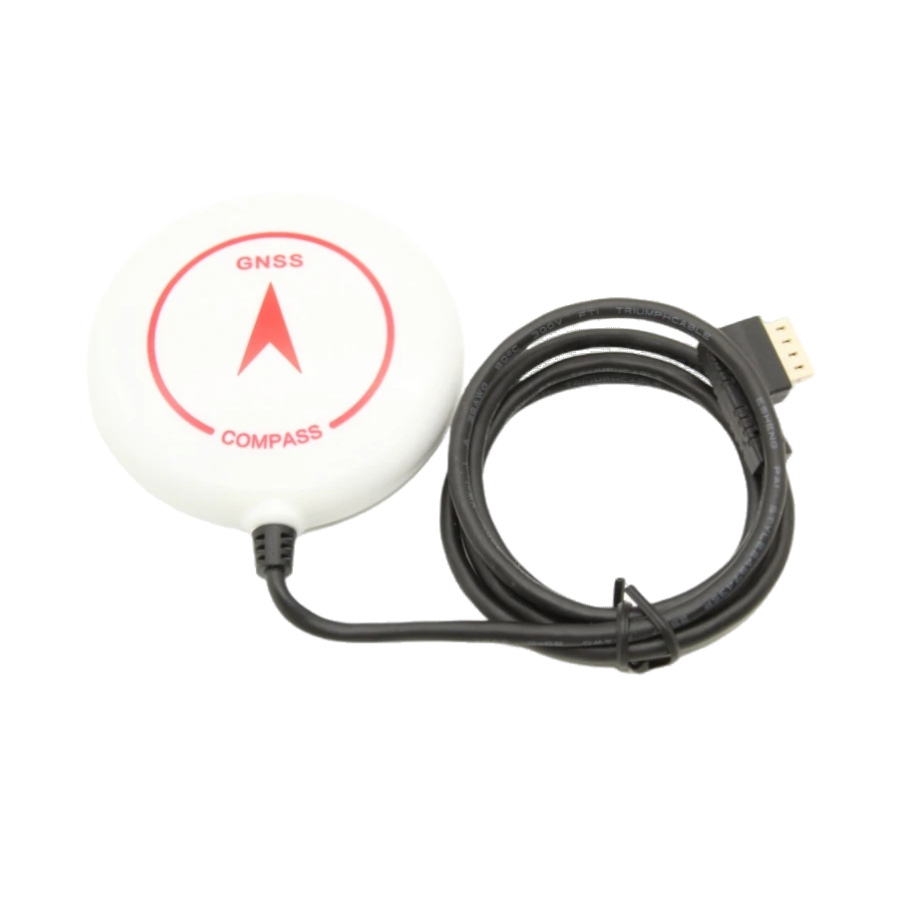

| Positioning | GNSS / RTK |
| Obstacle Avoidance | Supported |
| Terrain Following | Supported |
| Smart Battery Support | Yes |
| Payload Control | Up to 6 Channels |
| Flight Modes | Manual, AB Point, Multi-Point & Autonomous |
Features:
- Multi-Rotor Support – Designed for 4-, 6-, and 8-rotor industrial UAV platforms.
- RTK Precision – Optional RTK provides centimeter-level positioning for precision missions.

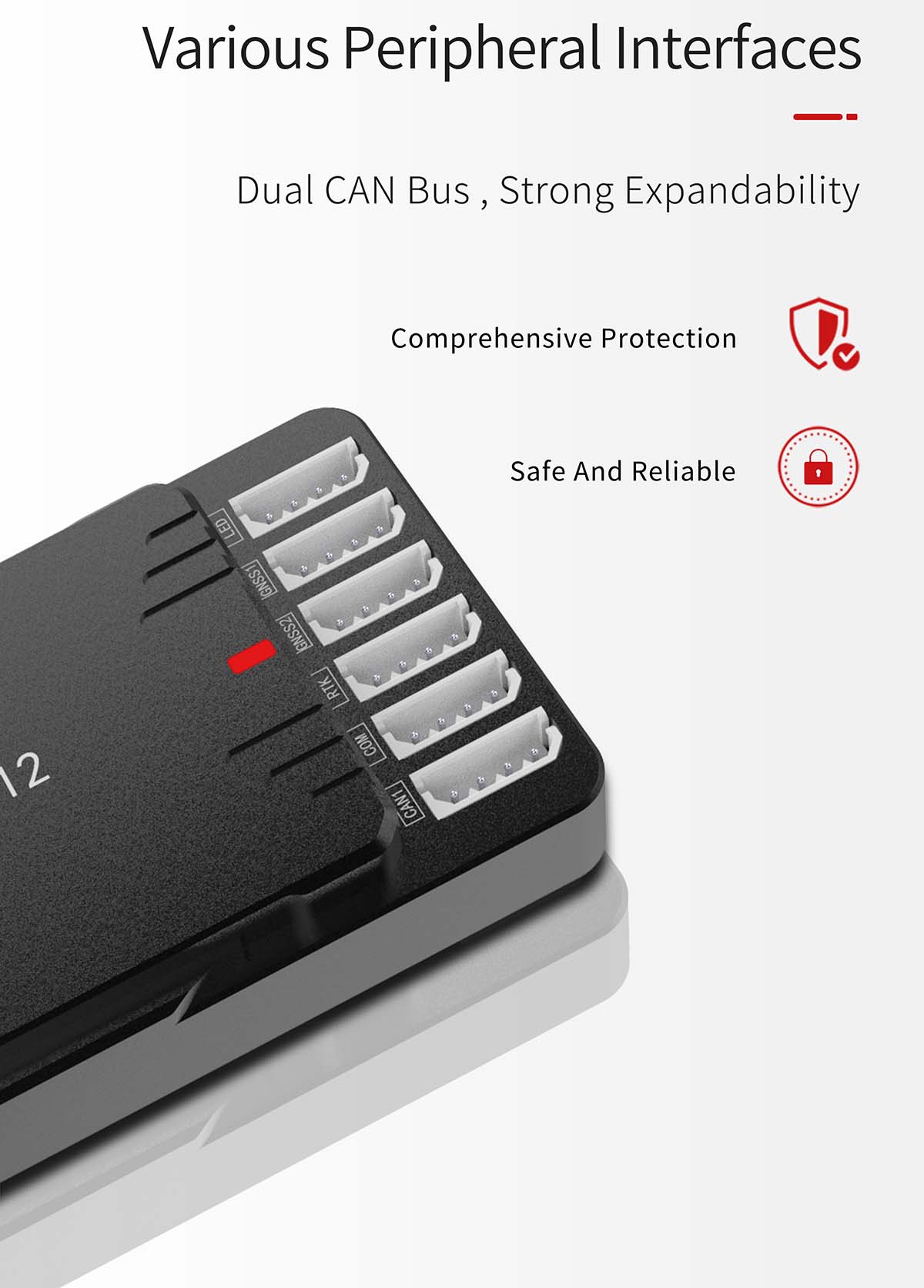

- Dual CAN Bus – Enables connection of ESCs, smart batteries and other UAV peripherals.
- Payload Control – Supports up to six independent payload-release channels.
- Autonomous Flight – Supports waypoint, AB-point and multi-point mission planning.
- Radar Integration – Can interface with obstacle-avoidance and terrain-following radar.
- Industrial Design – Designed for outdoor UAV applications with an operating range of -20°C to +60°C.
- Multiple Applications – Suitable for agricultural spraying, aerial inspection, mapping, security and logistics.
Package Include:
1x VK V12 UAV Flight Controller
Drone Antenna Guide: LHCP vs RHCP, Omni vs Patch
Table of Contents Understanding Drone Antenna Guide Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
Drone Regulations India 2026: DGCA Rules for Hobbyists
Drone Regulations India 2026: Complete DGCA Rules Guide for Hobbyists Flying a drone in India in 2026 is...
Read More →
Drone Motor Timing and Demag: ESC Advanced Settings
Table of Contents Understanding Drone Motor Timing and Demag Key Components and Requirements Step-by-Step Setup Guide Configuration and...
Read More →Technical Specifications
| SKU | AI4925 |
|---|---|
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The VK V12 UAV Flight Controller is a versatile drone accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
