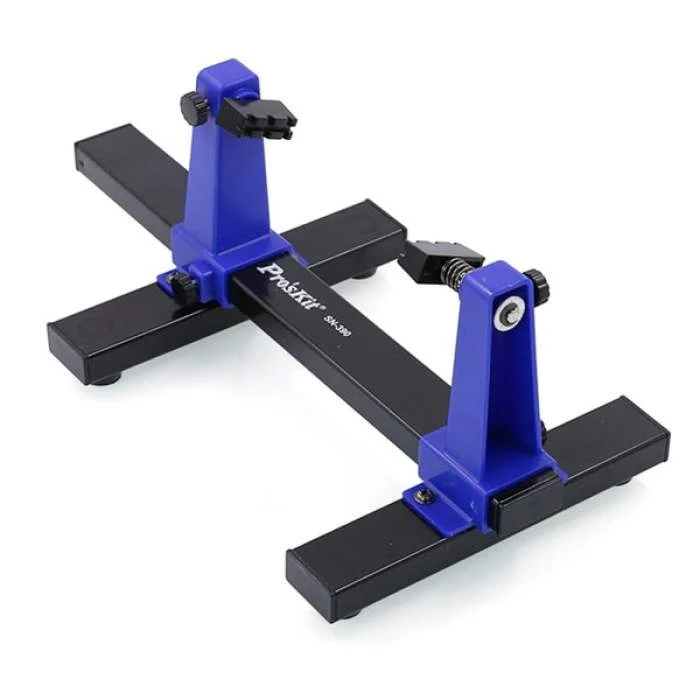

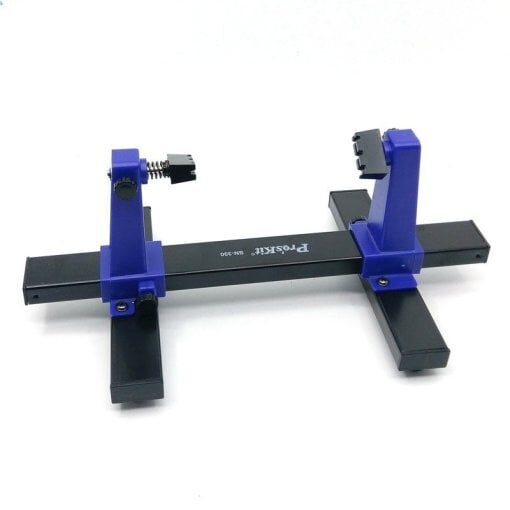

SN390 Adjustable Printed Circuit Board Holder Frame PCB Soldering Assembly Stand Clamp

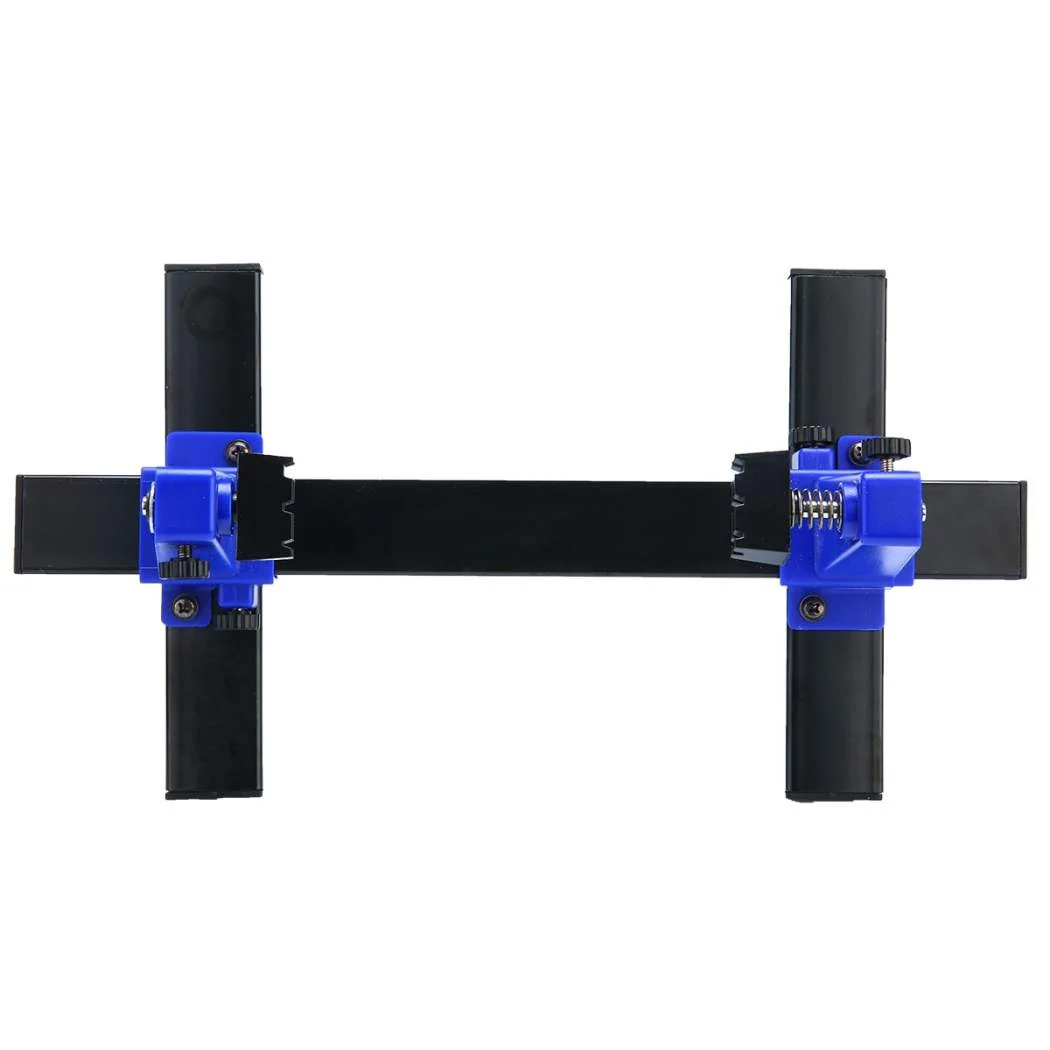

The SN390 Adjustable PCB Holder Frame is an essential tool for securely holding printed circuit boards during soldering and desoldering tasks. It features two adjustable clamps mounted on a retractable stand, offering flexibility to accommodate PCBs of various sizes, up to 200mm wide and 3mm thick. The clamps provide 360-degree rotation, allowing you to position the PCB at any angle for optimal access and precision.
Built with a sturdy metal base, this stand ensures stability during use, while four rubber feet keep it securely in place on your workbench. Whether you’re working on electronic repairs or soldering components, this stand offers the stability and convenience you need for efficient and accurate work.
Features:
- Adjustable printed circuit board holder frame

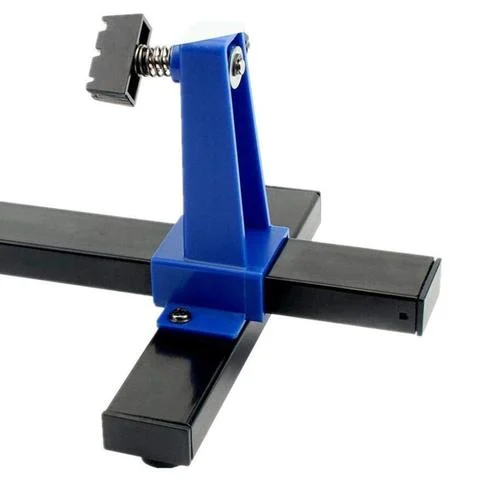

- Solid metal base and ABS arm with spring-loaded clamp support 360-degree rotation easy to flip the board
- Adjustable width and 4 clamping thickness size to accommodate various board sizes up to 200mm wide and up to 3mm thick
- Equipped with 4 rubber feet under the base ensure stability avoid sliding around on your bench
- Lightweight and portable ideal for clamping PCB for soldering, desoldering or rework.
Specifications:
- Model: SN-390.
- Material: ABS metal.
- Maximum PCB Clamping Size: 20 X 14cm/7.87 X 5.51inch(L*W).
- Clamping Thickness: 1.2mm/0.05″, 1.8mm/0.07″, 2.0mm/0.08″, 3mm/0.12″.

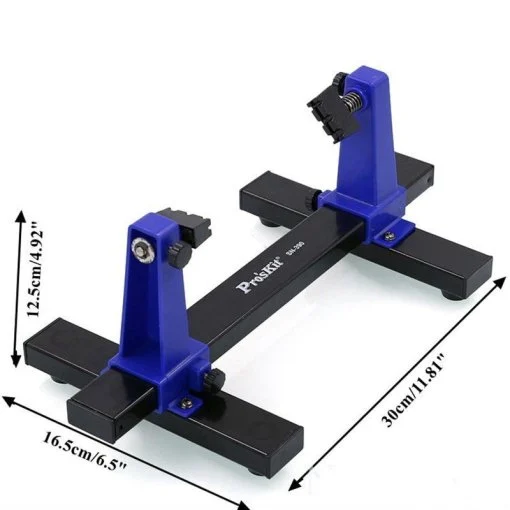

- PCB Holder Size: 30 X 16.5 X 12.5 cm(L*W*H).
- Net Weight: 650 gm.
| Model | SN-390 |
|---|---|
| Material | ABS + Metal |
| Maximum PCB Clamping Size(cm) | 20 X 14 |
| PCB Holder Size (cm) | 30 X 16.5 X 12.5 |
| Weight(g) | 650 |
| Shipping Weight | 0.7 kg |
| Shipping Dimensions | 31 × 15 × 12 cm |
Package Includes :
1 x SN390 Adjustable Printed Circuit Board Holder Frame PCB Soldering Assembly Stand Clamp.
1 x User Manual.
Video
Transformer Types: Step-Up, Step-Down and Isolation Explained
Introduction When it comes to power electronics, one component stands at the very heart of almost every circuit:...
Read More →
Frequency Counter Project Using Arduino and 555 Timer
A frequency counter Arduino project is one of the most practical and educational builds for intermediate electronics makers....
Read More →
Oscilloscope Basics: How to Read Waveforms for Beginners
The oscilloscope is arguably the single most powerful tool in an electronics engineer's or hobbyist's arsenal. If you...
Read More →Technical Specifications
| Model | SN390 |
|---|---|
| Interface / Protocol | BLE |
| SKU | AI3478 |
| Weight | 0.85 kg |
| Availability | Out of Stock |
Applications & Use Cases
The SN390 Adjustable Printed Circuit Board Holder Frame PCB Soldering Assembly Stand Clamp is a versatile soldering tools used across a wide range of applications including PCB assembly, wire soldering, component rework, electronics repair, and hobby projects.
Common use cases:
- Soldering components to a PCB
- Repairing broken wire connections
- Desoldering and replacing faulty components
This product is ideal for electronics technicians, hobbyists, and students.
Technical Tip: Use lead-free solder for RoHS compliance. A temperature-controlled station (around 350°C for most work) gives better results than a fixed-temperature iron.
