RFID Reader/Writer RC522 SPI S50 with RFID Card and Tag
The RC522 – RFID Reader/Writer 13.56MHz with Cards Kit includes a 13.56MHz RF reader/writer module featuring the RC522 IC, along with two S50 RFID cards. The MF RC522 is a highly integrated transmission module designed for contactless communication at 13.56 MHz and supports ISO 14443A/MIFARE mode.
This RC522 RFID Reader boasts advanced modulation and demodulation algorithms for effortless RF communication at 13.56 MHz. The included S50 RFID cards facilitate learning and integrating 13.56 MHz RF technology into your projects.
The module communicates with microcontrollers via SPI, and the open-hardware community has developed numerous projects utilizing RC522 RFID communication, particularly with Arduino.
Features
- Integrated MF RC522
- 13.56MHz contactless communication card chip.
- Low-voltage, low-cost, small size of the non-contact card chip to read and write.
- Suitable for Smart meters and portable handheld devices.
- Advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols.
- 14443A compatible transponder signals.
- ISO14443A frames and error detection.
- Supports rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products.
- MFRC522 support MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s.
- Low cost, and ideal for user equipment development.
- The reader and RF card terminal design meets advanced applications development and production needs.
- Can be directly loaded into the various reader molds, very convenient.
RC522 RFID 13.56MHZ Reader Writer Module Specifications:-
- Operating Current :13-26mA / DC 3.3V
- Idle Current :10-13mA / DC 3.3V
- Sleep Current: < 80uA
- Peak Current: < 30mA
- Operating Frequency: 13.56MHz
- Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro, MIFARE DESFire
- Environmental Operating Temperature: -20 – 80 degrees Celsius
- Environmental Storage Temperature: -40 – 85 degrees Celsius
- Relative humidity: relative humidity 5% – 95%
- Reader Distance: ≥ 50mm / 1.95″ (mifare 1)
- Module Size: 40mm × 60mm
- Module interface: SPI
- Data transfer rate: Maximum 10Mbit/s
Specifications:
Input Supply voltage (V) | 3.3V (Do not use 5V supply) |
---|---|
Operating Current (mA) | 13 ~ 26 |
Operating Frequency (MHz) | 13.56 |
SPI data rate (Mbit/s) | 10 |
operating distance in reading/Write mode (mm) | 50 |
Length (mm): | 60 |
Width (mm): | 39.5 |
Height (mm): | 5 |
Weight (g): | 20 |

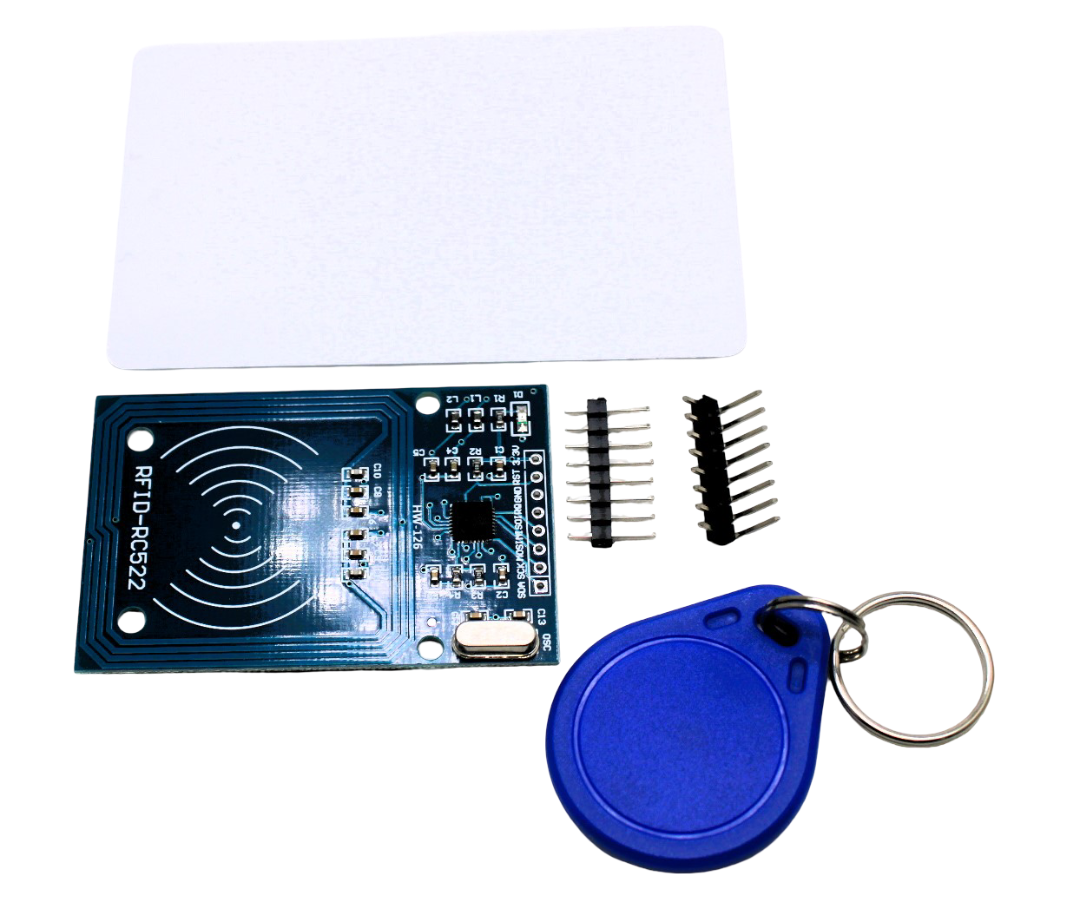

Package Includes

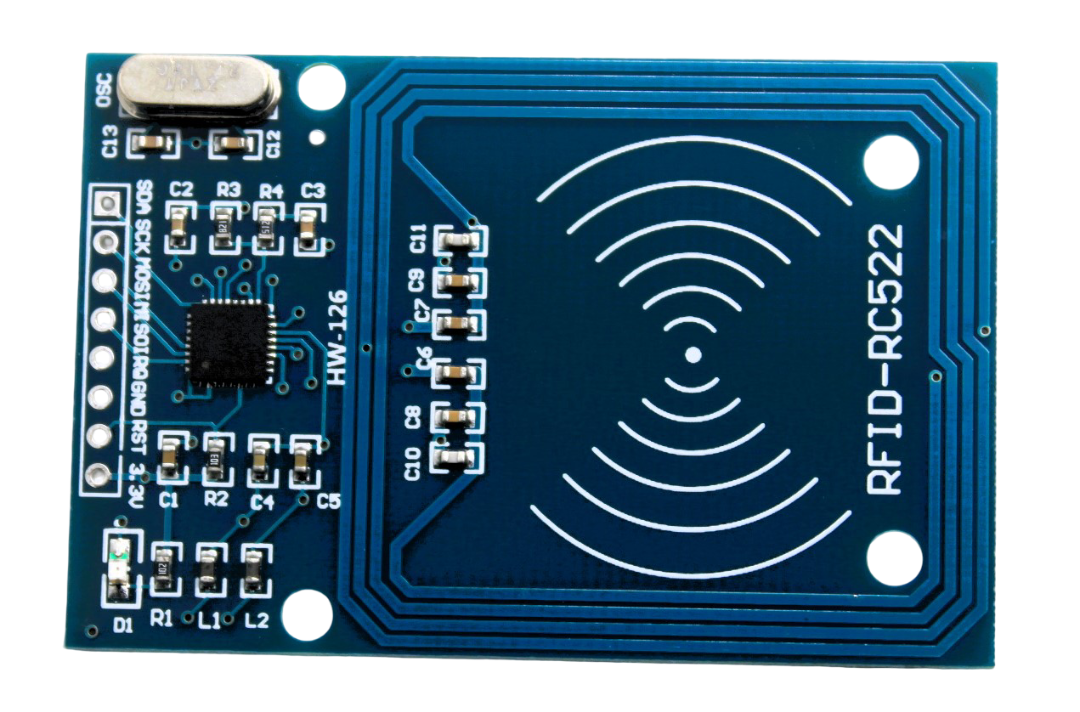

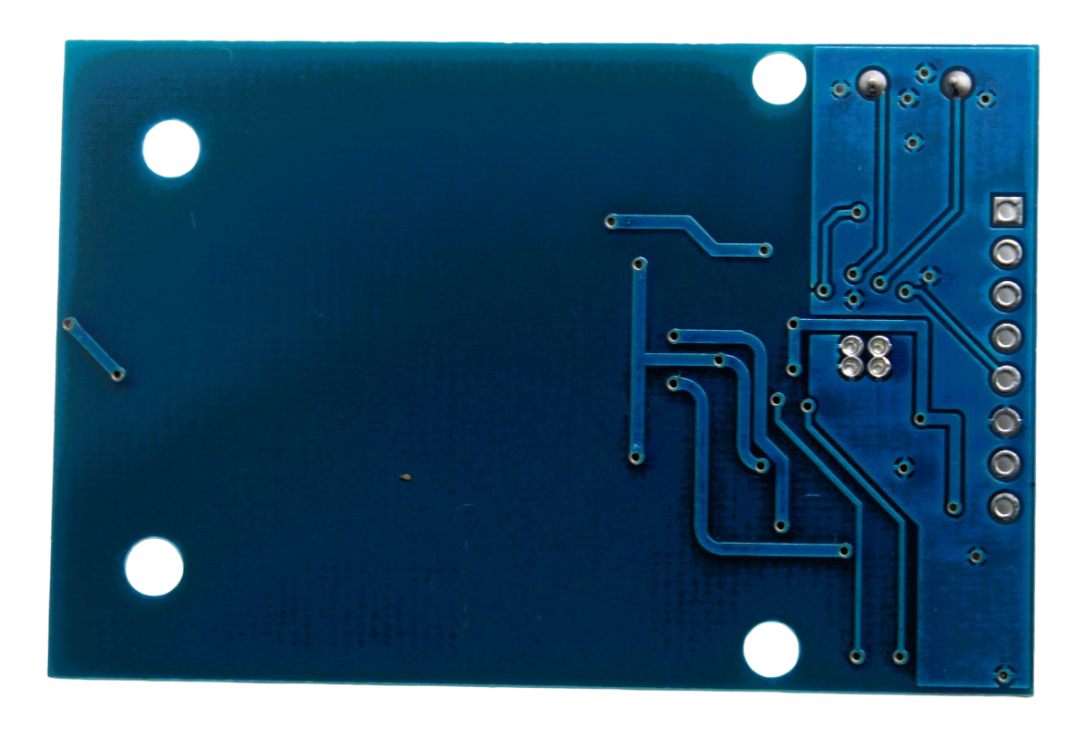

- 1x A RFID-RC522 Module

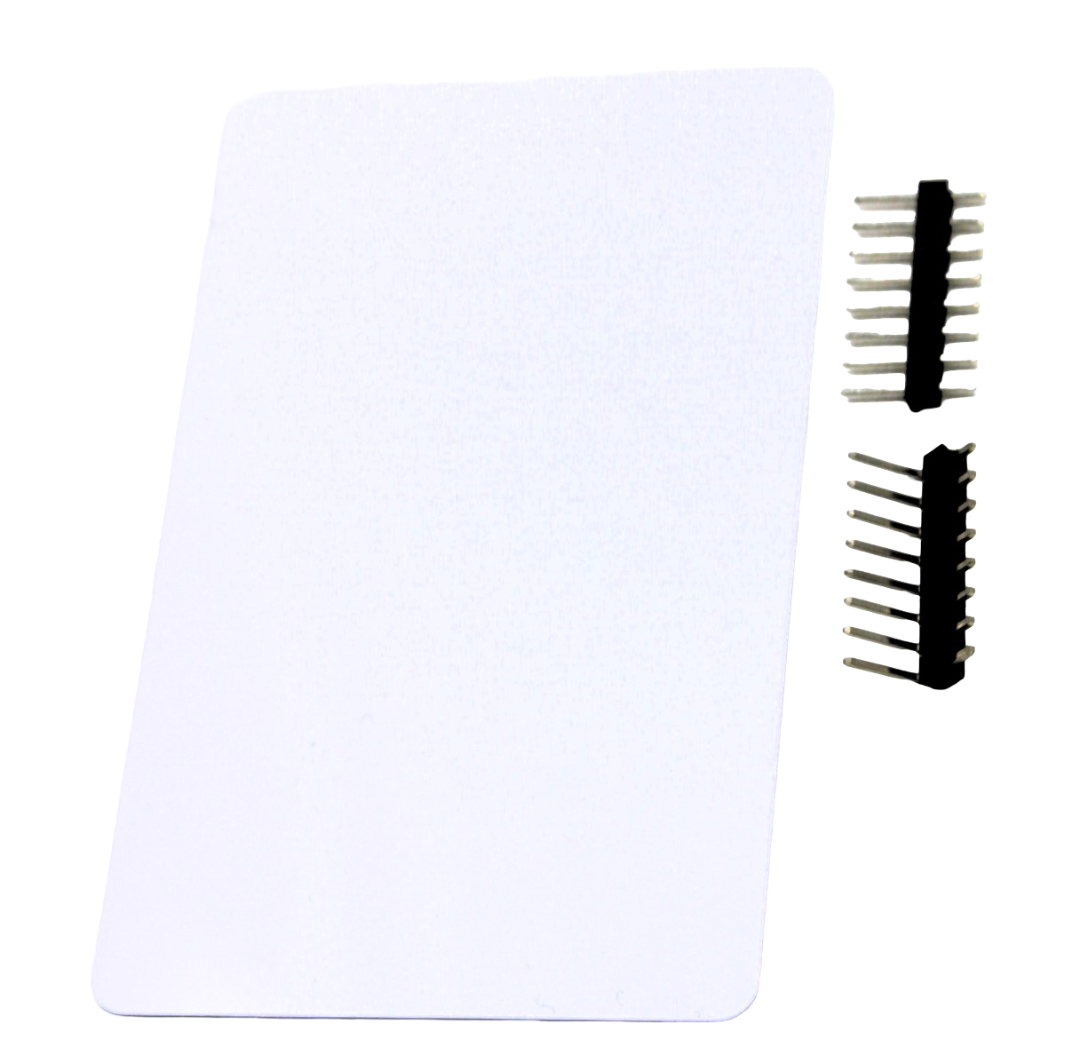

- 1x RFID Blank Card

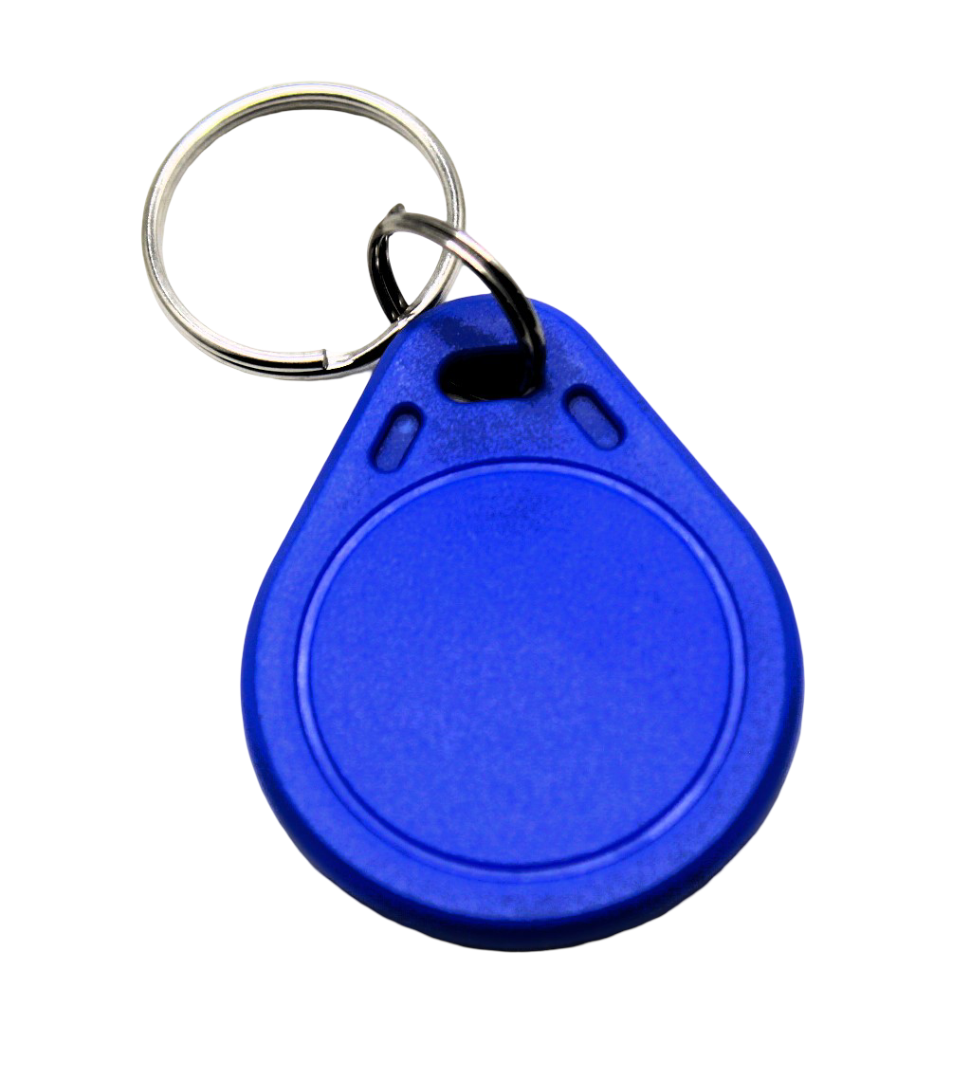

- 1x special-shaped card (as shown by the key ring shape)
- 1x Straight Pin
- 1x Curved Pin
