Radiolink Pixhawk Flight Controller Board
Description:

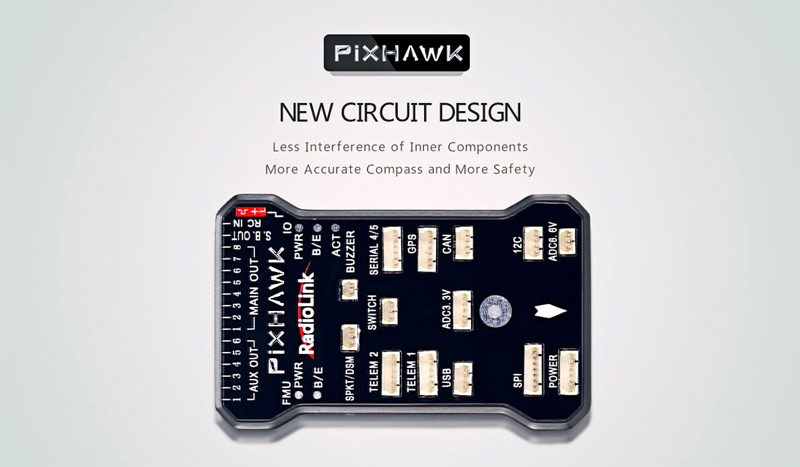

This Pixhawk flight controller from RadioLink has optimized the PCB layout and the barometer height hold, providing more stable flight performance even at high speed. It integrated the newest 32-bit chip technology and high-end sensors, this is absolutely one of the best flight controllers for quadcopter.
Features:
- Multiple flight modes, support for self-stability, height-set, hover, sports, freestyle, circling, following, return, guidance, automatic, and all-powerful.
- Multiple flight mode switches freely, Helicopter, Fixed-wing, Multi-rotor, Model Car.
- Providing a multi-sound buzzer interface.

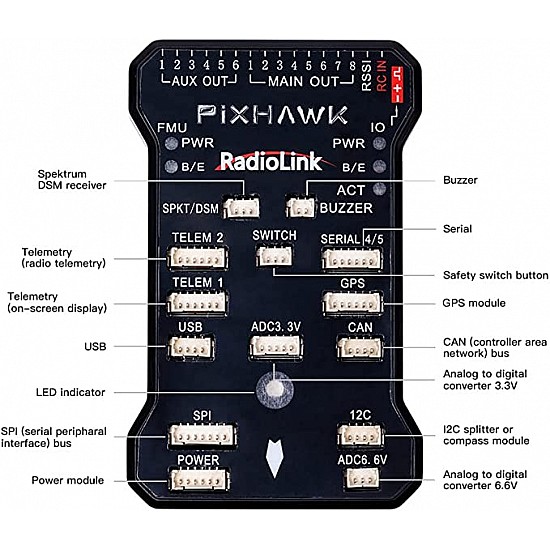

- Abundant connectivity options for additional peripherals (GPS, I2C, SPI).
- Advanced 32-bit CortexM4 ARM high-performance processor, and 32-bit STM32STMF100 failsafe co-processor.
- 14 PWM / servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible).
- Support DSM Spektrum receiver.
- Equipped with a buzzer, 4G memory card, safety switch, and power module.
- All interfaces are fully tested and accurately detected by an automatic detection system, avoiding bad interfaces leading to flight control installation unsuccessfully.
Specifications:
Processor:
- 32bit STM32F427 Cortex M4 core with FPU
- 168MHz
- 256KB RAM
- 2 MB Flash
- 32 bit STM32STMF100 failsafe co-processor
Sensor:
- ST Micro L3GD20H 16 bit gyroscope
- ST Micro LSM303D 14 bit accelerometer/magnetometer
- Invensense MPU 6000 3-axis accelerometer/gyroscope
- MEAS MS5611 barometer
- Item weight: 37.6g
- Item dimension: 85 * 52 * 15mm
| Item Type: | Flight Controller |
| Processor | 32bit STM32F427 Cortex M4 core with FPU |
| Frequency (Hz) | 168 |
| Shipping Weight | 0.163 kg |
| Shipping Dimensions | 20 × 11 × 6 cm |
Package Includes:
- 1 x Radiolink Pixhawk Flight controller Board
- 1 x Power Module
- 1 x SD Card
- 1 x Safety Switch
- 1 x 3-wire Servo Cable
- 1 x Buzzer 2 x Mounting Foam
