This is the XT60 connector variant of the Parallel charging Board for 6 packs 2~6S (XT60-Male) with T female connector in Parallel Charging Board. Available at ₹624.22 (₹529.00 + GST) with free shipping across India.
Looking for Xt60 Board 6s? Parallel charging Board for 6 packs 2~6S (XT60-Male) with T female connector is available at Zbotic with fast shipping across India.
With a Parallel charging Board for 6 packs 2~6S (XT60-Male) now you can charge SIX (2~6S) lipo packs with the same capacity & cell count simultaneously via this parallel charging board. That means you can charge 6 3S 2200mAh or more at the same time with a standard charger!
It is made for simultaneously charging multiple lithium batteries(including LiPo, LiFe, and Li-ion types) in parallel. To avoid the trouble of replacing batteries repeatedly.
With Built-in short circuit protection, it protects your batteries from short circuits and it is very convenient to charge and balance up to six lithium batteries at the same time when used with a balance charger it means it protects your every cell from overcharging. Also, the charging time is significantly reduced since all batteries are balanced at the same time instead of balancing batteries one by one.
We also have a Parallel charging Board for 6 packs 2~6S with T- Connector male to connect batteries. Click Here to see.
Note: The batteries should have the same capacity at the same time.
Features :
- Compatible for IMAX B6, Maxpro x612s,x6 plus UN-A6 charger.
- Support 6 pairs 2S,6 pairs 3S,6 pairs 4S,6 pairs 5S,6 pairs 6S balance charge.
- It can protect the charging batteries when a short circuit happens.
- Thicken PCB copper foil, allow security using 40A charging current.
- Amass 7U gold plating plug plating.
- Use a safety fuse (50A) to protect the circuit.
- Balance charging avoids overcharging of each Battery.
- Using LED lights to display working states.
- 20Z of thick copper foil sustainable resistance to flow 80A.
- Accelerates battery charging, at the same time more battery charges.
- Add cascade port, which can be the infinite cascading expansion of the charging port.
Package Includes :
1 x Parallel Charging Board for 6 packs 2~6S (XT60-Male)with T female connector

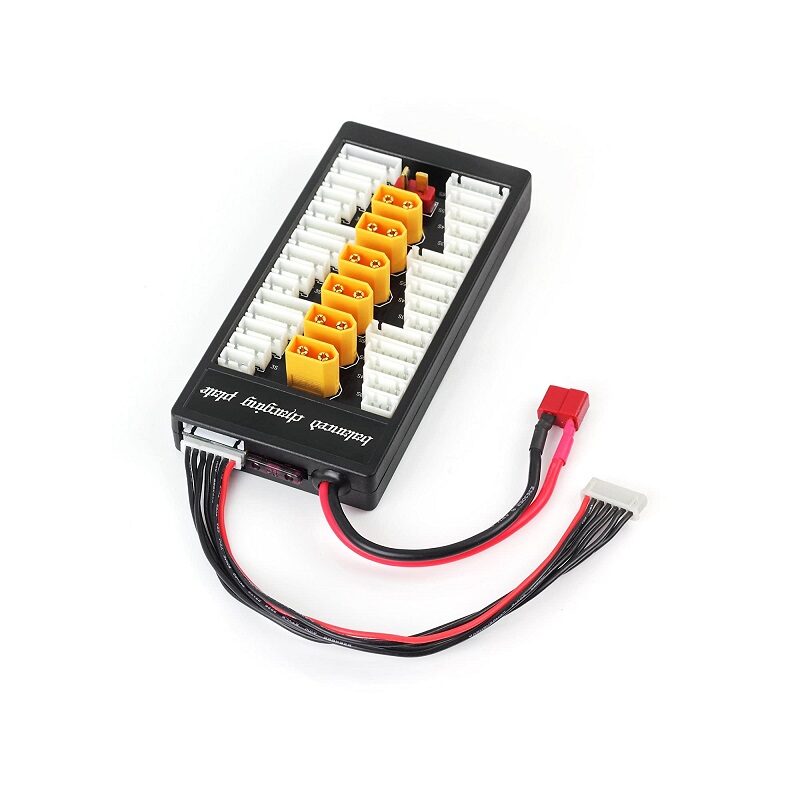

1 x Connecting Cable
About Xt60 Board 6s
Parallel charging Board for 6 packs 2~6S (XT60-Male) with T female connector is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Generic, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Generic
- SKU: AI1624
- Category: Parallel Charging Board
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Xt60 Board 6s and other products.
Applications
Xt60 Board 6s can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Xt60 Board 6s today and start building.
About Xt60 Board 6s
Parallel charging Board for 6 packs 2~6S (XT60-Male) with T female connector is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Generic, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Generic
- SKU: AI1624
- Category: USB Interface Module
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Xt60 Board 6s and other products.
Applications
Xt60 Board 6s can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Xt60 Board 6s today and start building.
Parallel charging Board for 6 packs 2~6S (XT60-Male) with T Overview

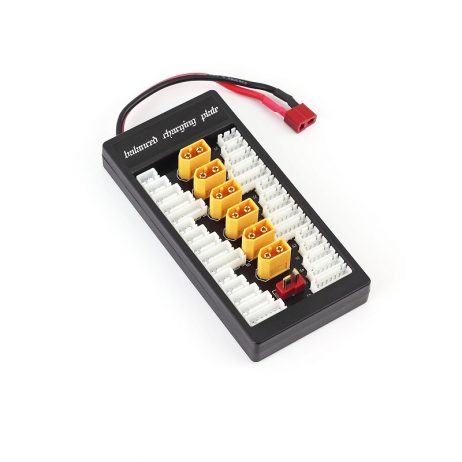

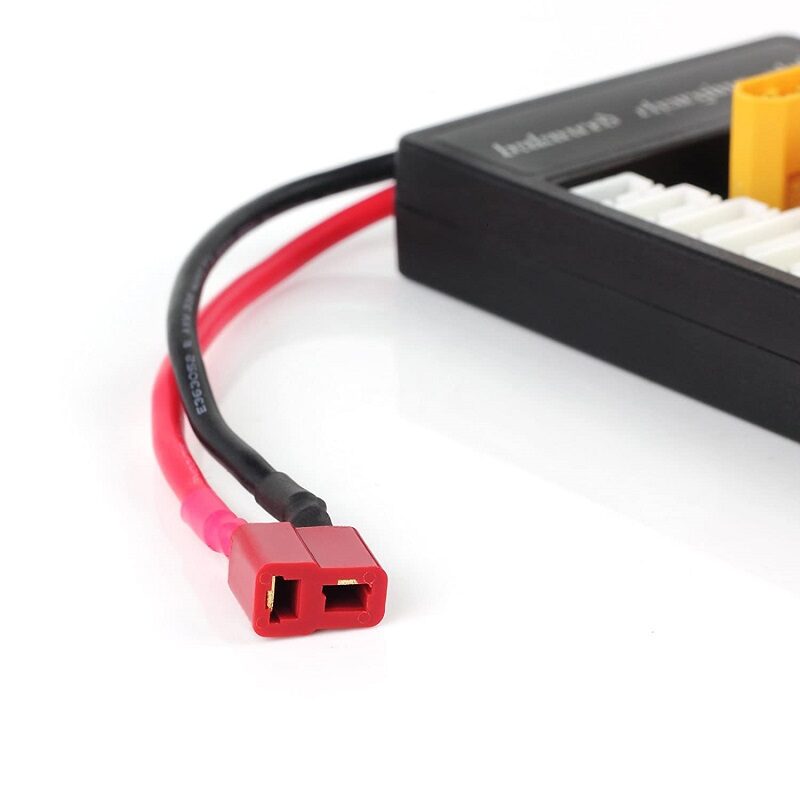

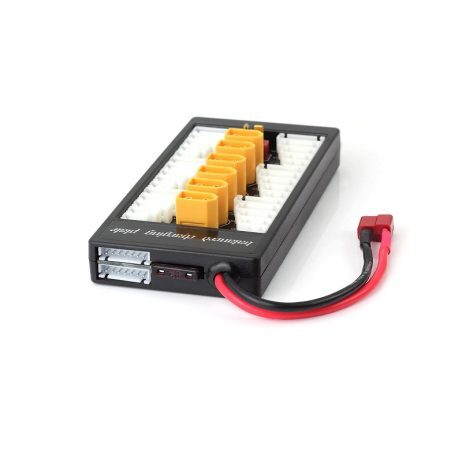

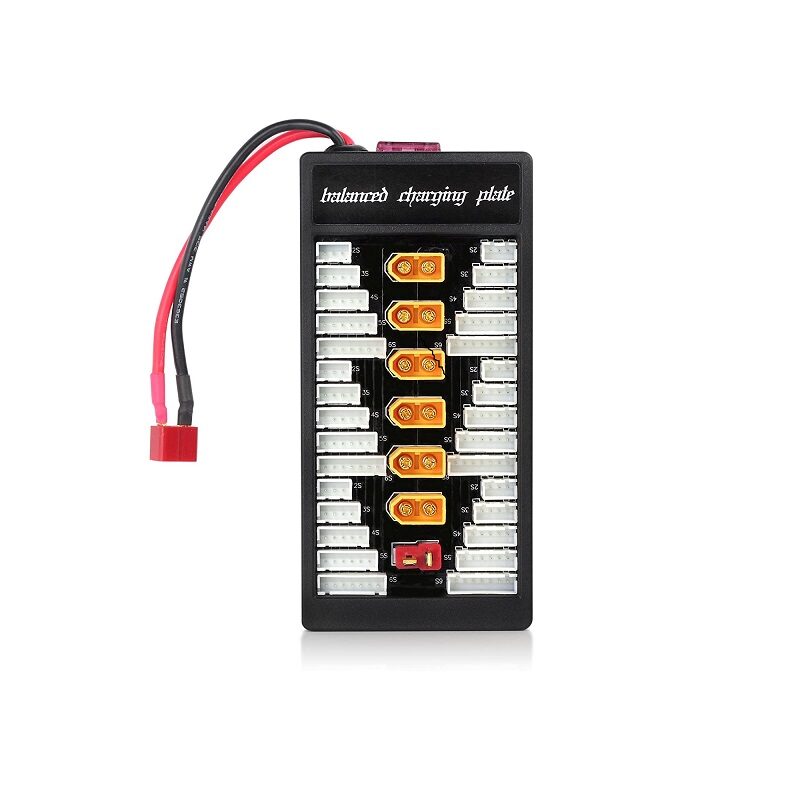

The Parallel charging Board for 6 packs 2~6S (XT60-Male) with T is a specialized PCB that lets you charge up to six lithium battery packs (2S to 6S) at once. It features six XT60-male output ports and JST-XH balance ports, along with a T-connector inlet, ideal for hobbyists who need simultaneous charging of identical-capacity LiPo, LiFe or Li-ion packs.
Key Features of Parallel charging Board for 6 packs 2~6S (XT60-Male) with T
- Supports six battery packs with identical capacity and cell count (2S–6S)
- Six XT60-male main ports plus six JST-XH balance connectors
- Built on thickened copper foil PCB for up to 30A continuous charging (up to 40A peak)
- 50A safety fuse protects against short circuits and overcurrent
- 7U gold-plated contacts ensure low resistance and reliable conductivity
- Fast shipping across India from Zbotic—get genuine stock delivered quickly
Applications and Use Cases
- Charging multiple FPV drone LiPo packs between races
- Batch charging RC car or boat battery sets after track sessions
- Maintenance charging for Li-ion power tool packs
- Simultaneous balancing of LiFe batteries for solar storage modules
- Preparing spares for aerial photography or surveying equipment
- Convenient workshop charging station for robotics projects
How to Use Parallel charging Board for 6 packs 2~6S (XT60-Male) with T

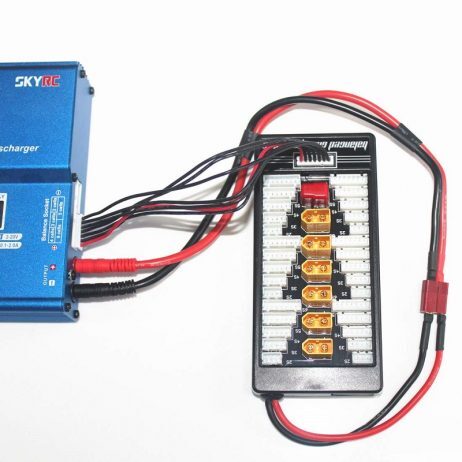

Connect your charger’s T-plug output to the board’s T-female inlet, ensuring polarity alignment. Plug each battery’s XT60-female main lead into a corresponding XT60-male port on the board, then attach each pack’s JST-XH balance lead to the matching balance connector. Set your charger to the proper cell count and charging current (up to 30A total), then start the charge. Monitor the process and remove packs once charging completes.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I mix LiPo and LiFe batteries on this board?
All connected packs must share the same chemistry, cell count, and capacity. You can use LiPo, LiFe or Li-ion types, but never mix different chemistries or cell counts in one charging session.
What is the board’s maximum safe charging current?
The thick 2oz copper foil supports up to 30A continuous charging, with peak handling up to 40A. A built-in 50A fuse prevents damage from overcurrent or short circuits.
How do I connect my charger to this board?
Simply plug your charger’s T-plug (male) into the board’s T-female socket. Then attach each battery’s XT60-female lead to the board’s XT60-male port and connect the JST-XH balance leads before starting the charge cycle.
Technical Specifications
| Model | XT60- |
|---|---|
| Cell Configuration | 6S |
| Connector Type | XT60 |
| SKU | AI1624 |
| Weight | 0.15 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Parallel charging Board for 6 packs 2~6S (XT60-Male) with T female connector is a versatile parallel charging board used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
