Nextion Discovery NX3224F024 2.4″ Resistive Touch Display
Description:

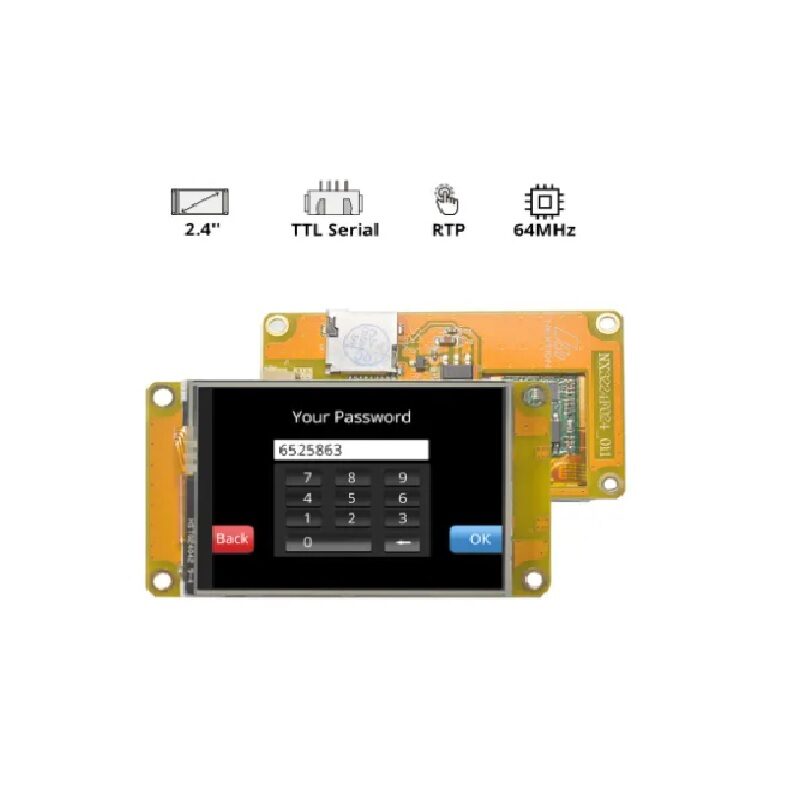

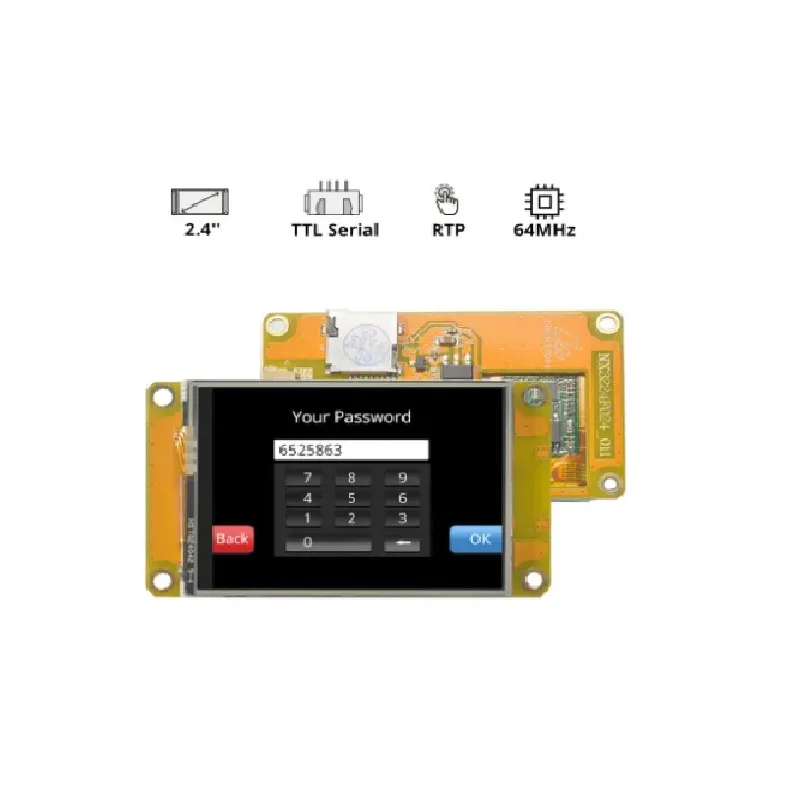

Nextion NX3224F024 is a 2.4″ Discovery series SMART HMI Touch display having a resistive touch screen. The discovery series of Nextion displays are cost-effective HMI solutions based on STM32GO ARM Cortex-M0+ 64MHz Onboard MCU Processor. In the discovery series when the Deep Sleep Mode is activated, the device’s working current is down to 0.25 mA. Your Battery Powered HMI device will last a longer working time with such a low power consumption. Compared to the Nextion basic series the discovery series reaches up to 30% more performance improvement.
Nextion Discovery NX3224F024 2.4″ Resistive Touchscreen Display is so simple to the interface that it can easily work with Arduino, Raspberry Pi, ESP8266, ESP32, PIC Microcontroller, AVR controller, ARM Microcontroller and you won’t believe it will work even with basic 8051 microcontrollers basically it will work with any board or Microcontroller that has UART port.
Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. And the drag-and-drop function ensures that users spend less time in programming. With the help of this WYSIWYG editor, designing a GUI is a piece of cake.
Features:

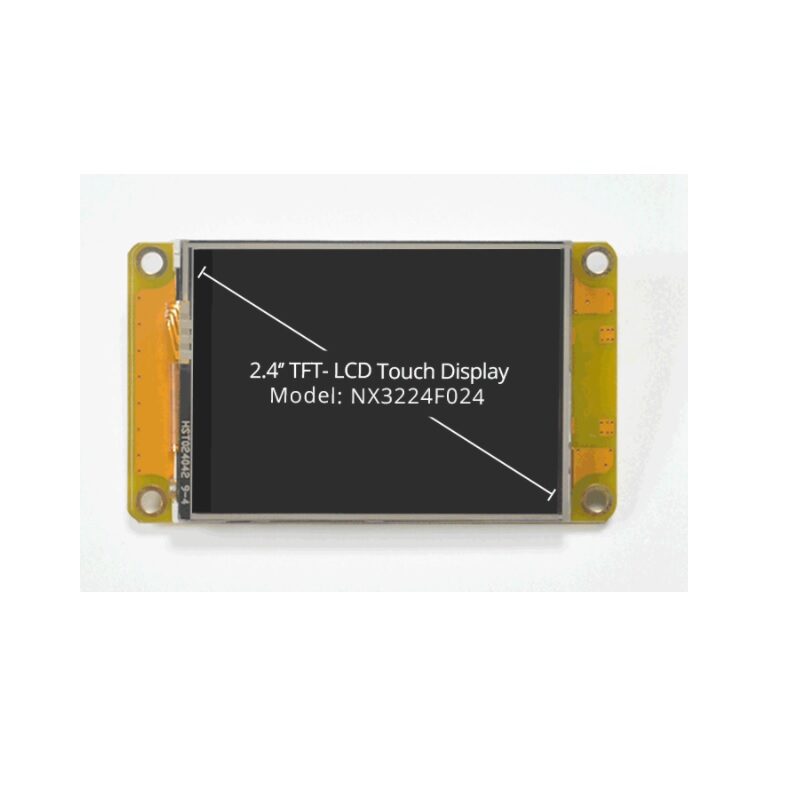

- 2.4” LCD-TFT Resistive HMI touch display module
- RGB 65K true-to-life colours

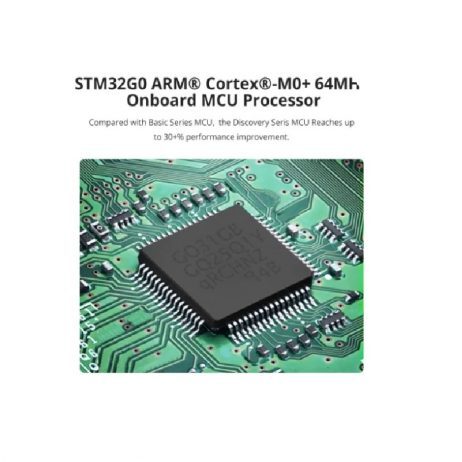

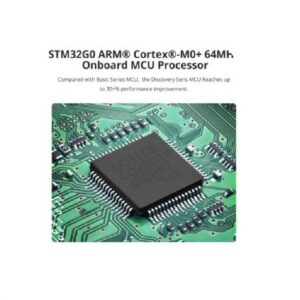

- Onboard ARM® Cortex®-M0+ 64MHz MCU
- 3584 Byte SRAM
- 4 MB Flash memory

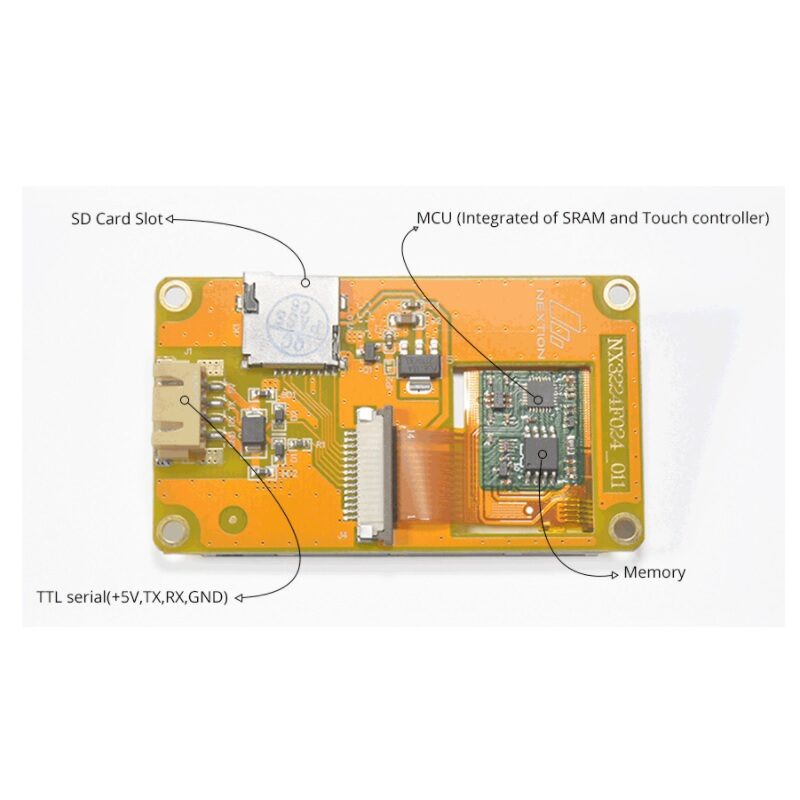

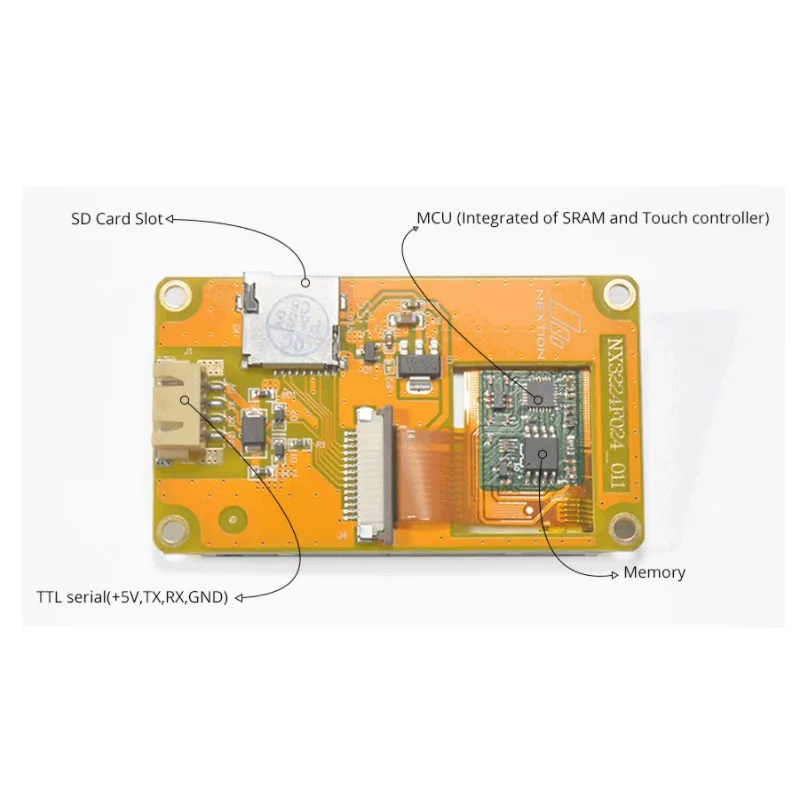

- XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
Datasheet:
https://nextion.tech/datasheets/nx3224f024/
Package includes:
- 1 × 2.4″ Nextion HMI Display
- 1 × power supply test board
- 1 x 4-pin grove cable
About Nx3224f024 Display
Nextion Discovery NX3224F024 2.4″ Resistive Touch Display is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Nextion, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.
Product Details
- Brand: Nextion
- SKU: AI1822
- Category: HMI LCD Display
Why Buy from Zbotic?
Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Nx3224f024 Display and other products.
Applications
Nx3224f024 Display can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Nx3224f024 Display today and start building.
Nextion Discovery NX3224F024 2.4″ Resistive Touch Display Overview
The Nextion Discovery NX3224F024 is a compact 2.4″ HMI touch display with a resistive touchscreen, designed for intuitive human-machine interfaces. It integrates an ARM Cortex-M0+ processor onboard, allowing you to offload graphics rendering and touch handling from your host microcontroller.
Key Features of Nextion Discovery NX3224F024 2.4″ Resistive Touch Display
- Resistive touch panel offering precise input for buttons, sliders, and custom controls
- Onboard STM32GO ARM Cortex-M0+ MCU delivers local UI processing and smooth animations
- Deep Sleep Mode reduces current draw to 0.25 mA for extended battery-powered operation
- Serial USART interface via 4-pin XH2.54 connector simplifies host communication
- Discovery series delivers up to 30% more performance than the Basic range
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Custom control panels for industrial machinery and process automation
- Portable handheld devices requiring low-power display interfaces
- Home automation touch dashboards for lighting, HVAC, and security
- IoT prototypes needing standalone UI rendering and touch input
- Educational projects and training kits for embedded HMI development
How to Use Nextion Discovery NX3224F024 2.4″ Resistive Touch Display
Begin by powering the module with a stable 5 V supply and connect TX/RX lines of the 4-pin XH2.54 port to your host microcontroller. Design your interface in Nextion Editor, load the compiled HMI file via the onboard bootloader or microSD slot, then mount the display in your enclosure for instant responsive touch control.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I power and interface with the NX3224F024 display?
Simply provide a 5 V DC supply at the 4-pin header and connect the TX/RX lines to your microcontroller’s UART. No additional drivers are needed—commands and data flow over serial.
What tools are required to upload my UI design?
Use the free Nextion Editor software to create your screens. Upload the compiled .HMI file via the onboard bootloader over UART or copy it to a formatted microSD card for direct loading.
Can this display run on battery power?
Yes. Activating Deep Sleep Mode drops the working current to just 0.25 mA, making it ideal for portable, battery-powered HMI applications.
