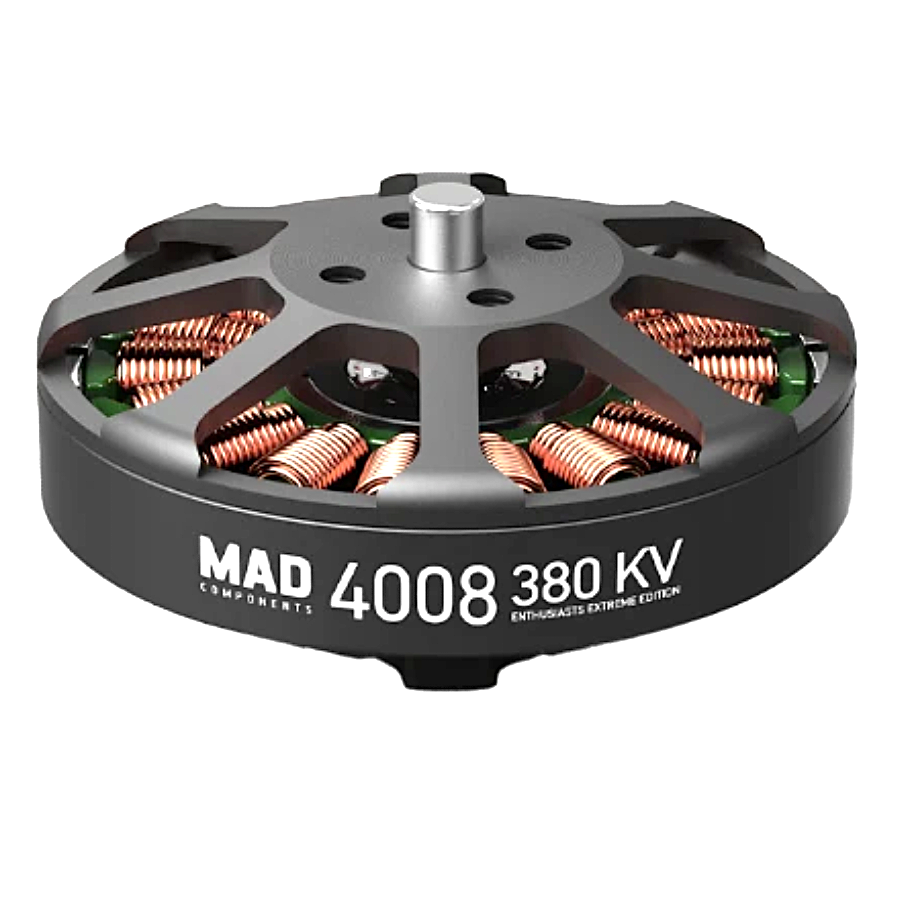

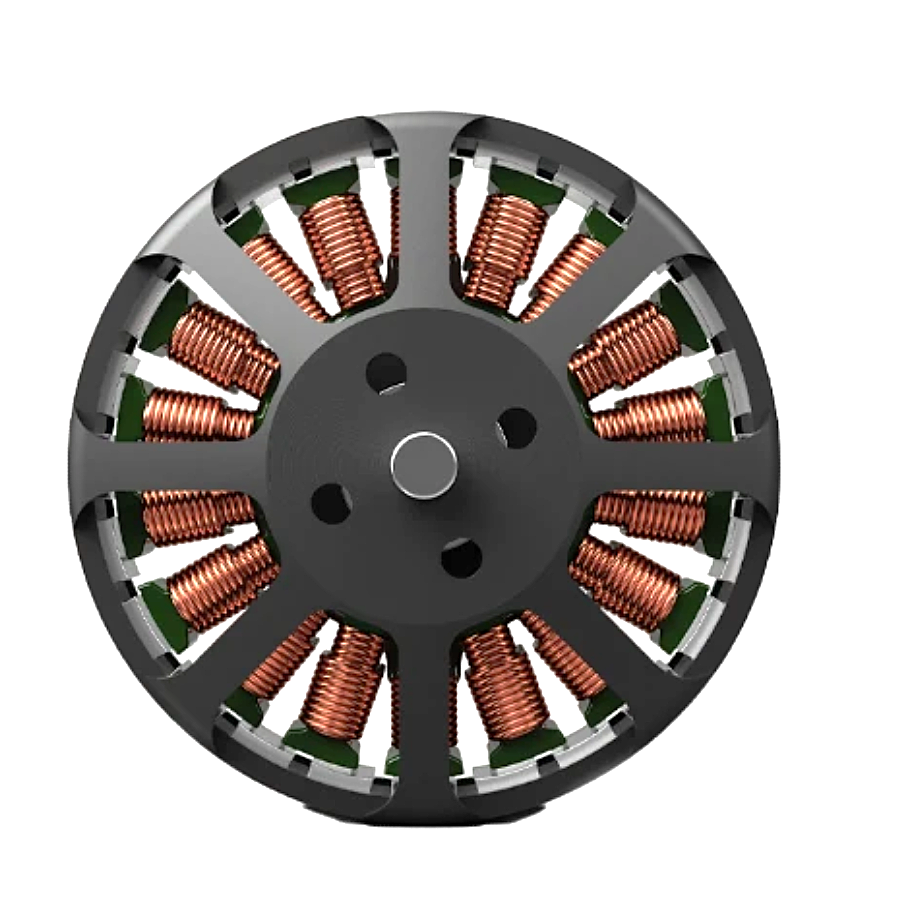

MAD CO 4008 EEE brushless motor 380KV (Pack Of 2)
Description:
The MAD 4008 EEE 380KV Brushless Motor is engineered for demanding aerial applications requiring high thrust, silent performance, and durability. With a maximum thrust of 2.7kg per motor and optimized for 14-18″ high-load carbon fiber propellers, this motor is ideal for heavy-lift drones used in cinematography, logistics, and surveillance. Weighing just 88g and featuring integrated heat dissipation, it offers efficient and stable operation. Built with high-temp resistant materials and anti-corrosion protection, it ensures reliability in professional environments. From carrying a RED V-RAPTOR on a 360° gimbal to stealthy defense missions, the 4008 EEE delivers power, precision, and peace of mind.
Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.
Features:
- Payload capacity: 700g to 1300g per axis
- Max thrust: 2.7kg per motor
- Silent operation for noise-sensitive applications
- EMP-hardened and IR signature-reduced variant available
- Anti-corrosive and high-temperature components (150°C rated)
- Rain-protected and independently heat-dissipating design
Application:
- Aerial cinematography drones
- Heavy-lift quad/hex/octocopters
- Payload delivery UAVs
- Industrial inspection drones
- Agricultural spraying/mapping drones
- Custom UAV and VTOL projects
Specification:
| Item Type: | Drone motor |
|---|---|
| Model No: | 4008 |
| Motor KV (RPM/V): | 380 |
| Motor Type: | EEE brushless drone motor |
| Compatible LiPO Batteries: | 6S LiPo |
| No-load current (A) | 0.6A @ 20V |
| Max Current (A) | 19.7 |
| Max Power Output (W) | 468 |
| Torque: | 0.57 Nm |
| Max Thrust | 2.7 kg |
| Shaft Diameter (mm): | 4 |
| Bearing | EZO 694ZZ*2 |
| Mounting Hole(mm) | D:12 M3×4 |
| Motor Size (mm): | D:44.5 × 26.1 |
| Motor Outer Diameter(mm) | 44.5 |

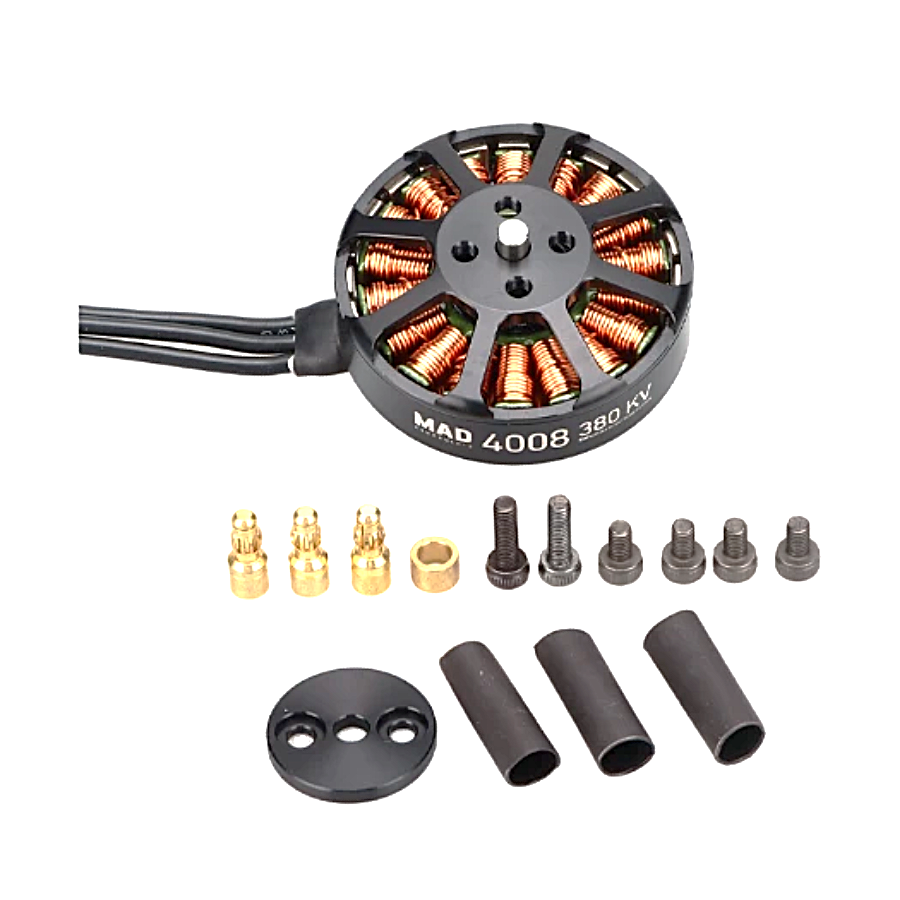

Package Includes:
1 x MAD CO 4008 EEE brushless motor 380KV (Pack Of 2)
2 x Propeller Plate
6 x 3.5mm Bullet Connector
2 x 04-6 Adapter Ring
6 x Heat Shrinkable Tube
8 x M3*6 Motor Screws
4 x M3*10 Propeller Screws
2 x Sticker
Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 380KV |
| Package Quantity | 2 pcs |
| SKU | AI8097 |
| Weight | 0.329 kg |
| Availability | In Stock |
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine MAD COMPONENTS product sourced from authorized channels
Reviews
There are no reviews yet.
