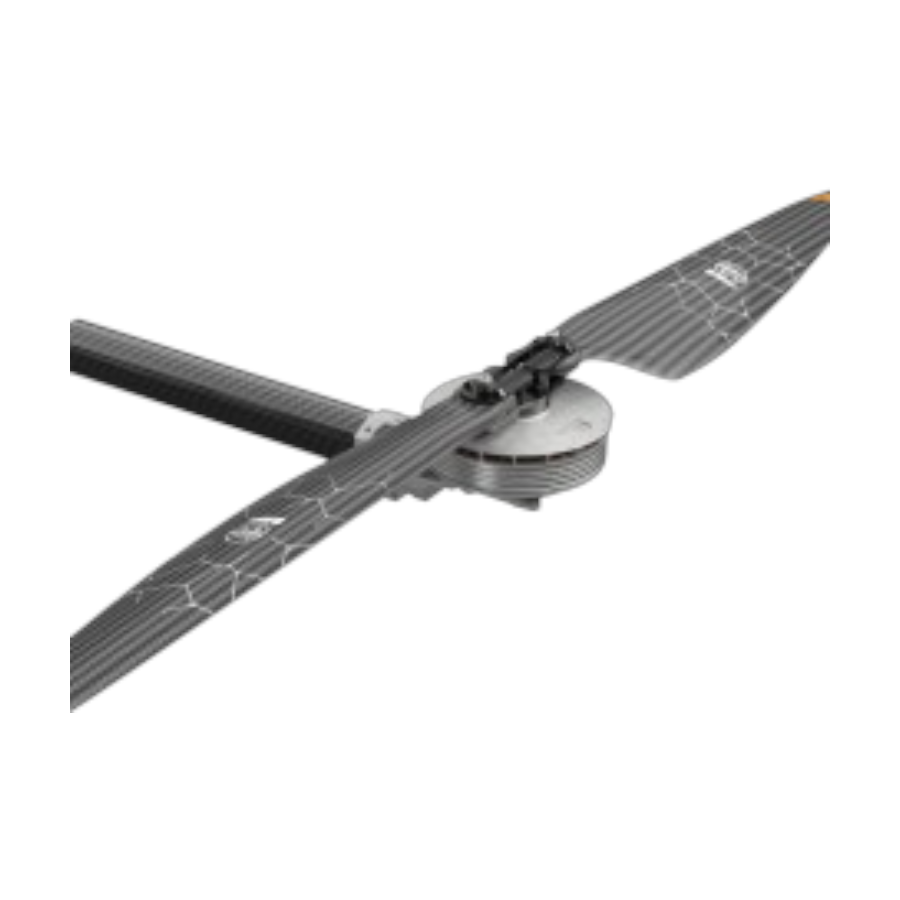

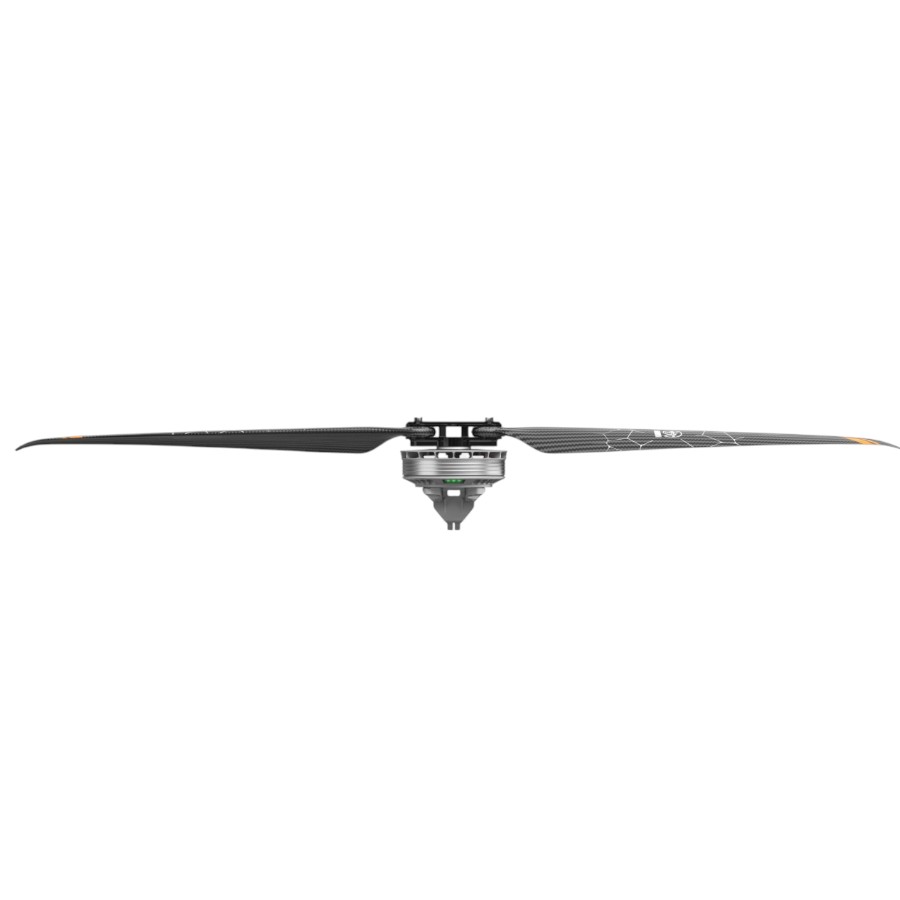

IPET I9 68 KV Integrated Propulsion System (Made in Singapore)
Description:
The IPET I9 Integrated Electric Power System is a high-performance all-in-one UAV propulsion solution designed for heavy-lift and industrial multirotor drones. It integrates the motor, ESC, and carbon fiber propeller into a compact system for improved efficiency, simplified installation, and reliable flight performance. Engineered for professional UAV applications, the I9 system delivers powerful thrust, stable operation, low vibration, and excellent durability, making it ideal for agriculture, logistics, aerial mapping, surveillance, and industrial inspection drones. Designed with advanced thermal management and intelligent CAN communication support, the IPET I9 provides dependable performance for demanding long-endurance UAV operations.
 |
Specification:
| Specification | Details |
|---|---|
| Model No. | I9 KV68 |
| Setup | I9 Motor + 14S FOC 50A ESC + I36 Propeller |
| Recommended Battery | 12–14S LiPo |
| Rated Thrust | 4 ~ 4.5kg |
| Efficiency at Rated Thrust | 12.5g/W (4.5kg) |
| Maximum Thrust | 15kg |
| Tube Size | 50mm |
| Wire Length | 650 ± 5mm |
| Weight | 994 ± 1% g (Including wires & propeller) |
| IP Rating | IP46 |
| Recommended Ambient Temperature | -30°C ~ 50°C |
| Throttle Range | 1050 ~ 1950us (Fixed) |
| Protocol | DRONE CAN, UAV CAN |
| Control Method | PWM / CAN |
| Maximum Voltage | 61V |
| Peak Current | 50A (Short duration, open environment ≤60°C) |
| BEC | No |
| Propeller Model No. | I36 (Folding Carbon Fibre Propeller) |
| Propeller Length | 36 Inch (920mm) |
Test Data
| Type | Voltage (V) |
Throttle (%) |
Current (A) |
Thrust (g) |
Motor efficiency (%) |
Overall efficiency (g/W) |
Operating temperature (℃) |
|---|---|---|---|---|---|---|---|
| I9 KV68 + 14S FOC 50A + I36 |
56.03 | 30% | 1.87 | 1916 | 80.65 | 18.32 | 103 (Ambient temperature: 30) |
| 55.99 | 35% | 2.99 | 2741 | 84.09 | 16.37 | ||
| 55.97 | 40% | 4.24 | 3446 | 83.07 | 14.53 | ||
| 55.93 | 45% | 5.46 | 4128 | 84.08 | 13.53 | ||
| 55.91 | 50% | 6.88 | 4796 | 83.92 | 12.47 | ||
| 55.84 | 55% | 9.16 | 5786 | 82.87 | 11.31 | ||
| 55.78 | 60% | 11.58 | 6807 | 83.35 | 10.54 | ||
| 55.73 | 65% | 14.26 | 7792 | 83.41 | 9.8 | ||
| 55.66 | 70% | 17.12 | 8818 | 83.27 | 9.26 | ||
| 55.57 | 75% | 20.29 | 9841 | 83.00 | 8.73 | ||
| 55.48 | 80% | 23.78 | 10880 | 82.63 | 8.25 | ||
| 55.37 | 85% | 27.53 | 11929 | 81.98 | 7.83 | ||
| 55.27 | 90% | 31.62 | 12945 | 81.07 | 7.41 | ||
| 55.16 | 95% | 35.98 | 13966 | 80.27 | 7.04 | ||
| 54.99 | 100% | 41.72 | 15251 | 79.17 | 6.65 |
Thrust-Efficiency Curve
 |
Contents
 |
|||
Features:
- Integrated motor, ESC, and folding carbon fibre propeller design
- High-performance 14S FOC 50A ESC for smooth and efficient operation
- Supports 12–14S LiPo battery systems
- Delivers powerful thrust up to 15kg
- Excellent power efficiency at rated thrust
- Folding 36-inch carbon fibre propeller for stable flight performance
- PWM and CAN communication support
- Compact integrated structure with reduced wiring
- IP46 protection against dust and water splashes
- Designed for heavy-lift industrial UAV applications
- Stable operation in extreme temperatures from -30°C to 50°C
- Lightweight and durable construction for long service life
- Ideal for agriculture, logistics, mapping, surveillance, and industrial drones
Package Include:
1x IPET I9 68 KV Integrated Propulsion System (Made in Singapore)
