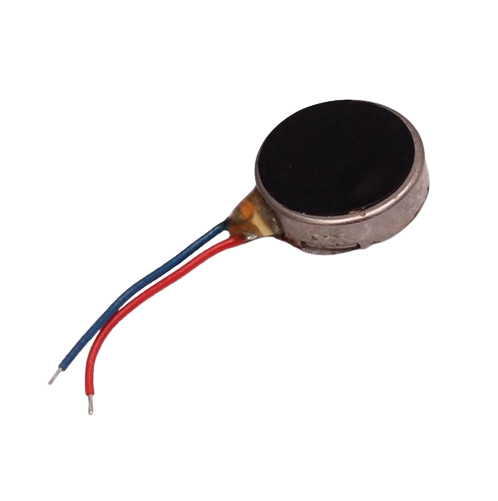

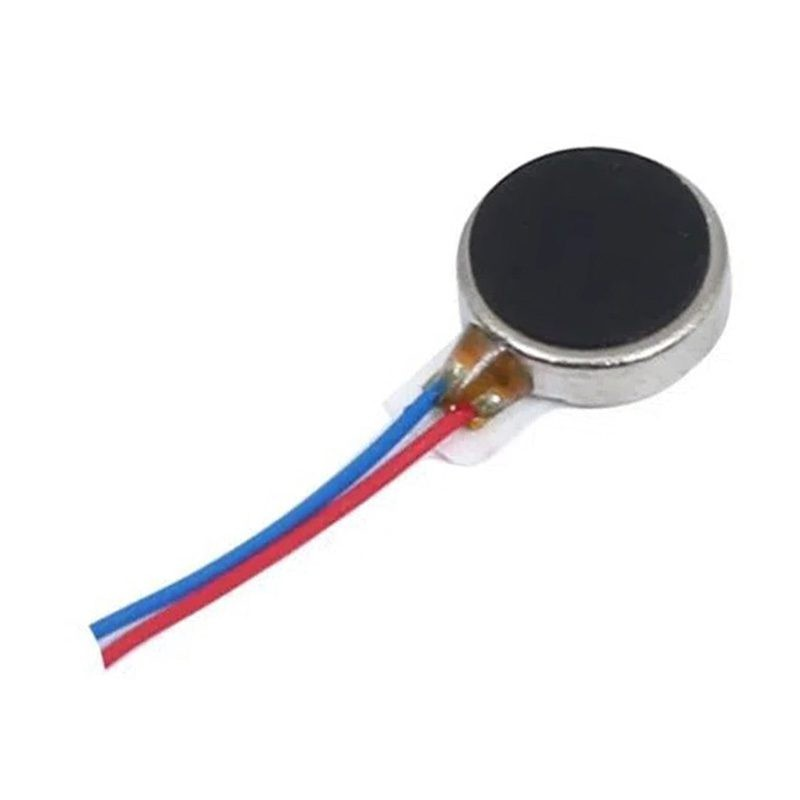

Flat 1034 Mobile Phone Vibrator Motor
The Flat 1034 Mobile Phone Vibrator Motor is a compact, shaftless vibration motor that is fully enclosed, with no exposed moving parts. Its diminutive size, with a 10 mm diameter and 3.4 mm height, along with its shaftless design, allows for easy mounting on a PCB or placement in a pocket to provide subtle, haptic feedback for your project.
This motor features a 3M adhesive backing for straightforward mounting and 1.5″ leads to facilitate quick connections. The polarity of the motor is not critical, enabling it to operate in both CW and CCW directions.
When powered with 3 V, this diminutive, button-type vibrating motor produces a vibration amplitude of 0.75g and consumes roughly 60 mA.

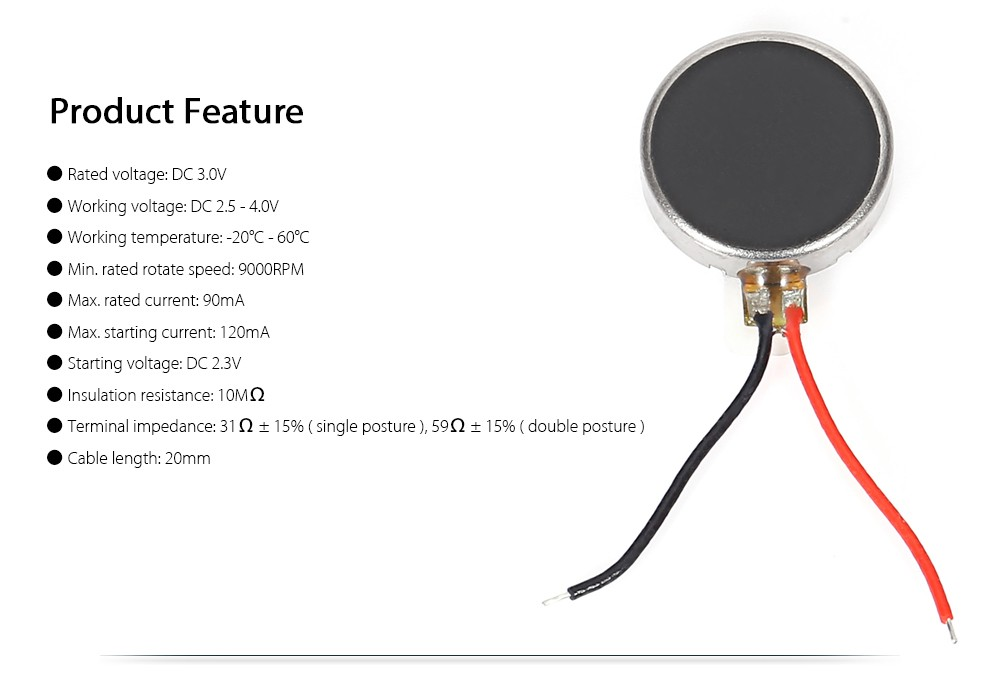

Features
Voltage Range: DC 2.5-4V.
Motor Diameter: 10 mm.
Motor Thickness: 3.4 mm.
Min. Rated Speed: 9000RPM
Max. Rated Current: 90mA
Specifications:
| Item Type: | Vibration Type (General) |
|---|---|
| Voltage Rating (V): | 2.5 to 4VDC |
| Current Rating (mA): | 90 to 120 |
| Rated Speed (RPM) | 9000 |
| Rated Voltage (V): | 3 |
| Operating Voltage (VDC): | 2.5 ~ 4 |
| Operating Temperature (°C) | -20 to 60 |
| Speed (RPM) | 9000 |
| Max. Rated Current (mA): | 90 |
| Max. Starting Current(mA) | 120 |
| Cable Length (mm) | 20 |
Package Includes
1 x Flat 1034 Mobile Phone Vibrator Motor.
Voltage Drop on Motor Driver: Causes, Effects & Prevention Methods
You wire up your motor driver, upload your code, and the robot moves perfectly — for about two...
Read More →
Motor Encoder Interfacing: Quadrature Encoder with Arduino
If you have ever tried to make a robot move in a straight line or position a robotic...
Read More →
Hall Effect Sensor for Motor Speed Measurement with Arduino
Accurate motor speed measurement is the foundation of any closed-loop control system. Without knowing how fast your motor...
Read More →Technical Specifications
| SKU | AI0298 |
|---|---|
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Flat 1034 Mobile Phone Vibrator Motor is a versatile vibration motor used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
