This is the 6cm variant of the Fence Sink Bracket for 6CM Cooling Fan in Cooling Fans. Available at ₹15.22 (₹12.90 + GST) with free shipping across India.
Looking for 6cm Bracket? Fence Sink Bracket for 6CM Cooling Fan is available at Zbotic with fast shipping across India.
Product Description

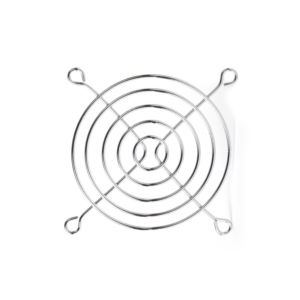

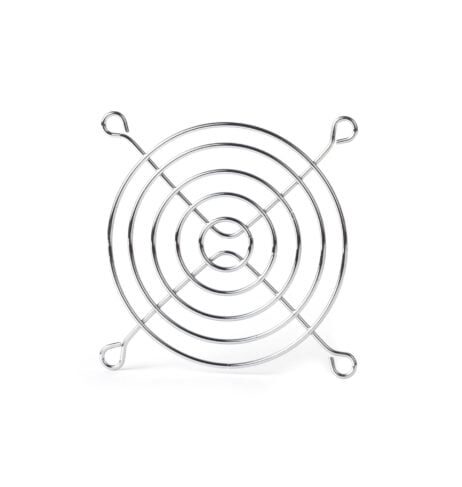

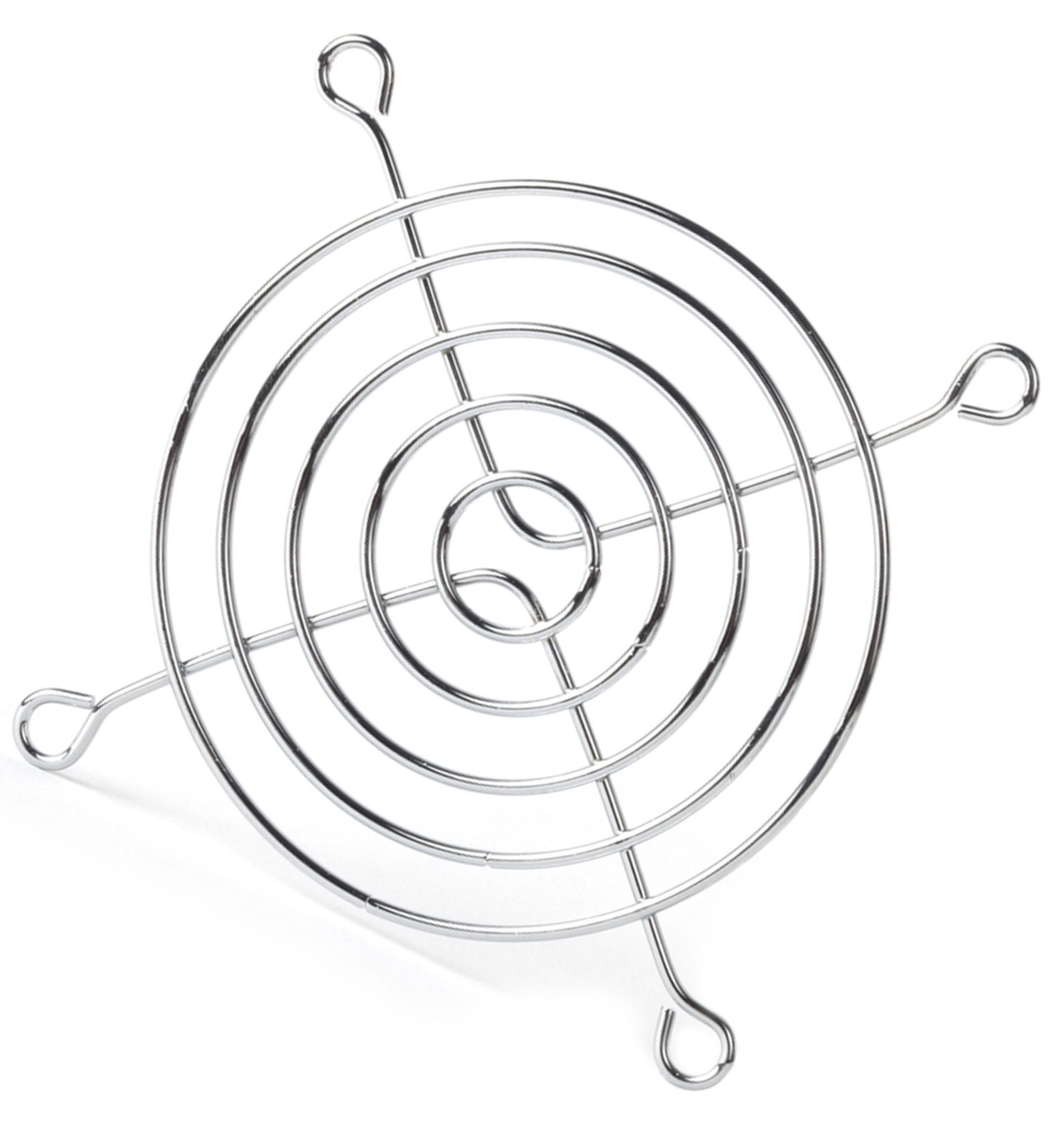

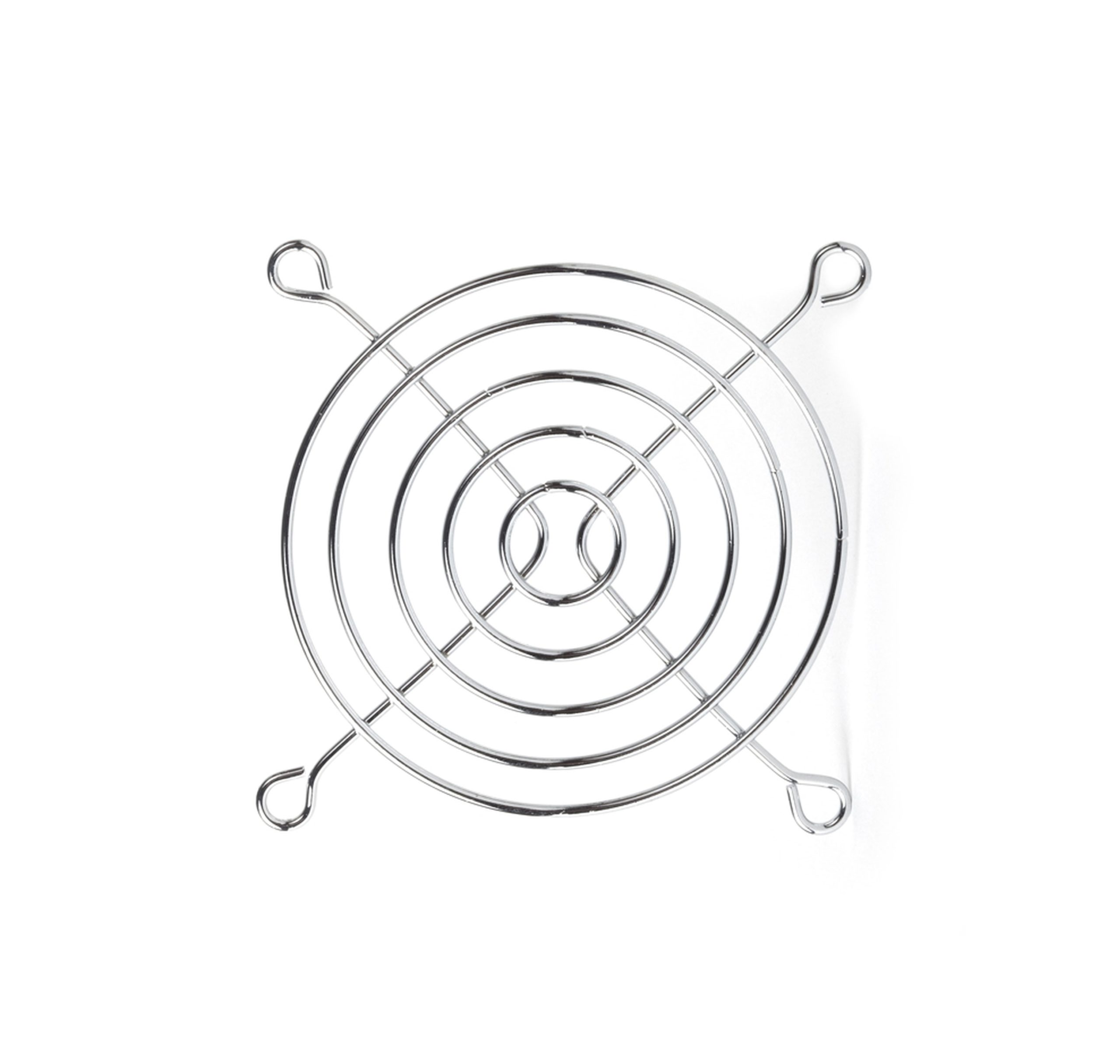

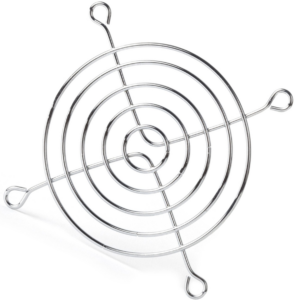

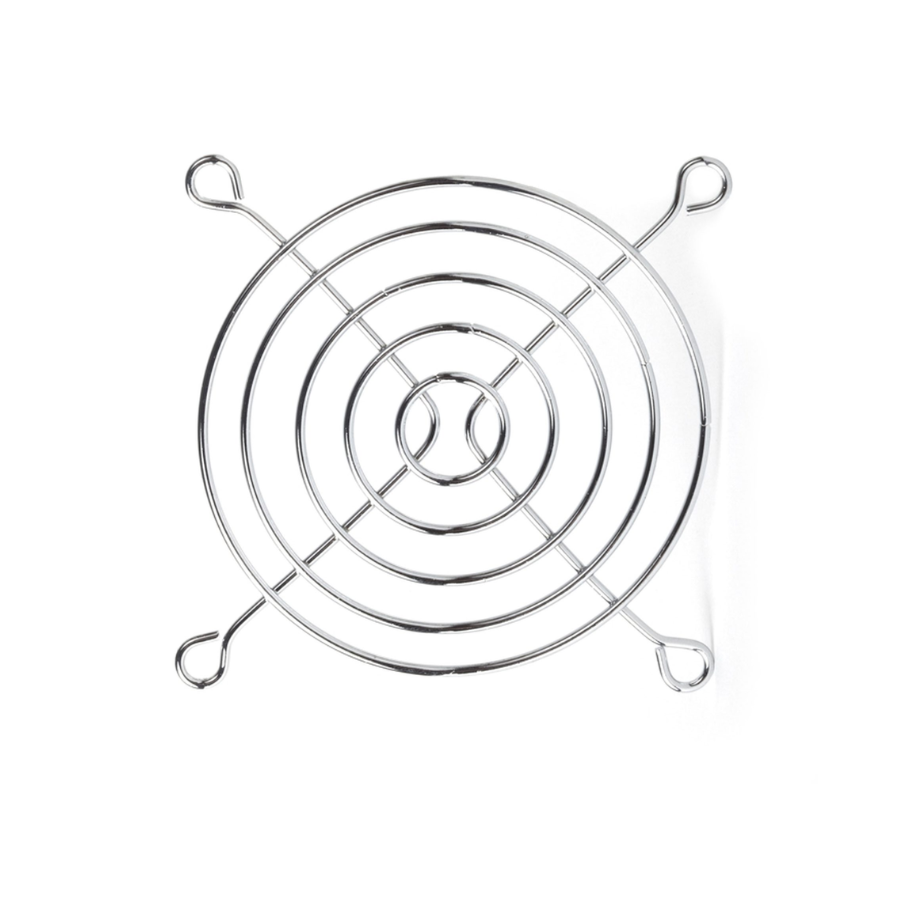

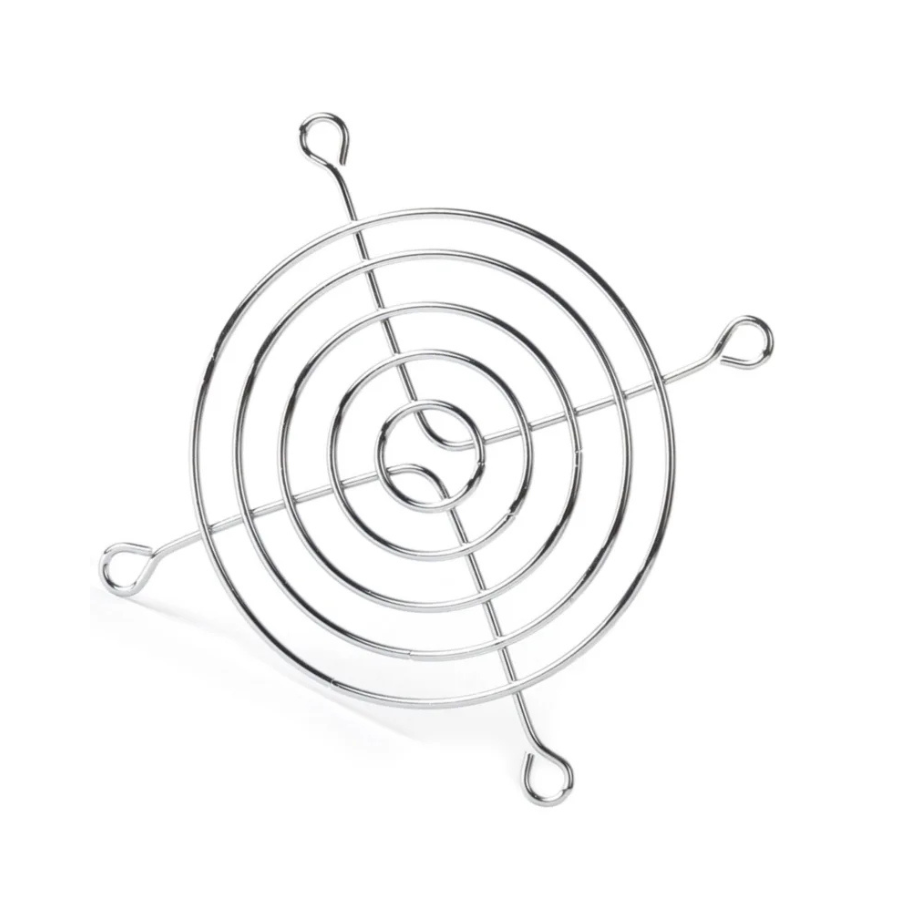

This guard is made of C1008 Steel and has a nickel-chrome coating. It can be attached to any cooling fan with a square frame of 60 millimetres. The guard can resist 220 pounds of force at each joint, making it durable and strong.
Application:
- The fan guard creates a protective barrier between a fan’s blades and any foreign objects it may come into contact with.
- The blade is fragile and can be damaged if impacted by a foreign object during use.
- At high speeds, it can also cause damage to wires and fingers on contact.
Specification:
| Product | Fence Sink Bracket |
|---|---|
| Hole to Hole Distance | 51.5 x 51.5 mm |
| Screw Hole Size | Ø 4.9 mm |
| Fan Size | 60 mm |
| Material: | C1008 Steel |
| Ring Diameter | Ø 1.5mm |
| Rib Diameter | Ø 1.8mm |
| Pull Force | 220 lbs |
| Plug Guage Test | Ø 6.355mm |
| Shipping Weight | 0.008 kg |
| Shipping Dimensions | 10 × 8 × 1 cm |
Package Includes:
1 x Fence Sink Bracket 6cm
Fence Sink Bracket for 6CM Cooling Fan Overview
The Fence Sink Bracket for 6CM Cooling Fan is a protective guard designed to fit any 60 mm square-framed cooling fan. Made of C1008 steel with a nickel-chrome finish, it creates a sturdy barrier between the fan blades and external objects to prevent damage and ensure safe operation.
Key Features of Fence Sink Bracket for 6CM Cooling Fan
- Precisely sized at 56 × 56 × 5 mm with 51.5 × 51.5 mm hole spacing for standard 60 mm fans
- Durable C1008 steel construction with corrosion-resistant nickel-chrome plating
- Ø 4.9 mm screw holes compatible with standard fan-mount screws
- High-strength joints rated to withstand 220 lbs of pull force each
- Slim 1.5 mm ring and 1.8 mm rib profile minimize airflow obstruction
- Genuine product in stock with fast shipping across India from Zbotic
Applications and Use Cases
- Protecting blades in PC chassis or server cabinets equipped with 60 mm fans
- Safety guard for industrial control panels and instrumentation cooling
- Enclosure ventilation on 3D printers where finger-safety is critical
- Dust and debris barrier in telecommunications racks and network switches
- Cooling modules in small electronics or robotics projects using 60 mm fans
How to Use Fence Sink Bracket for 6CM Cooling Fan
Position the bracket over your 60 mm fan’s mounting holes, align the Ø 4.9 mm screw holes, then secure each corner with appropriate fan-mount screws. Ensure the guard ring sits outside the blade span to maintain unobstructed airflow while providing a protective barrier.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which fan sizes are compatible with this bracket?
This bracket is specifically designed for 60 mm square-framed fans with 51.5 × 51.5 mm mounting hole spacing. It will not fit fans of other dimensions.
How strong is the nickel-chrome coating?
The nickel-chrome finish provides excellent corrosion resistance and wear protection, ensuring long-term durability in industrial and consumer electronics environments.
What type of screws should I use for installation?
Use standard fan-mount screws up to Ø 4.9 mm in diameter (commonly M4 or self-tapping fan screws). Screw length should clear the 5 mm frame thickness plus your mounting surface.
Technical Specifications
| SKU | AI2815 |
|---|---|
| Weight | 0.01235 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Fence Sink Bracket for 6CM Cooling Fan is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
