This is the Red variant of the ESC Distribution Board Soldered XT60 & 3.5mm Banana Connectors in PCT and DC Power Connectors, Electronic Connectors. Available at ₹339.84 (₹288.00 + GST) with free shipping across India.
Looking for Xt60 Board 3.5mm? ESC Distribution Board Soldered XT60 & 3.5mm Banana Connectors is available at Zbotic with fast shipping across India.

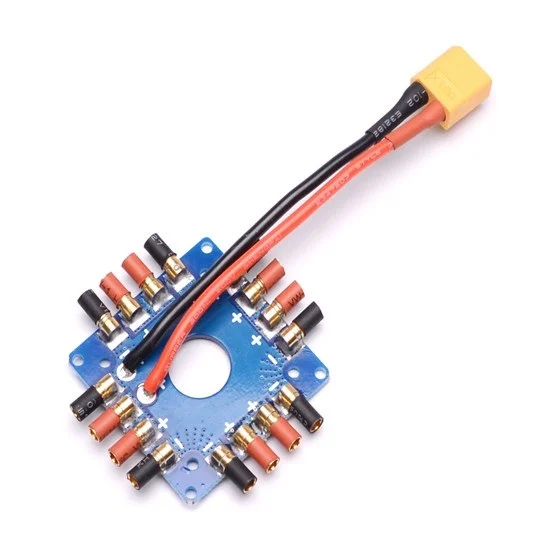

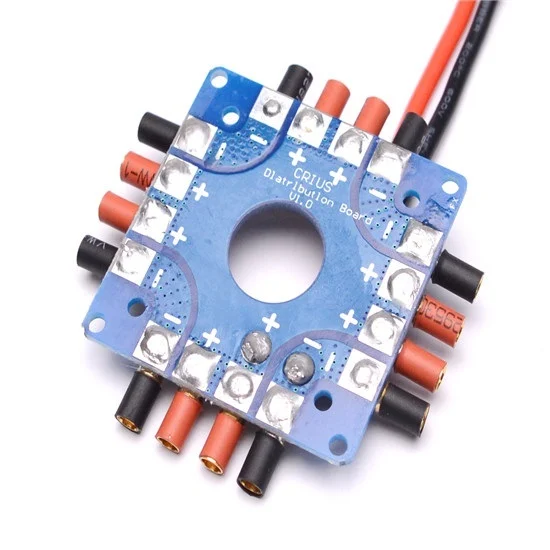

This product is a power distribution board for multi-rotor craft that comes with a soldered XT60 plug and 3.5mm banana bullet connectors. It is ideal for 250mm FPV multicopters.
With this board, you can easily power your multi-rotor craft by soldering a battery connection to the two central terminals. It has eight pairs of connections that can accommodate quadcopters, hexacopters, and octocopters.
The board is compact and lightweight and has large solder pads that make it easy to work with. It can handle up to 20A per output for quadcopters, or up to 10A per output for octocopters.
Features :
- Material: glass fiber
- Compatible with MK KK flight control installment pitch of holes
- Compatible with MK KK flight control system
- Can connect 1-8 ESC.
- This has an XT60 plug to connect a battery.
- This Distribution board has 8 number of the channel to connect different ESCs with 3.5mm Banana Bullet Connectors.
Package Includes :
1 x ESC Distribution Board Soldered XT60 & 3.5mm Banana Connectors
ESC Distribution Board Soldered XT60 & 3.5mm Banana Overview
The ESC Distribution Board Soldered XT60 & 3.5mm Banana Connectors is a compact power distribution solution designed for multi-rotor UAVs. It features a pre-soldered XT60 battery plug and eight 3.5mm banana bullet outputs to streamline ESC installations on quadcopters, hexacopters, and octocopters.
Key Features of ESC Distribution Board Soldered XT60 & 3.5mm Banana
- Glass fiber PCB for lightweight strength and durability
- Pre-soldered XT60 connector for secure battery connection
- Eight 3.5mm banana bullet outputs to connect 1–8 ESCs
- Large solder pads simplify wiring and reduce build time
- Mounting holes match MK KK flight control board pitch
- Handles up to 20 A per channel on quadcopters (10 A on octocopters)
- Fast shipping across India from Zbotic’s warehouse
Applications and Use Cases
- 250 mm FPV quadcopter builds needing centralized power spread
- Hexacopter and octocopter custom frames using 8 ESCs
- Bench testing ESCs with banana plug connections
- MK KK flight controller integrations for smooth wiring
- DIY multi-rotor prototypes where neat cable management matters
How to Use ESC Distribution Board Soldered XT60 & 3.5mm Banana
Mount the board onto your multi-rotor frame using the MK KK hole pattern, solder your battery leads to the XT60 plug, then attach each ESC’s power leads into the matching 3.5 mm banana connectors. Secure all connections, connect the flight controller power cable, and verify voltage distribution before your first flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Q: How many ESCs can I connect?
You can connect up to eight ESCs via the 3.5 mm banana bullet outputs, making it suitable for quadcopters, hexacopters, and octocopters.
Q: What battery connector does this board use?
The board comes with a pre-soldered XT60 plug, compatible with any standard XT60-equipped LiPo battery pack.
Q: Does it fit MK KK flight controllers?
Yes, the mounting hole pitch matches MK KK flight control boards, allowing direct installation without additional adapters.
Technical Specifications
| Size | 3.5mm |
|---|---|
| Connector Type | XT60 |
| Color | Red |
| SKU | AI4362 |
| Availability | Out of Stock |
Applications & Use Cases
The ESC Distribution Board Soldered XT60 & 3.5mm Banana Connectors is a versatile pct and dc power connectors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
