This is the 5V variant of the DC5V 5015 Double Ball Cooling Fan with XH2.54- 2P 30CM Cable Size:50*50*15MM in Cooling Fans. Available at ₹175.82 (₹149.00 + GST) with free shipping across India.
Looking for Dc5v 5015 Double Ball Cooling Fan? DC5V 5015 Double Ball Cooling Fan with XH2.54- 2P 30CM Cable Size:50*50*15MM is available at Zbotic with fast shipping across India.
PRODUCT DESCRIPTION
The 5015 5V Cooling Fan is a high-quality product that can efficiently cool your projects due to its compact size and straightforward installation. It features a connector for direct plugging into Raspberry Pi pins 4 and 6. Additionally, this fan is suitable for cooling high-ampere motor drivers or PC CPU boxes and offers hassle-free mounting and unmounting.
Note: We always buy the best product from the best supplier, Therefore Product Image may differ from the actual product in terms of Brand name.
Specifications and Features:
- 50 x 50 x 15 mm casing Frame size
- 40 mm mounting hole spacing
- Cable Length 30 CM
- Ready to plug Connector for Pi board
- Colour: Black
- Operating Voltage (VDC)12
- Max. Operating Current (mA): 100
- Cable Length (cm): 90cm
- Connector: XH2.54-2P
- Dimensions in mm (LxWxH): 50 x 50 x 2
- Material: High-Quality Plastic
| Material | High-Quality Plastic |
|---|---|
| Connector | XH2.54-2P |
| Cable Length(mm) | 300 |
| Max. Operating Current (mA) | 100 |
| Operating Voltage (VDC) | 5 |
| Color: | Black |
| Frame Size (mm) | 50 x 50 x 15 |
| Shipping Weight | 0.027 kg |
| Shipping Dimensions | 10 × 8 × 2 cm |
Package Includes:
1 x DC5V 5015 Double Ball Cooling Fan

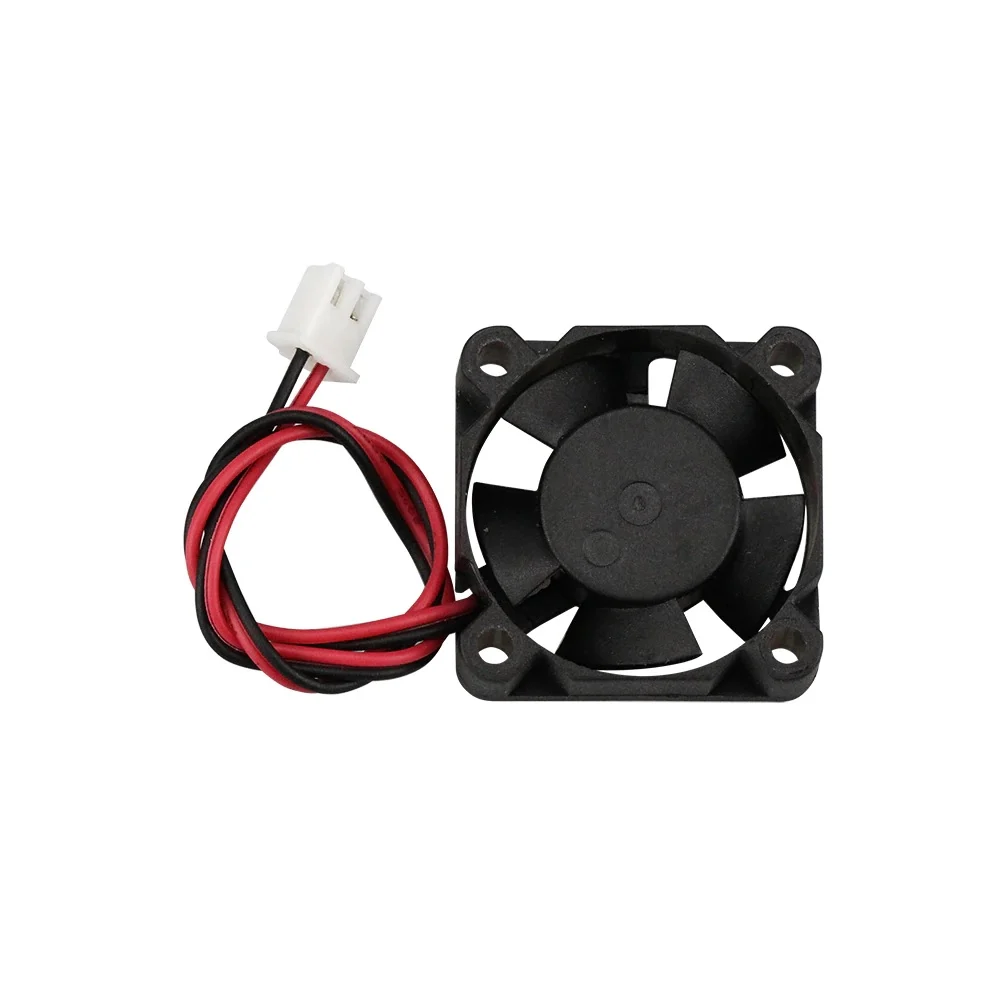

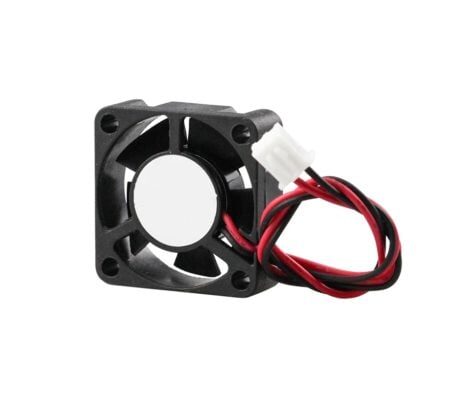

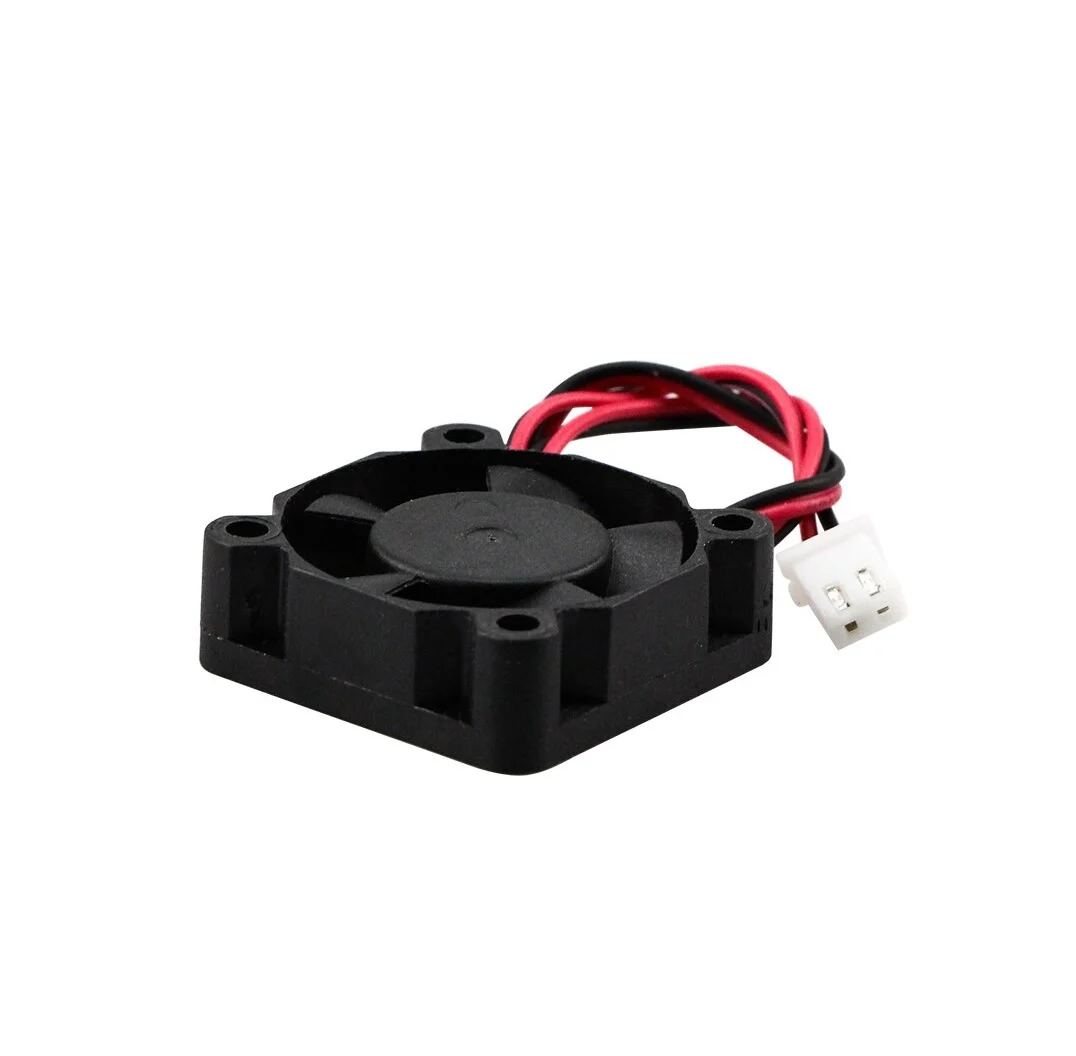

DC5V 5015 Double Ball Cooling Fan with XH2.54- 2P 30CM Overview
The DC5V 5015 Double Ball Cooling Fan is a compact 50 × 50 × 15 mm axial fan designed for targeted cooling in tight spaces. It features double ball bearings for extended lifespan and a ready-to-plug XH2.54-2P connector with a 30 cm cable, making it ideal for Raspberry Pi boards, motor driver modules, small PC cases and other electronics projects.
Key Features of DC5V 5015 Double Ball Cooling Fan with XH2.54- 2P 30CM
- Compact 50 × 50 × 15 mm frame with 40 mm mounting hole spacing for easy installation
- Double ball bearings ensure stable operation and longer service life

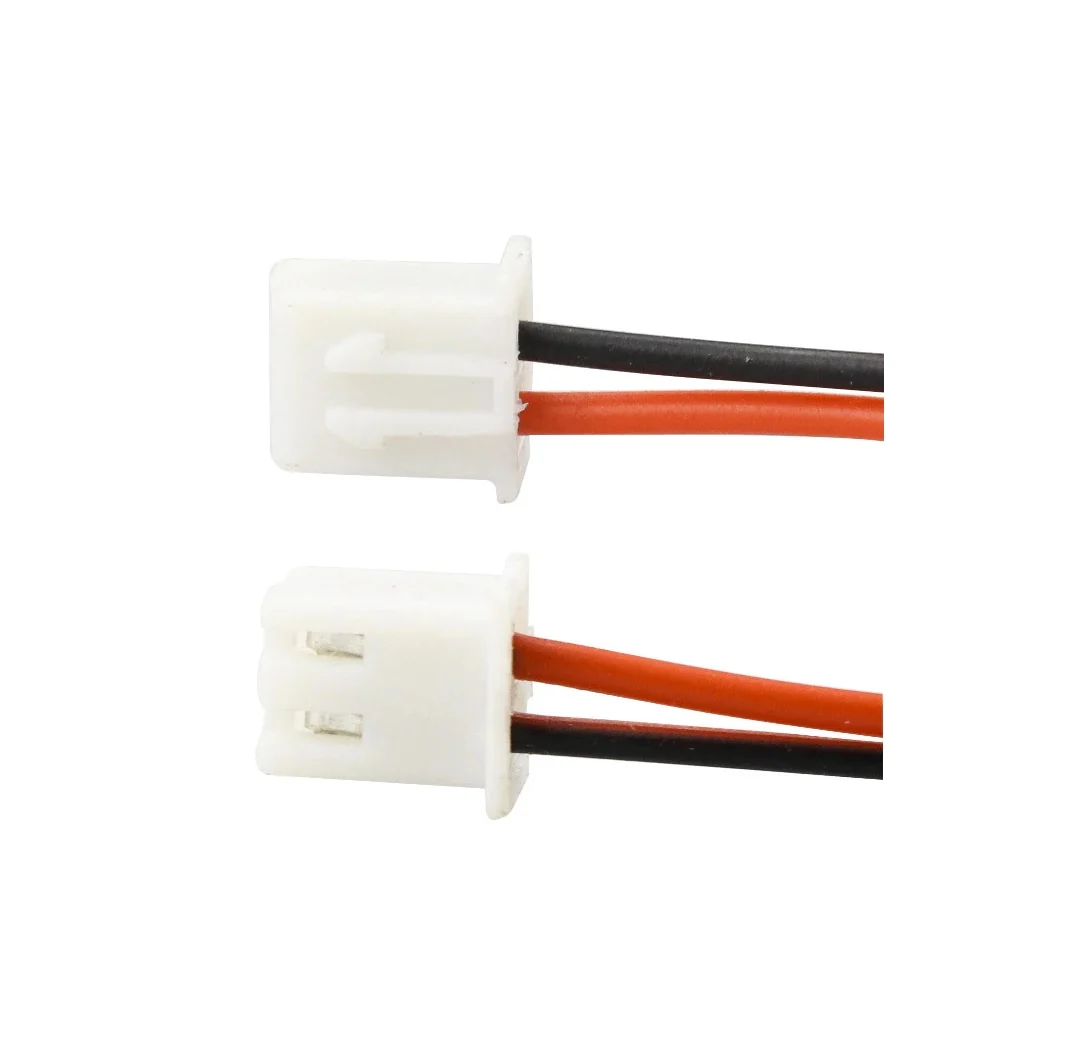

- XH2.54-2P connector fits directly onto 5 V and GND pins
- 30 cm cable length provides flexibility in component layout
- Black casing for a professional, low-profile appearance
- Genuine product with fast shipping available from Zbotic
Applications and Use Cases
- Active cooling for Raspberry Pi 4, 3B+ and similar SBCs
- Ventilation in 3D printer controller boards or CNC drivers
- Supplemental airflow in compact PC or HTPC chassis
- Heat dissipation for high-ampere motor driver modules
- Embedded electronics enclosures and DIY robotics projects
How to Use DC5V 5015 Double Ball Cooling Fan with XH2.54- 2P 30CM
Mount the fan using four M2.5 screws through the 40 mm-spaced holes onto your heatsink, chassis or bracket. Connect the red wire of the XH2.54-2P plug to the 5 V supply pin and the black wire to ground. Ensure the airflow direction aligns with your cooling needs and secure any loose cables to prevent interference with the blades.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I connect this fan directly to a Raspberry Pi GPIO header?
Yes, the included XH2.54-2P connector is wired for 5 V (pin 4) and GND (pin 6) on the Raspberry Pi GPIO header, allowing plug-and-play installation without soldering.
What is the spacing of the mounting holes?
The fan’s mounting holes are arranged on a 40 mm square pattern, compatible with most 50 × 50 mm brackets, enclosures and heatsinks used in electronics and small PC builds.
How does the double ball bearing design benefit me?
Double ball bearings reduce friction and wear compared to sleeve bearings, resulting in quieter operation, higher rotational stability and a longer overall service life—especially under continuous use.
Technical Specifications
| Model | DC5V |
|---|---|
| Operating Voltage | 5V |
| Size | 15mm |
| Interface / Protocol | BLE |
| SKU | AI3276 |
| Weight | 0.02405 kg |
| Availability | In Stock |
Applications & Use Cases
The DC5V 5015 Double Ball Cooling Fan with XH2.54- 2P 30CM Cable Size:50*50*15MM is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
