This is the 5V variant of the DC5V 5010 Double Ball Cooling Fan with USB Size:50*50*10MM in Cooling Fans. Available at ₹208.86 (₹177.00 + GST) with free shipping across India.
Looking for Dc5v Fan 10mm? DC5V 5010 Double Ball Cooling Fan with USB Size:50*50*10MM is available at Zbotic with fast shipping across India.

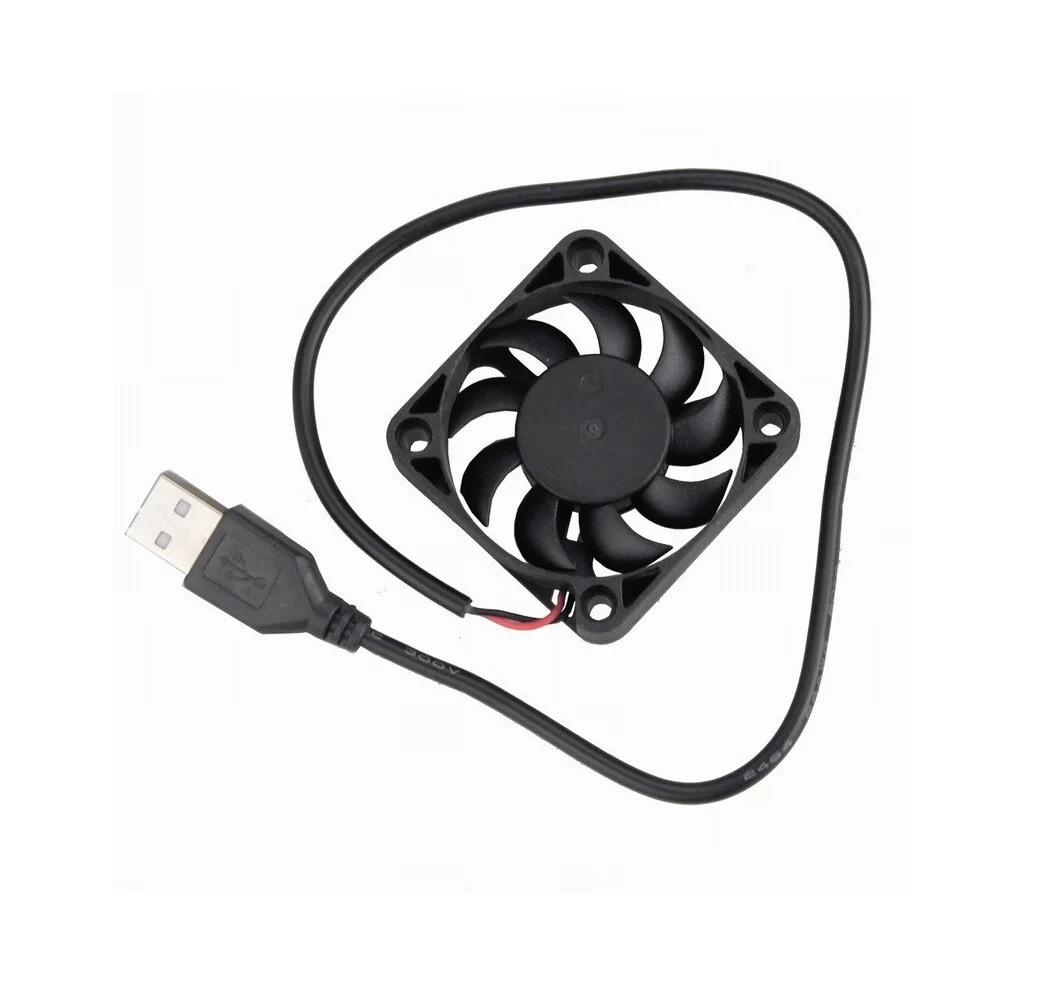

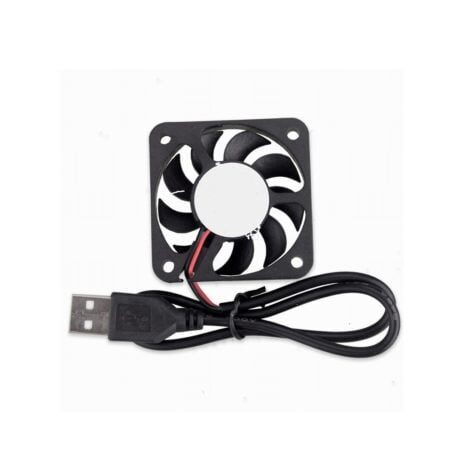

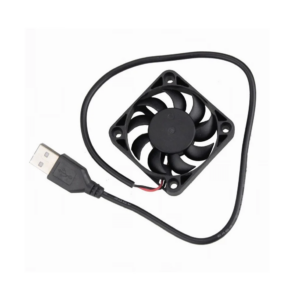

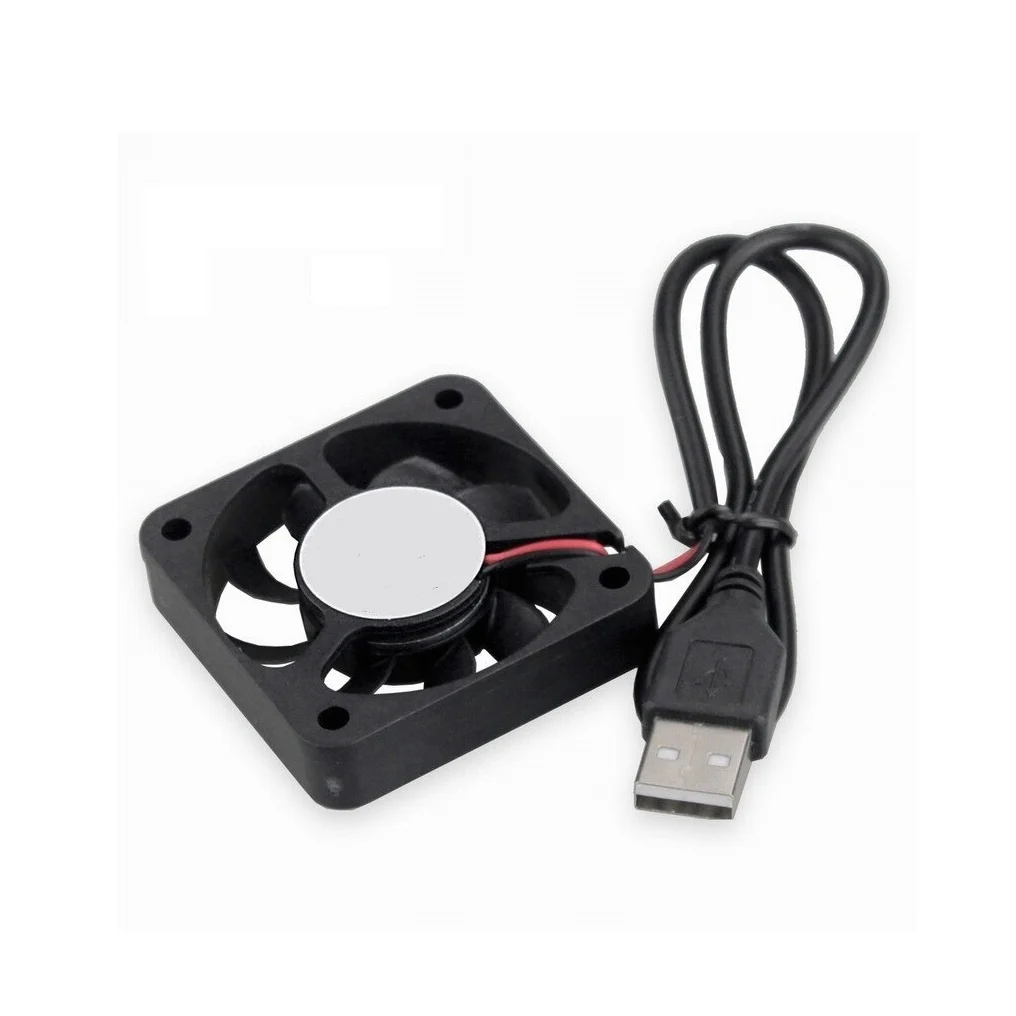

DC5V 5010 Double Ball Cooling Fan with USB Size:50*50*10MM
The high-quality 5010 5V cooling fan is ideal for maintaining the optimal temperature of your projects. Its compact size ensures effortless installation, and it includes a connector for straightforward integration with circuit boards. This fan can be directly connected to pins 4 and 6 on a Raspberry Pi. It is also well-suited for use with high-amperage motor drivers and PC CPU cases.
Note: We always buy the best product from the best supplier, Therefore Product Image may differ from the actual product in terms of Brand name.
Specification:
| Material | High-Quality Plastic |
|---|---|
| Operating Voltage (VDC) | 5 |
| Max. Operating Current (mA) | 100 |
| Cable Length(mm) | 900 |
| Connector | USB A |
| Dimensions(mm) | 50 x 50 x 10 |
| Shipping Weight | 0.041 kg |
| Shipping Dimensions | 13 × 9 × 2 cm |
Package Includes:
1 x 5010 5V Cooling Fan
DC5V 5010 Double Ball Cooling Fan with USB Size:50*50*10MM Overview
The DC5V 5010 Double Ball Cooling Fan is a compact, high-performance blower designed to maintain optimal temperatures in electronics projects. With a 50×50×10 mm frame, 40 mm mounting hole spacing, and a 90 cm USB cable, it plugs directly into a Raspberry Pi’s 5 V pins or any USB port for immediate cooling.
Key Features of DC5V 5010 Double Ball Cooling Fan with USB Size:50*50*10MM
- Compact 50×50×10 mm plastic frame for tight spaces
- Double ball bearing design ensures longer lifespan and reliable operation
- Ready-to-plug USB connector with 90 cm cable for easy routing
- 40 mm mounting hole spacing fits standard brackets and cases
- Operates at DC 5 V, compatible with Raspberry Pi pins 4 and 6
- Fast shipping from Zbotic across India with genuine product guarantee
Applications and Use Cases
- Active cooling for Raspberry Pi and other single-board computers
- Temperature control on high-amperage motor driver modules
- Supplemental airflow in small PC or NAS enclosures
- Ventilation for 3D printer control boards and heated electronics
- Cooling network switches, routers, or mini amplifiers
- General thermal management in DIY electronics projects
How to Use DC5V 5010 Double Ball Cooling Fan with USB Size:50*50*10MM
Mount the fan using four M3 screws into the 40 mm-spaced holes, then plug the USB connector into a 5 V USB port or directly onto your Raspberry Pi’s pins 4 and 6. Position the airflow direction toward your heat source and secure cables to prevent strain. Power on your board or USB supply for immediate temperature control.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I power this fan from any USB port?
Yes, the DC5V 5010 fan draws its 5 V supply directly from any standard USB port, making it compatible with PCs, power banks, and USB adapters.
What is the expected noise level?
The double ball bearing mechanism keeps the noise level low—typically under 25 dB—while providing stable airflow for small enclosures.
Is the 90 cm cable length sufficient for typical Pi setups?
With a 90 cm cable, you get flexible routing options around your case or frame, which is usually more than enough for standard Raspberry Pi and small PC layouts.
Technical Specifications
| Model | DC5V |
|---|---|
| Operating Voltage | 5V |
| Size | 10mm |
| Interface / Protocol | USB, BLE |
| SKU | AI3270 |
| Weight | 0.05 kg |
| Availability | In Stock |
Applications & Use Cases
The DC5V 5010 Double Ball Cooling Fan with USB Size:50*50*10MM is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
