This is the 5V variant of the DC5V 3510 Hydraulic Cooling Fan with XH2.54-2P 30CM Cable Size:35*35*10MM in Cooling Fans. Available at ₹75.52 (₹64.00 + GST) with free shipping across India.
Looking for Dc5v Cable 30cm? DC5V 3510 Hydraulic Cooling Fan with XH2.54-2P 30CM Cable Size:35*35*10MM is available at Zbotic with fast shipping across India.

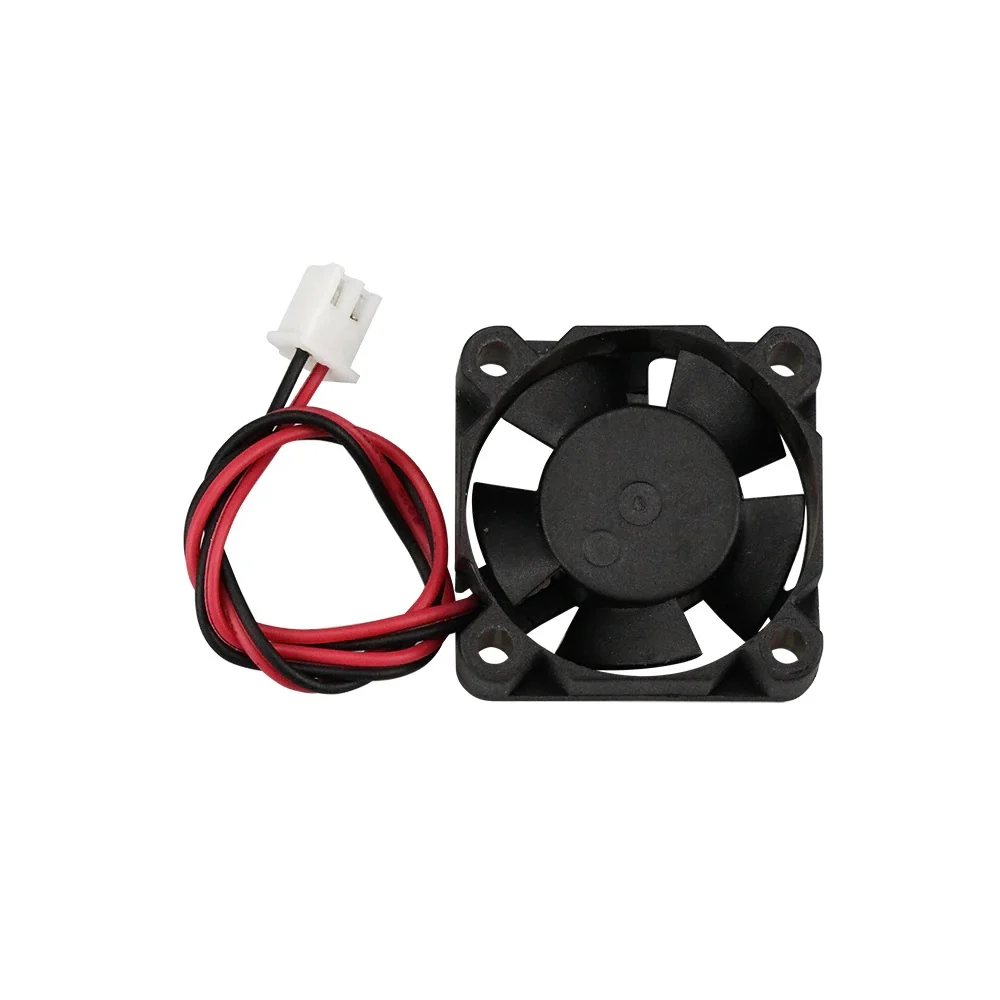

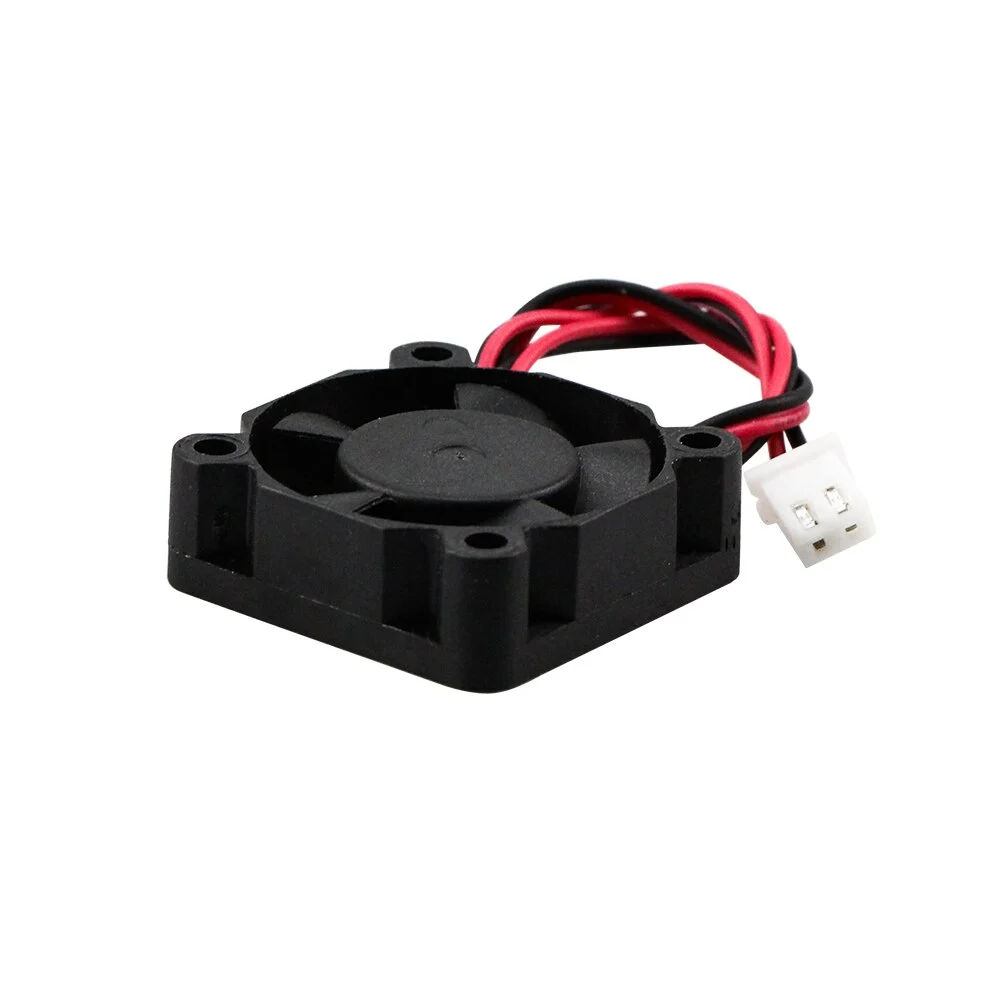

DC5V 3510 Hydraulic Cooling Fan with XH2.54-2P 30CM Cable Size:35*35*10MM
The 3D Printer Hydraulic Cooling Fan 3510 is a high-quality brushless fan that runs on 5V and consumes very little power. It connects to the printer controller with a two-pin connector and works automatically to regulate the extruder temperature. This small and powerful fan helps to ensure smooth and consistent printing by providing effective exhaust cooling.
Note: The image shown may differ from the actual product in terms of the brand name, Voltage/current rating shown.
Features:
- Perfectly fit on the extruder
- Noiseless Performance
- Very low Current consumption
- Easy to install and connect.
- Long Connecting Wire
- Brushless Motor and silent operation
Specification:
- Rated Voltage (V): 5
- Startup Voltage(V):3
- Current Amp(A):0.06
- Speed(RPM):8000
- Air flow (CFM):1.24
- Static Pressure(mmH20):2.115.00
- Noise Level(dB-A):5.0021
- Weight(g):5.00
Package Includes:
1 x 5 V 3510 Cooling Fan
DC5V 3510 Hydraulic Cooling Fan with XH2.54-2P 30CM Cable Overview
The DC5V 3510 Hydraulic Cooling Fan is a compact 35×35×10 mm brushless fan designed specifically for 3D printer extruder cooling. Equipped with a 30 cm XH2.54-2P cable, it runs on a 5 V supply at around 8000 RPM to maintain stable extrusion temperatures and ensure high-quality prints.
Key Features of DC5V 3510 Hydraulic Cooling Fan with XH2.54-2P 30CM Cable
- Hydraulic bearing design for smooth operation and extended service life
- Compact 35×35×10 mm form factor fits most 3D printer extruders

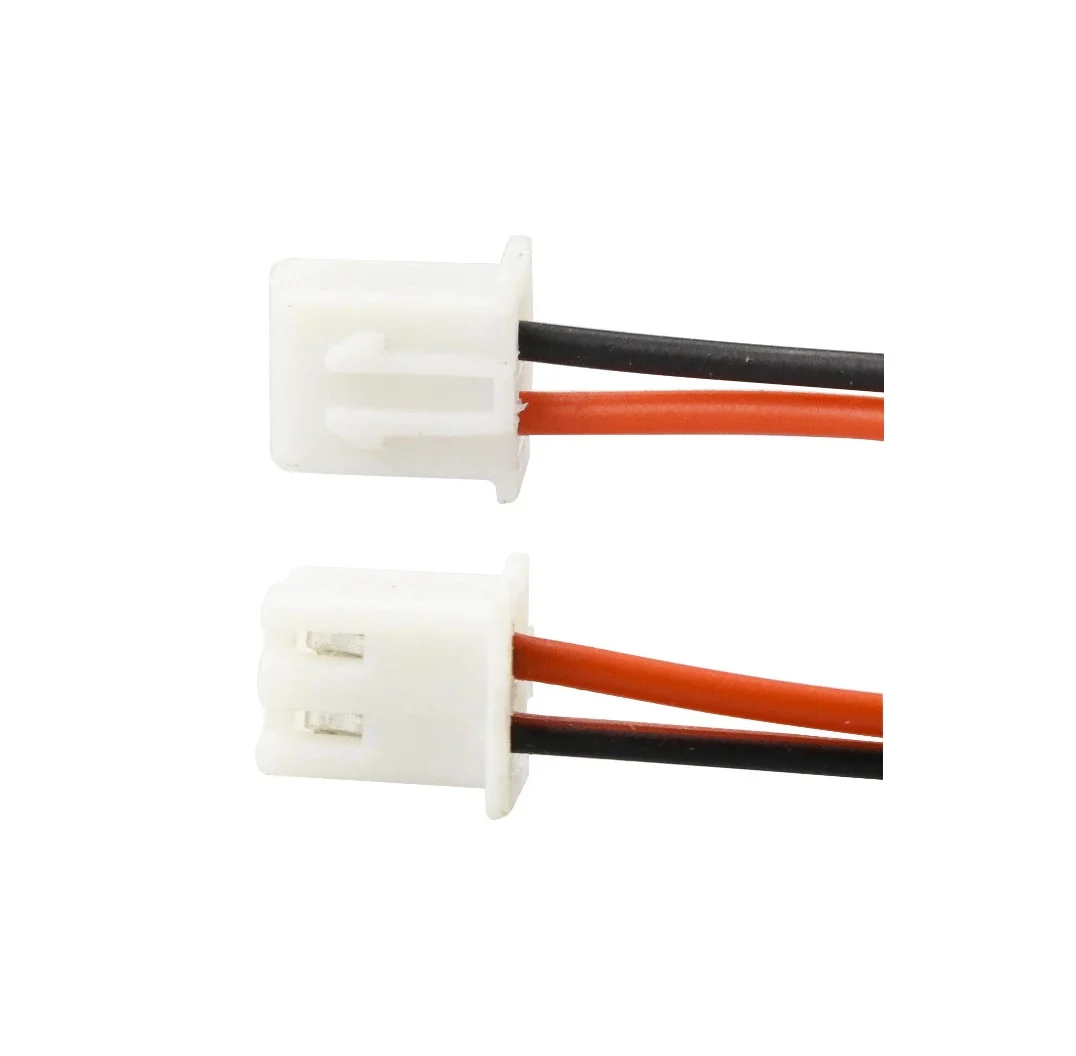

- XH2.54-2P two-pin connector with 30 cm cable for easy board integration
- Runs at 5 V with low current draw for energy-efficient cooling
- High-speed 8000 RPM airflow to keep the hotend temperature consistent
- Quiet performance minimises printer noise during long print jobs
- Genuine product with fast shipping across India from Zbotic
Applications and Use Cases
- Cooling FDM/FFF 3D printer extruder hotends to prevent filament jams
- Heat dissipation for small CNC routers and desktop engraving machines
- Active ventilation in compact electronic enclosures and control boxes
- Upgrading cooling on laser cutter control boards and driver modules
- Supplemental airflow for single-board computers and embedded systems
How to Use DC5V 3510 Hydraulic Cooling Fan with XH2.54-2P 30CM Cable
Mount the fan onto your extruder’s heatsink using M3 screws or existing brackets, ensuring the airflow direction points towards the hotend fins. Plug the XH2.54-2P connector into the 5 V fan header on your printer’s controller board. Power up the printer; the fan will spin automatically when the board supplies voltage, maintaining optimal temperature.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is this fan compatible with my 3D printer’s controller board?
The DC5V 3510 fan uses a standard XH2.54-2P connector for 5 V fan headers found on most 3D printer controller boards. Verify your board has a free 5 V two-pin output before installation.
How noisy is the hydraulic bearing fan during operation?
Thanks to its hydraulic bearing, this fan operates with minimal friction and delivers virtually silent cooling, making it ideal for noise-sensitive workspaces.
Does the fan require any maintenance?
The sealed hydraulic bearing design requires no lubrication. Simply keep the fan free of dust by using compressed air to blow out debris every few months for reliable performance.
Technical Specifications
| Model | DC5V |
|---|---|
| Operating Voltage | 5V |
| Size | 10mm |
| Interface / Protocol | BLE |
| SKU | AI3198 |
| Weight | 0.01365 kg |
| Availability | In Stock |
Applications & Use Cases
The DC5V 3510 Hydraulic Cooling Fan with XH2.54-2P 30CM Cable Size:35*35*10MM is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
