This is the 5V variant of the DC5V 2507 Oil Containing Cooling Fan with XH2.54-2P 30CM Cable（8000RPM） Size:25*25*7MM in Cooling Fans. Available at ₹108.32 (₹91.80 + GST) with free shipping across India.

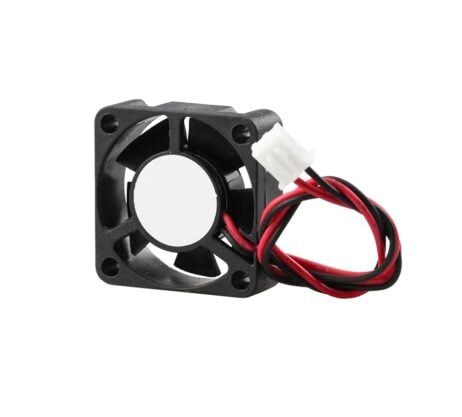

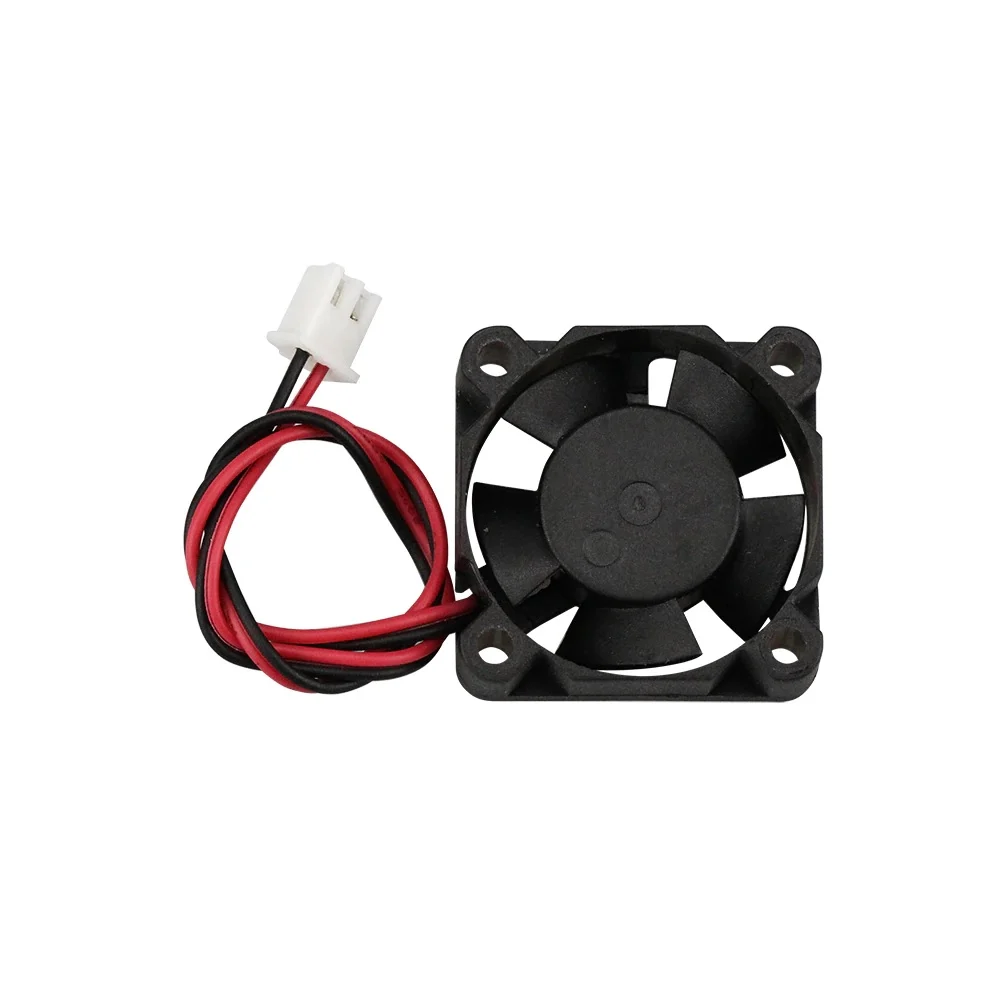

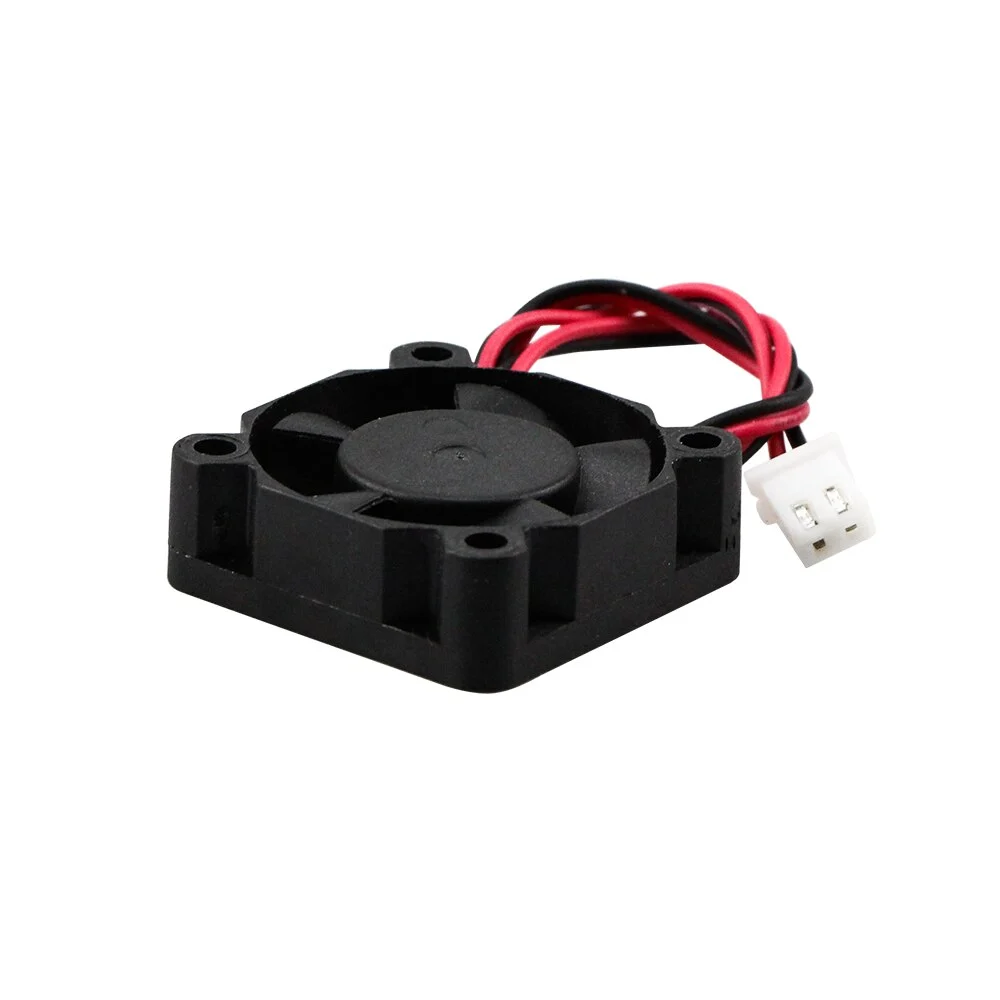

DC5V 2507 Oil Containing Cooling Fan with XH2.54-2P 30CM Cable（8000RPM） Size:25*25*7MM
This is a high-quality 2507 5V Cooling Fan. You can use this compact 5V fan to cool down your projects. It has easy mounting and a connector to plug into the onboard. You can connect this fan directly to Raspberry Pi pins 4 and 6. This fan is also suitable for high-ampere motor drivers and PC CPU boxes.
Note: We always buy the best product from the best supplier, Therefore Product Image may differ from the actual product in terms of Brand name.
Specifications and Features:
- 25 x 25 x 7 mm casing Frame size
- 20 mm mounting hole spacing
- Cable Length 30 CM
- Ready to plug Connector for Pi board.
- Colour: Black
- Fan Speed:8000RPM.
- Operating Voltage (VDC): 5V
- Max. Operating Current (mA): 100

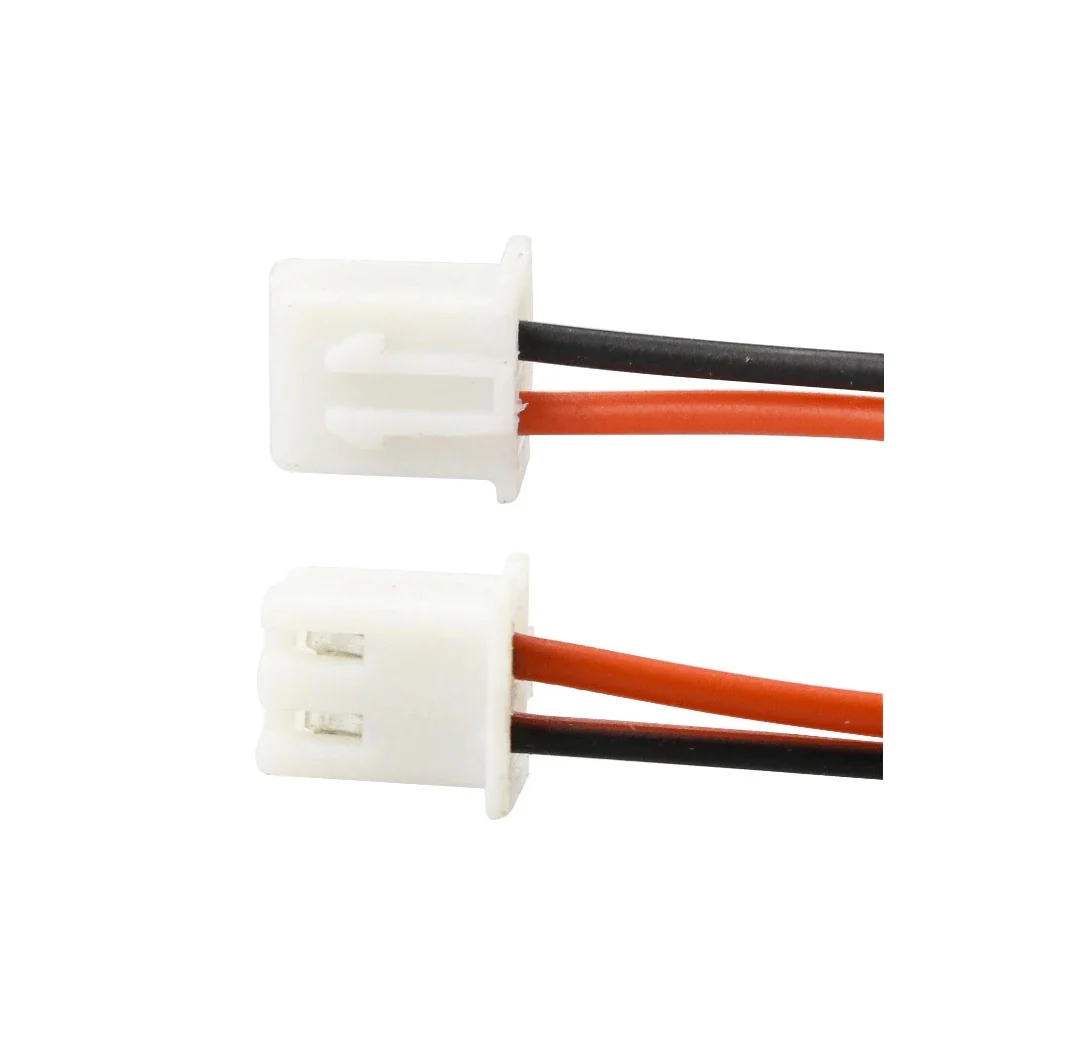

- Connector: XH2.54-2P
- Material: High-Quality Plastic
| Material | High-Quality Plastic |
|---|---|
| Color: | Black |
| Connector | XH2.54-2P |
| Max. Operating Current (mA) | 100 |
| Fan speed | 8000RPM |
| Cable Length(mm) | 300 |
| Operating Voltage (VDC) | 5 |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 9 × 7 × 1 cm |
Package Includes:
1 x 2507 5V Cooling Fan
Technical Specifications
| Model | DC5V |
|---|---|
| Operating Voltage | 5V |
| Size | 7mm |
| Interface / Protocol | BLE |
| Speed | 8000 RPM |
| SKU | AI3185 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The DC5V 2507 Oil Containing Cooling Fan with XH2.54-2P 30CM Cable（8000RPM） Size:25*25*7MM is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
