This is the 5V variant of the DC5V 0.06A 5015 Double Ball Centrifugal Fan with XH2.54-2P 30CM Cable Size:50*50*15MM in Cooling Fans. Available at ₹187.62 (₹159.00 + GST) with free shipping across India.
Looking for Dc5v Cable 0.06a? DC5V 0.06A 5015 Double Ball Centrifugal Fan with XH2.54-2P 30CM Cable Size:50*50*15MM is available at Zbotic with fast shipping across India.
PRODUCT DESCRIPTION
The 5V DC 5015 Double Ball Centrifugal Fan is crafted from high-quality materials designed to withstand high temperatures, ensuring long-lasting durability. Perfect for cooling heat sinks, hot ends, prints, and other components, it meets a wide range of cooling needs. Featuring premium PBT with 30% glass fiber VO and precision bearings, the fan operates quietly and efficiently. Capable of reducing temperatures to 75℃, it is built for continuous 24-hour operation at 40℃ without compromise.
Features:
- 45mm Radial Cooling fan.
- 5V 2-point Pin DC 0.06A.
- Made of high-quality PBT 30% glass line VO
- Bearing is a high precision, long life, and low noise.
- Excellent for cooling heat sinks on hot ends, prints, or other cooling needs
Specification:
- Color: Black
- Cable Length (cm): 30
- Model: Double Ball Centrifugal Fan
- Material: PBT 30% glass line VO
- Speed (RPM): 7000±10%
- Operating Temperature: 10° to 60° C
- Operating Voltage (VDC): 5
- Mounting Screw Hole Diameter: 4mm
- Air inlet size: 31mm
- Outlet size: 16 x 12 mm
| Model | Double Ball Centrifugal Fan |
|---|---|
| Material | PBT 30% glass line VO |
| Color: | Black |
| Speed (RPM) | 7000±10% |
| Cable Length(mm) | 300 |
| Operating Temperature Range (°C): | 10° to 60° C |
| Operating Voltage (VDC) | 5 |
| Mounting Hole Diameter (mm) | 4mm |
| Air inlet size | 31mm |
| Outlet size | 16 x 12 mm |
| Shipping Weight | 0.027 kg |
| Shipping Dimensions | 9 × 8 × 3 cm |
Package Includes:
1 x 5V DC 5015 Double Ball Centrifugal Fan;
DC5V 0.06A 5015 Double Ball Centrifugal Fan with XH2.54-2P Overview
The DC5V 0.06A 5015 Double Ball Centrifugal Fan is a compact 50×50×15 mm cooling solution featuring dual ball bearings for extended service life. It delivers focused radial airflow through a PBT with 30% glass fiber VO housing and connects via a 2-pin XH2.54 cable (30 cm) for easy integration in electronics and 3D printer applications.
Key Features of DC5V 0.06A 5015 Double Ball Centrifugal Fan with XH2.54-2P
- Compact 50×50×15 mm 5015 form factor suitable for tight spaces
- Low-current draw: 5 VDC at just 0.06 A
- Dual ball bearings ensure high precision, long life, and low noise
- Flame-retardant PBT with 30% glass fiber VO for heat resistance

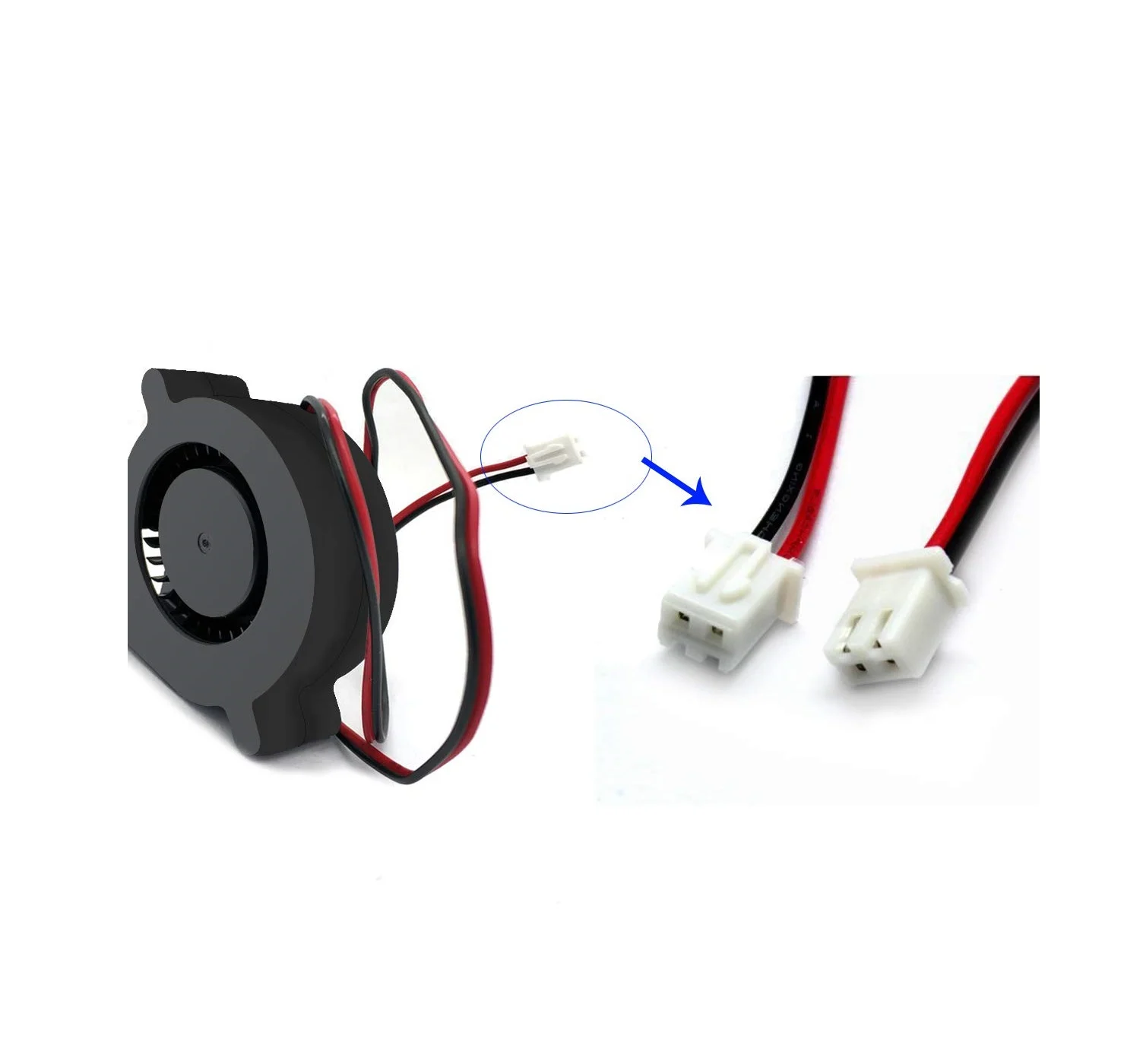

- Pre-wired 30 cm cable with XH2.54-2P connector for plug-and-play setup
- Fast shipping from Zbotic’s India warehouses
Applications and Use Cases
- Cooling 3D printer hot ends and heat sinks to prevent filament jams
- Ventilating compact electronics enclosures and single-board computers
- Supplemental airflow for VRM and GPU cooling in mini PCs
- Forced air cooling in laser engravers and CNC spindle assemblies
- Temperature management in battery packs and power modules
How to Use DC5V 0.06A 5015 Double Ball Centrifugal Fan with XH2.54-2P
Mount the fan using M3 screws in your enclosure or heat sink bracket, ensuring the airflow direction matches your cooling requirements. Connect the red and black wires on the XH2.54-2P plug to a regulated 5 V supply. Verify secure cable routing to avoid impeding the impeller, then power on to begin continuous operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What connector type does this fan use?
This fan is fitted with a 2-pin XH2.54-2P connector on a 30 cm cable for easy plug-and-play into most control boards or power modules.
How long can the fan run continuously?
Designed for 24/7 operation at ambient temperatures up to 40 ℃, it can handle peak temperatures up to 75 ℃ without performance loss.
What bearing type is used and what are its benefits?
The dual ball bearing design provides high precision, low vibration, quiet operation, and a longer lifespan compared to sleeve bearings.
Technical Specifications
| Model | DC5V |
|---|---|
| Operating Voltage | 5V |
| Current Rating | 0.06A |
| Size | 15mm |
| Interface / Protocol | BLE |
| SKU | AI3339 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The DC5V 0.06A 5015 Double Ball Centrifugal Fan with XH2.54-2P 30CM Cable Size:50*50*15MM is a versatile cooling fans used across a wide range of applications including 3D printer hotend cooling, electronics enclosure ventilation, Raspberry Pi cooling, server rack airflow, and LED heatsink cooling.
Common use cases:
- Replacing a noisy or failed cooling fan
- Adding active cooling to a Raspberry Pi 5
- Part cooling on a 3D printer for better overhangs
This product is ideal for makers, 3D printing enthusiasts, and electronics designers.
Technical Tip: Ball bearing fans last longer than sleeve bearing. Match voltage (5V/12V/24V) and size to your application. CFM rating indicates airflow capacity.
